Commercial Service Tools

Tool name

Description

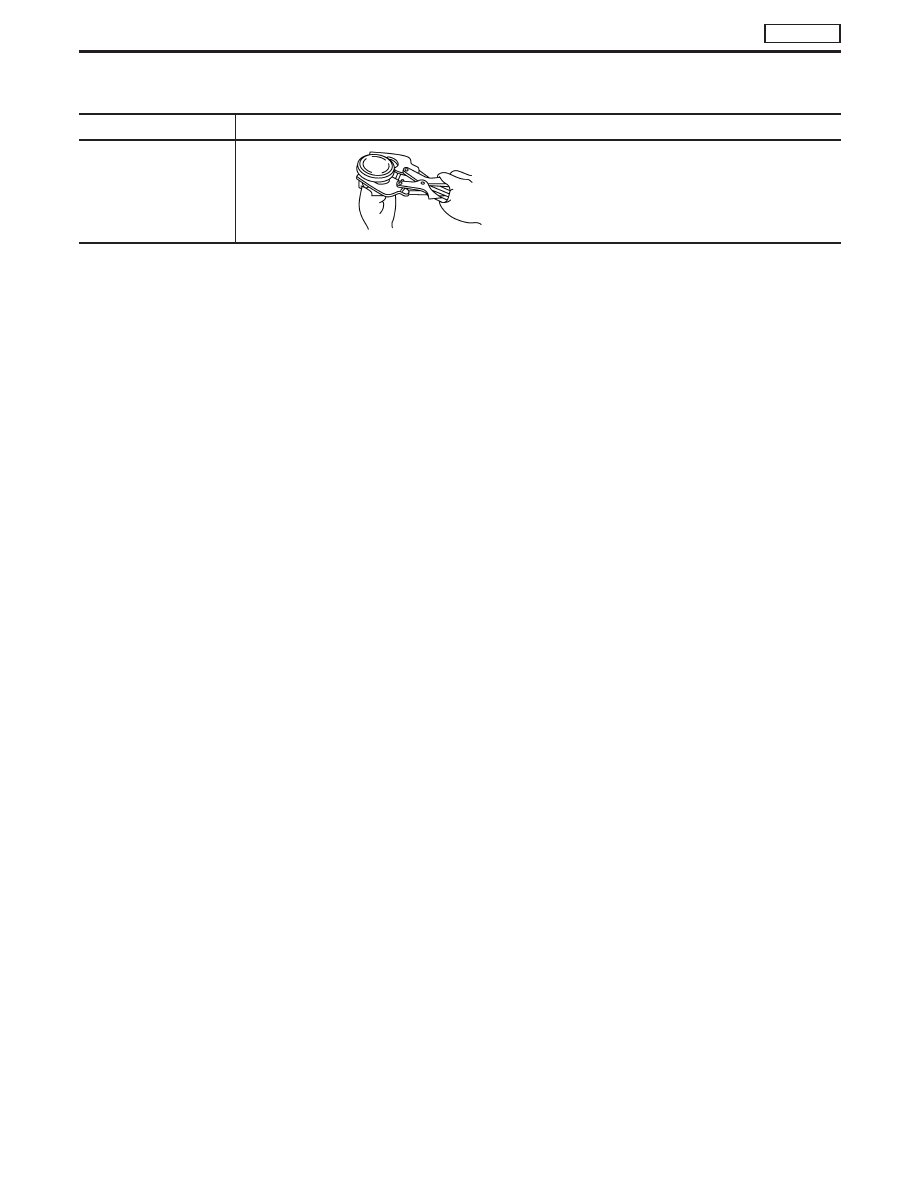

Piston ring expander

Removing and installing piston ring

PREPARATION

TD27Ti

EM-99

q

1

Intake manifold

q

2

Oil cooler

q

3

Injection pump drive gear

q

4

Dust cover

q

5

Engine revolution sensor

q

6

Air conditioner compressor

q

7

Idler pulley

q

8

Electronic injection pump

NEM324

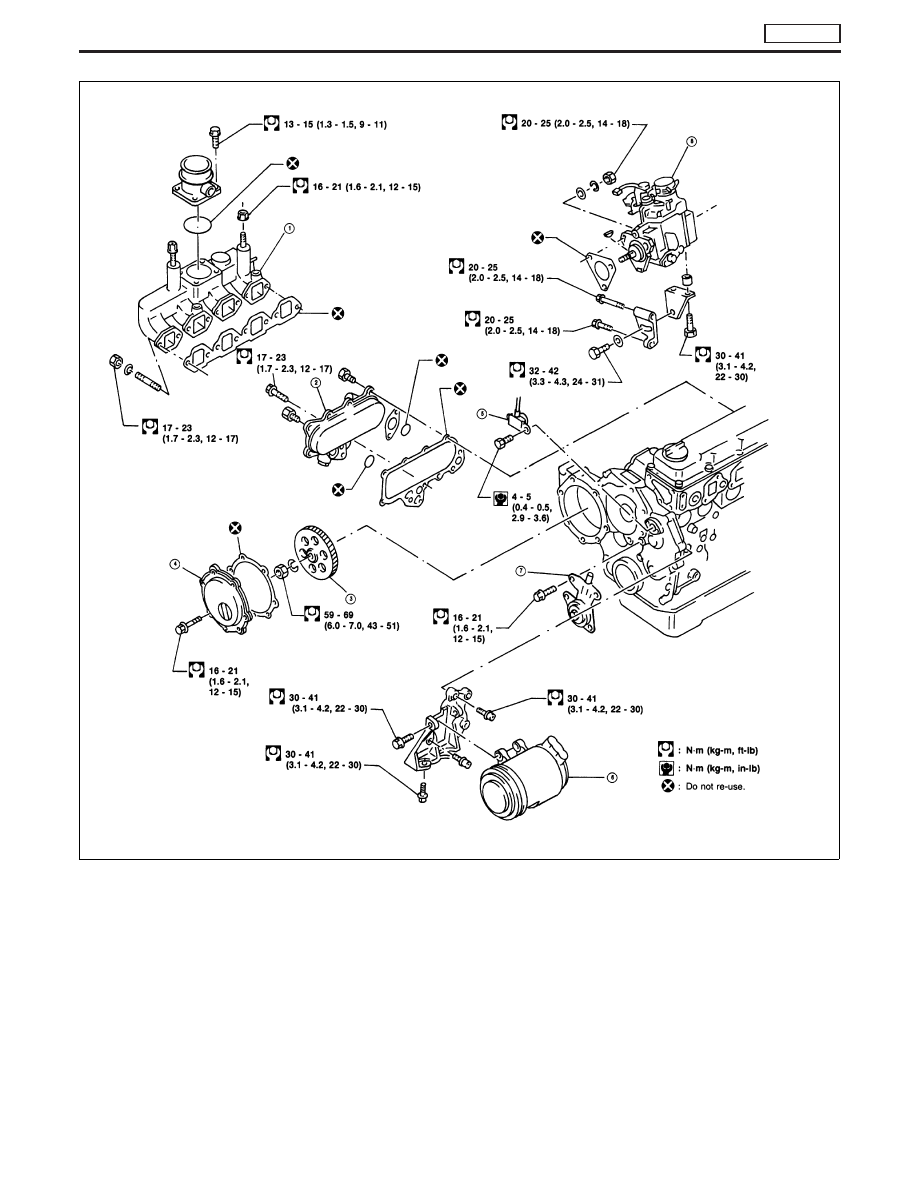

ENGINE COMPONENTS — Outer Parts

TD27Ti

EM-100

q

1

Injection tube

q

2

Spill tube

q

3

Injection nozzle

q

4

Engine slinger

q

5

Oil filter bracket

q

6

Oil filter

q

7

Alternator adjusting bar & engine

slinger

q

8

Turbocharger

q

9

Exhaust manifold

NEM344

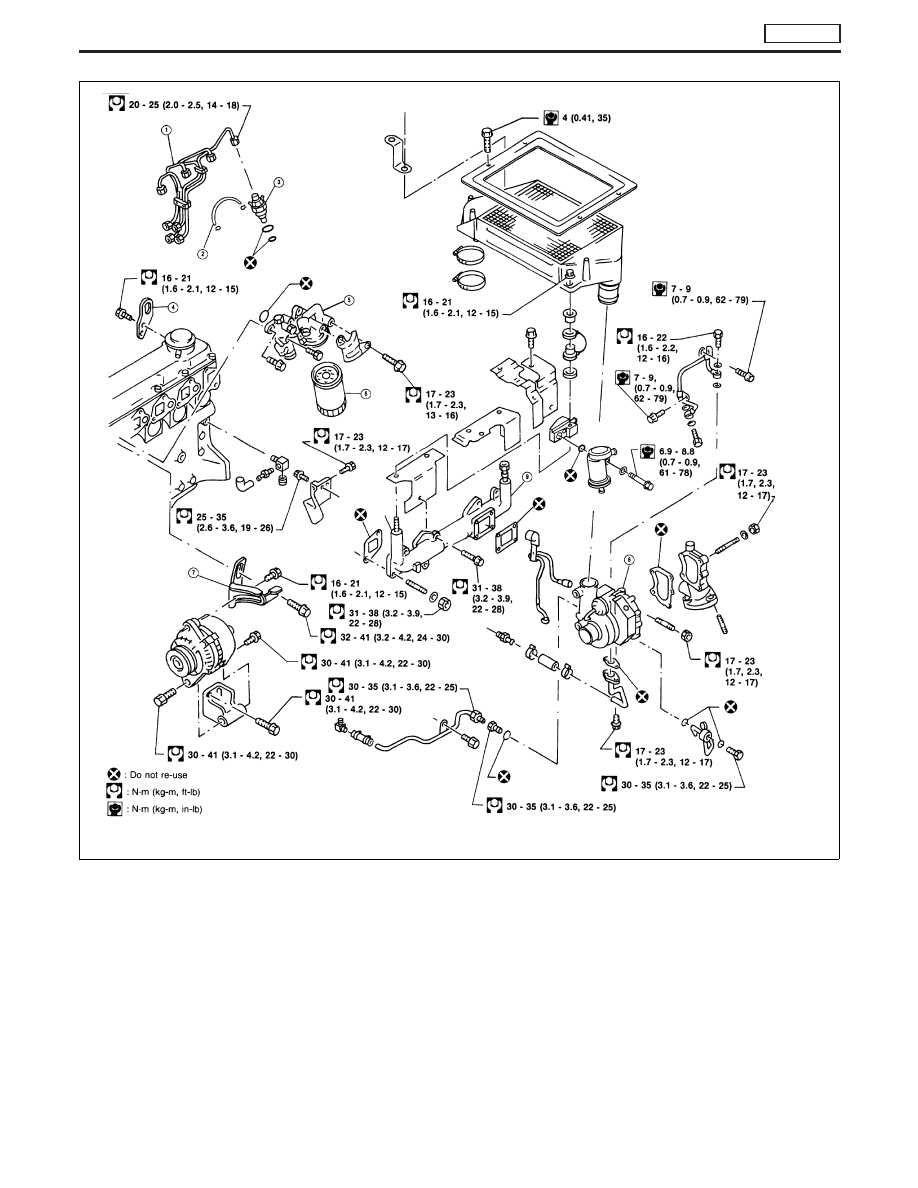

ENGINE COMPONENTS — Outer Parts

TD27Ti

EM-101

q

1

Cylinder block

q

2

Oil pump

q

3

Camshaft bushing

q

4

Front plate

q

5

Camshaft gear

q

6

Snap ring

q

7

Piston pin

q

8

Connecting rod bearing

q

9

Oil jet

q

10

Crank pulley

q

11

Main bearing

q

12

Oil pan

q

13

Thrust washer

q

14

Crankshaft

q

15

Pilot bushing

q

16

Flywheel

q

17

Connecting rod

q

18

Piston

q

19

Piston ring

q

20

Camshaft

q

21

Rear oil seal retainer

q

22

Rear oil seal

q

23

Rear plate

q

24

Vacuum pump

q

25

Dipstick

q

26

Drain plug

q

27

Timing gear case

q

28

Idler gear

YEM036

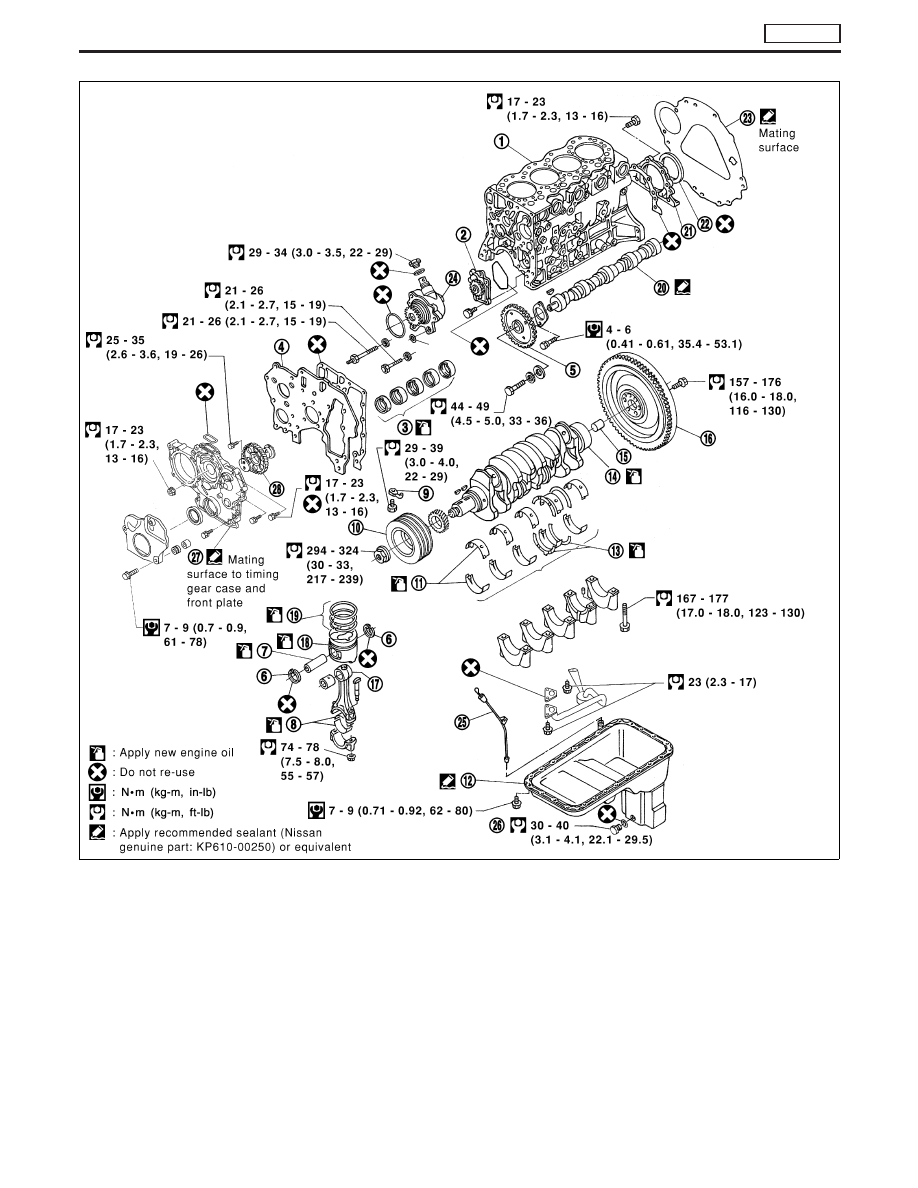

ENGINE COMPONENTS — Internal Parts

TD27Ti

EM-102
