Precautions

I

Do not perform operation unless it is perfectly safe.

I

Do not start operation unless the exhaust system and coolant
are cooled down.

I

Lift the engine at the designated support points only.

I

Perform operations for the items other than the engine body,
referring to the applicable sections.

I

Refer to MT section and AT section for rear mount.

Removal

I

After removing transmission, hoist the engine and remove it.

Preparation

1. Drain coolant from radiator drain plugs.
2. Remove the following parts.

I

Engine hood

I

Undercover

I

Under protector

I

Battery

I

Intercooler

I

Radiator shroud

I

Radiator

I

Accessory belt

I

Cooling fan

I

Exhaust front tube

YEM032

ENGINE REMOVAL

ZD

EM-63

Engine room (Left)

3. Remove air duct and air cleaner case.
4. Disconnect vacuum hose to the vehicle on the engine.
5. Disconnect harness connectors from alternator and air com-

pressor.

6. Remove alternator.
7. After removing refrigerant, remove pipes of air compressor and

inlet/outlet.

8. Disconnect heating hose, install blank cap to hose to prevent

coolant from leaking.

9. Remove heating pipe.
10. Remove heat insulator.
11. Remove catalytic converter.

Engine room (Right)

12. Remove power steering reservoir tank from bracket, and fix it

to the vehicle with a rope.

CAUTION:

Keep the reservoir tank level when fixing to prevent oil leak.
13. Remove fuel feed and return hoses.

CAUTION:

Install blank caps immediately to avoid fuel leakage.
14. Remove all harness connectors on the engine, and move har-

nesses to the side of the vehicle.

Vehicle underfloor

15. Remove starter motor.
16. Detach A/T oil cooler pipes from oil pan. (A/T model)
17. Remove rear propeller shaft.
18. Remove mounting bolts to secure the engine to transmission.
1) Remove torque converter installation bolt. (A/T model)
2) Lift transmission bottom with transmission jack, and remove

rear mount members from the vehicle.

3) Lower transmission with the jack, and remove upper mounting

bolts securing the engine to transmission.

4) Lift transmission with the jack, and reinstall rear mount mem-

bers to the vehicle.

5) Position the jack to the front side of transmission.
6) Remove remaining mounting bolts securing the engine to trans-

mission.

Removal operation

19. Remove air conditioner high pressure pipes at the rear of the

engine room.

I

This is due to some inconvenience in the rear slinger installa-
tion.

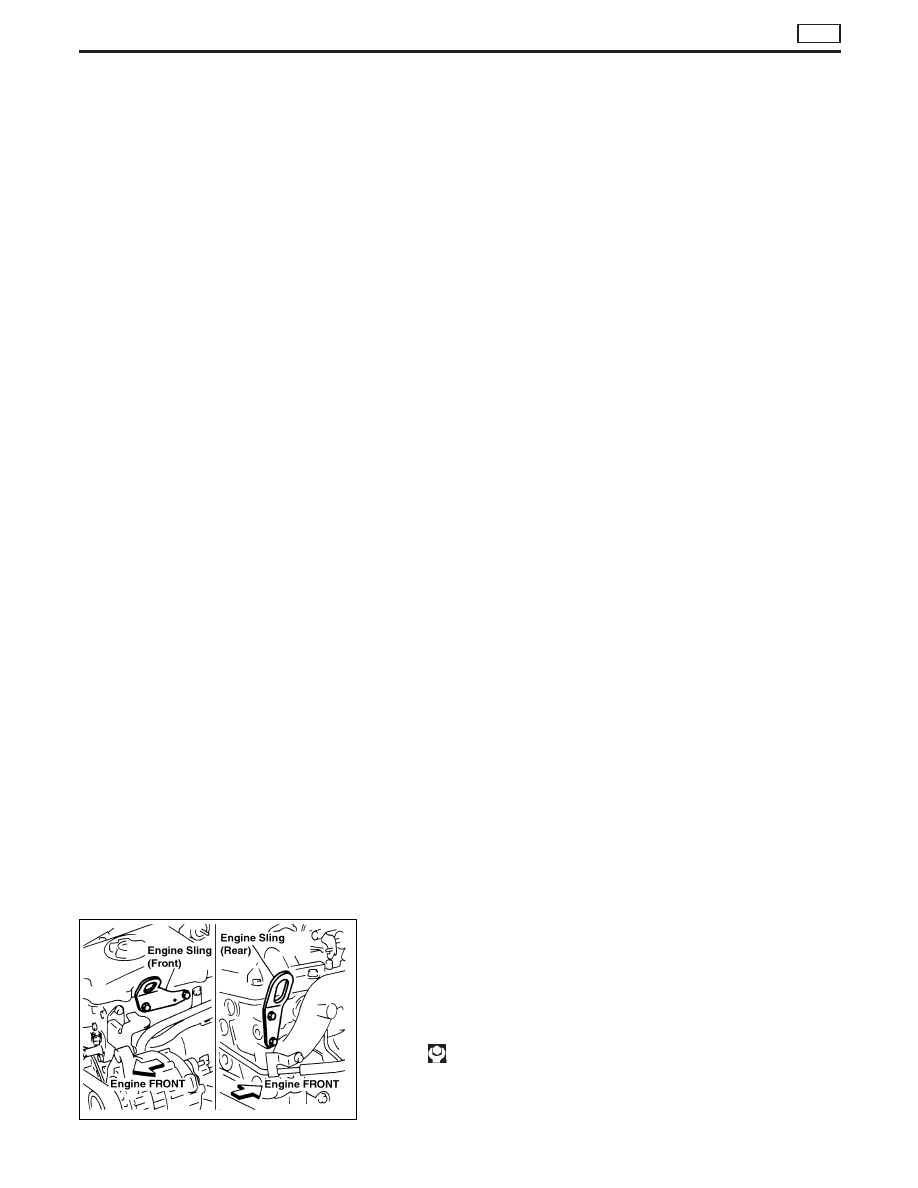

20. Install the engine slingers (standard service part) to front-left

and rear-right.

: 25 - 28 N

m (2.5 - 2.9 kg-m, 18 - 20 ft-lb)

WARNING:

For engines without engine slingers, attach proper slingers
and bolts described in the PARTS CATALOG.

FEM082

ENGINE REMOVAL

ZD

Removal (Cont’d)

EM-64

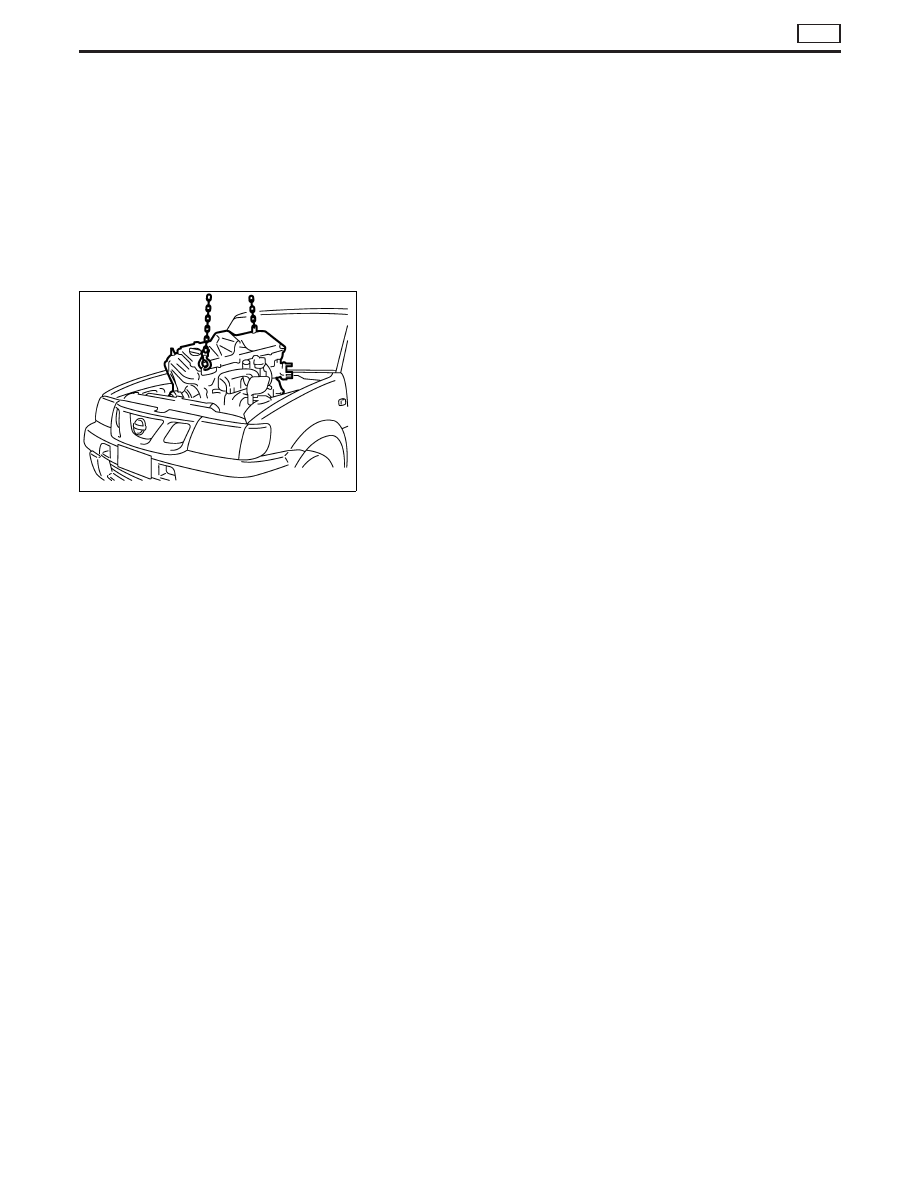

21. Hook hoists to slingers to secure the position.

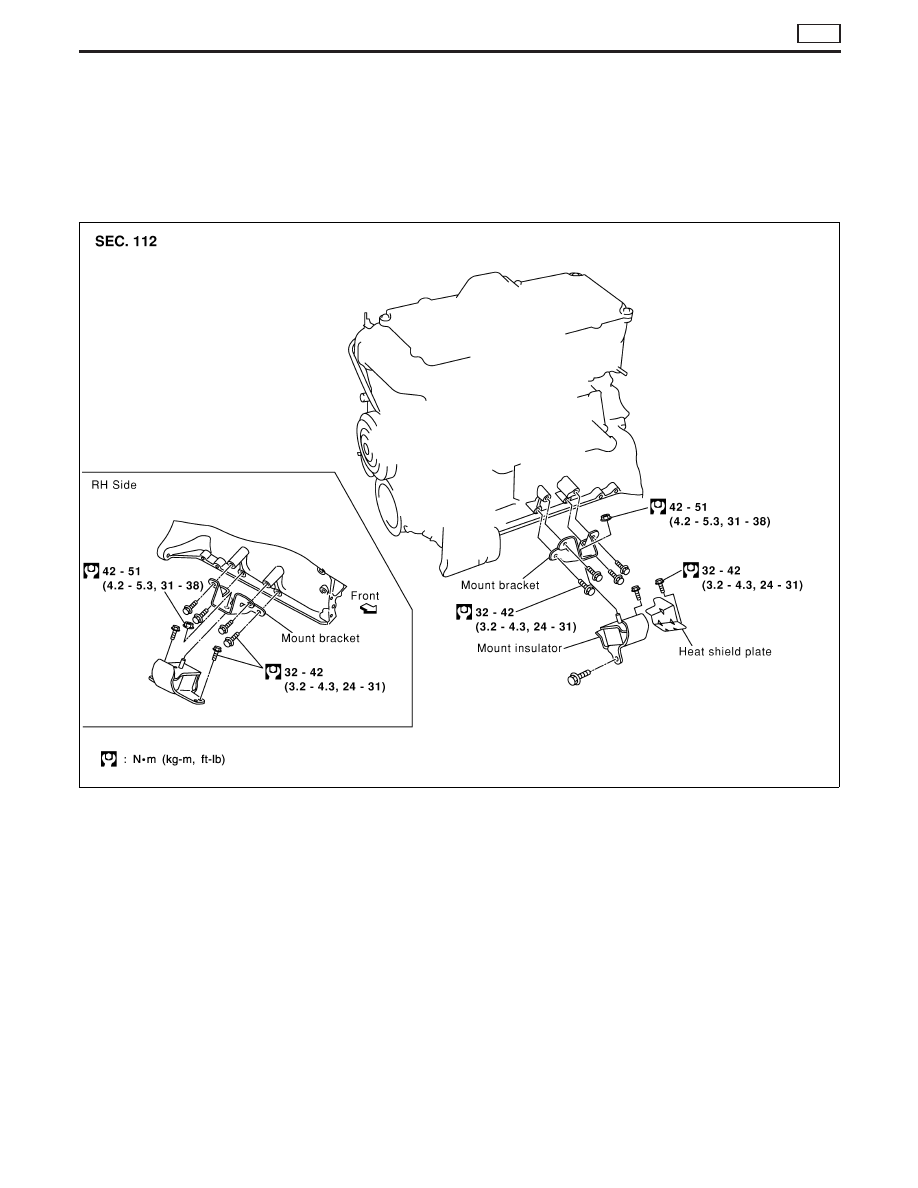

22. Remove installation nuts for left and right engine mount insula-

tors.

23. While adjusting position frequently, hoist and remove the

engine.

CAUTION:

I

While performing operation, check that all necessary wires
and pipes are disconnected.

I

Avoid interference with parts on the vehicle.

Installation

Install the engine in the reverse order of the removal procedure.

I

Keep each mount insulator from oil adherence and damage.

I

While keeping each mount insulator free from twisting, tighten
mounting bolts and nuts for the engine mount.

Inspection

I

Before starting the engine, check coolant level and grease
amount, and if necessary, refill them to the specified level.

I

Start the engine, and check that there is no abnormal noise or
vibration.

I

Warm up the engine to the sufficient temperature, and check
that there is no leakage of coolant, greases, fuel, or exhaust
gas.

YEM042

ENGINE REMOVAL

ZD

Removal (Cont’d)

EM-65

YEM033

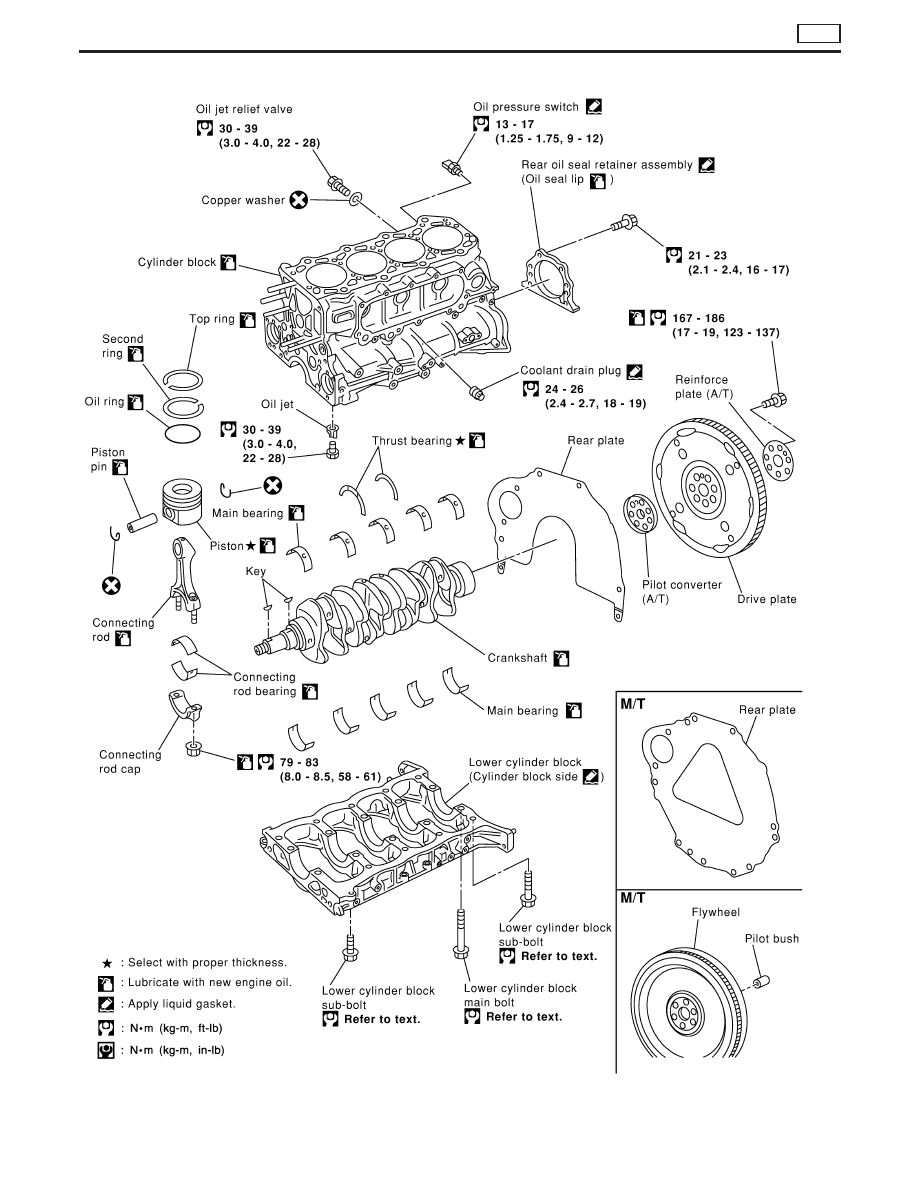

CYLINDER BLOCK

ZD

EM-66
