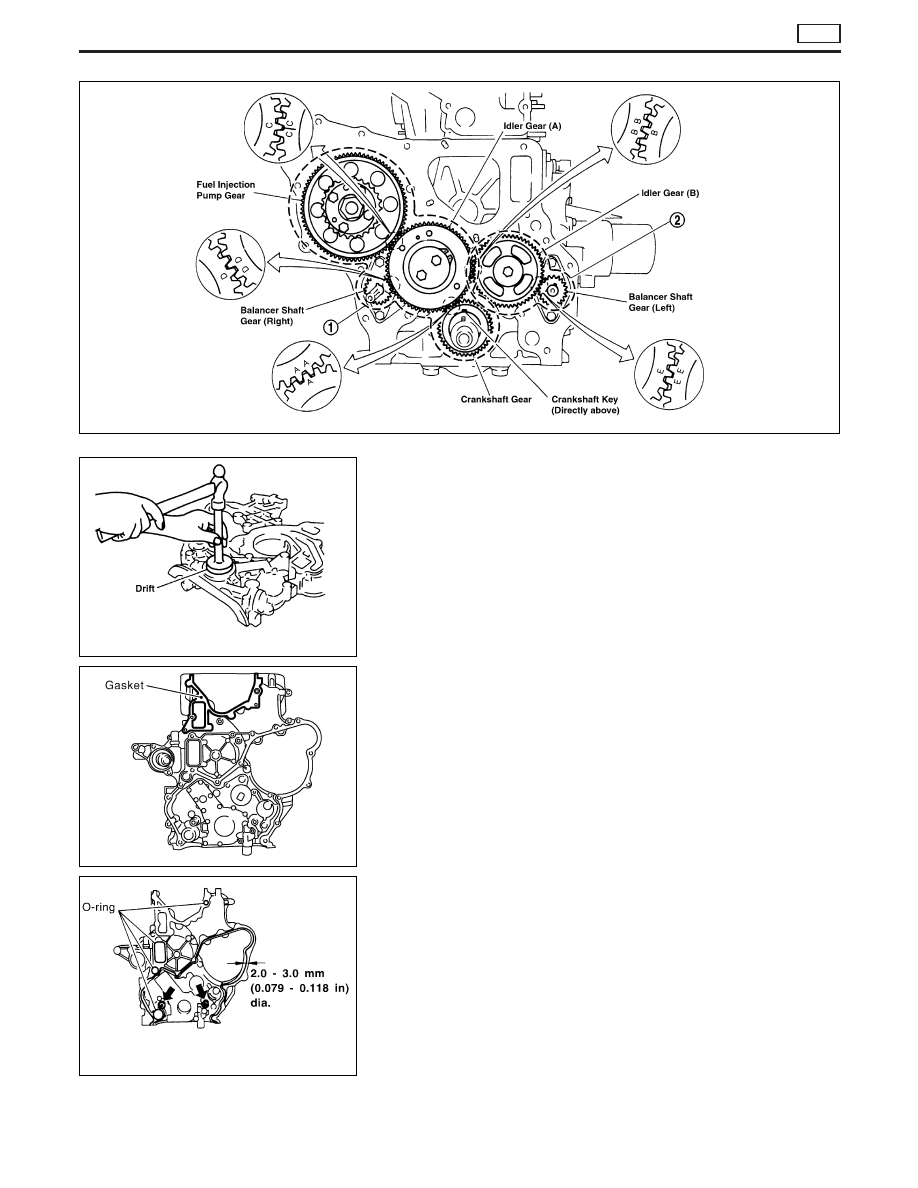

4. Install the front oil seal to the gear case.

I

Apply engine oil to the fitting side.

I

Evenly insert the front oil seal using a drift [outer dia.: approx.
64 mm (2.52 in)] completely.

CAUTION:

Make sure the oil seal does not spill off the end side of the gear
case.

5. Install the gear case.
1) Before installing gear case, remove all traces of liquid gasket

from mating surface using a scraper.

2) Align gasket with dowel and install.

3) Install the O-rings to the gear case.

I

The O-ring at the top position shown in the figure can be
installed in during cylinder head installation.

4) Apply a continuous bead of liquid gasket to gear case.

I

Use Genuine Liquid Gasket or equivalent.

a. Coat of liquid gasket should be maintained within 2.0 to 3.0

mm (0.079 to 0.118 in) dia. range.

b. Attach gear case to cylinder block within 5 minutes after

coating.

c. Wait at least 30 minutes before refilling engine oil or start-

ing engine.

FEM043

FEM044

SEM353G

FEM045

TIMING GEAR

ZD

Installation (Cont’d)

EM-47

CAUTION:

Apply the liquid gasket around the bolt holes shown by the
arrows in the figure.
4) Install the gear case.

I

Tap the area around the dowel pin with a plastic hammer if it
cannot be inserted easily.

CAUTION:

Do not pop out the O-rings.

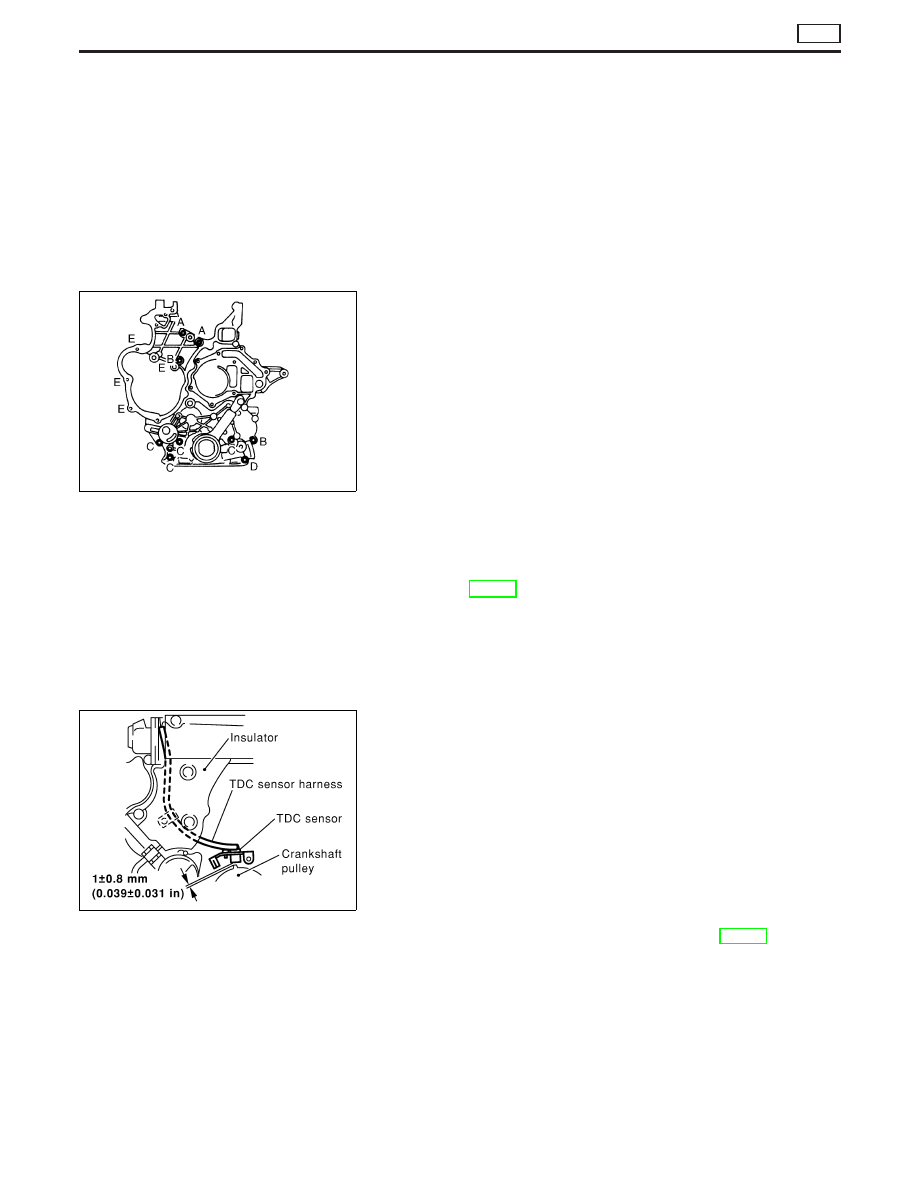

5) Install the holding bolt referring to the figure.

Dimension below neck:

A: 25 mm (0.98 in)
B: 30 mm (1.18 in)
C: 50 mm (1.97 in)
D: 80 mm (3.15 in)
E: 20 mm (0.79 in)

6) Install the holding bolts from the rear side of the front plate.

6. Install the crankshaft pulley.

I

Insert by aligning the 2 sides of the oil pump with the 2 sides
of the shaft on the rear side of the crankshaft pulley.

CAUTION:

Do not damage the oil seal lip when inserting.

I

Refer to EM-40, “Removal” for the crankshaft setting proce-
dures when tightening the holding nut.

7. Install the water pump.

I

Install it before installing the TDC sensor. Refer to “Water
Pump” in LC section.

8. Install the TDC sensor.

I

Align the bracket knock pin with the hole on the gear case side
and tighten the holding bolt.

I

Confirm that the clearance between the end of the sensor and
the signal detection protrusion of the crankshaft pulley is within
the specification.

Standard: 1±0.8 mm (0.039±0.031 in)

I

Arrange the TDC sensor harness to the position shown in the
figure.

CAUTION:

Confirm that the harness has no deflection around the crank-
shaft pulley when installing the clamp.
9. Install the timing chain, other parts in connection with the tim-

ing chain, and the chain cover. Refer to EM-26, “TIMING
CHAIN”.

FEM046

SEM349G

TIMING GEAR

ZD

Installation (Cont’d)

EM-48

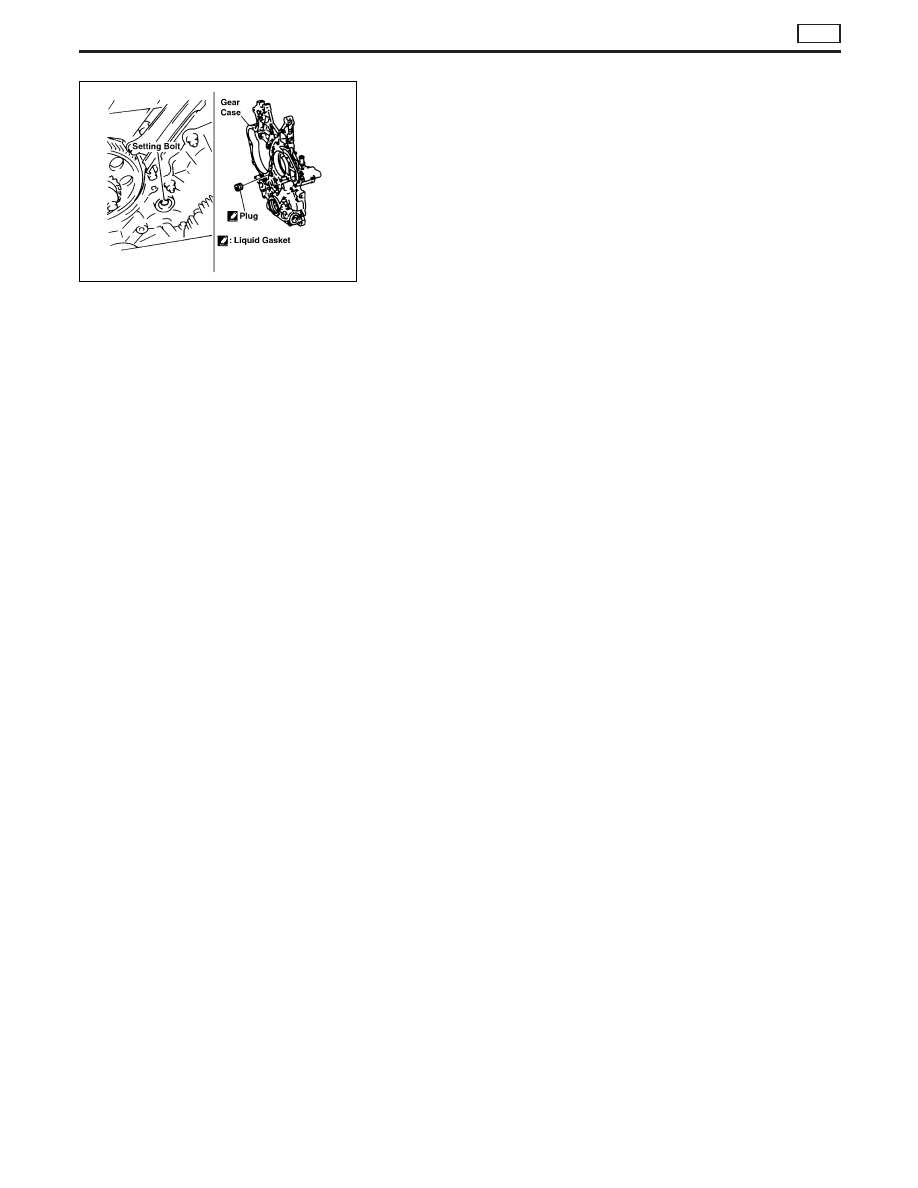

10. Remove the internal mechanism setting bolt of the idler gear

(A).

11. Apply liquid gasket to the plug thread.
12. Install in the reverse order of removal.

FEM047

TIMING GEAR

ZD

Installation (Cont’d)

EM-49

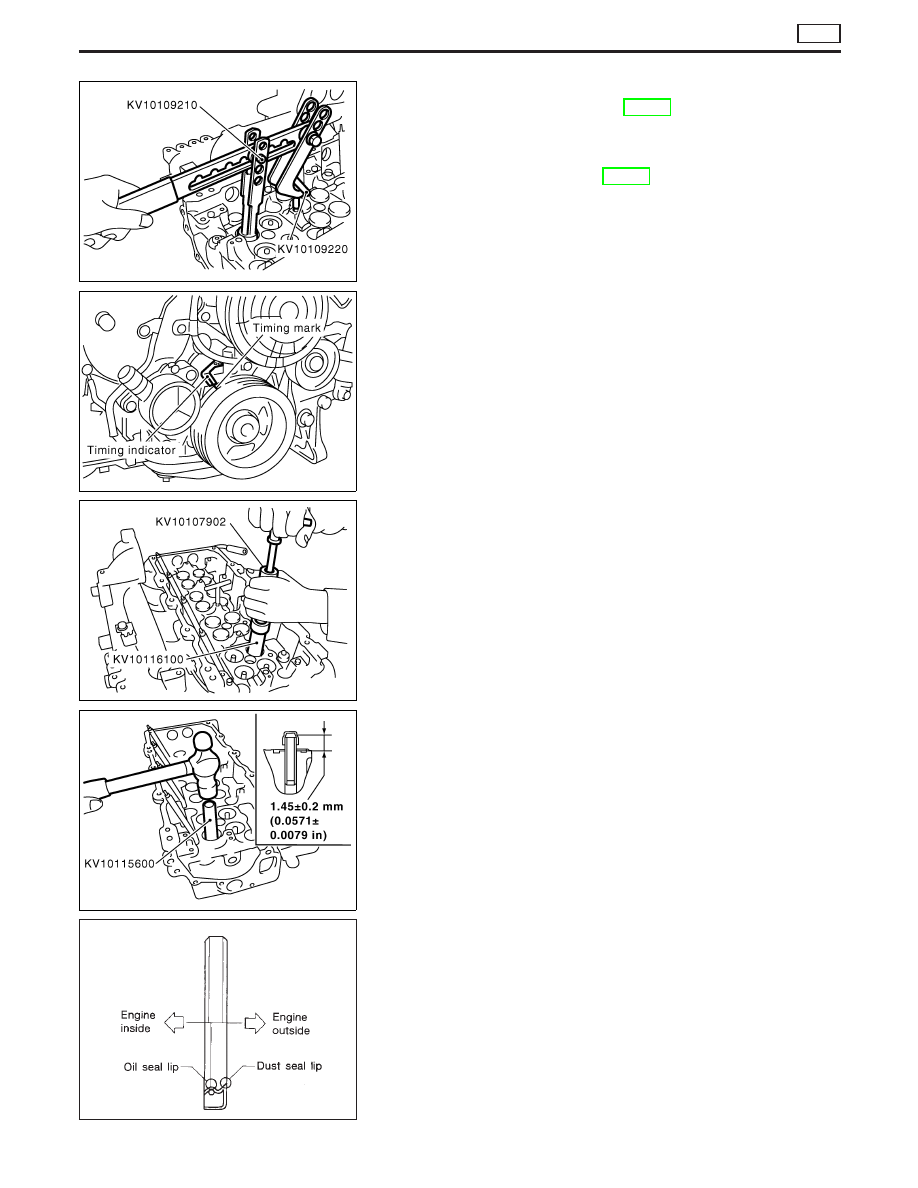

VALVE OIL SEAL

1. Remove timing chain. Refer to EM-26, “TIMING CHAIN”.
2. Remove injection nozzle assembly. Refer to “Injection Tube and

Injection Nozzle” in “BASIC SERVICE PROCEDURE” in EC
section.

3. Remove camshaft. Refer to EM-30, “CAMSHAFT”.

4. Remove valve lifters and mark order No. on each lifter.
5. Replace valve oil seal according to the following procedure.
When replacing valve oil seal, set the corresponding piston at
TDC. Failure to do so causes the valve to drop into the cylin-
der.
1) Set No. 1 cylinder at TDC.

2) Remove valve springs and valve oil seals for No. 1 and No. 4

cylinders. Valve spring seats should not be removed.

3) Install new valve oil seals for No. 1 and No. 4 cylinders as

illustrated. Reinstall valve springs. (pink paint side toward cyl-
inder head)

4) Install valve spring retainers on intake valves and valve rotators

on exhaust valves, and remount valve assembly.

5) Set No. 2 cylinder at TDC.
6) Replace valve oil seals for No. 2 and No. 3 cylinders according

to steps 2) and 3).

7) Install valve lifters in original positions.

CRANKSHAFT OIL SEAL INSTALLING DIRECTION AND
MANNER

I

When installing crankshaft oil seals, be careful to install
them correctly, as shown in the figure.

I

Wipe off excess oil after installing oil seal.

SEM354G

SEM355G

SEM356G

SEM357G

SEM715A

OIL SEAL REPLACEMENT

ZD

EM-50
