Nissan Terrano r20e. Manual - part 203

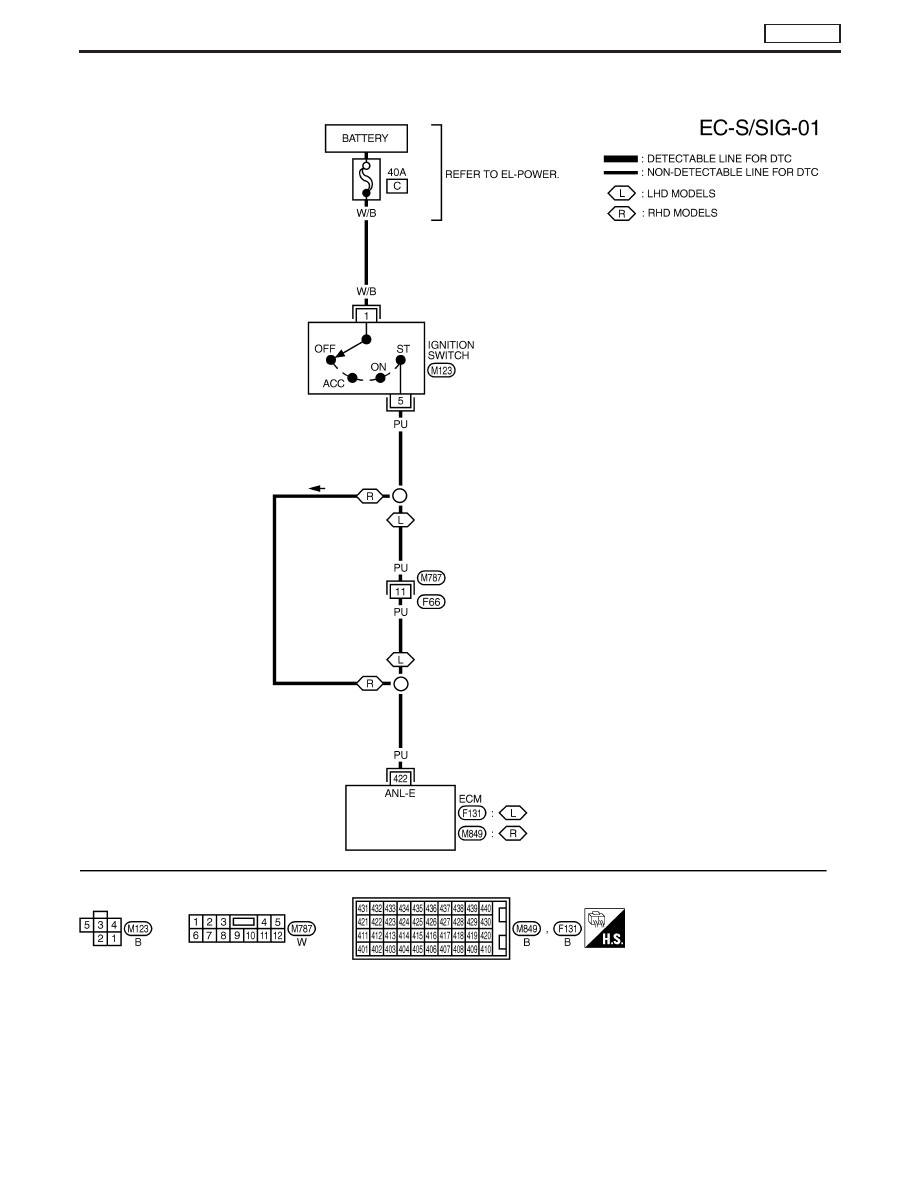

Wiring Diagram

YEC153A

START SIGNAL

TD27Ti

EC-449

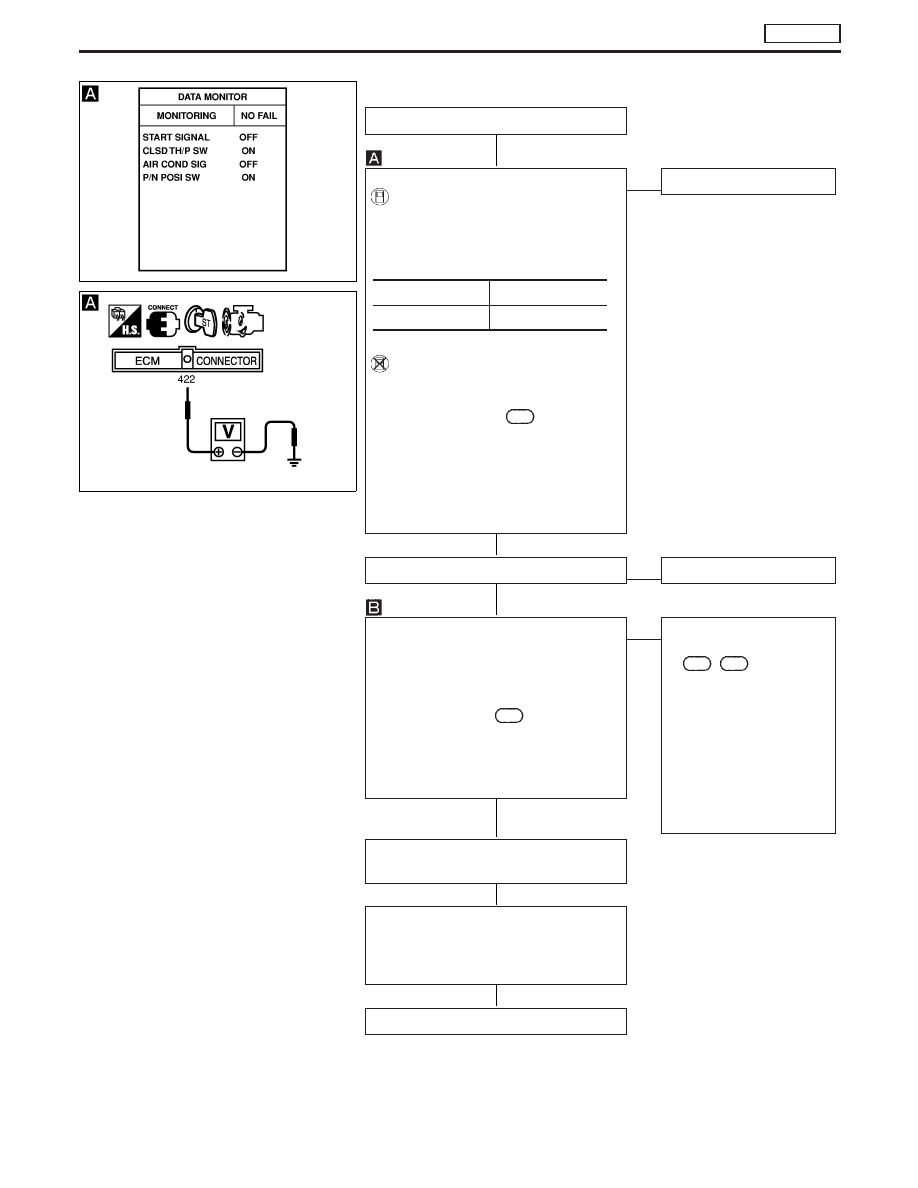

Diagnostic Procedure

INSPECTION START

CHECK OVERALL FUNCTION.

1. Turn ignition switch to “ON” posi-

tion.

2. Check “START SIGNAL” in “DATA

MONITOR” mode with CONSULT-
II.

-------------------------------------------------------------------------------------------------------------------------------------- OR --------------------------------------------------------------------------------------------------------------------------------------

1. Turn ignition switch to “START”

position.

2. Check voltage between ECM con-

nector terminal

422

and engine

ground.
Voltage:

Ignition switch “START”:

Battery voltage

Except above:

Approximately 0V

NG

E

OK

INSPECTION END

Check if 40A fusible link is OK.

OK

E

NG

Replace 40A fusible link.

CHECK INPUT SIGNAL CIRCUIT.
1. Turn ignition switch to “LOCK” position.

2. Disconnect ECM harness connector,

ignition switch connector.

3. Check harness continuity between ECM

connector terminal

422

and ignition

switch connector terminal

q

5

. Refer to

wiring diagram.
Continuity should exist.
If OK, check harness for short circuit.

OK

E

NG

Check the following:

I

Harness connectors

M787

,

F66

(LHD mod-

els)

I

Condition and operations
of ignition switch

I

Harness for open or
short-circuit between
ECM and ignition switch
If NG, repair ignition
switch, harness or con-
nectors.

Disconnect and reconnect harness connec-
tors in the circuit. Then retest.

Trouble is not fixed.

Check ECM pin terminals for damage and
check the connection of ECM harness con-
nector. Reconnect ECM harness connector
and retest.

INSPECTION END

IGN “ON”

OFF

IGN “START”

ON

PBIB0763E

MEC966D

H

H

H

H

H

H

START SIGNAL

TD27Ti

EC-450

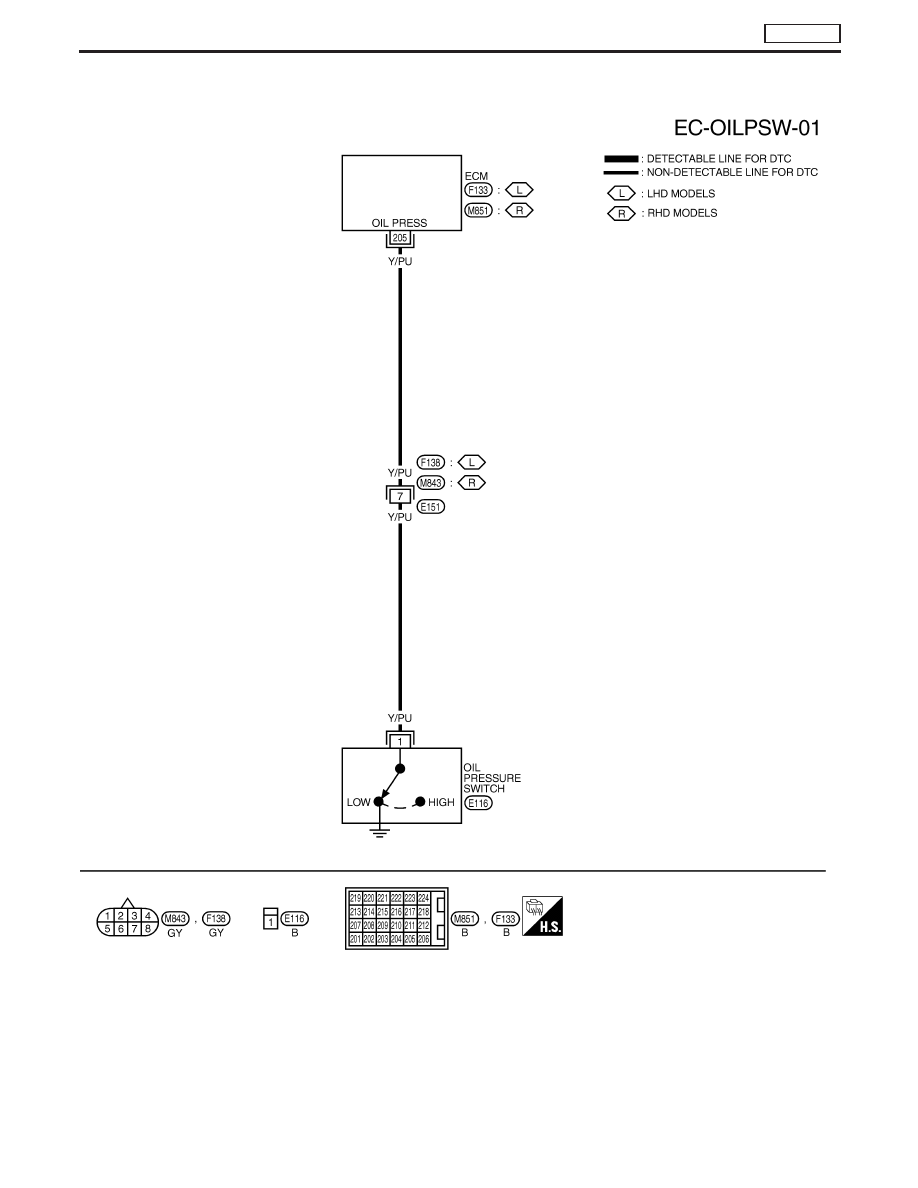

Wiring Diagram

YEC162A

OIL PRESSURE SWITCH

TD27Ti

EC-451

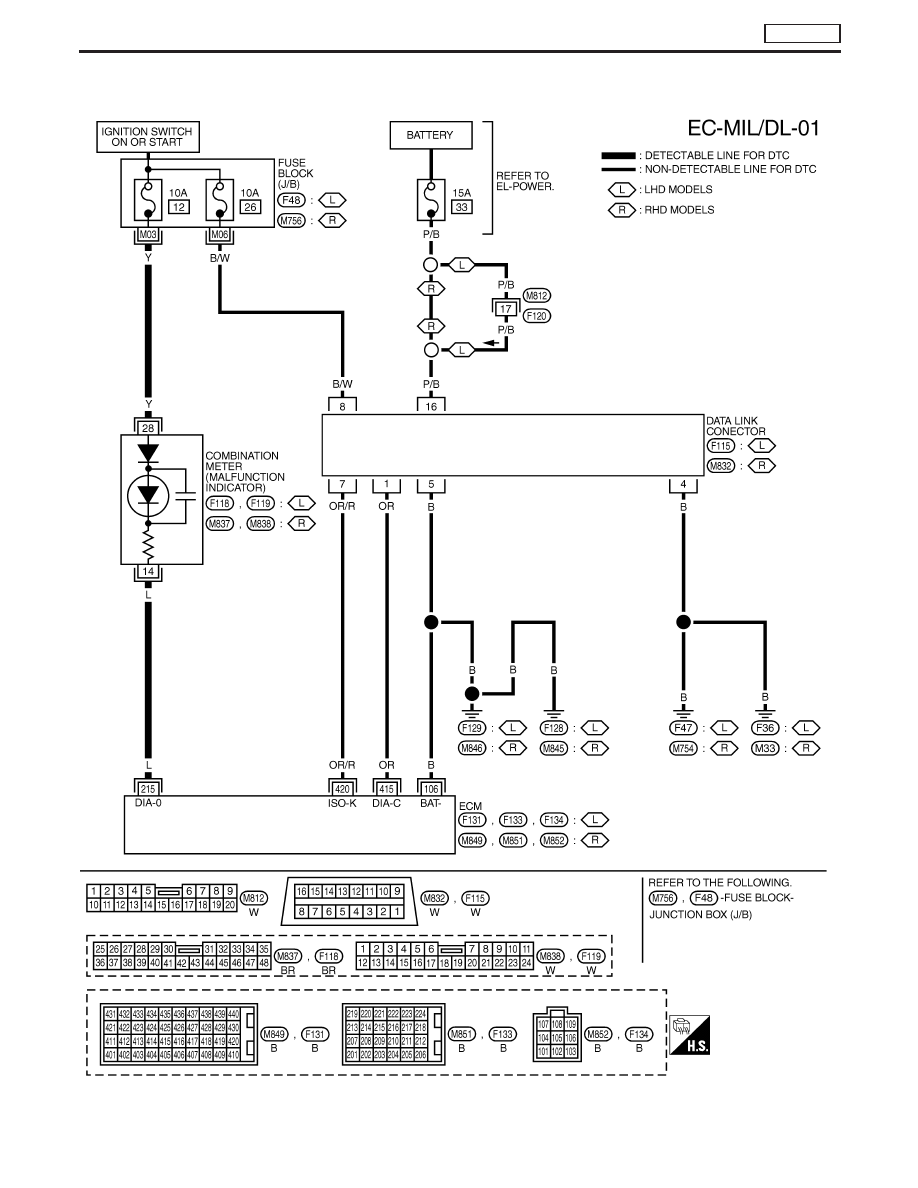

Wiring Diagram

YEC156A

MI & DATA LINK CONNECTORS

TD27Ti

EC-452
