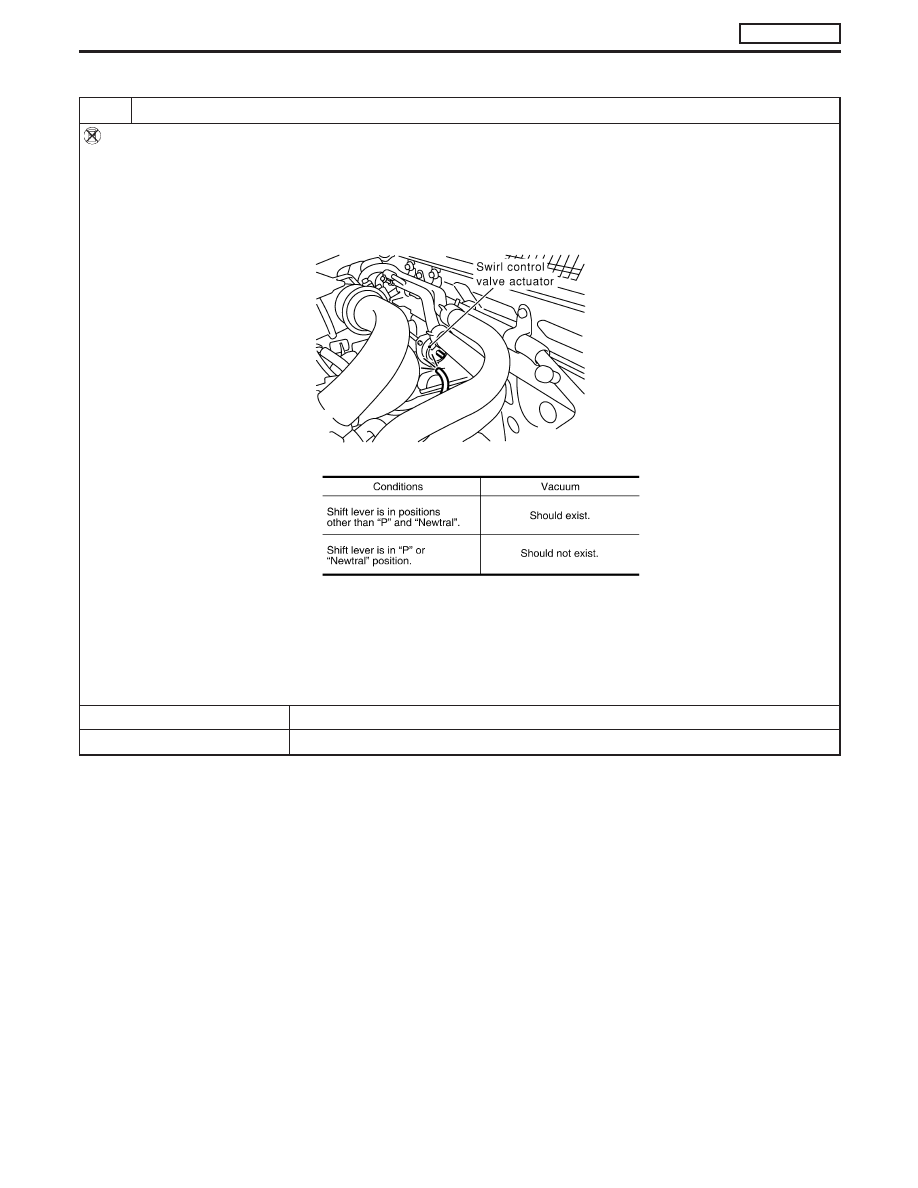

CHECK VACUUM SOURCE

Without CONSULT-II

1. Turn ignition switch “OFF”.
2. Disconnect vacuum hose connected to swirl control valve actuator.
3. Lift up the vehicle.
4. Start engine and warm it up to normal operating temperature.
5. Run engine at idle speed
6. Check vacuum hose for vacuum existence under the following conditions.

MEC009E

MTBL1327

OK or NG

OK

E

GO TO 7.

NG

E

GO TO 6.

SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

ZD30DDTi

Diagnostic Procedure (Cont’d)

EC-269

6

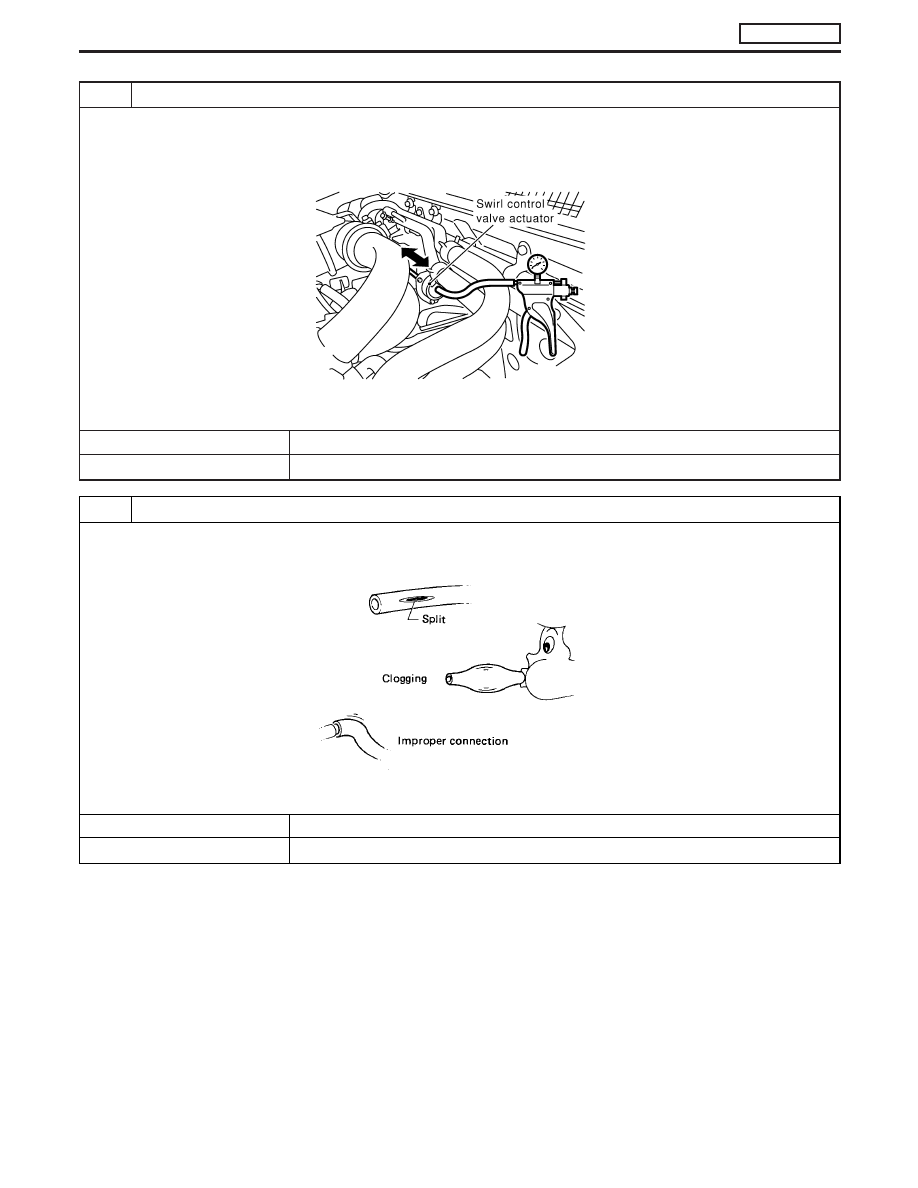

CHECK SWIRL CONTROL VALVE ACTUATOR

1. Turn ignition switch “OFF”.
2. Install a vacuum pump to swirl control valve actuator.
3. Make sure that the swirl control valve actuator rod moves smoothly when applying vacuum of −93.3 kPa (−933 mbar, −700
mmHg, −27.6 inHg) and releasing it.

MEC010E

OK or NG

OK

E

Repair or replace vacuum hoses and vacuum gallery.

NG

E

Replace swirl control valve actuator.

7

CHECK VACUUM HOSE

1. Turn ignition switch “OFF”.
2. Check vacuum hoses and vacuum gallery for clogging, cracks or improper connection.

SEF109L

OK or NG

OK

E

GO TO 8.

NG

E

Repair or replace vacuum hoses and vacuum gallery.

SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

ZD30DDTi

Diagnostic Procedure (Cont’d)

EC-270

8

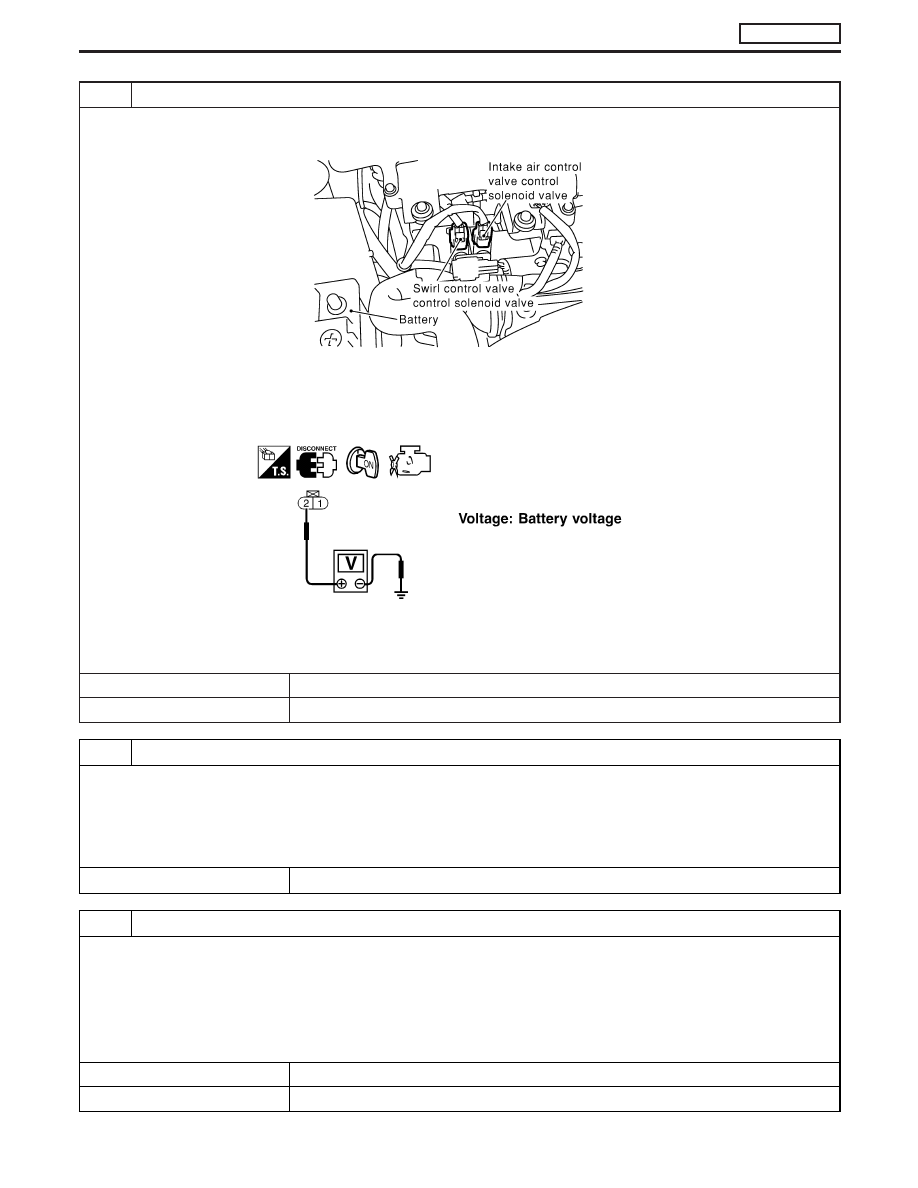

CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect swirl control valve control solenoid valve harness connector.

MEC006E

3. Turn ignition switch “ON”.
4. Check voltage between swirl control valve control solenoid valve terminal 2 and ground with CONSULT-II or tester.

SEF312Z

OK or NG

OK

E

GO TO 10.

NG

E

GO TO 9.

9

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors F108, E225

I

Harness connectors M842, F135

I

Fuse block (J/B) connector F48 (LHD models), M756 (RHD models)

I

10A fuse

I

Harness for open or short between swirl control valve control solenoid valve and fuse

E

Repair open circuit or short to ground or short to power in harness or connectors.

10

CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT

1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 54 and swirl control valve control solenoid valve terminal 1. Refer to Wiring

Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

E

GO TO 12.

NG

E

GO TO 11.

SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

ZD30DDTi

Diagnostic Procedure (Cont’d)

EC-271

11

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors E227, F106

I

Harness connectors F135, M842 (RHD models)

I

Harness for open or short between swirl control valve control solenoid valve and ECM

E

Repair open circuit or short to ground or short to power in harness or connectors.

12

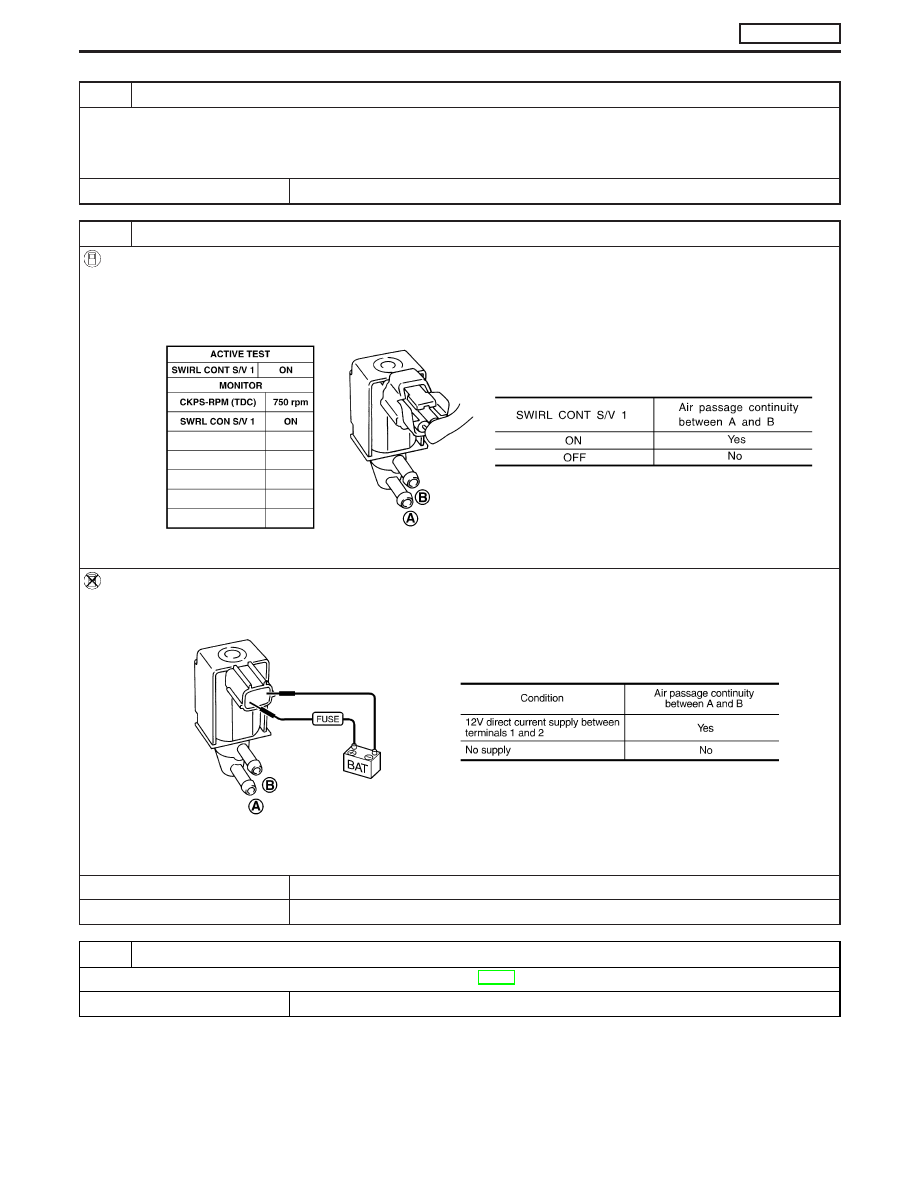

CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

With CONSULT-II

1. Reconnect all disconnected harness connectors.
2. Turn ignition switch “ON”.
3. Select “SWIRL CONT S/V 1” in “ACTIVE TEST” mode with CONSULT-II.
4. Check air passage continuity of swirl control valve control solenoid valve under the following conditions.

SEF313Z

Without CONSULT-II

1. Apply 12V direct current between swirl control valve control solenoid valve terminals.
2. Check air passage continuity of swirl control valve control solenoid valve under the following conditions.

SEF335X

OK or NG

OK

E

GO TO 13.

NG

E

Replace swirl control valve control solenoid valve.

13

CHECK INTERMITTENT INCIDENT

Perform “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-78.

E

INSPECTION END

SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

ZD30DDTi

Diagnostic Procedure (Cont’d)

EC-272
