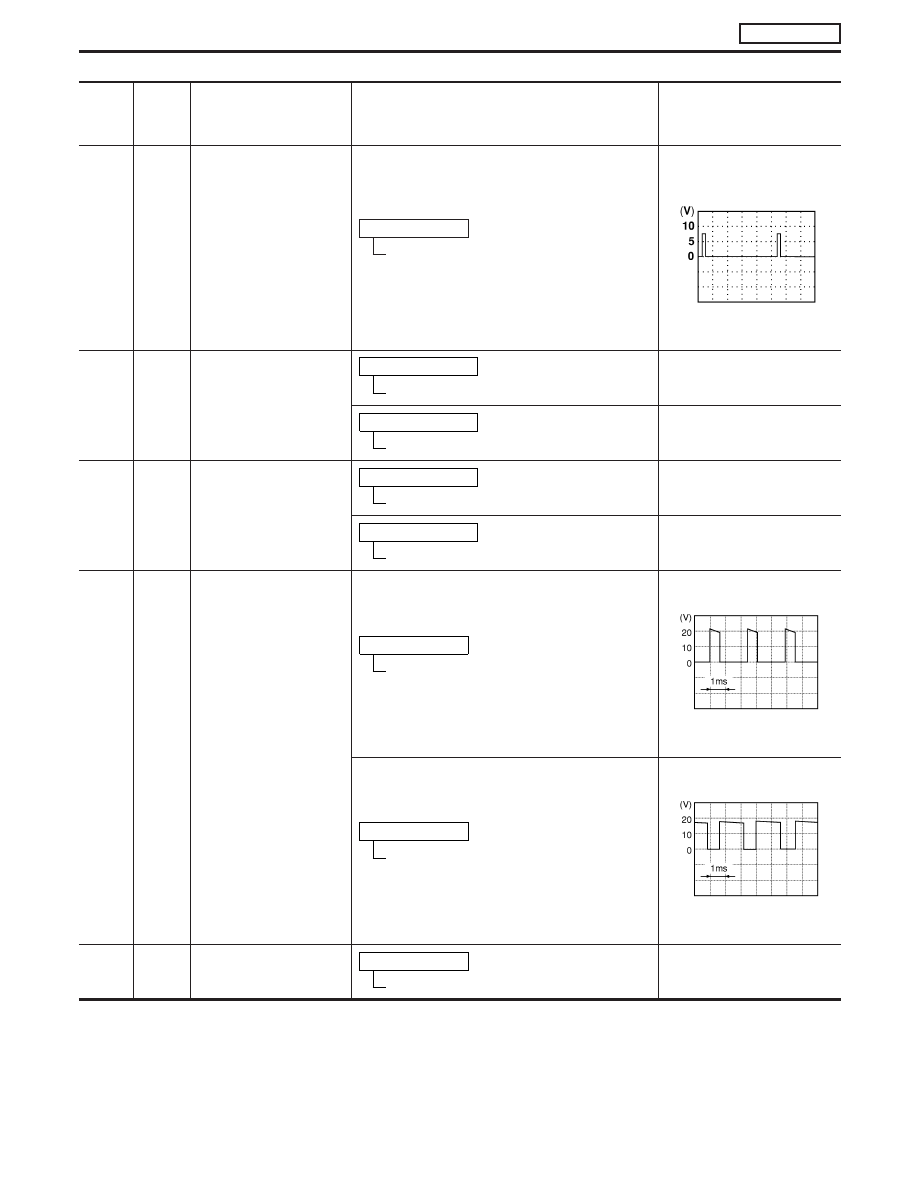

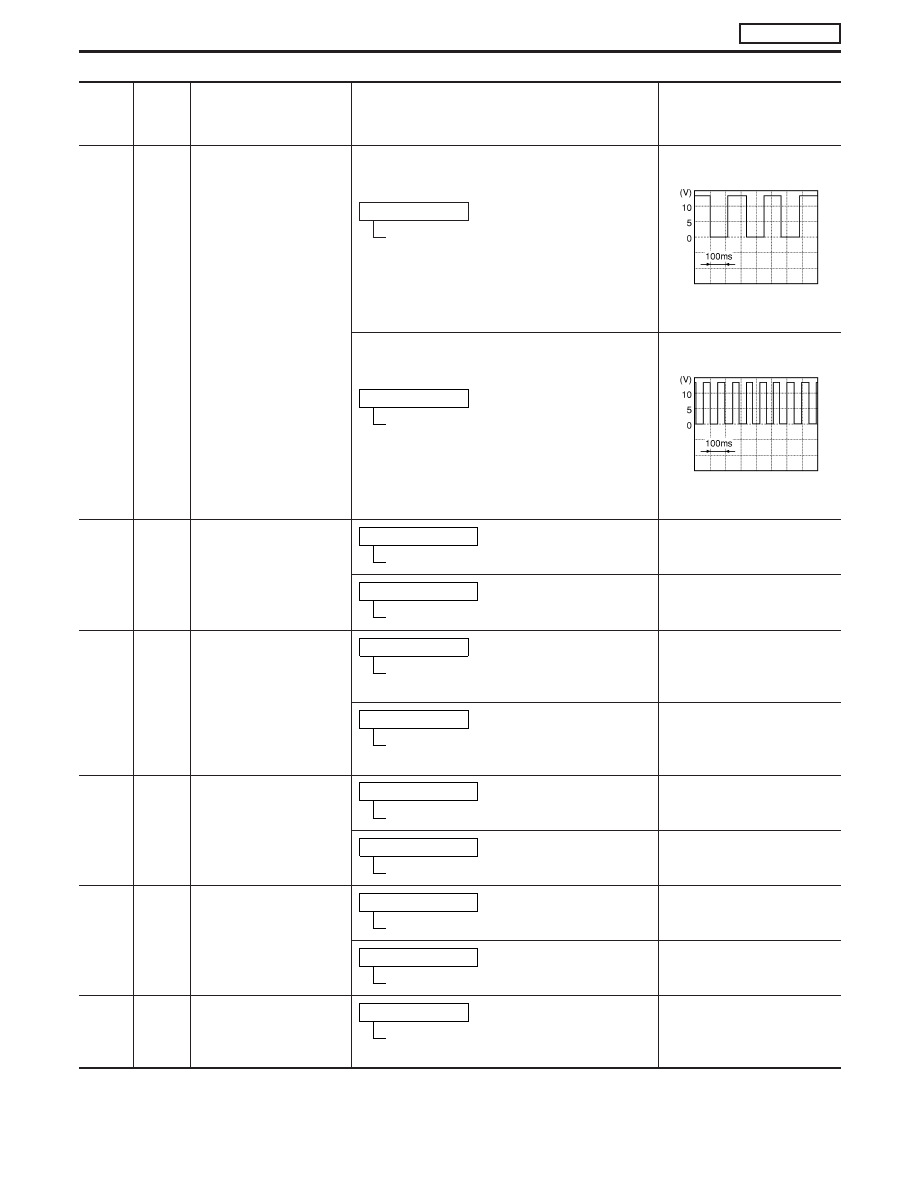

TER- MINAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage and Pulse Signal) 26 Y/B Vehicle speed sensor Engine is running. Lift up the vehicle 0 - Approximately 4.8V SEF257Z Engine is running. Lift up the vehicle Approximately 2.2V SEF258Z 29 LG/R Accelerator switch (F/C) Ignition switch “ON” Accelerator pedal fully released BATTERY VOLTAGE Ignition switch “ON” Accelerator pedal depressed Approximately 0V 30 LG/Y A/T signal No. 3 Engine is running. Warm-up condition Approximately 0V Engine is running. Warm-up condition Approximately 7.7V 31 L/Y Accelerator position Ignition switch “ON” Accelerator pedal fully released BATTERY VOLTAGE Ignition switch “ON” Accelerator pedal depressed Approximately 0V 32 R/L Accelerator position Ignition switch “ON” Accelerator pedal released Approximately 0V Ignition switch “ON” Accelerator pedal fully depressed BATTERY VOLTAGE 33 G Electronic control fuel Engine is running. Warm-up condition Approximately 2.5V TROUBLE DIAGNOSIS — GENERAL DESCRIPTION ZD30DDTi ECM Terminals and Reference Value (Cont’d) EC-73 |
