Nissan Terrano r20e. Manual - part 89





NCL028

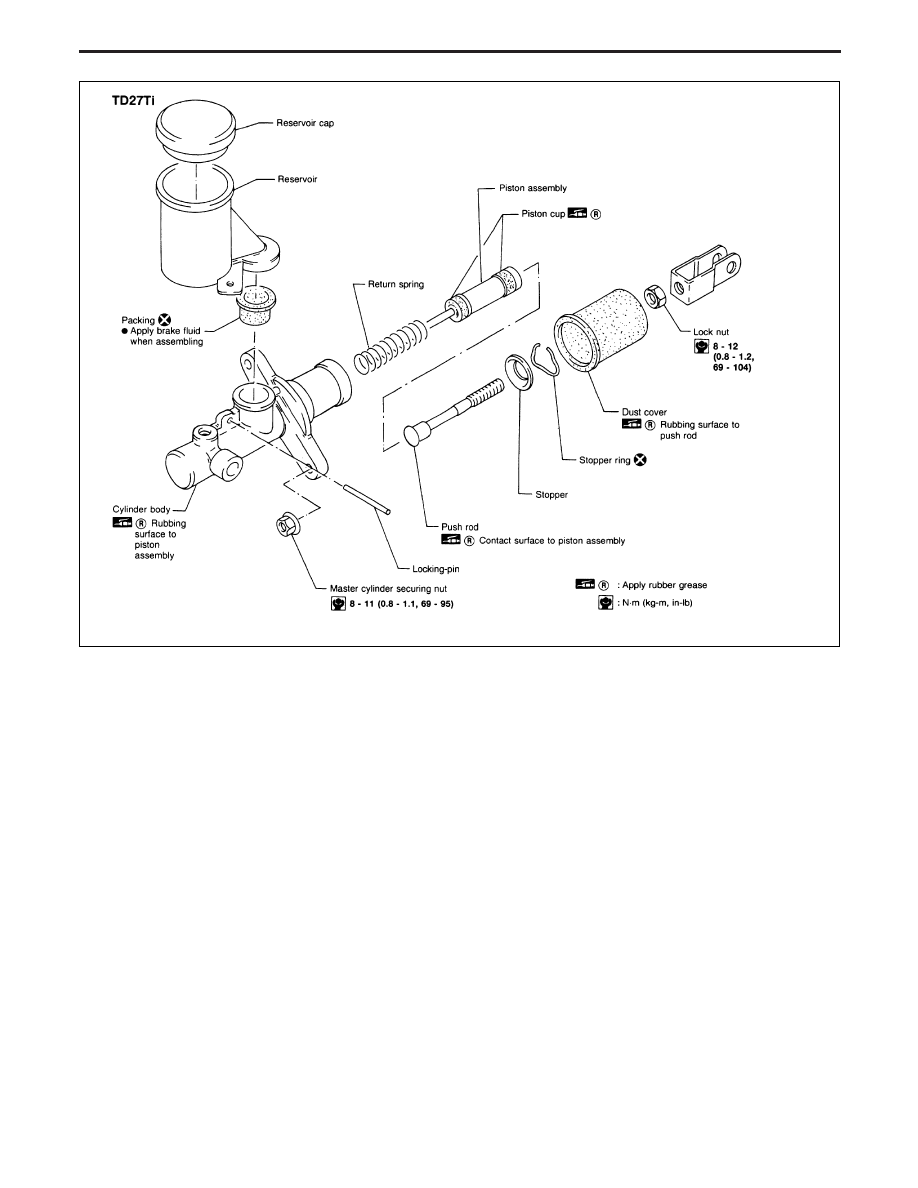

CLUTCH MASTER CYLINDER

CL-7

Clutch Master Cylinder

INSPECTION

I

Check cylinder and piston rubbing surface for uneven wear,
rust or damage. Replace if necessary.

I

Check piston and piston cup for wear or damage. Replace if
necessary.

I

Check return spring for wear or damage. Replace if necessary.

I

Check reservoir for deformation or damage. Replace if neces-
sary.

I

Check dust cover for cracks, deformation or damage. Replace
if necessary.

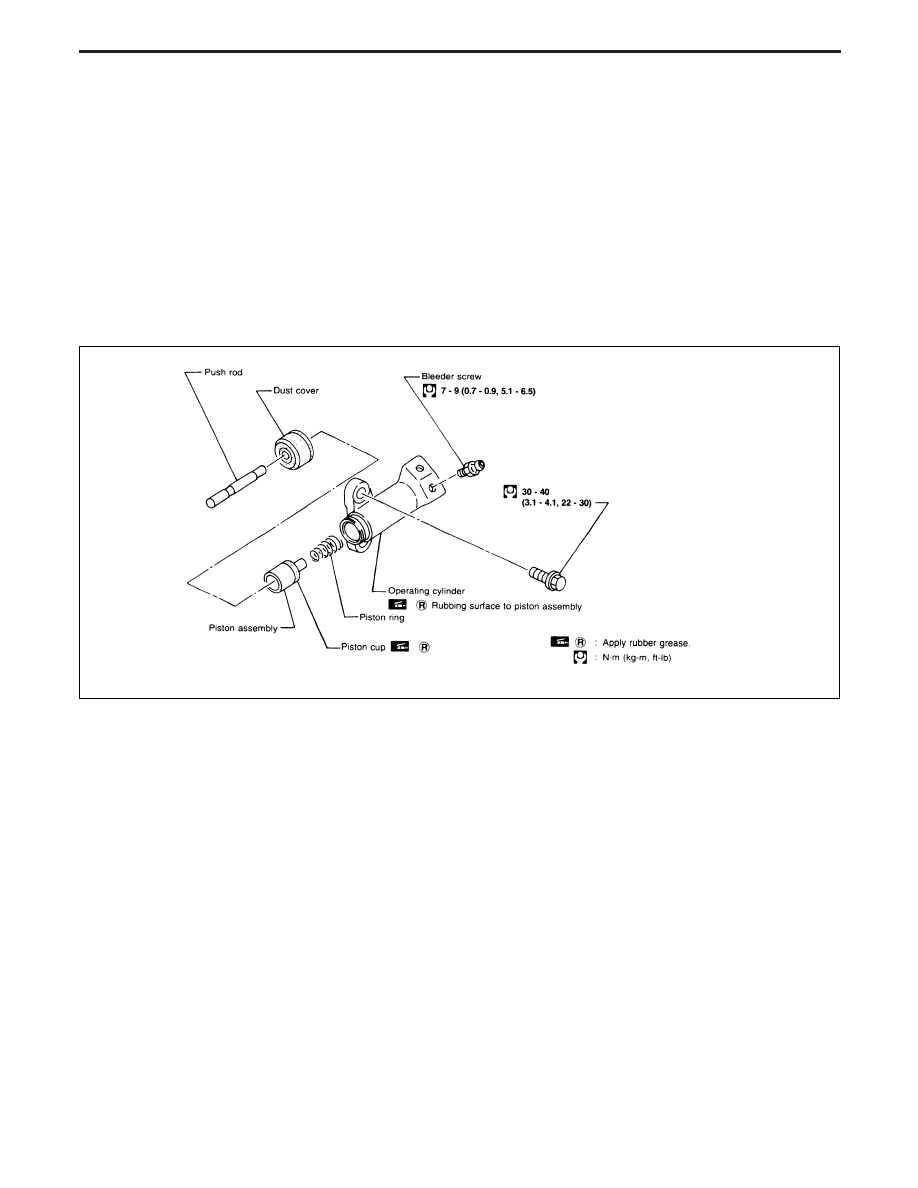

Clutch Operating Cylinder

INSPECTION

I

Check rubbing surface of cylinder for wear, rust or damage.
Replace if necessary.

I

Check piston and piston cup for wear or damage. Replace if
necessary.

I

Check piston spring for wear or damage. Replace if necessary.

I

Check dust cover for cracks, deformation or damage. Replace
if necessary.

SCL420

HYDRAULIC CLUTCH CONTROL

CL-8

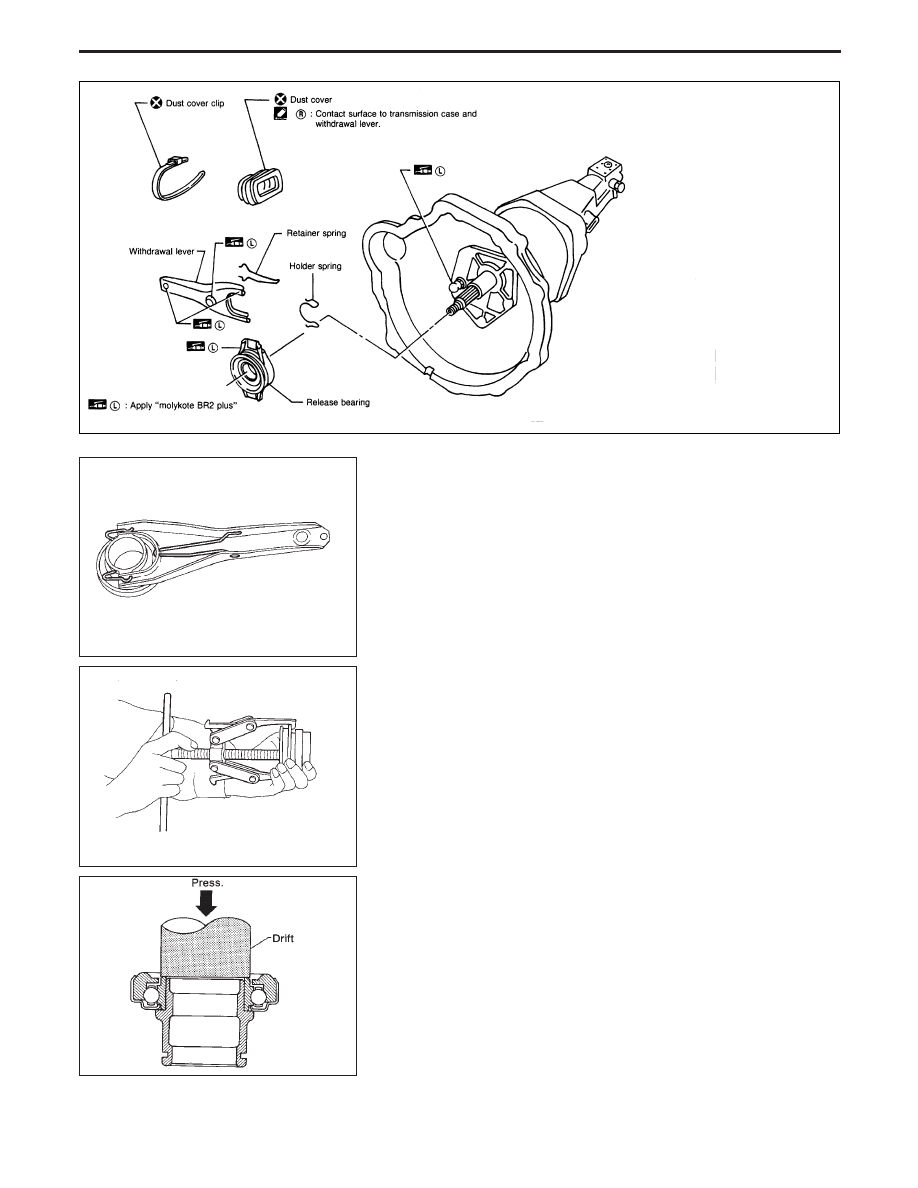

REMOVAL AND INSTALLATION

I

Install retainer spring and holder spring.

I

Remove release bearing.

I

Install release bearing with suitable drift.

NCL017

SCL217

CL145

SCL222

CLUTCH RELEASE MECHANISM

CL-9

INSPECTION

I

Check release bearing to see that it rolls freely and is free from
noise, cracks, pitting or wear. Replace if necessary.

I

Check release sleeve and withdrawal lever rubbing surface for
wear, rust or damage. Replace if necessary.

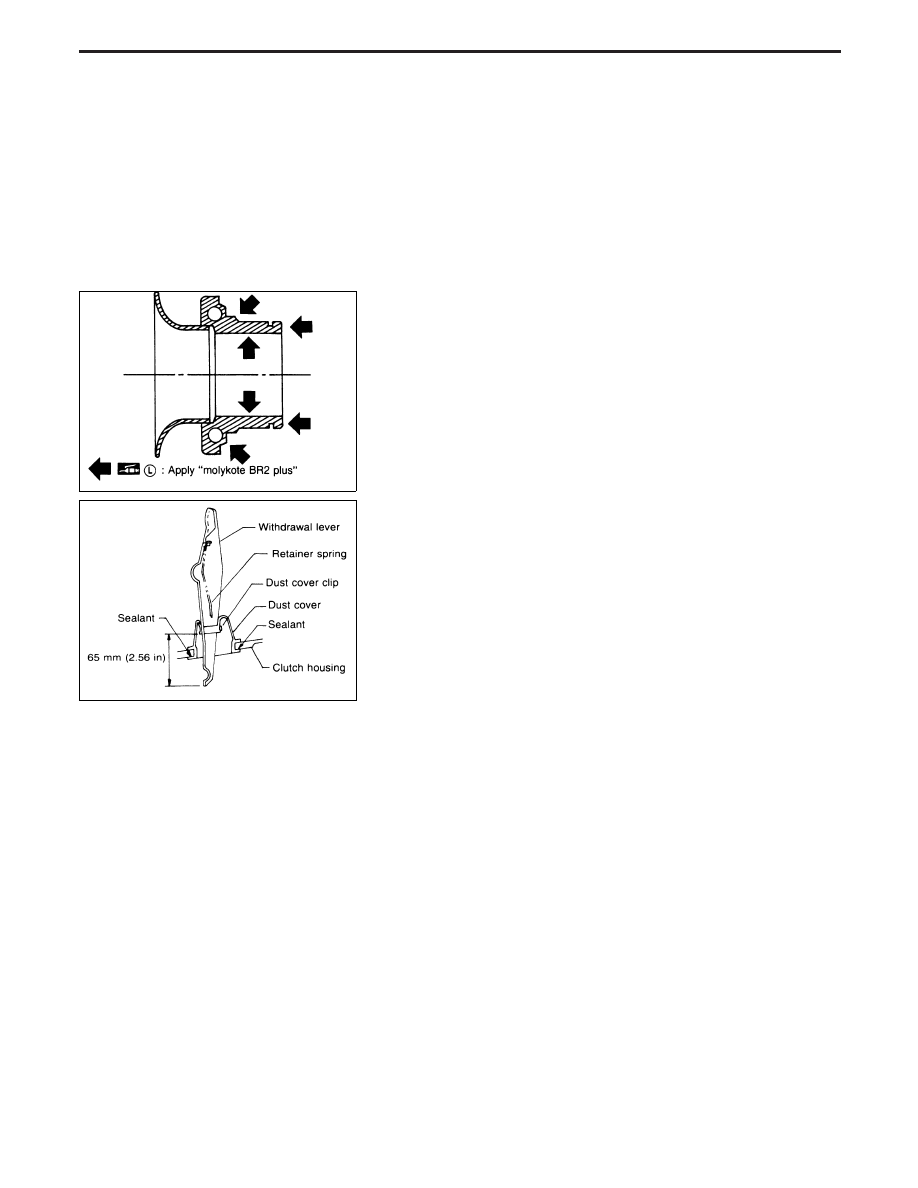

LUBRICATION

I

Apply recommended grease to contact surface and rubbing
surface.

Too much lubricant might cause clutch disc facing damage.

DUST COVER SEALING

I

Apply recommended sealant to contact surface of dust cover to
transmission case and withdrawal lever and then install dust
cover clip.

NCL026

ECL006

CLUTCH RELEASE MECHANISM

CL-10
