Nissan Terrano r20e. Manual - part 61





ABS actuator operation

Inlet solenoid
valve

Outlet solenoid
valve

Normal brake operation

OFF (Open)

OFF (Closed)

Master cylinder brake fluid pressure is directly trans-
mitted to caliper via the inlet solenoid valve.

ABS operation

Pressure hold

ON (Closed)

OFF (Closed)

Hydraulic circuit is shut off to hold the caliper brake
fluid pressure.

Pressure
decrease

ON (Closed)

ON (Open)

Caliper brake fluid is sent to reservoir via the outlet
solenoid valve. Then it is pushed up to the master
cylinder by pump.

Pressure
increase

OFF (Open)

OFF (Closed)

Master cylinder brake fluid pressure is transmitted to
caliper.

ANTI-LOCK BRAKE SYSTEM

System Description (Cont’d)

BR-41

Removal and Installation

CAUTION:

Be careful not to damage sensor edge and sensor rotor teeth.
When removing the front or rear wheel hub assembly, discon-
nect the ABS wheel sensor from the assembly and move it
away.

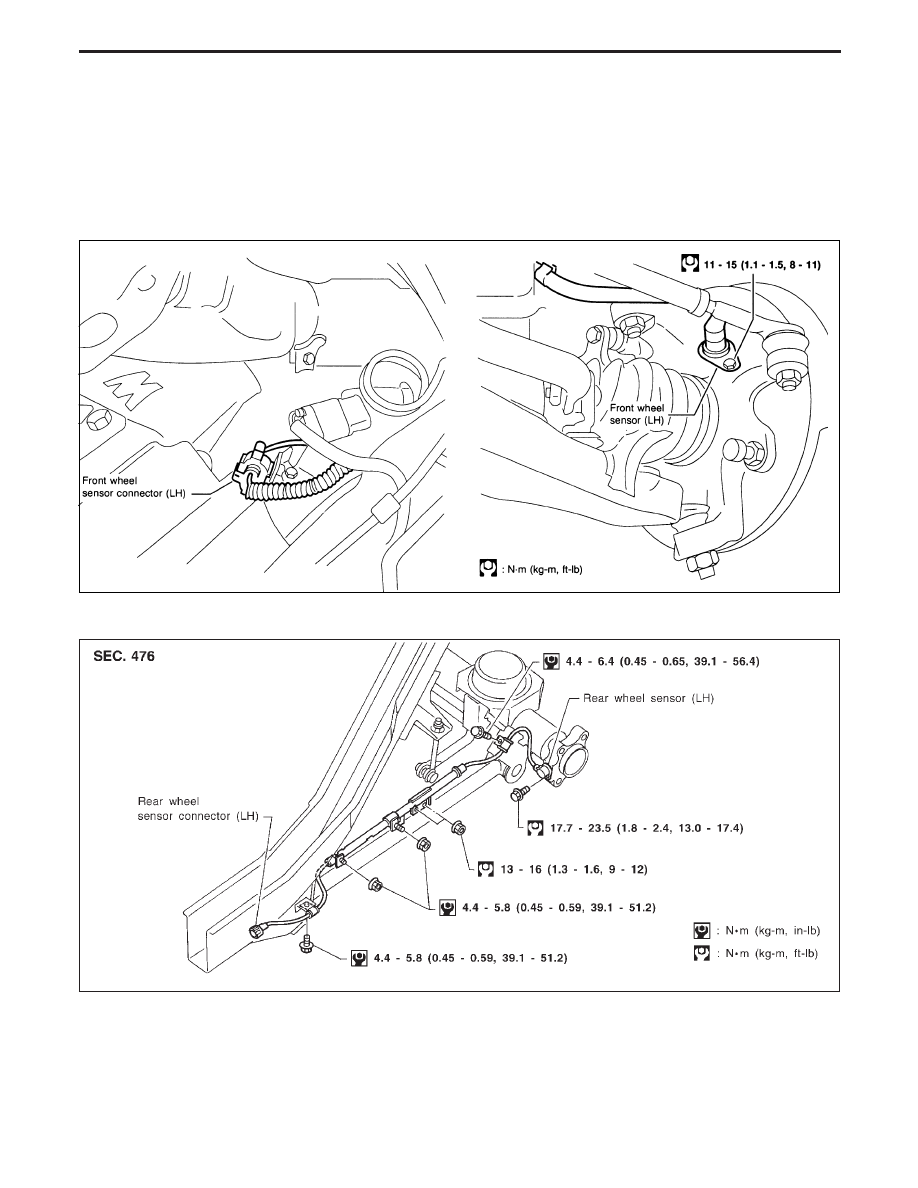

FRONT WHEEL SENSOR

REAR WHEEL SENSOR

NBR122

SBR399D

ANTI-LOCK BRAKE SYSTEM

BR-42

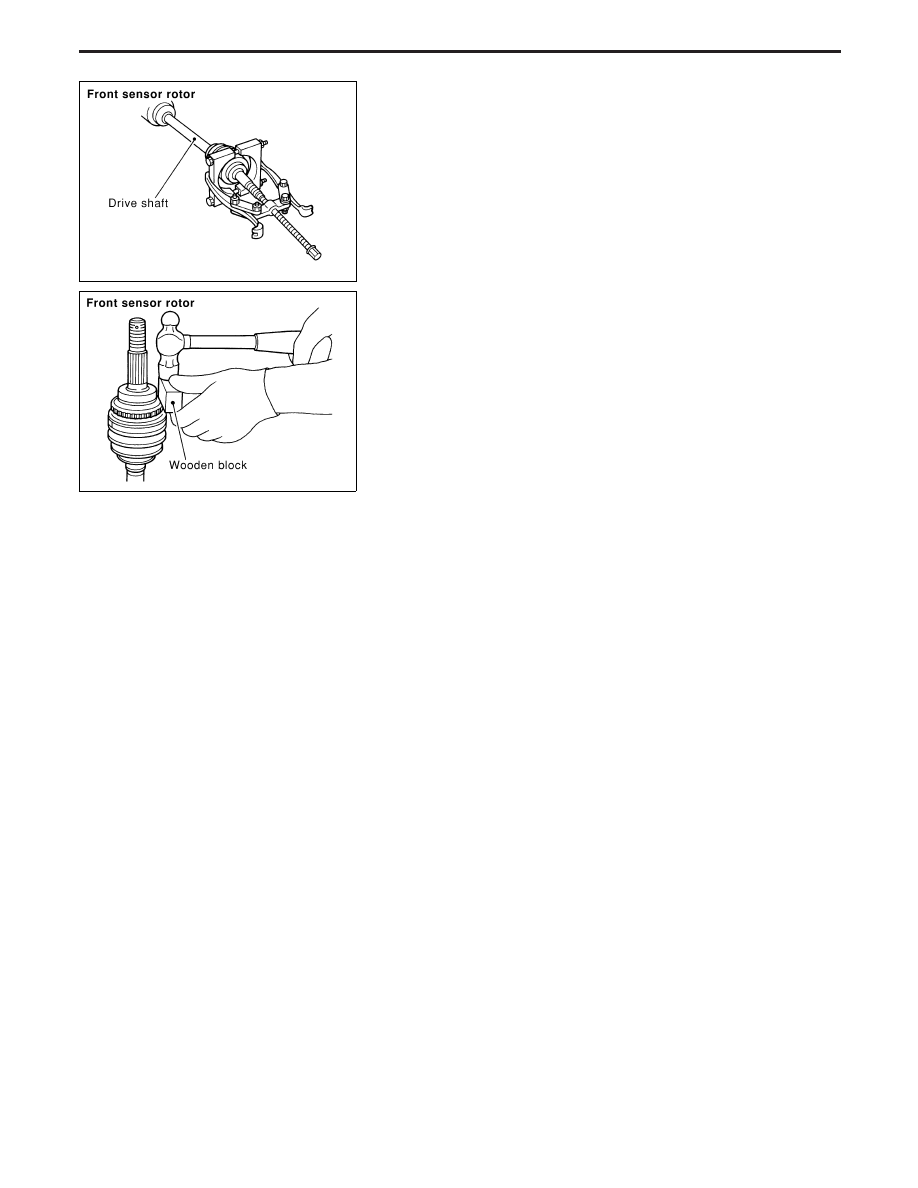

FRONT SENSOR ROTOR

Removal

1. Remove the drive shaft and rear wheel hub. Refer to “Front axle

— drive shaft” in FA section and “Rear axle” in RA section.

2. Remove the sensor rotor using suitable puller, drift and bear-

ing replacer.

Installation

Install the sensor rotor. For front sensor rotor, use hammer and
wooden block. For rear sensor rotor, use suitable drift and press.

I

Always replace sensor rotor with new one.

YBR295

YBR296

ANTI-LOCK BRAKE SYSTEM

Removal and Installation (Cont’d)

BR-43

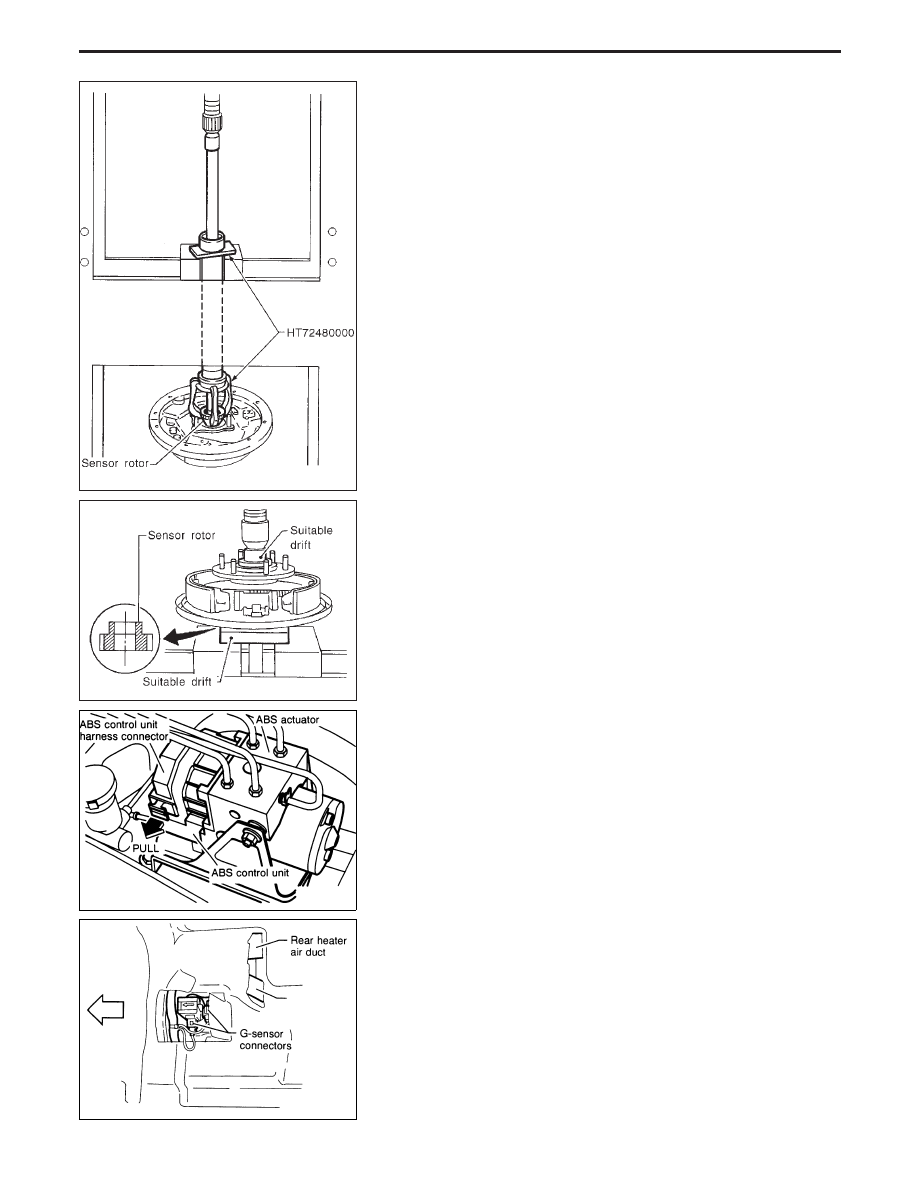

REAR SENSOR ROTOR

Removal

I

Remove the sensor rotor using Tool.

Installation

Install the sensor rotor using suitable drift and press.

I

Always replace sensor rotor with new one.

I

Pay attention to the direction of front sensor rotor as shown in
figure.

CONTROL UNIT

Location: Built-in ABS actuator.
When disconnecting the harness connector, pull the lever as
shown in figure.

G SENSOR

Always replace G sensor if bumped or dropped. Otherwise,
performance characteristics of G sensor will be changed,
which in turn alters ABS control performance characteristics.

SBR401D

SBR402D

NBR212

NBR127

ANTI-LOCK BRAKE SYSTEM

Removal and Installation (Cont’d)

BR-44
