Pilot filter

I

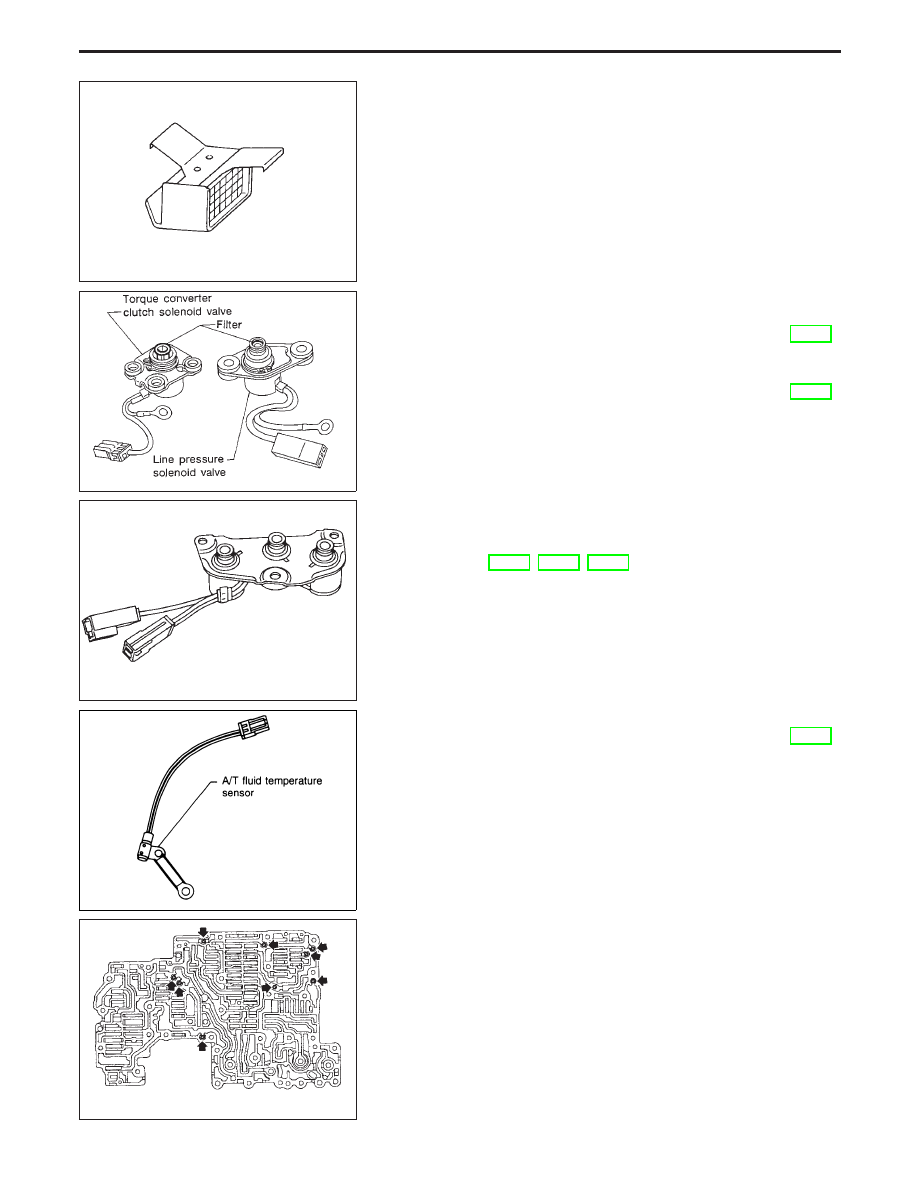

Check to make sure that filter is not clogged or damaged.

Torque converter clutch solenoid valve

I

Check that filter is not clogged or damaged.

I

Measure resistance. Refer to “Component Inspection”, AT-84.

Line pressure solenoid valve

I

Check that filter is not clogged or damaged.

I

Measure resistance. Refer to “Component Inspection”, AT-86.

3-unit solenoid assembly (Overrun clutch solenoid
valve and shift solenoid valves A and B)

I

Measure resistance of each solenoid. Refer to “Component
Inspection”, AT-64, AT-67, AT-70.

A/T fluid temperature sensor

I

Measure resistance. Refer to “Component Inspection”, AT-78.

ASSEMBLY

1. Install upper and lower bodies.
a. Place oil circuit of upper body face up. Install steel balls in their

proper positions.

SAT676A

SAT149G

SAT095B

SAT169BA

SAT671A

REPAIR FOR COMPONENT PARTS

Control Valve Assembly (Cont’d)

AT-141

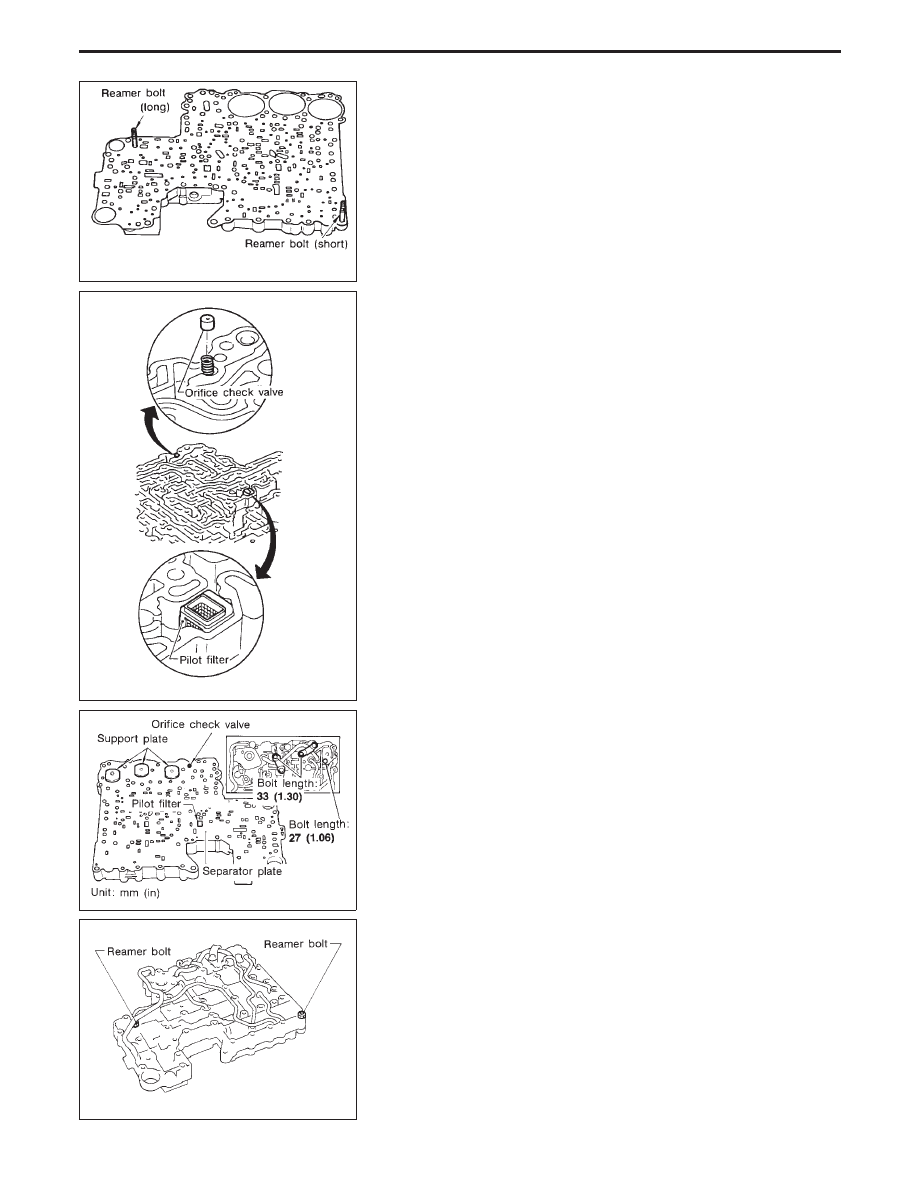

b. Install reamer bolts from bottom of upper body and install sepa-

rate gaskets.

c. Place oil circuit of lower body face up. Install orifice check

spring, orifice check valve and pilot filter.

d. Install lower separate gaskets and separator plates on lower

body.

e. Install and temporarily tighten support plates, fluid temperature

sensor and tube brackets.

f.

Temporarily assemble lower and upper bodies, using reamer
bolt as a guide.

I

Be careful not to dislocate or drop steel balls, orifice check
spring, orifice check valve and pilot filter.

SAT681A

SAT682A

SAT197B

SAT198B

REPAIR FOR COMPONENT PARTS

Control Valve Assembly (Cont’d)

AT-142

g. Install and temporarily tighten bolts and tube brackets in their

proper locations.

Bolt length and location:

Bolt symbol

q

a

q

b

q

c

q

d

Bolt length

mm (in)

70

(2.76)

50

(1.97)

33

(1.30)

27

(1.06)

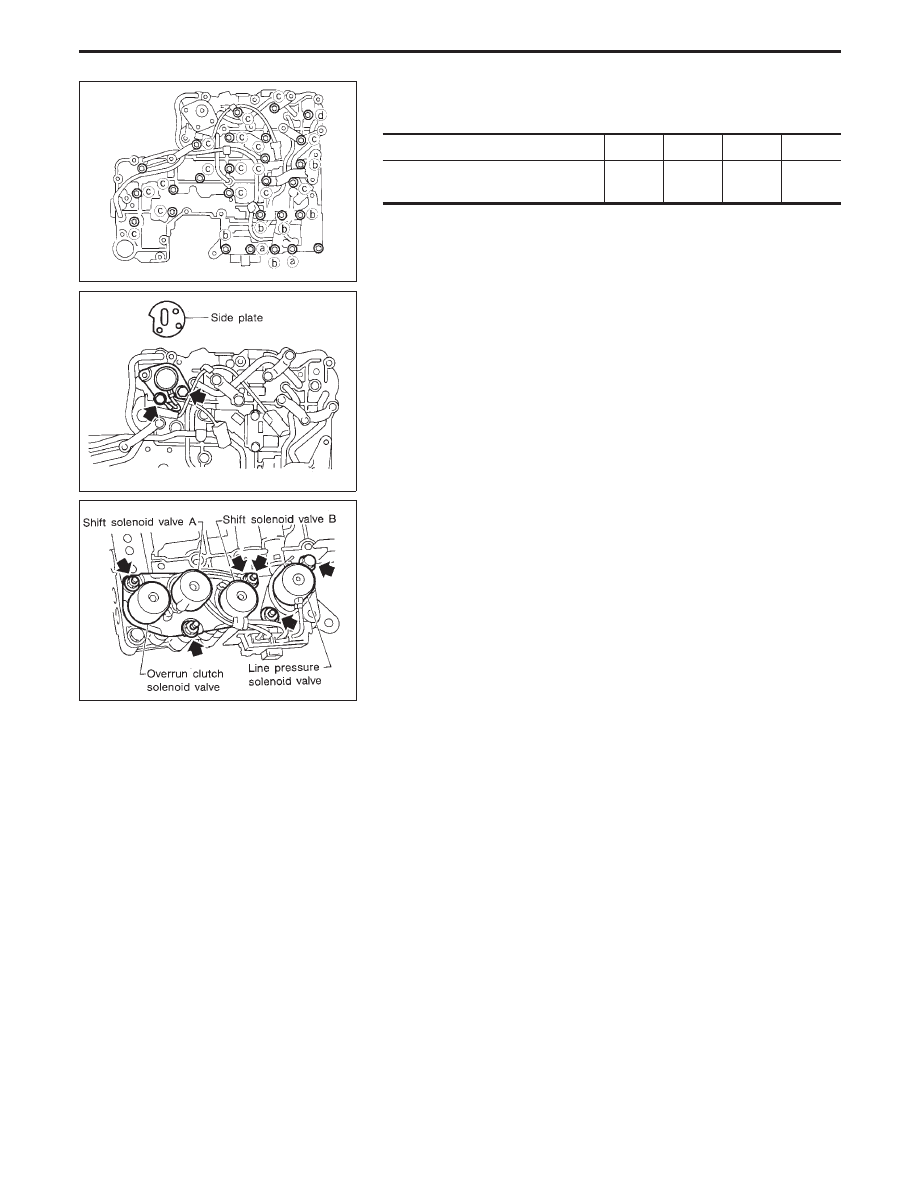

2. Install solenoids.
a. Attach O-ring and install torque converter clutch solenoid valve

and side plates onto lower body.

b. Attach O-rings and install 3-unit solenoids assembly onto upper

body.

c. Attach O-ring and install line pressure solenoid valve onto

upper body.

3. Tighten all bolts.

SAT199BA

SAT200B

SAT150G

REPAIR FOR COMPONENT PARTS

Control Valve Assembly (Cont’d)

AT-143

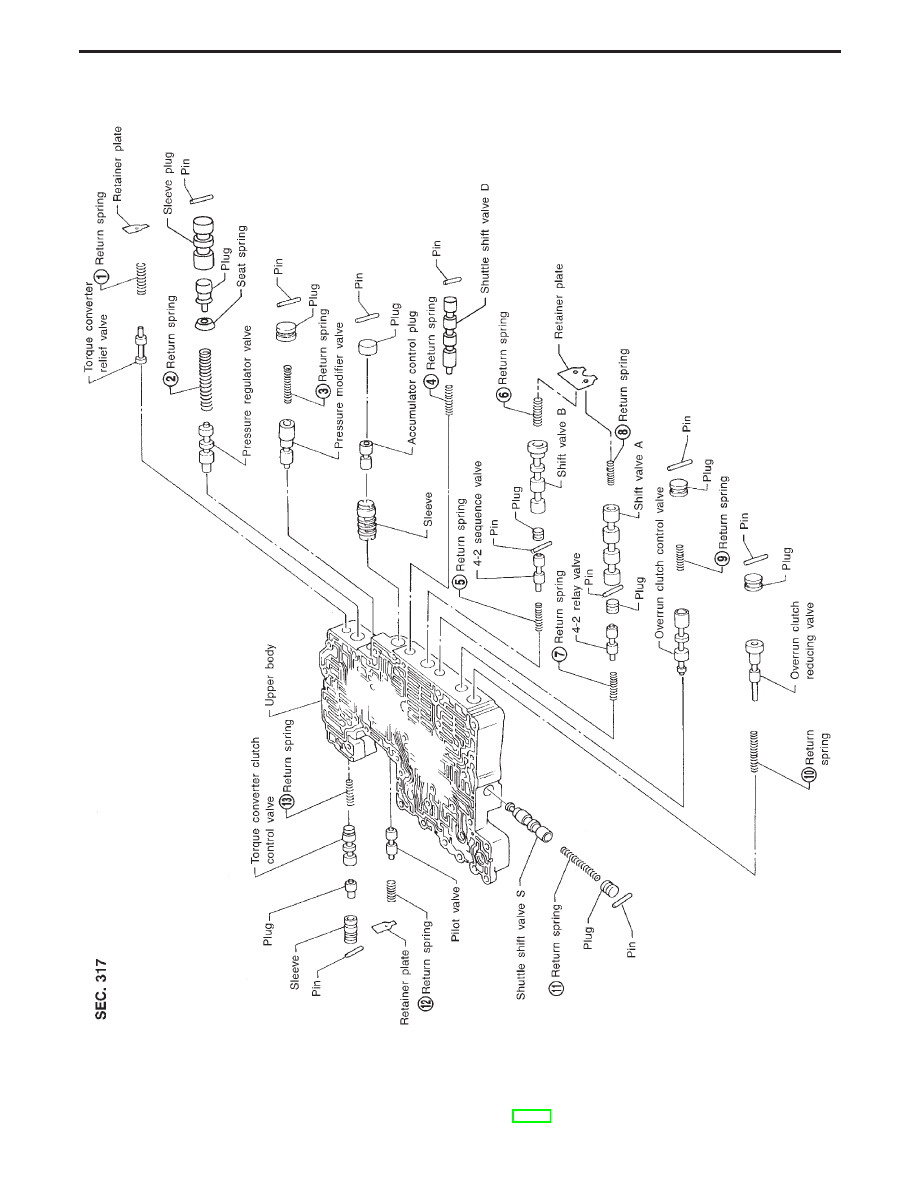

Control Valve Upper Body

Numbers preceding valve springs correspond with those shown in SDS on page AT-197.

Apply ATF to all components before their installation.

SAT665I
