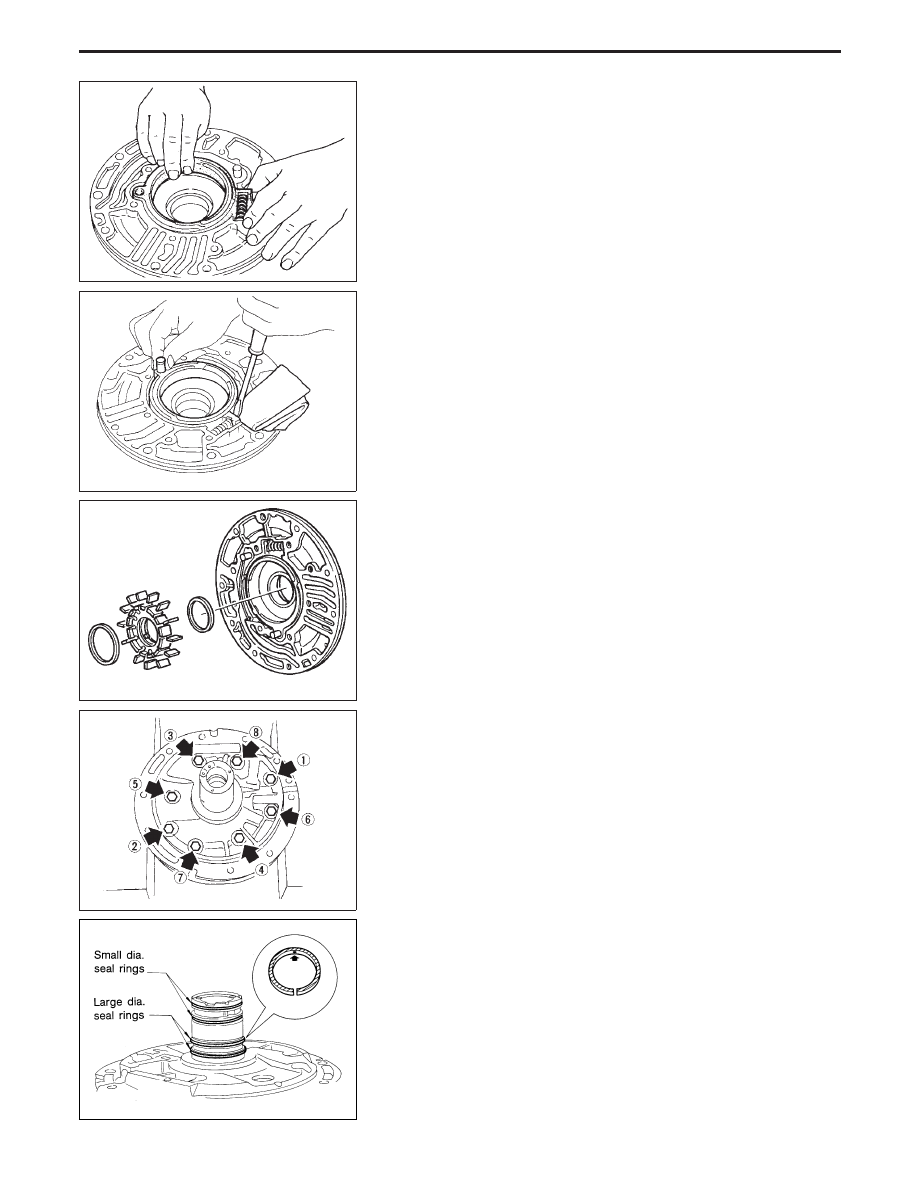

d. Assemble cam ring, cam ring spring and spring seat. Install

spring by pushing it against pump housing.

e. While pushing on cam ring install pivot pin.

3. Install rotor, vanes and vane rings.

I

Pay attention to direction of rotor.

4. Install oil pump housing and oil pump cover.
a. Wrap masking tape around splines of oil pump cover assembly

to protect seal. Position oil pump cover assembly in oil pump
housing assembly, then remove masking tape.

b. Tighten bolts in a criss-cross pattern.

5. Install new seal rings carefully after packing ring grooves with

petroleum jelly. Press rings down into jelly to a close fit.

I

Seal rings come in two different diameters. Check fit care-
fully in each groove.

Small dia. seal ring:

No mark

Large dia. seal ring:

Yellow mark in area shown by arrow

I

Do not spread gap of seal ring excessively while installing.
It may deform ring.

SAT661A

SAT651A

SAT662A

SAT649A

YAT341

REPAIR FOR COMPONENT PARTS

Oil Pump (Cont’d)

AT-137

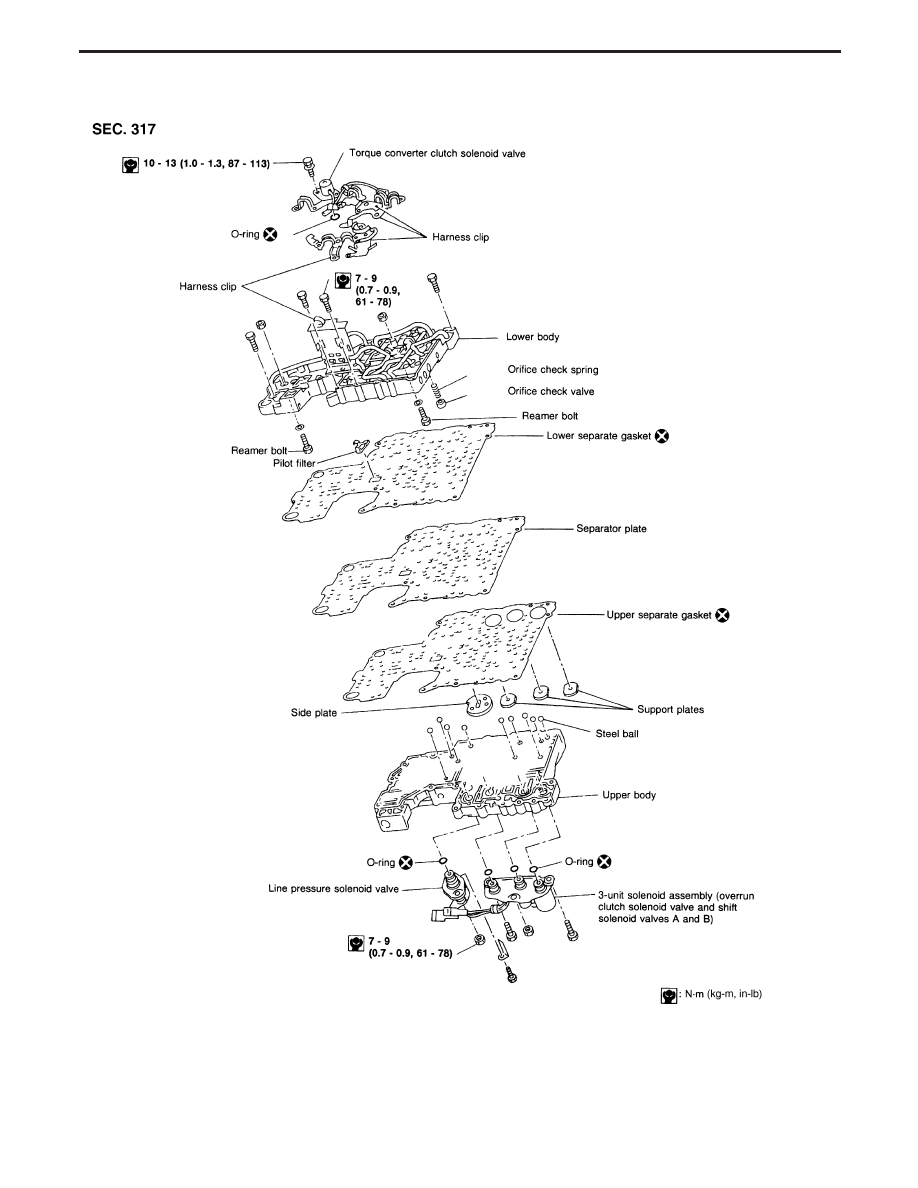

Control Valve Assembly

NAT294

REPAIR FOR COMPONENT PARTS

AT-138

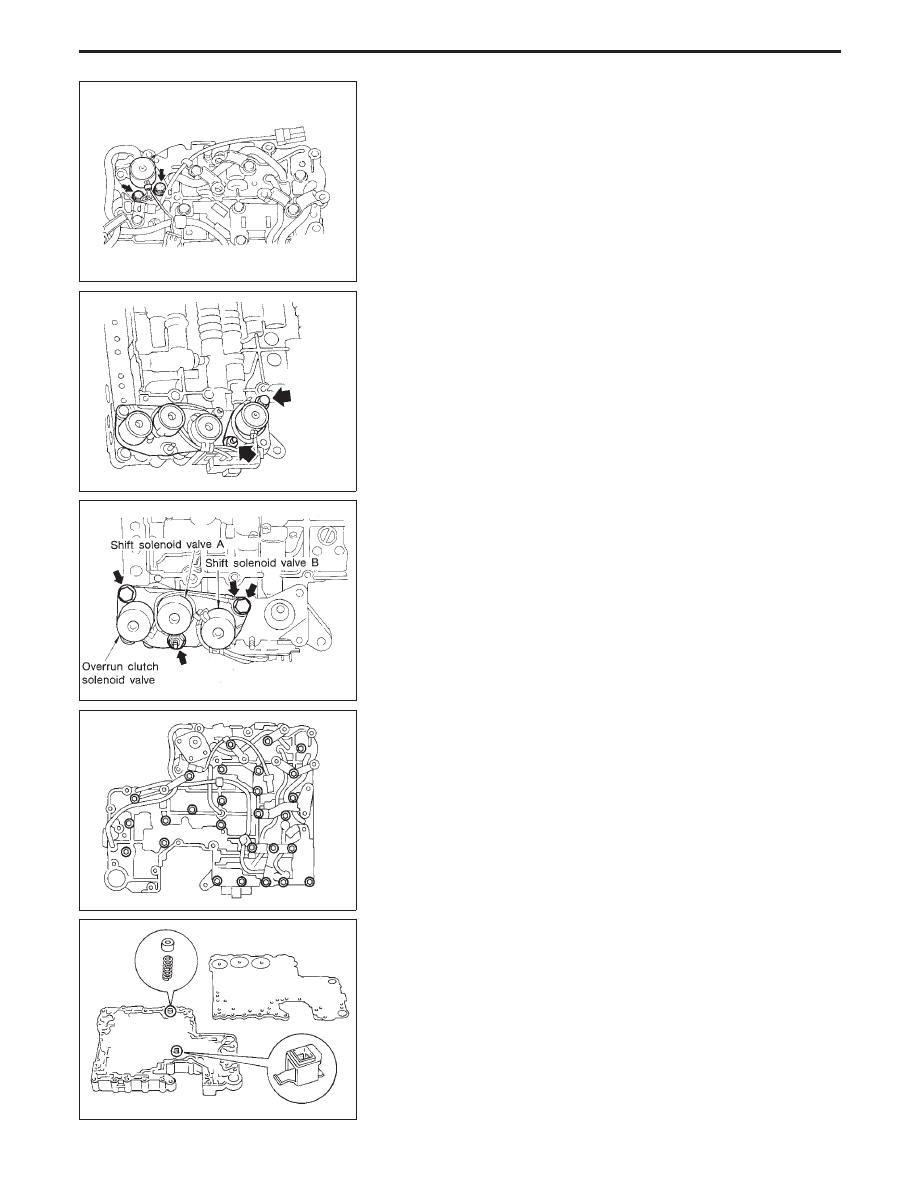

DISASSEMBLY

1. Remove solenoids.
a. Remove torque converter clutch solenoid valve and side plate

from lower body.

b. Remove O-ring from solenoid.

c. Remove line pressure solenoid valve from upper body.
d. Remove O-ring from solenoid.

e. Remove 3-unit solenoid assembly from upper body.
f.

Remove O-rings from solenoids.

2. Disassemble upper and lower bodies.
a. Place upper body facedown, and remove bolts, reamer bolts

and support plates.

b. Remove lower body, separator plate and separate gasket as a

unit from upper body.

I

Be careful not to drop pilot filter, orifice check valve, spring
and steel balls.

c. Place lower body facedown, and remove separate gasket and

separator plate.

d. Remove pilot filter, orifice check valve and orifice check spring.

SAT194B

SAT667A

SAT043G

SAT195B

SAT670A

REPAIR FOR COMPONENT PARTS

Control Valve Assembly (Cont’d)

AT-139

e. Check to see that steel balls are properly positioned in upper

body. Then remove them from upper body.

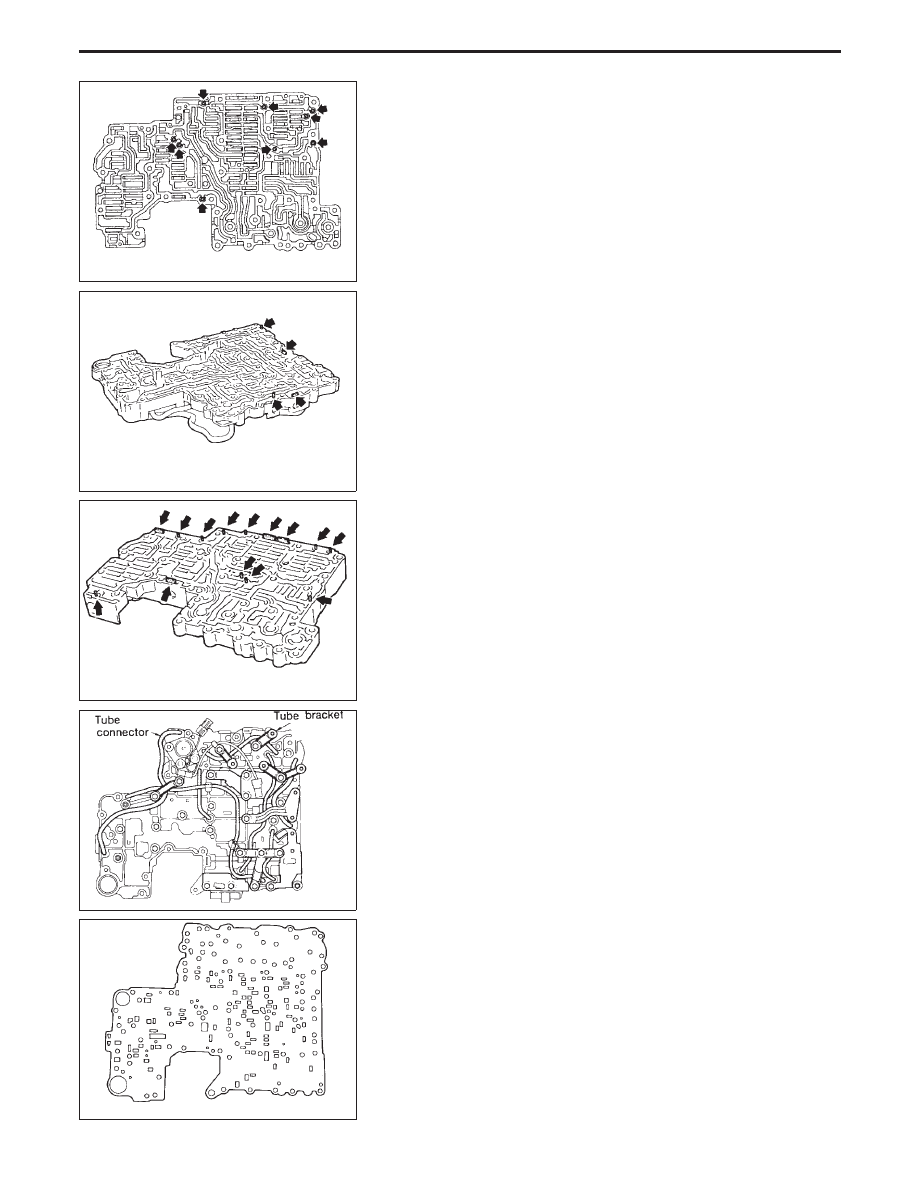

INSPECTION

Lower and upper bodies

I

Check to see that there are pins and retainer plates in lower
body.

I

Check to see that there are pins and retainer plates in upper
body.

I

Be careful not to lose these parts.

I

Check to make sure that oil circuits are clean and free from
damage.

I

Check tube brackets and tube connectors for damage.

Separator plates

I

Make sure that separator plate is free of damage and not
deformed and oil holes are clean.

SAT671A

SAT672A

SAT673A

SAT674A

SAT675A

REPAIR FOR COMPONENT PARTS

Control Valve Assembly (Cont’d)

AT-140
