Nissan Terrano r20e. Manual - part 32





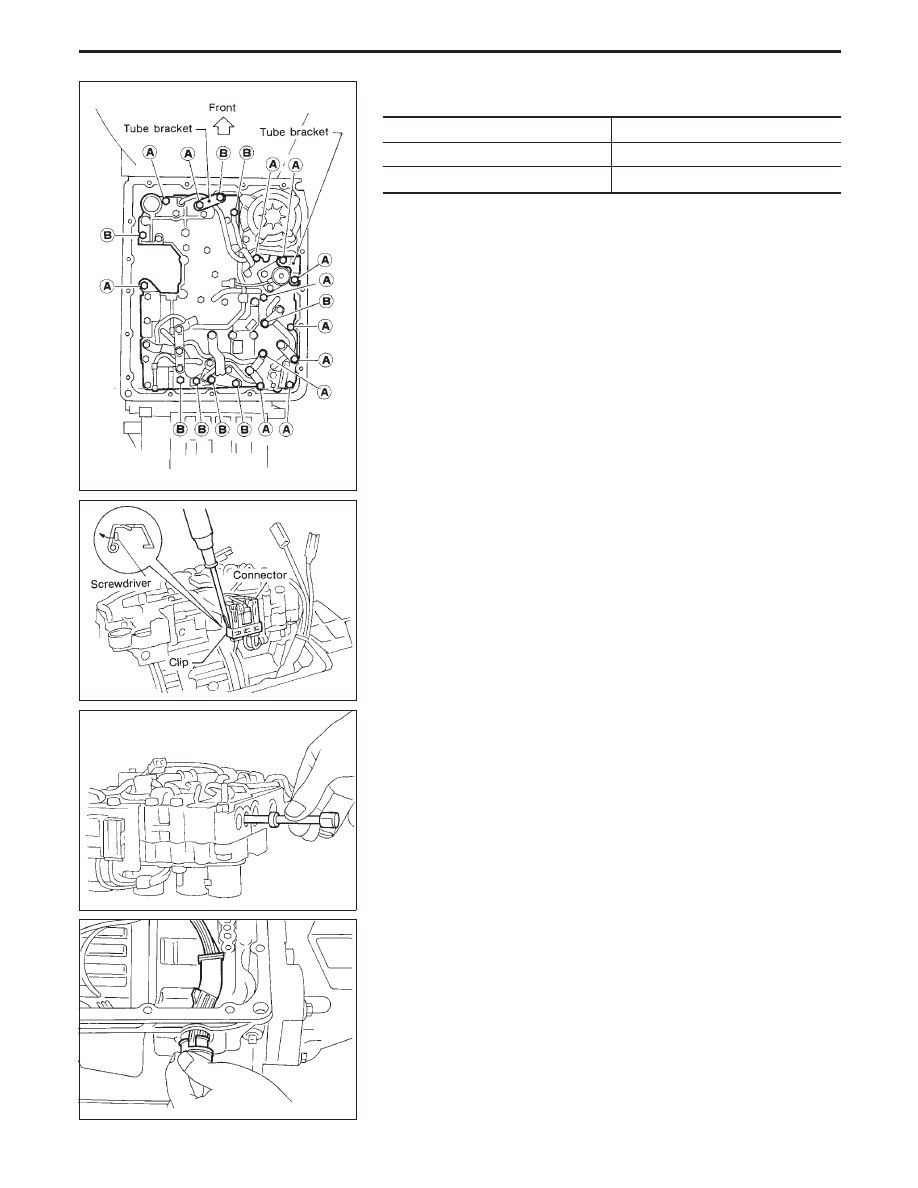

b. Remove bolts

q

A

and

q

B

, and remove control valve assembly

from transmission.

Bolt symbol

Length mm (in)

q

A

33 (1.30)

q

B

45 (1.77)

c. Remove solenoid connector.

I

Be careful not to damage connector.

d. Remove manual valve from control valve assembly.

11. Remove terminal cord assembly from transmission case while

pushing on stopper.

I

Be careful not to damage cord.

I

Do not remove terminal cord assembly unless it is dam-
aged.

SAT353B

SAT026B

SAT127B

SAT128B

DISASSEMBLY

Disassembly (Cont’d)

AT-125

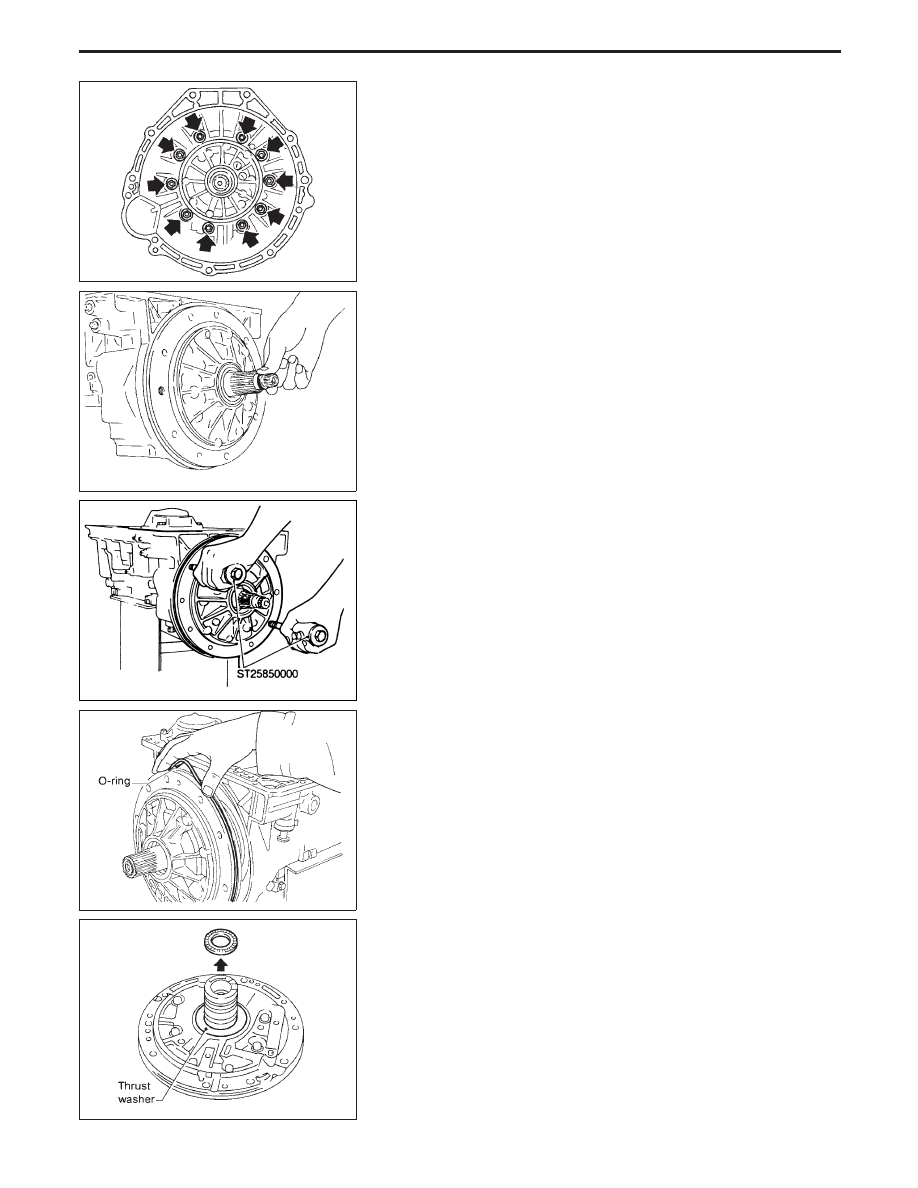

12. Remove converter housing from transmission case.

I

Be careful not to scratch converter housing.

13. Remove O-ring from input shaft.

14. Remove oil pump assembly.
a. Attach Tool to oil pump assembly and extract it evenly from

transmission case.

b. Remove O-ring from oil pump assembly.
c. Remove traces of sealant from oil pump housing.

I

Be careful not to scratch pump housing.

d. Remove needle bearing and thrust washer from oil pump

assembly.

SAT999A

SAT995A

NAT229

SAT028B

SAT108B

DISASSEMBLY

Disassembly (Cont’d)

AT-126

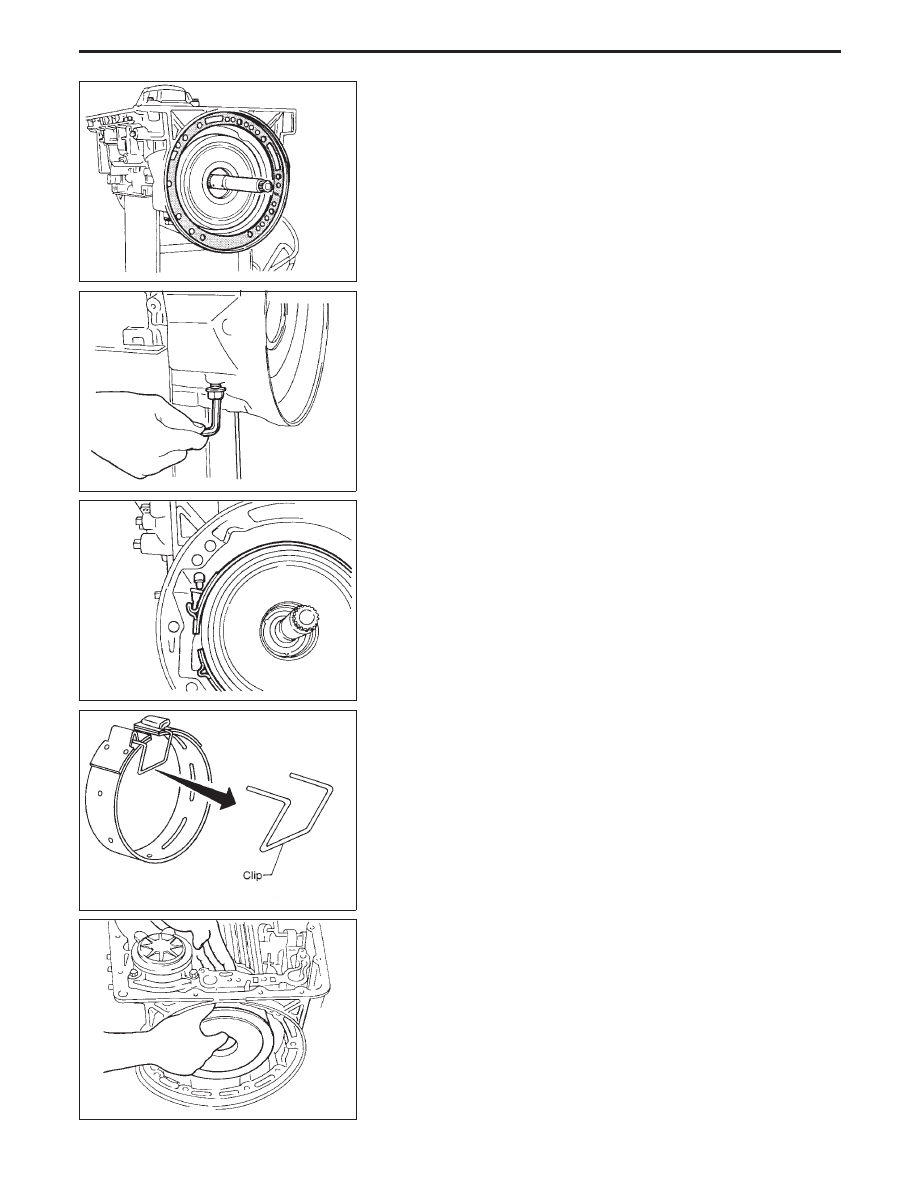

15. Remove input shaft and oil pump gasket.

16. Remove brake band and band strut.
a. Loosen lock nut and remove band servo anchor end pin from

transmission case.

b. Remove brake band and band strut from transmission case.

c. Hold brake band in a circular shape with clip.

17. Remove front side clutch and gear components.
a. Remove clutch pack (reverse clutch, high clutch and front sun

gear) from transmission case.

SAT988A

SAT029B

SAT986A

SAT655

SAT030B

DISASSEMBLY

Disassembly (Cont’d)

AT-127

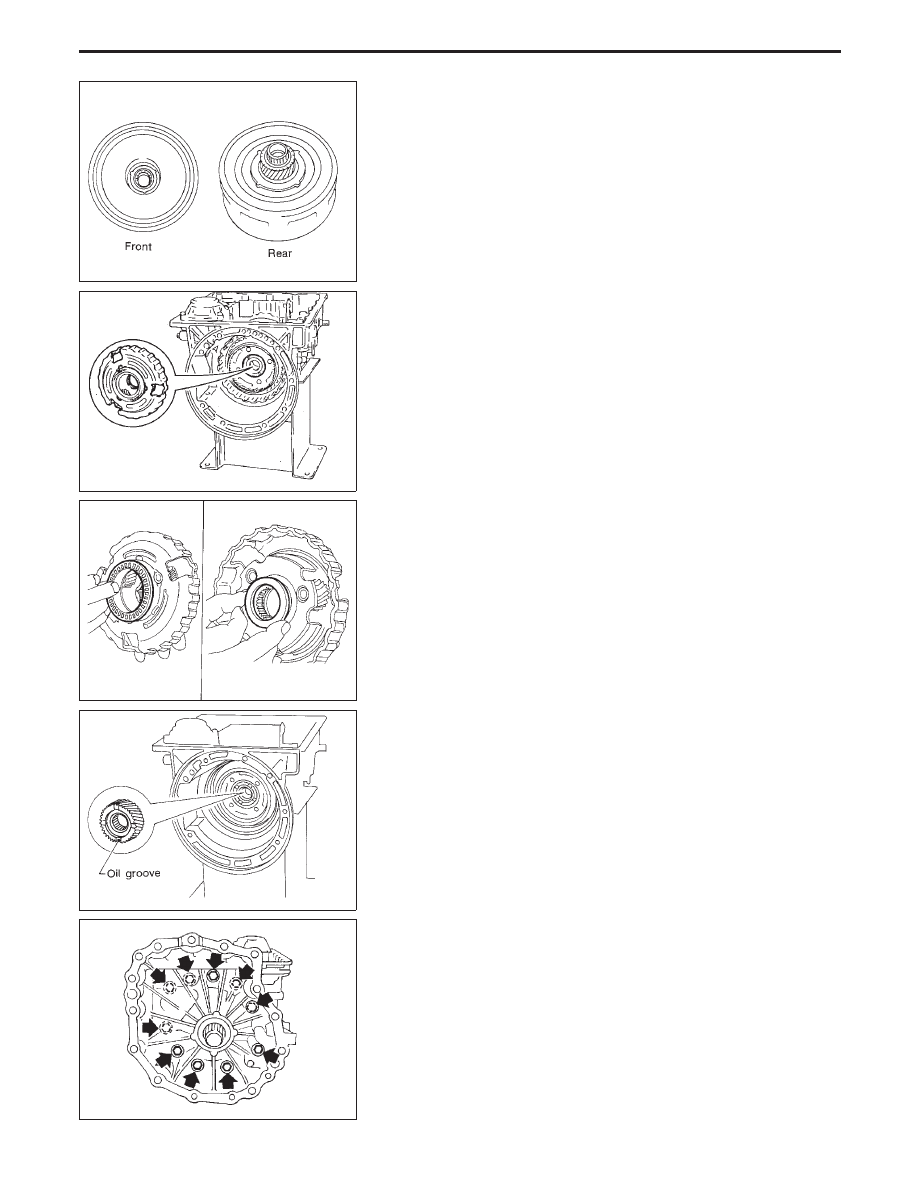

b. Remove front bearing race from clutch pack.
c. Remove rear bearing race from clutch pack.

d. Remove front planetary carrier from transmission case.

e. Remove front needle bearing from front planetary carrier.
f.

Remove rear bearing from front planetary carrier.

g. Remove rear sun gear from transmission case.

18. Remove adapter case.
a. Remove adapter case from transmission case.
b. Remove adapter case gasket from transmission case.

SAT113B

SAT031B

SAT968A

SAT974A

SAT755I

DISASSEMBLY

Disassembly (Cont’d)

AT-128
