10. Remove starter motor.
11. Remove gusset and rear plate cover securing engine to A/T
assembly.
12. Remove bolts securing torque converter to drive plate.
I
Remove the bolts by turning crankshaft.
13. Support A/T and transfer assembly with a jack.
14. Remove rear engine mounting member from body and A/T
assembly. Tighten rear engine mounting member to the speci-
fied torque. Refer to EM section (“ENGINE REMOVAL”).

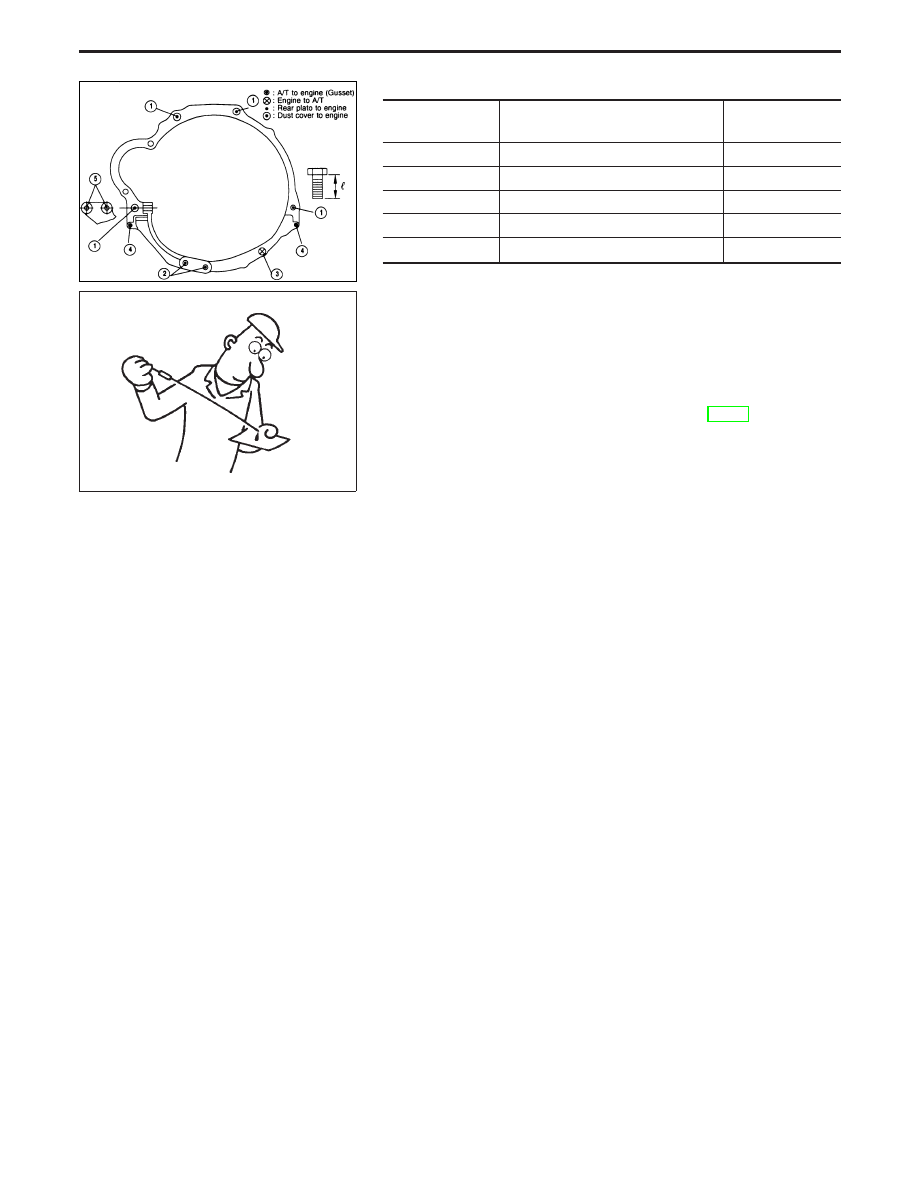

15. Remove bolts securing A/T assembly to engine.
I
Secure torque converter to prevent it from dropping.
I
Secure A/T assembly with transfer to a jack.
16. Lower A/T assembly with transfer.
Installation
I
Drive plate runout
Do not allow any magnetic materials to contact the ring gear
teeth.
Maximum allowable runout:
Refer to EM section (“Inspection”, CYLINDER
BLOCK).
If this runout is out of specification, replace drive plate with ring
gear.
I

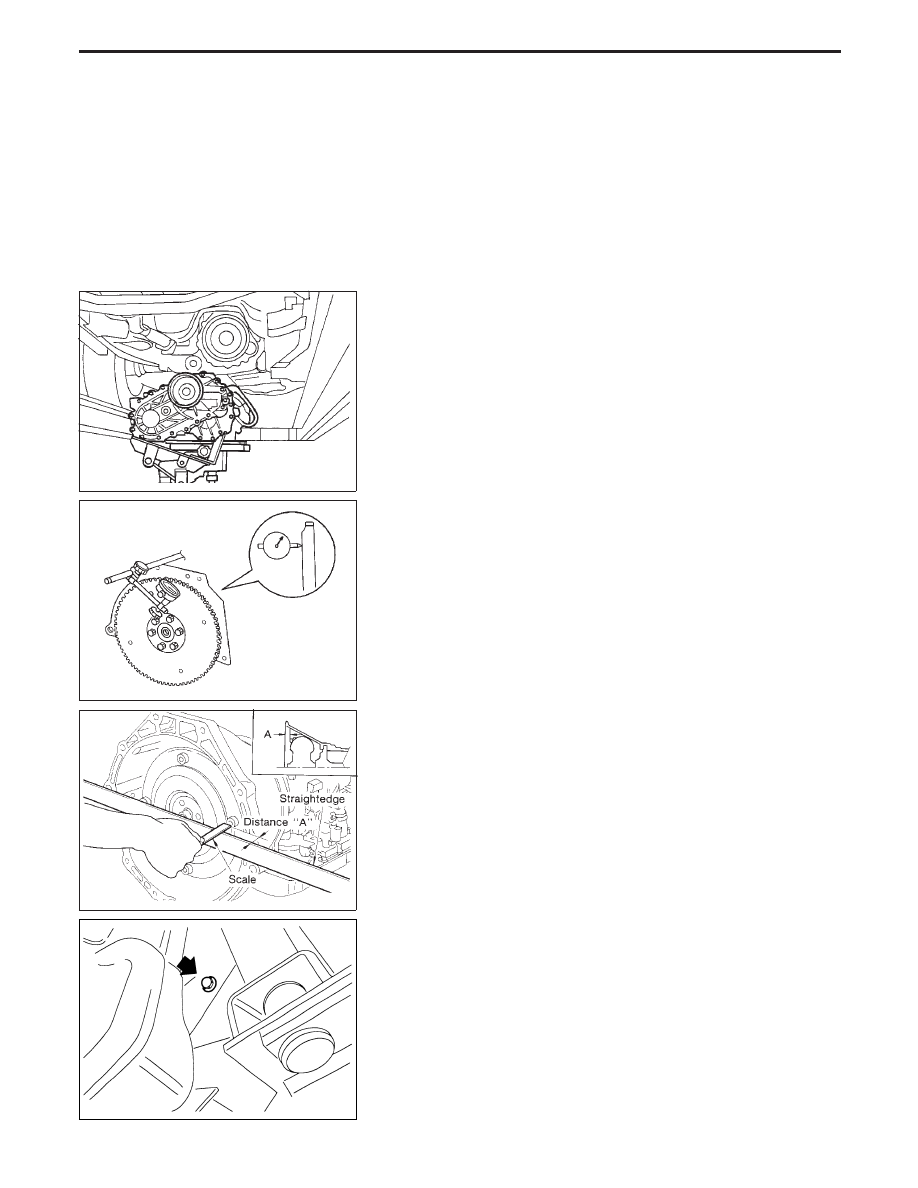

When connecting torque converter to transmission, measure
distance “A” to be certain that they are correctly assembled.
Distance “A”:
26.0 mm (1.024 in) or more
I
Install converter to drive plate.
I
After converter is installed to drive plate, rotate crankshaft
several turns and check to be sure that transmission
rotates freely without binding.
SAT801C
SAT977H
SAT017B
NAT286
