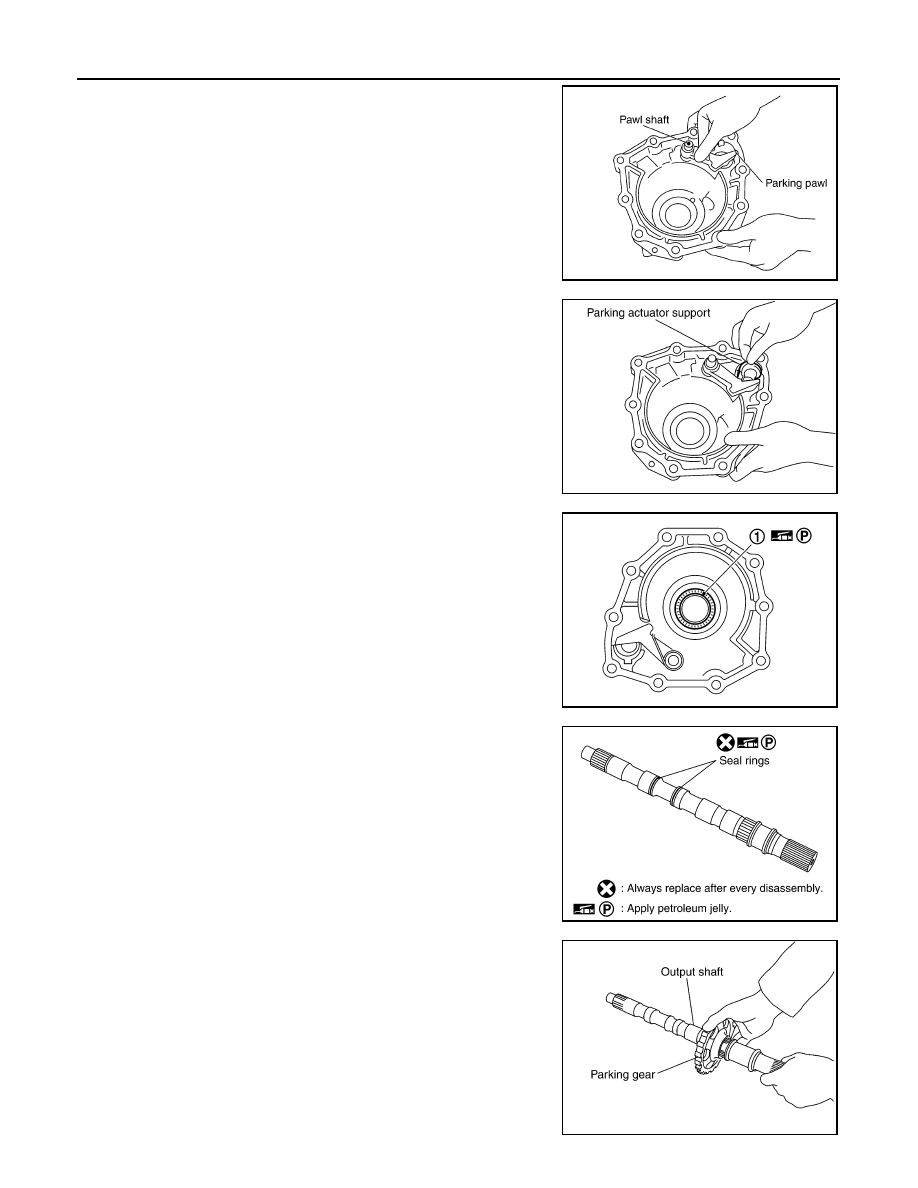

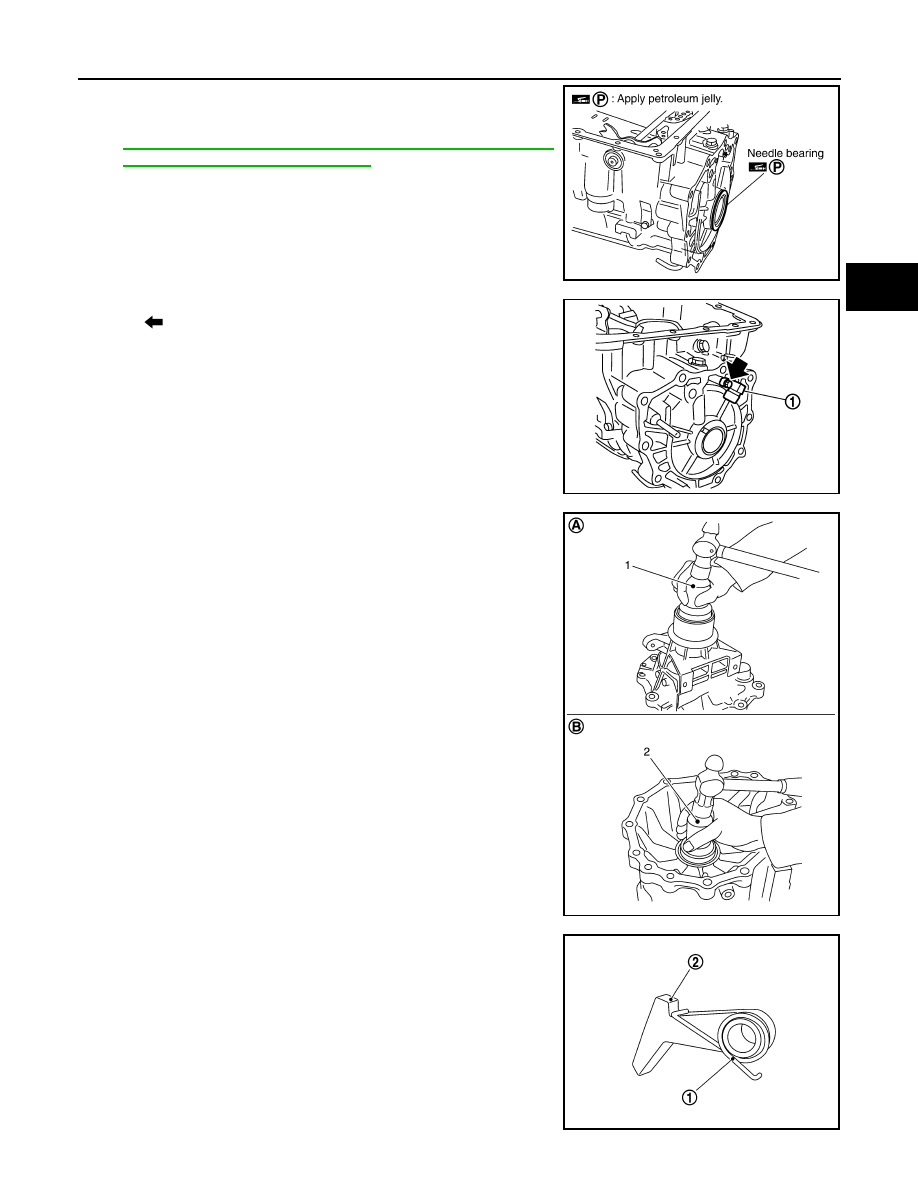

ASSEMBLY TM-271 < UNIT DISASSEMBLY AND ASSEMBLY > C E F G H I J K L M A B TM N O P 23. Install needle bearing to transmission case. CAUTION: • Take care with the direction of needle bearing. Refer to TM-226, "Location of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings" . • Apply petroleum jelly to needle bearing. 24. Install output speed sensor (1) to transmission case and tighten bolt ( ) to specified torque. CAUTION: • Do not subject sensor to impact by dropping or hitting it. • Do not disassemble sensor. • Do not allow metal filings or any foreign material to get on the sensor's front edge magnetic area. • Do not place sensor in an area affected by magnetism. 25. As shown in the figure, use the drift to drive rear oil seal into the rear extension (2WD models) (A) or adapter case (4WD models) (B) until it is flush. CAUTION: • Apply ATF to rear oil seal. • Do not reuse rear oil seal. 26. Install return spring (1) to parking pawl (2). SCIA5031E Output speed sensor bolt : 5.8 N·m (0.59 kg-m, 51 in-lb) JSDIA1321ZZ 1 : Drift [ST33400001 (J-26082)] 2 : Drift [Commercial service tool Ø64 mm (2.52 in)] JSDIA1914ZZ SCIA6180J |
