ASSEMBLY

TM-275

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

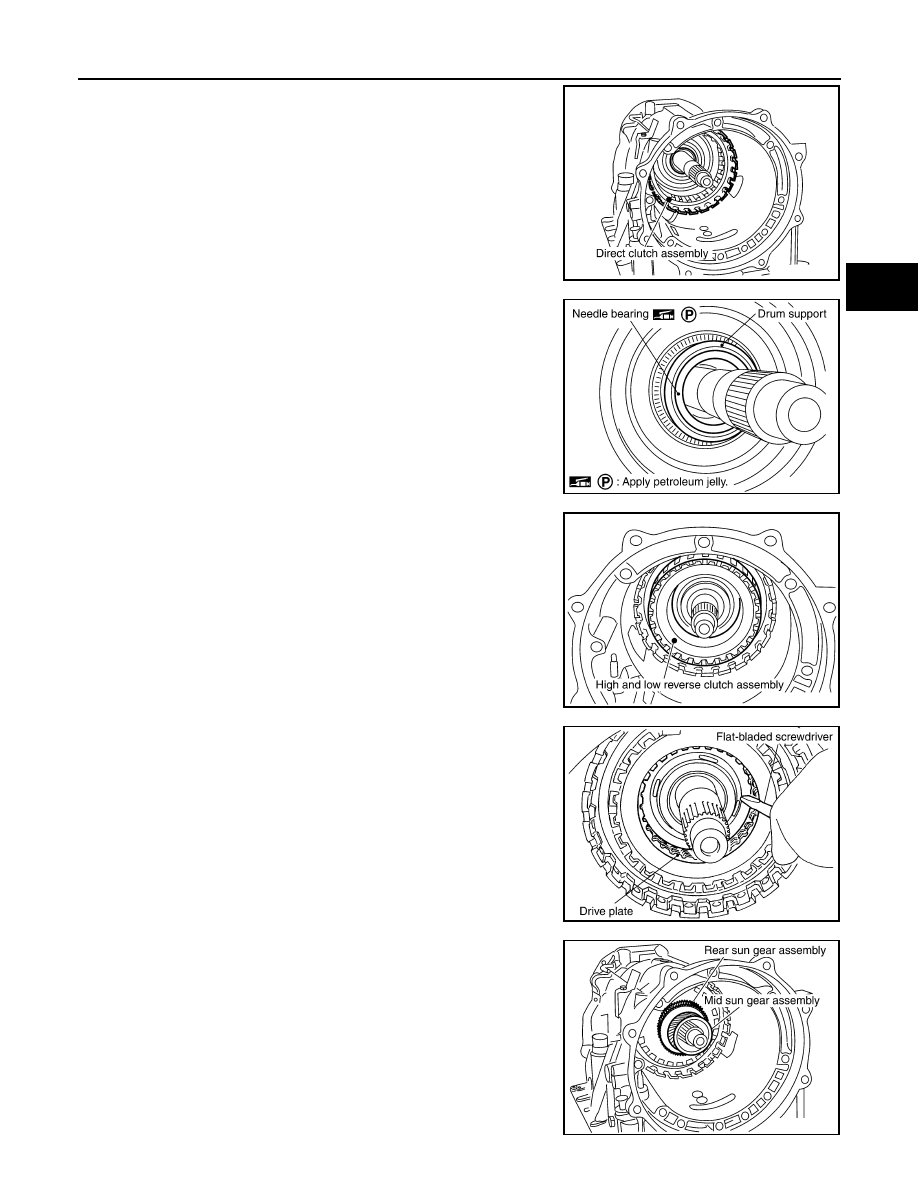

35. Install direct clutch assembly in reverse brake.

CAUTION:

Make sure that drum support edge surface and direct clutch

inner boss edge surface come to almost same place.

36. Install needle bearing in drum support.

CAUTION:

Apply petroleum jelly to needle bearing.

37. Install high and low reverse clutch assembly in direct clutch.

38. Align the drive plate using suitable tool.

39. Install high and low reverse clutch hub, mid sun gear assembly

and rear sun gear assembly as a unit.

SCIA5019E

SCIA5198E

SCIA2306E

SCIA3169E

SCIA5018E

TM-276

< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

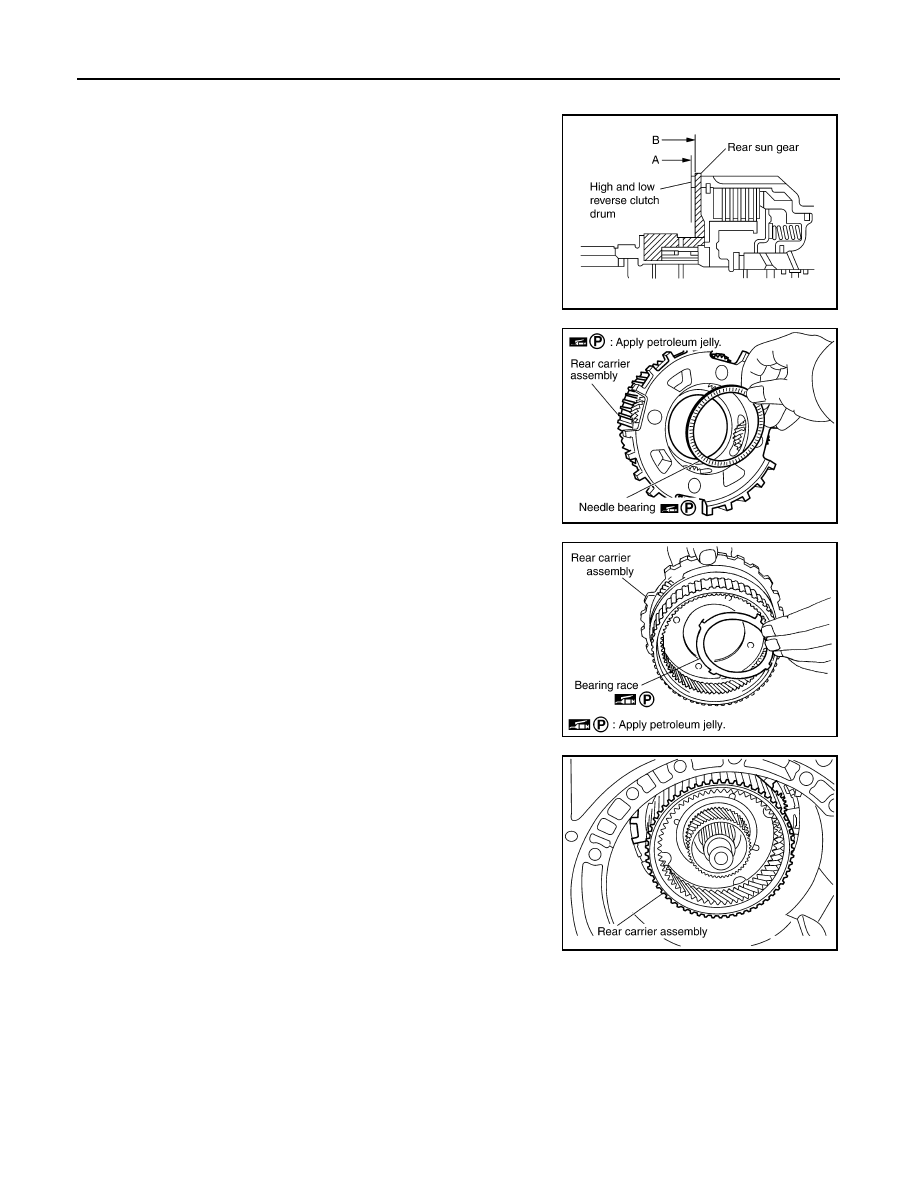

CAUTION:

Make sure that portion (A) of high and low reverse clutch

drum protrudes approximately 2 mm (0.08 in) beyond por-

tion (B) of rear sun gear.

40. Install needle bearing in rear carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

41. Install bearing race in rear carrier assembly.

CAUTION:

Apply petroleum jelly to bearing race.

42. Install rear carrier assembly in direct clutch drum.

SCIA3130E

SCIA2803E

SCIA5175E

SCIA2462E

ASSEMBLY

TM-277

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

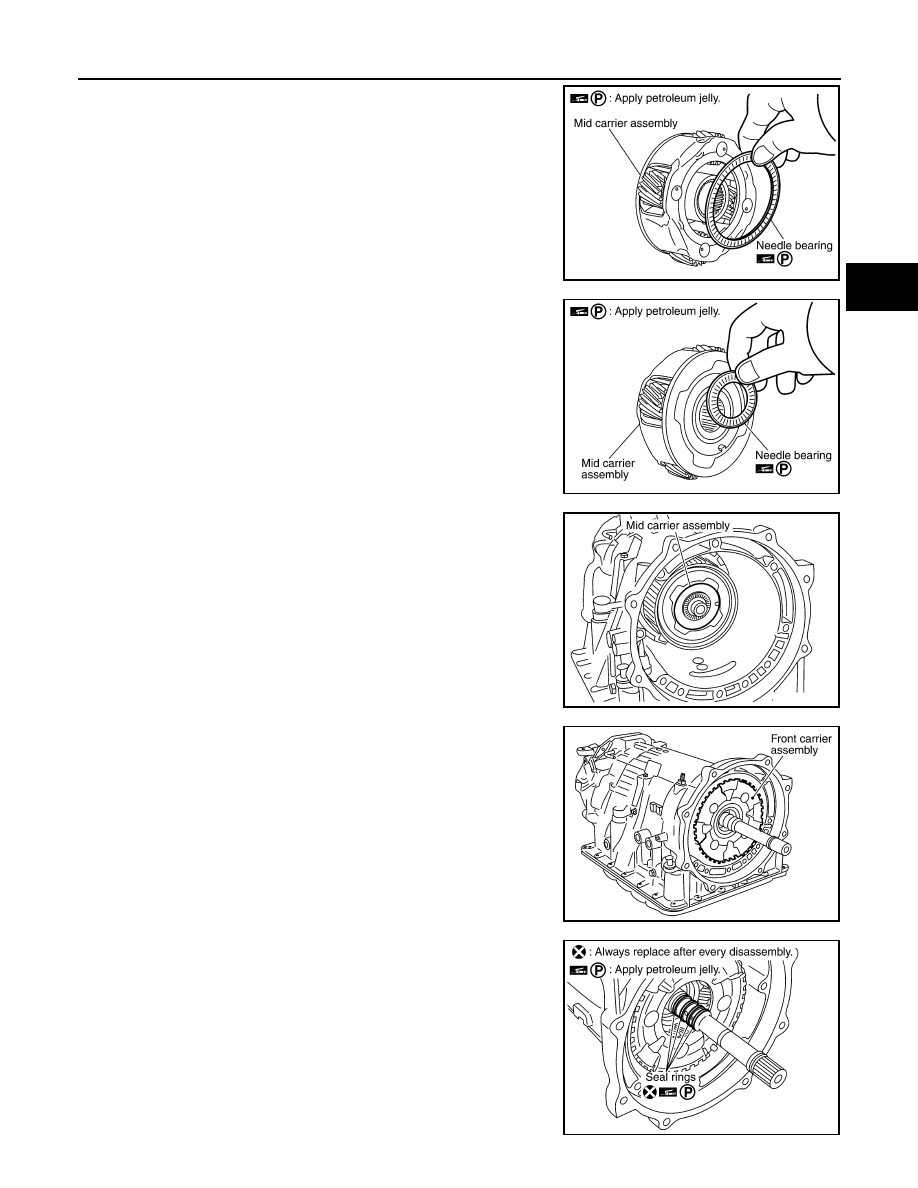

43. Install needle bearing (rear side) to mid carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

44. Install needle bearing (front side) to mid carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

45. Install mid carrier assembly in rear carrier assembly.

46. Install front carrier assembly, input clutch assembly and rear

internal gear as a unit.

47. Install seal rings in input clutch assembly.

CAUTION:

• Do not reuse seal rings.

• Apply petroleum jelly to seal rings.

SCIA2804E

SCIA2805E

SCIA5017E

SCIA5015E

SCIA2470E

TM-278

< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

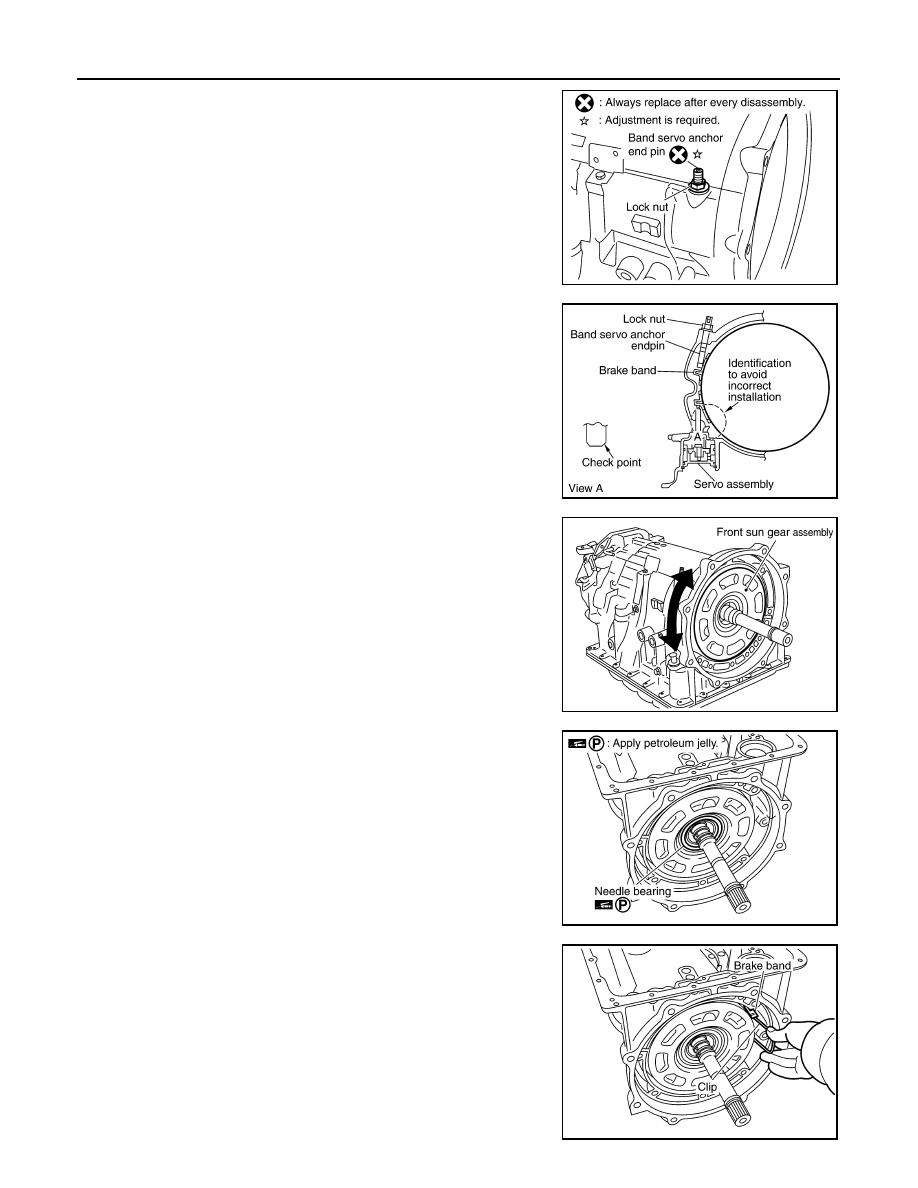

48. Install band servo anchor end pin and lock nut in transmission

case.

CAUTION:

Do not reuse band servo anchor end pin.

49. Install brake band in transmission case.

CAUTION:

Install it so that the identification to avoid incorrect installa-

tion faces the servo side.

50. Install front sun gear to front carrier assembly.

CAUTION:

Apply ATF to front sun gear bearing and 3rd one-way clutch

end bearing.

51. Install needle bearing to front sun gear.

CAUTION:

Apply petroleum jelly to needle bearing.

52. Adjust brake band tilting using a clip so that brake band contacts

front sun gear drum evenly.

SCIA6512E

SCIA5498E

SCIA5014E

SCIA2808E

SCIA5033E
