REPAIR FOR COMPONENT PARTS

TM-263

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

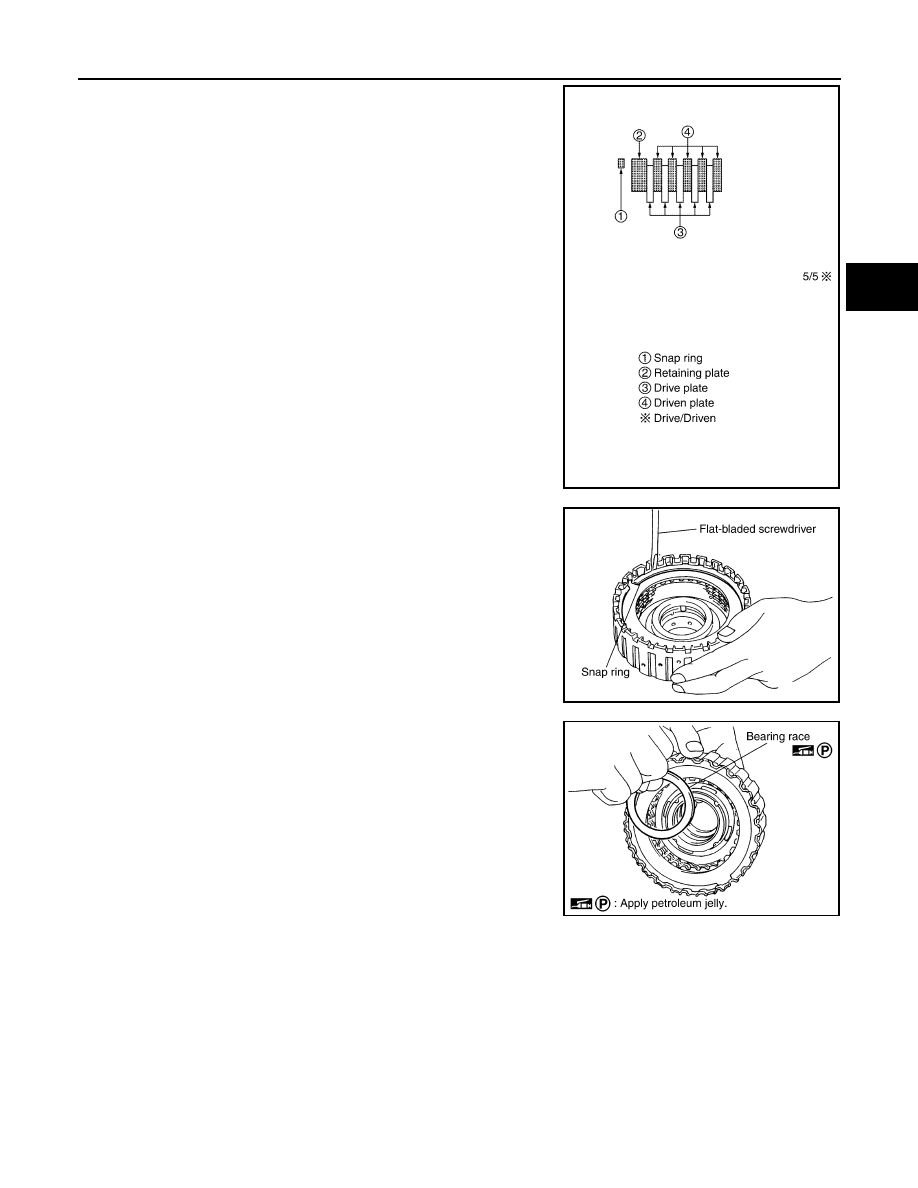

1. Install drive plates, driven plates and retaining plate in high and

low reverse clutch drum.

CAUTION:

Take care with the order of plates.

2. Install snap ring in high and low reverse clutch drum using suit-

able tool.

3. Install bearing race to high and low reverse clutch drum.

CAUTION:

Apply petroleum jelly to bearing race.

Direct Clutch

INFOID:0000000009885934

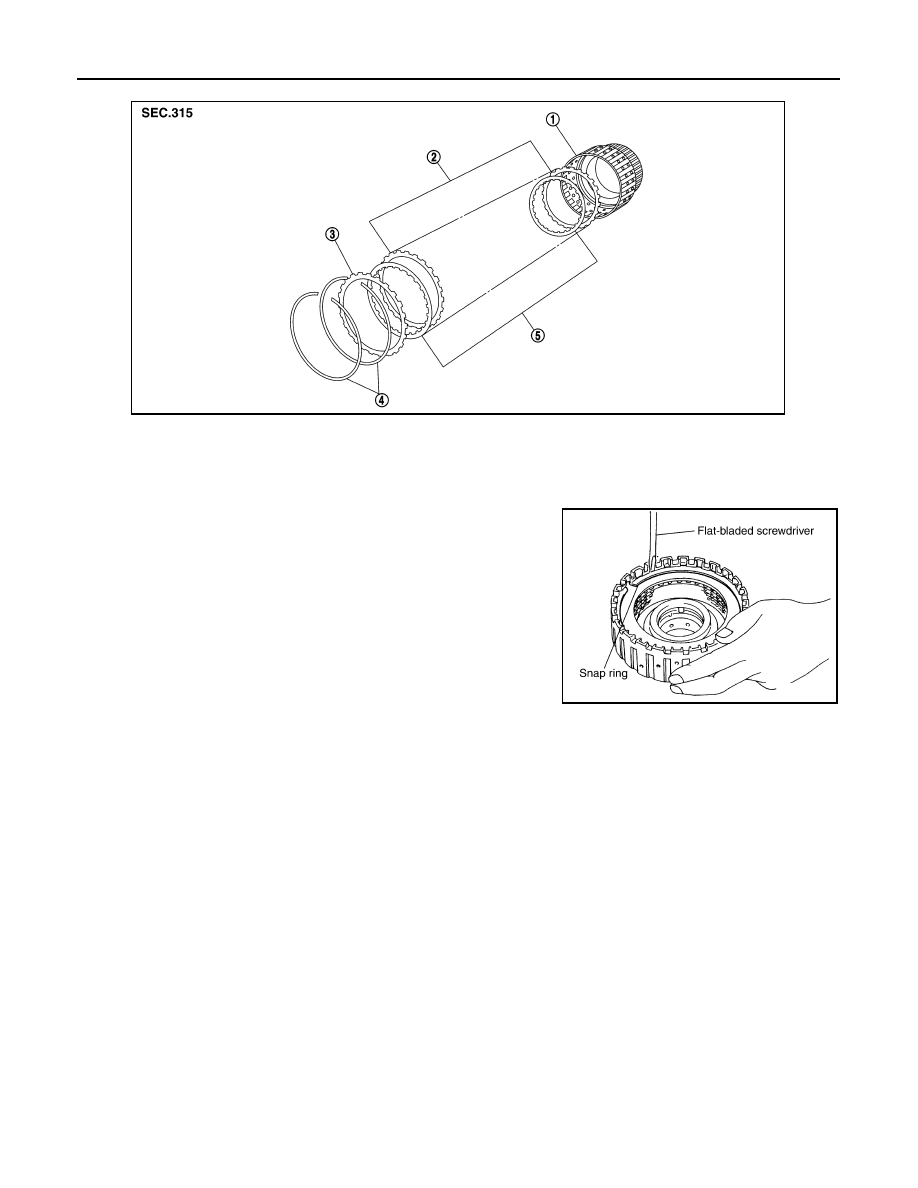

COMPONENTS

SCIA5241E

SCIA2868E

SCIA5240E

TM-264

< UNIT DISASSEMBLY AND ASSEMBLY >

REPAIR FOR COMPONENT PARTS

DISASSEMBLY

1. Remove snap rings from direct clutch drum using suitable tool.
2. Remove drive plates, driven plates and retaining plate from

direct clutch drum.

INSPECTION

• Check the following, and replace direct clutch assembly if necessary.

Direct Clutch Snap Rings

• Check for deformation, fatigue or damage.

Direct Clutch Drive Plates

• Check facing for burns, cracks or damage.

Direct Clutch Retaining Plate and Driven Plates

• Check facing for burns, cracks or damage.

ASSEMBLY

1.

Direct clutch drum

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Drive plate

SCIA5242E

SCIA2868E

REPAIR FOR COMPONENT PARTS

TM-265

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

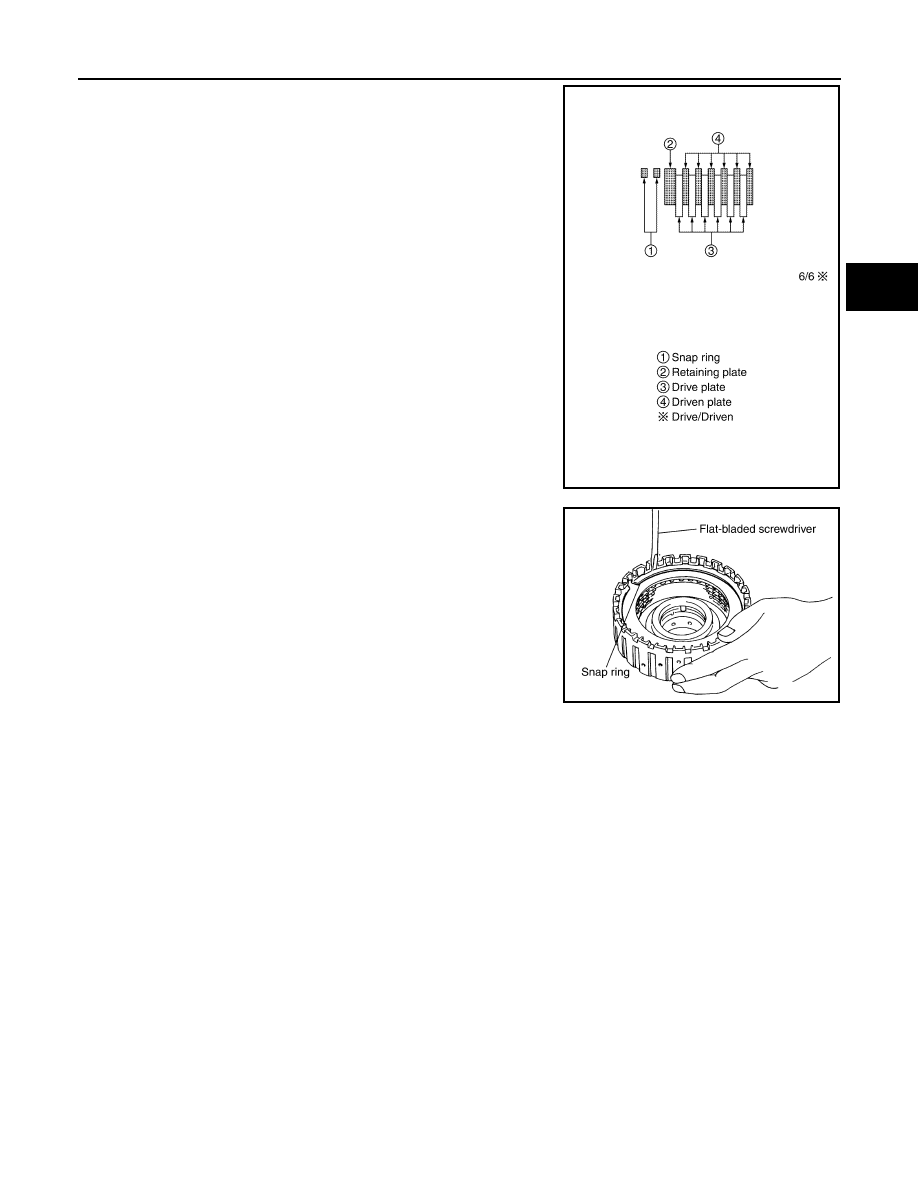

1. Install drive plates, driven plates and retaining plate in direct

clutch drum.

CAUTION:

Take care with the order of plates.

2. Install snap rings in direct clutch drum using suitable tool.

SCIA5243E

SCIA2868E

TM-266

< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

ASSEMBLY

Assembly (1)

INFOID:0000000009885935

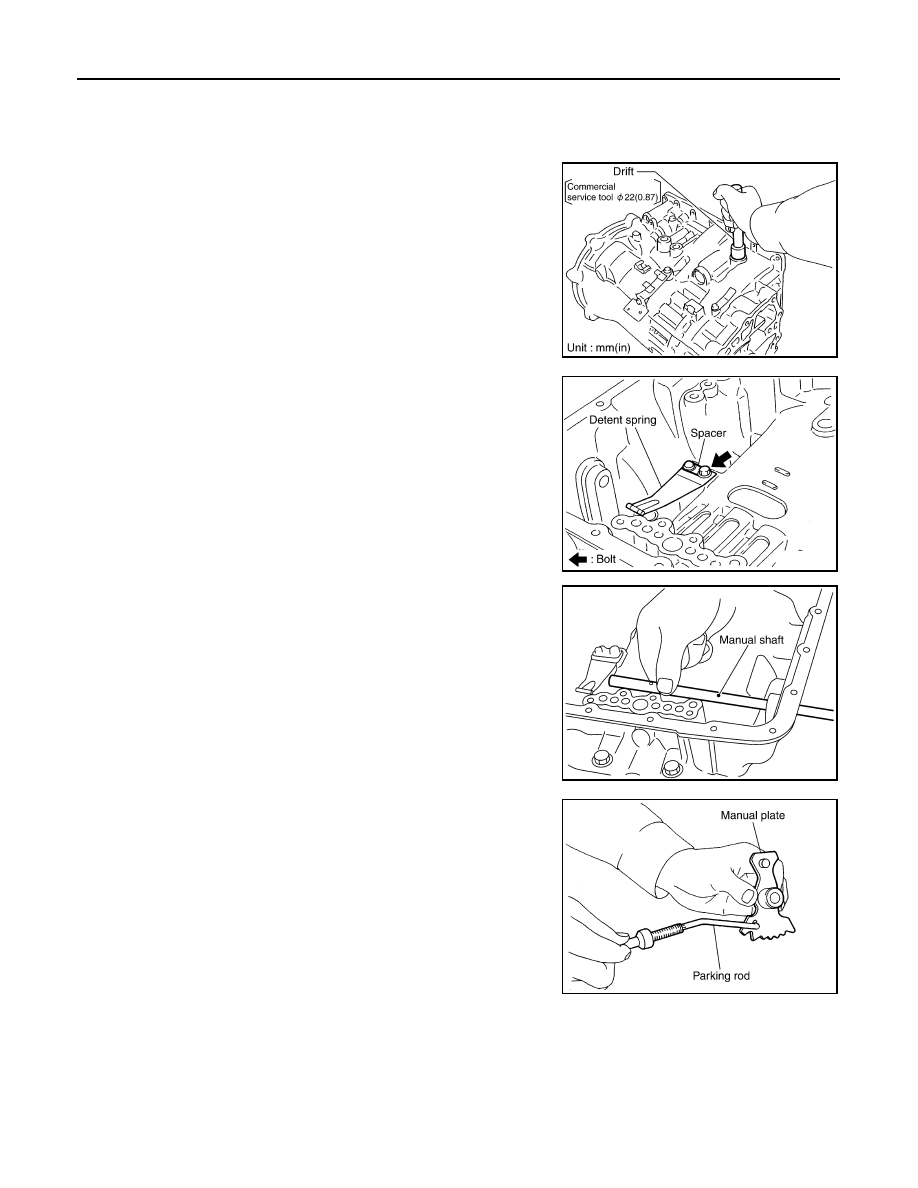

1. Drive manual shaft oil seals into the transmission case until they

are flush using suitable tool.

CAUTION:

• Apply ATF to manual shaft oil seals.

• Do not reuse manual shaft oil seals.

2. Install detent spring and spacer in transmission case and secure

with the bolt.

3. Install manual shaft to transmission case.

4. Install parking rod to manual plate.

SCIA5259E

Bolt

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA5248E

SCIA5716E

SCIA5220E
