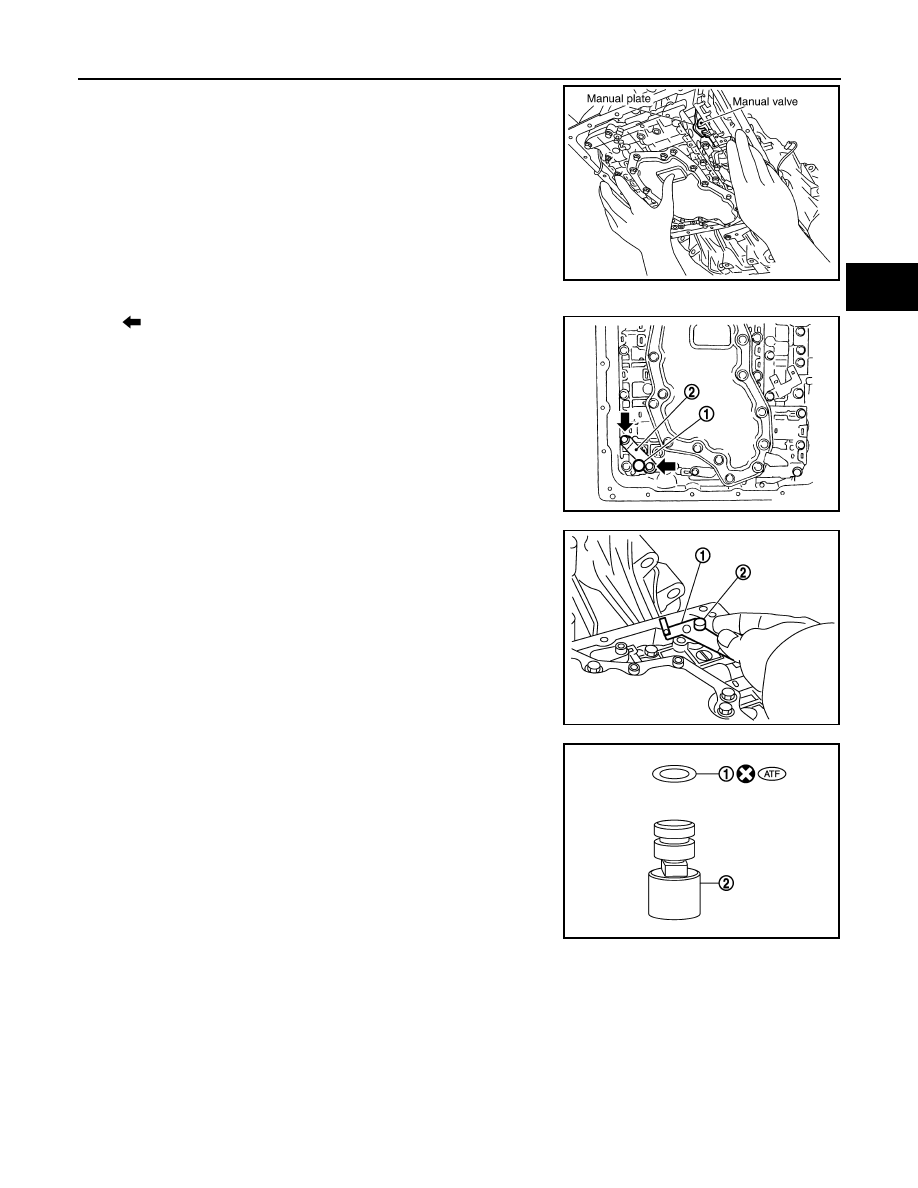

CONTROL VALVE WITH TCM

TM-203

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

10. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and

manual plate height. Remove it vertically.

11. Remove plug (1) with bracket (2) from control valve with TCM.

•



:Bolt

12. Remove the bracket (1) from plug (2).

13. Remove O-ring (1) from plug (2).

CAUTION:

Do not reuse O-ring.

SCIA5142E

JSDIA1311ZZ

JSDIA1312ZZ

JSDIA1313ZZ

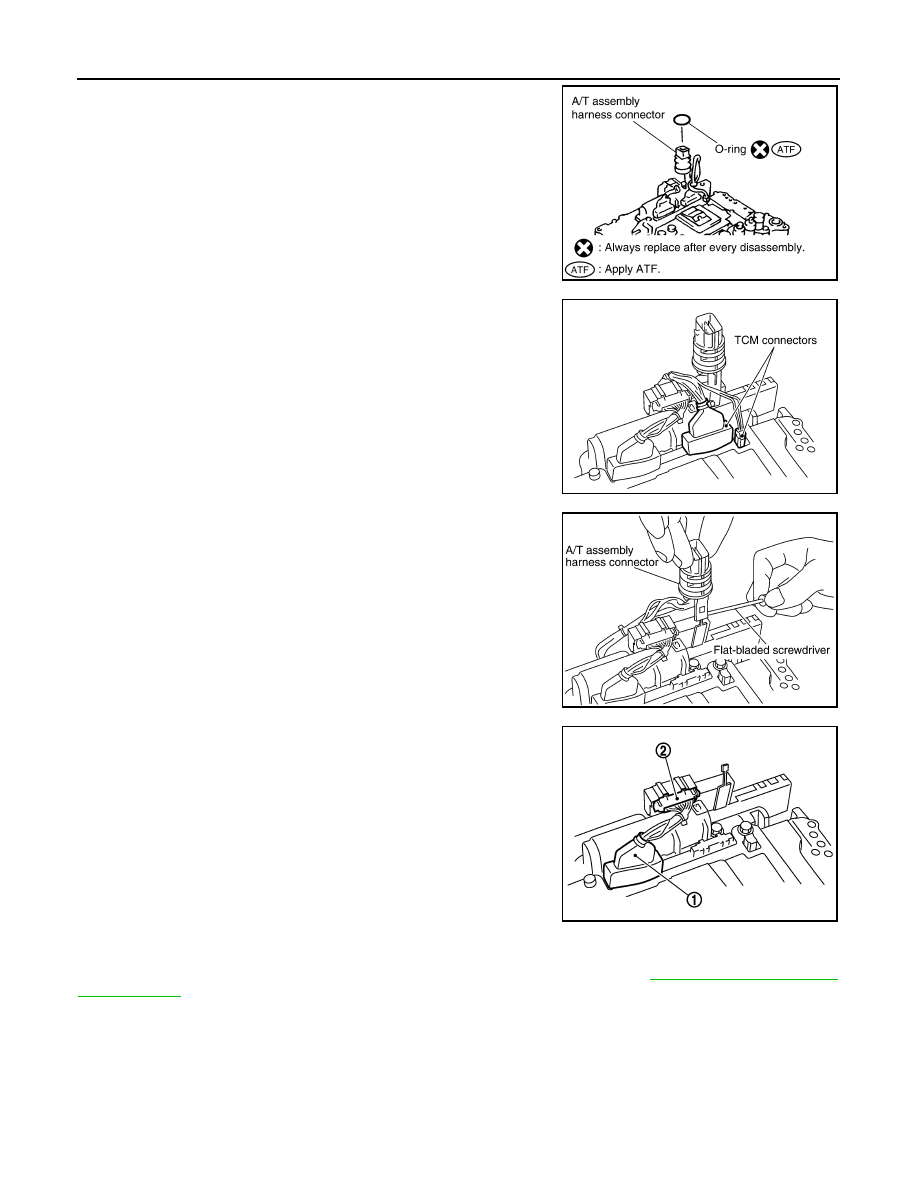

TM-204

< REMOVAL AND INSTALLATION >

CONTROL VALVE WITH TCM

14. Remove O-ring from A/T assembly harness connector.

CAUTION:

Do not reuse O-ring.

15. Disconnect TCM connectors.

CAUTION:

Do not damage connectors.

16. Remove A/T assembly harness connector from control valve

with TCM using suitable tool.

17. Disconnect TCM connector (1) and transmission range switch

connector (2).

CAUTION:

Do not damage connectors.

Installation

CAUTION:

After completing installation, check A/T fluid leakage and fluid level. Refer to

TM-172, "Checking the A/

T Fluid (ATF)"

.

SCIA5155E

SCIA5447E

SCIA5448E

JSDIA1317ZZ

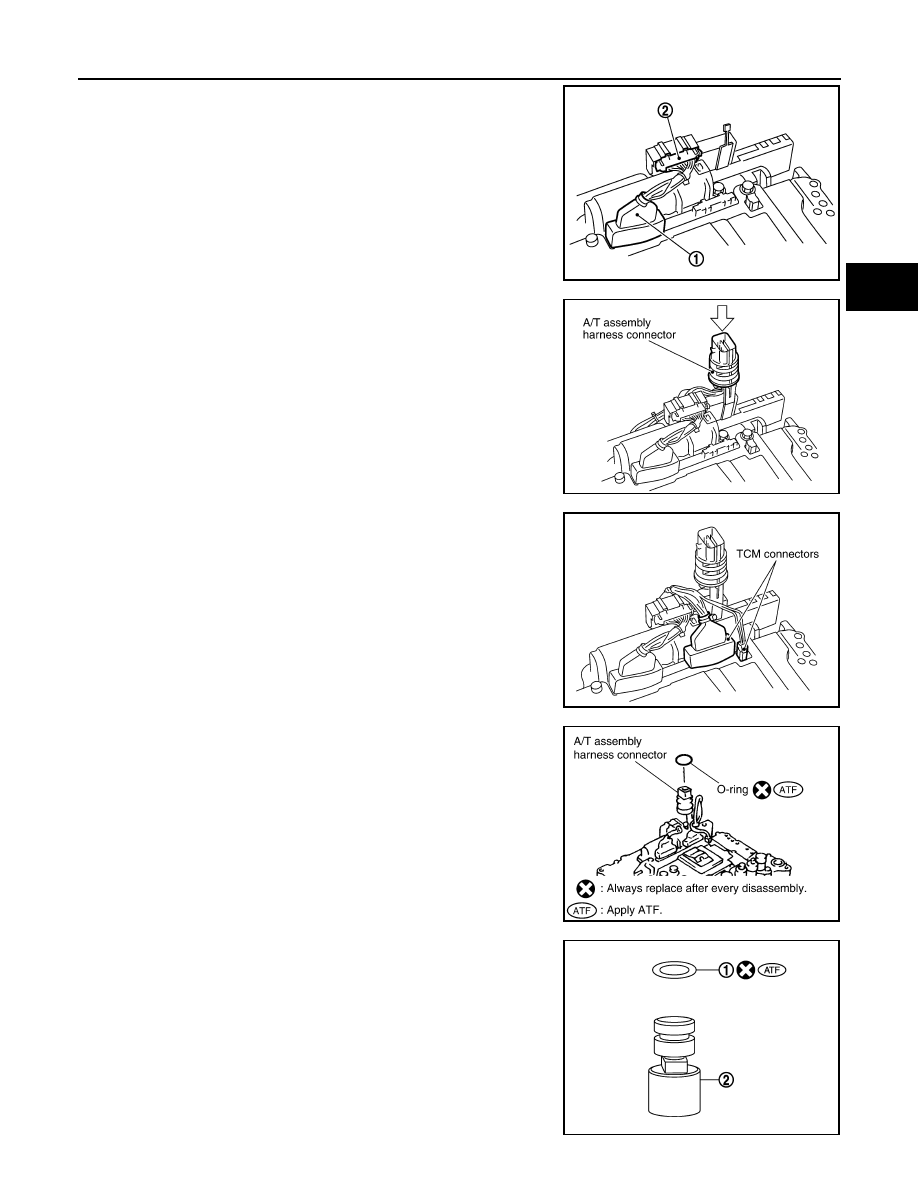

CONTROL VALVE WITH TCM

TM-205

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

1. Connect TCM connector (1) and transmission range switch con-

nector (2).

2. Install A/T assembly harness connector to control valve with

TCM.

3. Connect TCM connector.

4. Install new O-ring in A/T assembly harness connector.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

5. Install new O-ring (1) in plug (2).

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

• O-ring should be free of contamination.

JSDIA1317ZZ

SCIA5450E

SCIA5447E

SCIA5155E

JSDIA1313ZZ

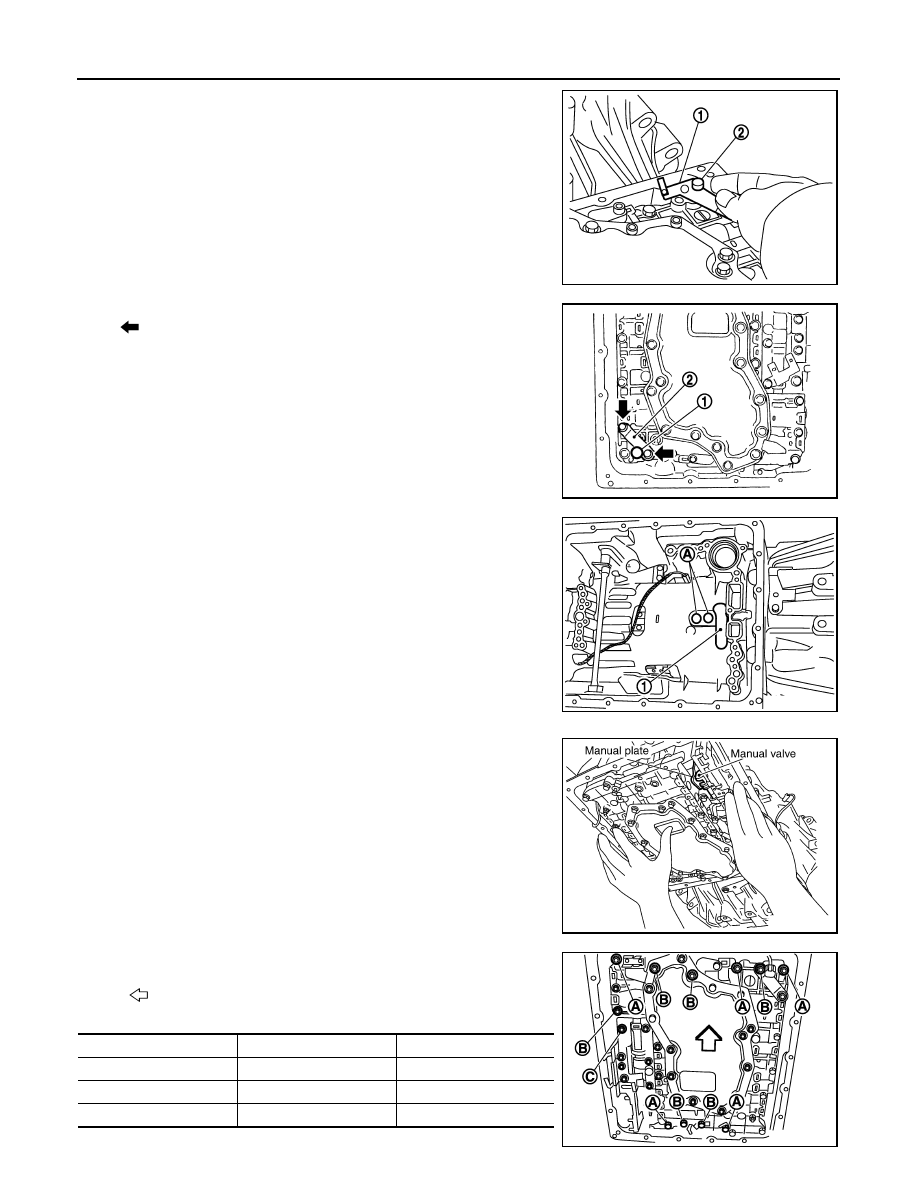

TM-206

< REMOVAL AND INSTALLATION >

CONTROL VALVE WITH TCM

6. Install plug (2) to bracket(1).

7. Install plug (1) [with bracket (2)] to control valve with TCM.

•



:Bolt

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve with

TCM.

8. Install control valve with TCM in transmission case.

CAUTION:

• Make sure that input speed sensor is securely installed

into input speed sensor hole (A).

• Hang down output speed sensor harness toward outside

so as not to disturb installation of control valve with TCM.

• Adjust A/T assembly harness connector of control valve

with TCM to terminal hole of transmission case.

• Assemble it so that manual valve cutout is engaged with

manual plate projection.

9. Install bolts (A), (B) and (C) in control valve with TCM.

JSDIA1312ZZ

JSDIA1311ZZ

(1)

: Brake band

JSDIA1318ZZ

SCIA5142E

: Front

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8074E
