A/T CONTROL SYSTEM

TM-19

< SYSTEM DESCRIPTION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

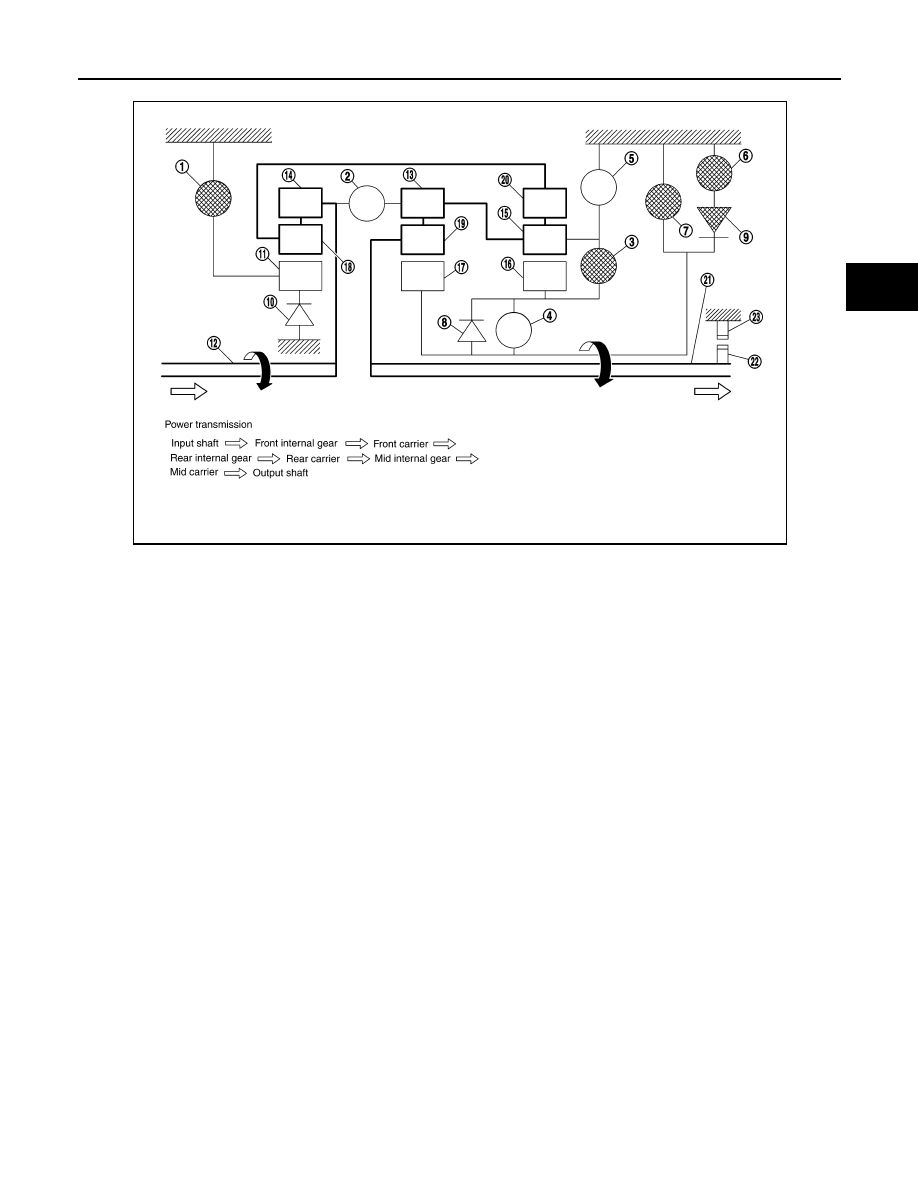

“D”, “M5”, “M4”, “M3” positions (column shift), “D”, “4”, “3” positions (floor shift) 3GR

• The front brake fastens the front sun gear.

• The direct clutch is coupled, and the rear carrier and rear sun gear are connected.

• The high and low reverse clutch is coupled and the mid sun gear and rear sun gear are connected.

1.

Front brake

2.

Input clutch

3.

Direct clutch

4.

High and low reverse clutch

5.

Reverse brake

6.

Forward brake

7.

Low coast brake

8.

1st one-way clutch

9.

Forward one-way clutch

10. 3rd one-way clutch

11. Front sun gear

12. Input shaft

13. Mid internal gear

14. Front internal gear

15. Rear carrier

16. Rear sun gear

17. Mid sun gear

18. Front carrier

19. Mid carrier

20. Rear internal gear

21. Output shaft

22. Parking gear

23. Parking pawl

SCIA1515E

TM-20

< SYSTEM DESCRIPTION >

A/T CONTROL SYSTEM

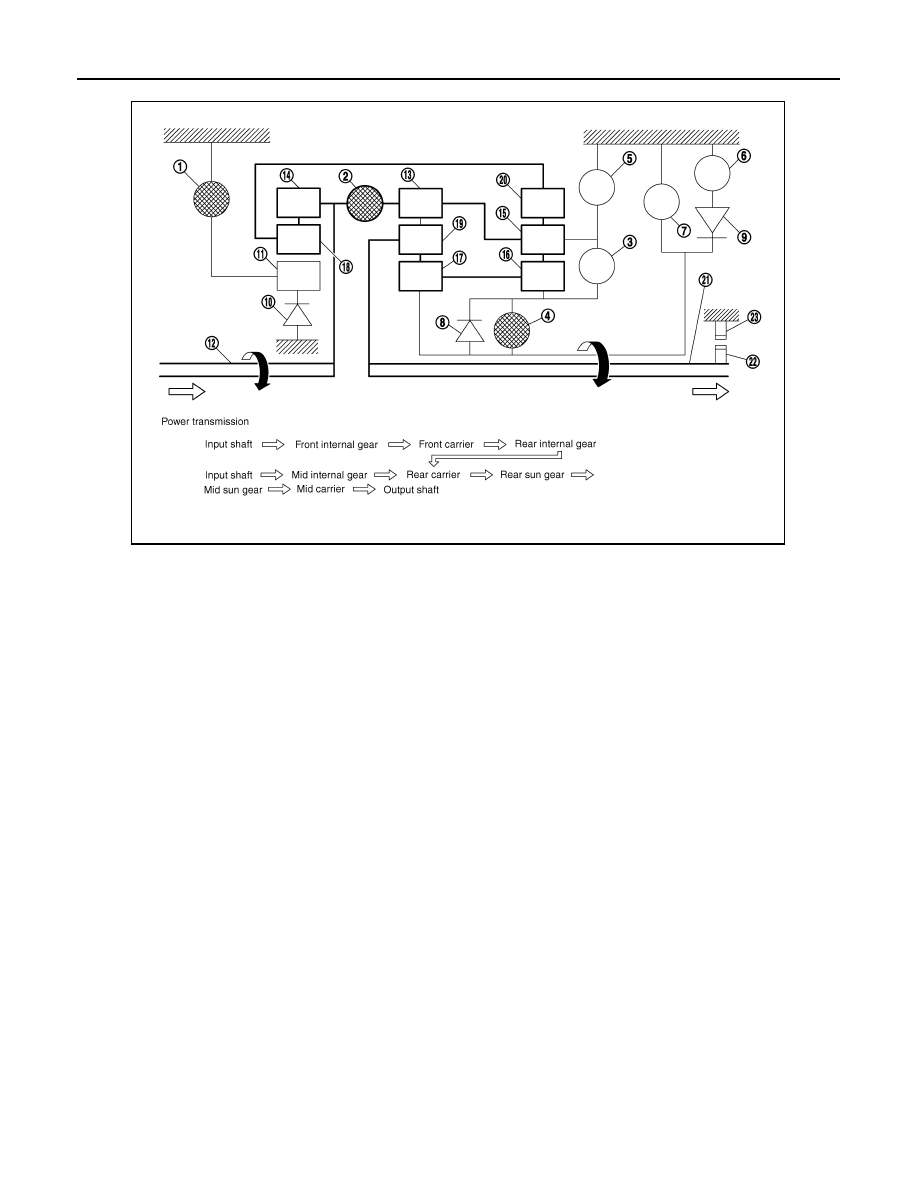

“D”, “M5”, “M4” positions (column shift), “D”, “4” positions (floor shift) 4GR

• The direct clutch is coupled, and the rear carrier and rear sun gear are connected.

• The high and low reverse clutch is coupled and the mid sun gear and rear sun gear are connected.

• The input clutch is coupled and the front internal gear and mid internal gear are connected.

• The drive power is conveyed to the front internal gear, mid internal gear, and rear carrier and the three plan-

etary gears rotate forward as one unit.

1.

Front brake

2.

Input clutch

3.

Direct clutch

4.

High and low reverse clutch

5.

Reverse brake

6.

Forward brake

7.

Low coast brake

8.

1st one-way clutch

9.

Forward one-way clutch

10. 3rd one-way clutch

11. Front sun gear

12. Input shaft

13. Mid internal gear

14. Front internal gear

15. Rear carrier

16. Rear sun gear

17. Mid sun gear

18. Front carrier

19. Mid carrier

20. Rear internal gear

21. Output shaft

22. Parking gear

23. Parking pawl

SCIA1516E

A/T CONTROL SYSTEM

TM-21

< SYSTEM DESCRIPTION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

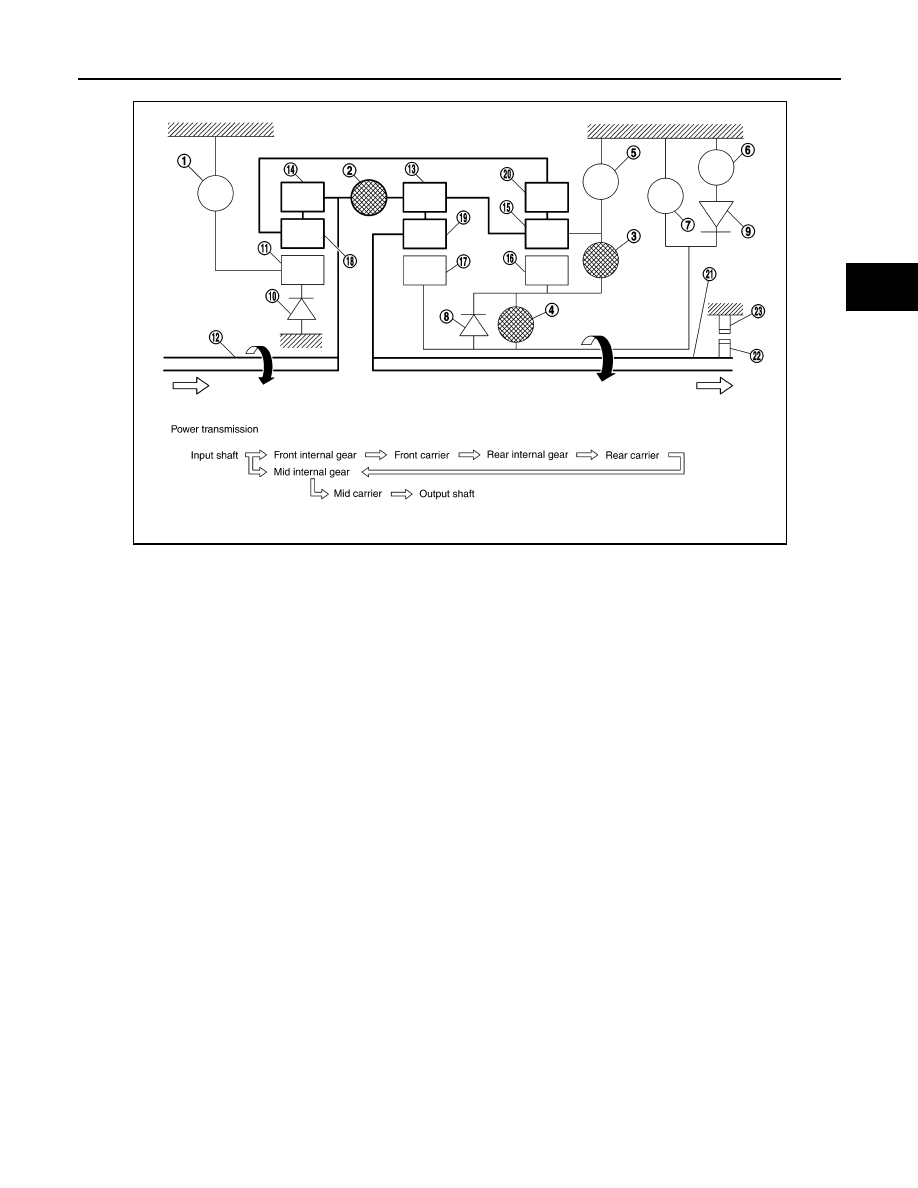

“D”, “M5” positions (column shift), “D” position (floor shift) 5GR

• The front brake fastens the front sun gear.

• The input clutch is coupled and the front internal gear and mid internal gear are connected.

• The high and low reverse clutch is coupled and the mid sun gear and rear sun gear are connected.

1.

Front brake

2.

Input clutch

3.

Direct clutch

4.

High and low reverse clutch

5.

Reverse brake

6.

Forward brake

7.

Low coast brake

8.

1st one-way clutch

9.

Forward one-way clutch

10. 3rd one-way clutch

11. Front sun gear

12. Input shaft

13. Mid internal gear

14. Front internal gear

15. Rear carrier

16. Rear sun gear

17. Mid sun gear

18. Front carrier

19. Mid carrier

20. Rear internal gear

21. Output shaft

22. Parking gear

23. Parking pawl

SCIA1517E

TM-22

< SYSTEM DESCRIPTION >

A/T CONTROL SYSTEM

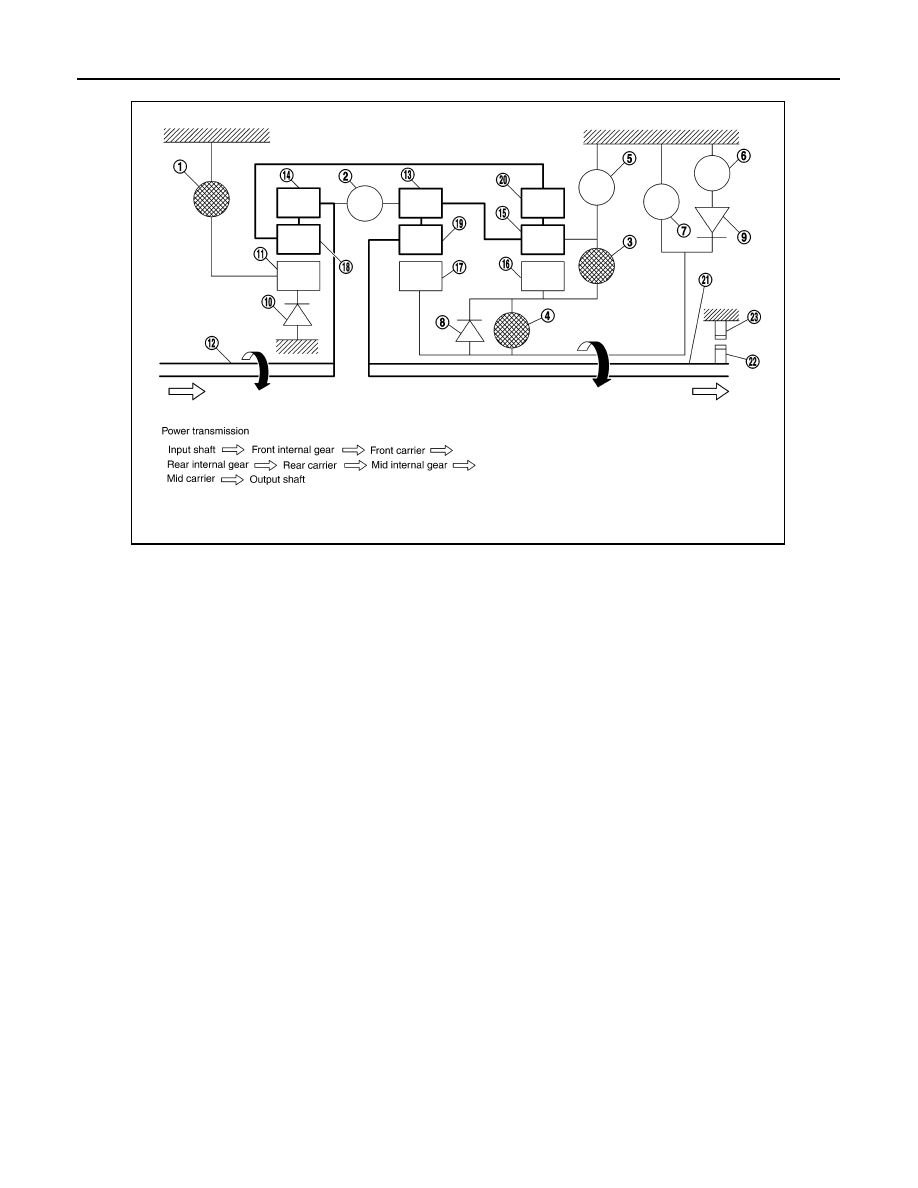

“R” position

• The front brake fastens the front sun gear.

• The high and low reverse clutch is coupled, and the mid sun gear and rear sun gear are connected.

• The reverse brake fastens the rear carrier.

1.

Front brake

2.

Input clutch

3.

Direct clutch

4.

High and low reverse clutch

5.

Reverse brake

6.

Forward brake

7.

Low coast brake

8.

1st one-way clutch

9.

Forward one-way clutch

10. 3rd one-way clutch

11. Front sun gear

12. Input shaft

13. Mid internal gear

14. Front internal gear

15. Rear carrier

16. Rear sun gear

17. Mid sun gear

18. Front carrier

19. Mid carrier

20. Rear internal gear

21. Output shaft

22. Parking gear

23. Parking pawl

SCIA4984E
