Nissan Titan. Manual - part 517





SE-34

< REMOVAL AND INSTALLATION >

FRONT SEAT

Removal and Installation - Front Seat Assembly

INFOID:0000000009882014

REMOVAL

CAUTION:

• When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.

• Before removing the front seat, turn the ignition switch off, disconnect both battery cables and wait

at least three minutes.

• When checking the power seat circuit for continuity using a circuit tester, do not confuse its connec-

tor with the side air bag module connector. Such an error may cause the air bag to deploy.

• Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with

care.

• After front side air bag module inflates, front seatback assembly must be replaced.

• Front passenger seat is equipped with Occupant Classification System sensor and control module.

Do not disassemble front passenger seat cushion assembly or remove trim as this will affect the

Occupant Classification System calibration.

• Always replace passenger seat cushion as an assembly.
1. Slide the seat until the four seat to body bolts are visible and a tool can be inserted.

NOTE:

• If disassembling the seat after removal, set the front/rear cushion lifters to the top position.

2. Disconnect the negative and positive battery terminals and wait at least three minutes. Refer to

PG-80,

"Removal and Installation"

.

3. Disconnect the side air bag module harness connector.
4. Remove the bolt and leg covers.
5. Remove the four seat to body bolts.
6. Disconnect the power seat harness connectors and remove the seat from the vehicle.

NOTE:

When removing and installing the seat, use shop cloths to protect the vehicle from damage.

INSTALLATION

Installation is in the reverse order of removal.

• Tighten the seat bolts to specification. Refer to

SE-27, "Exploded View"

.

CAUTION:

Make sure that the seat harness or the floor trim is not damaged during installation.

Removal and Installation - Power Seat Switch

INFOID:0000000009882015

REMOVAL

1. Remove the passenger seat. Refer to

SE-34, "Removal and Installation - Front Seat Assembly"

2. Place the seat, back side down, on a work bench

1.

Seat cushion assembly

2.

Bolt cover

3.

Recline lever

4.

Seat cushion outer finisher (RH)

5.

Slide finisher (RH)

6.

Slide release wire

7.

Front seat frame support

8.

Seat cushion outer finisher (LH)

9.

Rear slide finisher (LH)

10. Seat frame cover

11. Recline rod

12. Recline mechanism cover (LH)

13. Seat cushion assembly

14. Recline mechanism cover (RH)

15. Armrest washer (if equipped)

16. Armrest assembly (if equipped)

17. Armrest insert (if equipped)

18. Armrest pivot bolt finisher (if

equipped)

19. Armrest pivot bolt (if equipped)

20. Seatback assembly

21. Headrest holder (free)

22. Seat fold lever

23. Headrest holder (locked)

24. Seatback board

25. Headrest

A.

Seatback board clip

FRONT SEAT

SE-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

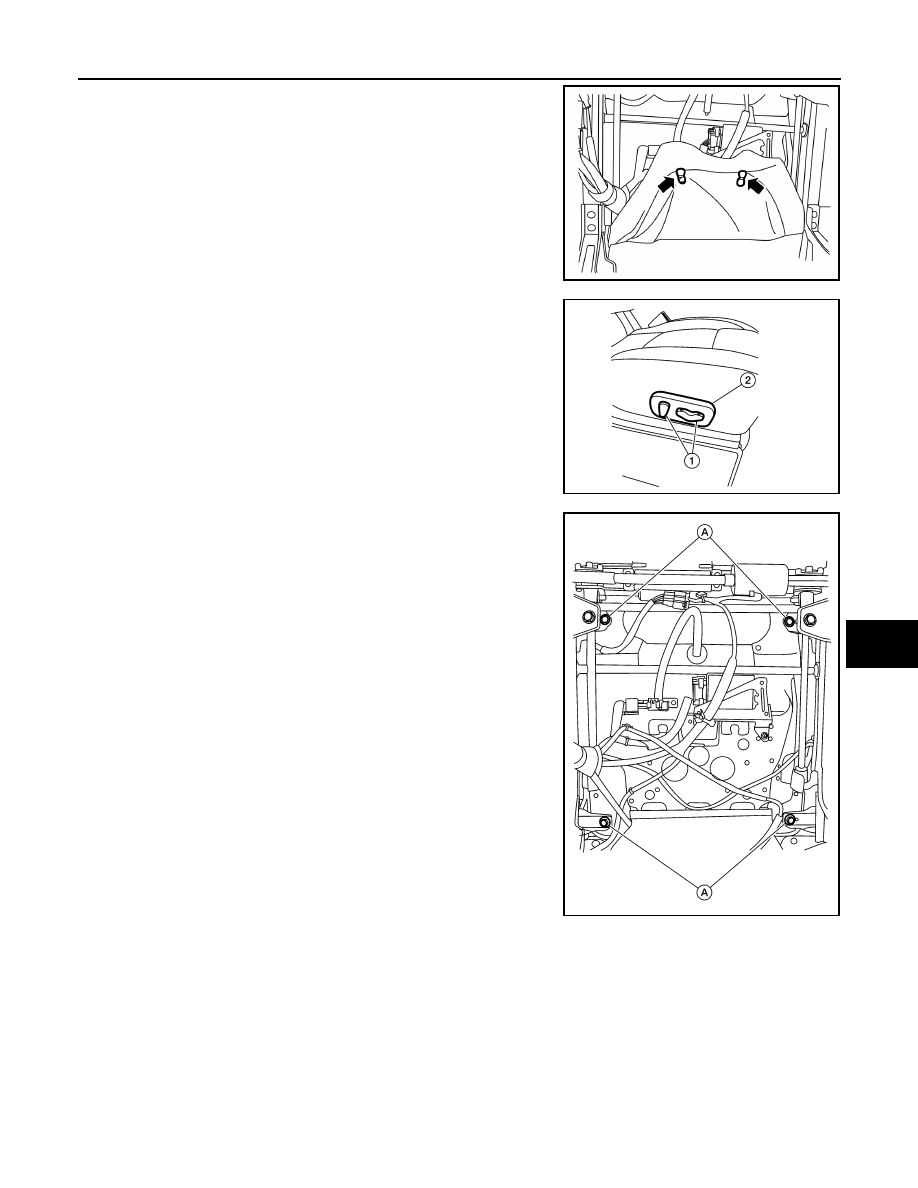

3. Release the trim at bottom of seat as shown.

4. Remove the seat recline knob and seat slide knob (1), then the

power seat switch finisher (2).

5. Remove the four seat cushion assembly bolts (A) from the seat

frame assembly.

ALJIA0573ZZ

ALJIA1054ZZ

ALJIA1064ZZ

SE-36

< REMOVAL AND INSTALLATION >

FRONT SEAT

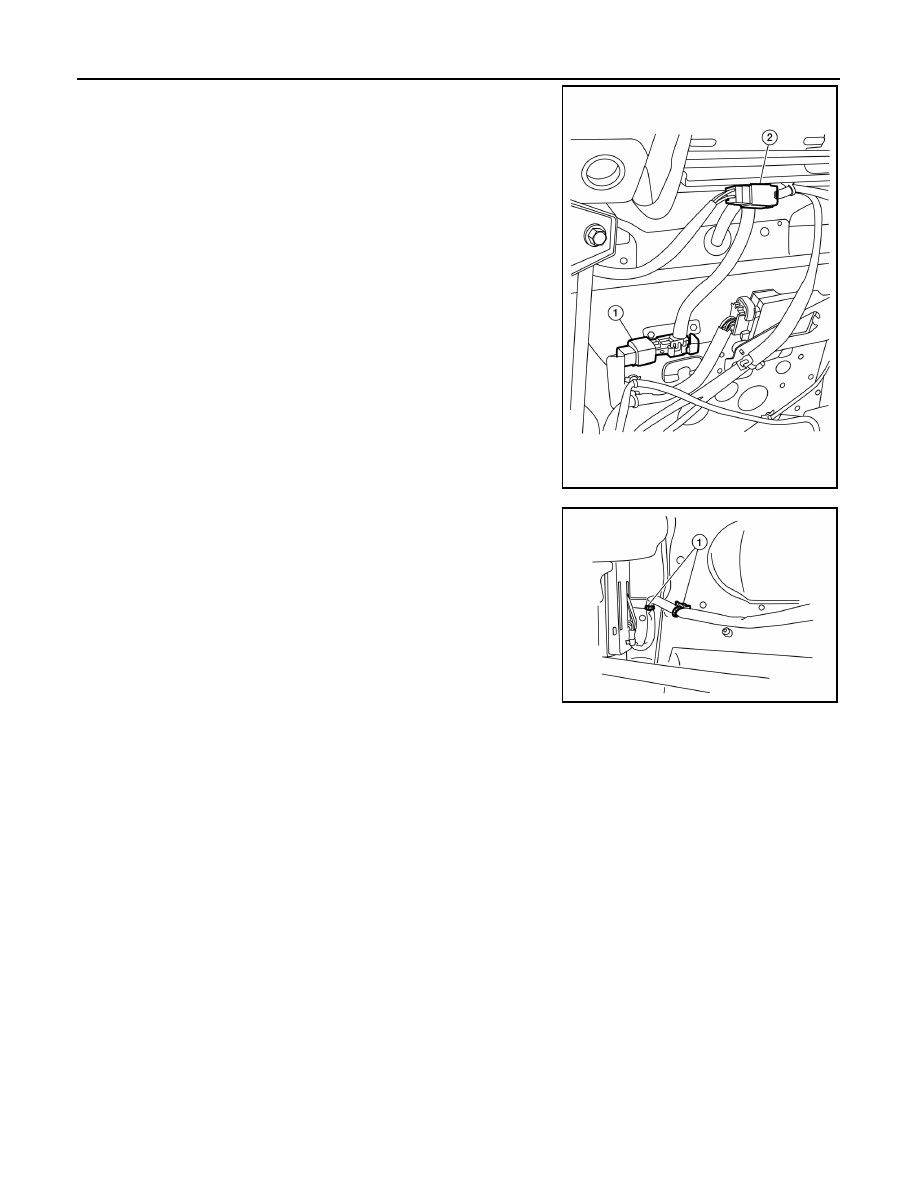

6. Disconnect the harness connectors for the occupant classifica-

tion system (1) and the power seat switch (2).

7. Release the two power seat switch harness clips (1) from the

seat cushion frame.

8. Release the seat cushion trim J-clip retainers on same side as power seat switch.
9. Remove the seat cushion outer finisher.

ALJIA0576ZZ

ALJIA0578ZZ

FRONT SEAT

SE-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

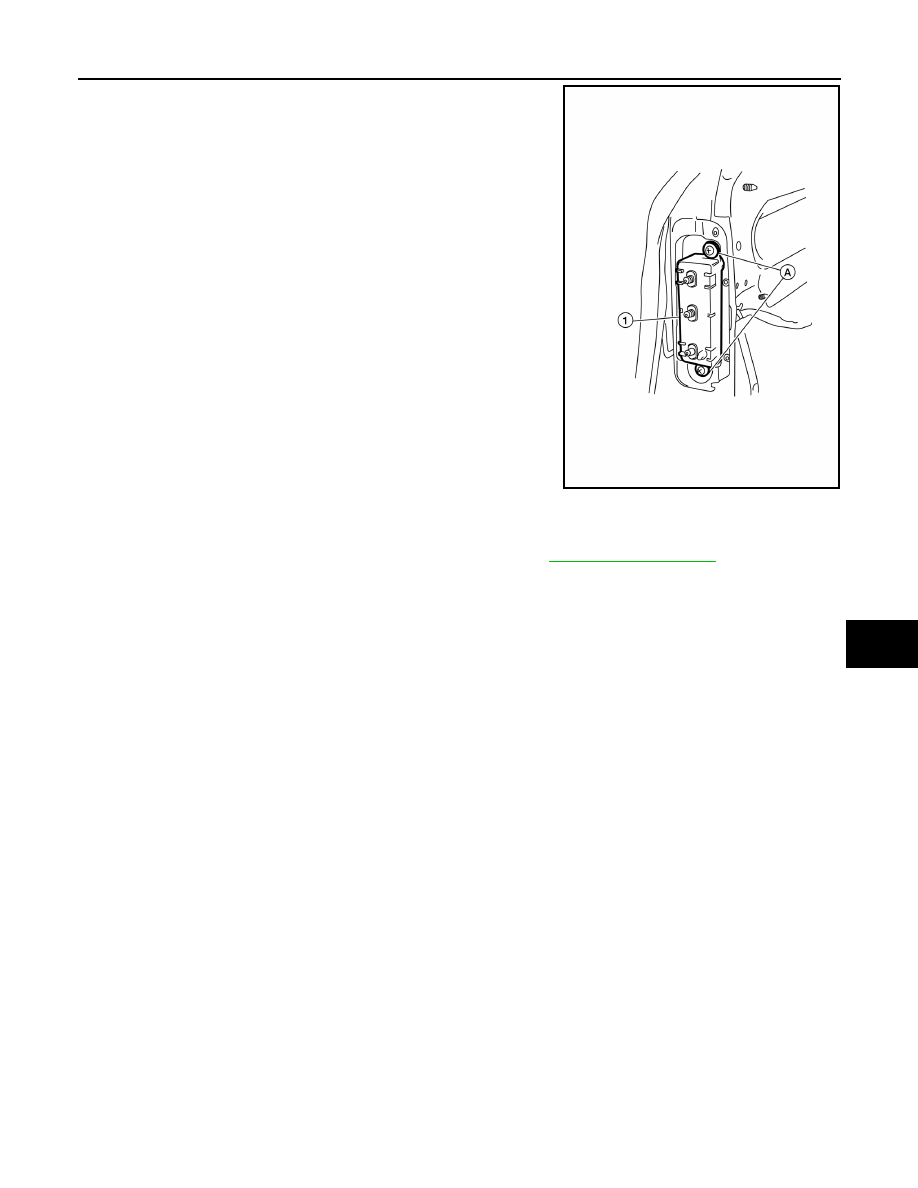

10. Remove the two screws (A) and the power seat switch (1).

INSTALLATION

Installation is in the reverse order of removal.

• Tighten the seat cushion assembly bolts to specification. Refer to

SE-27, "Exploded View"

.

ALJIA0577ZZ
