Nissan Titan. Manual - part 515





SE-26

< PREPARATION >

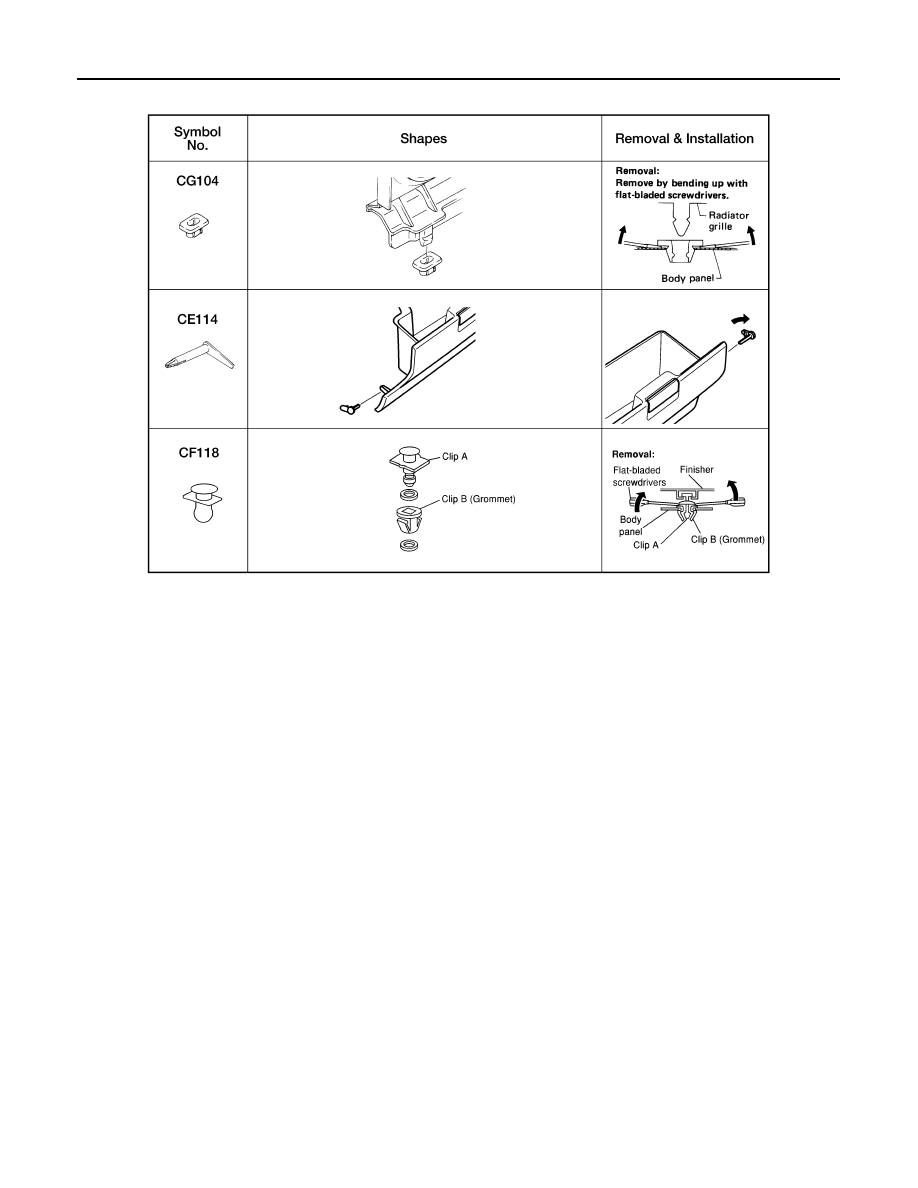

CLIP LIST

ALJIA0564GB

FRONT SEAT

SE-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REMOVAL AND INSTALLATION

FRONT SEAT

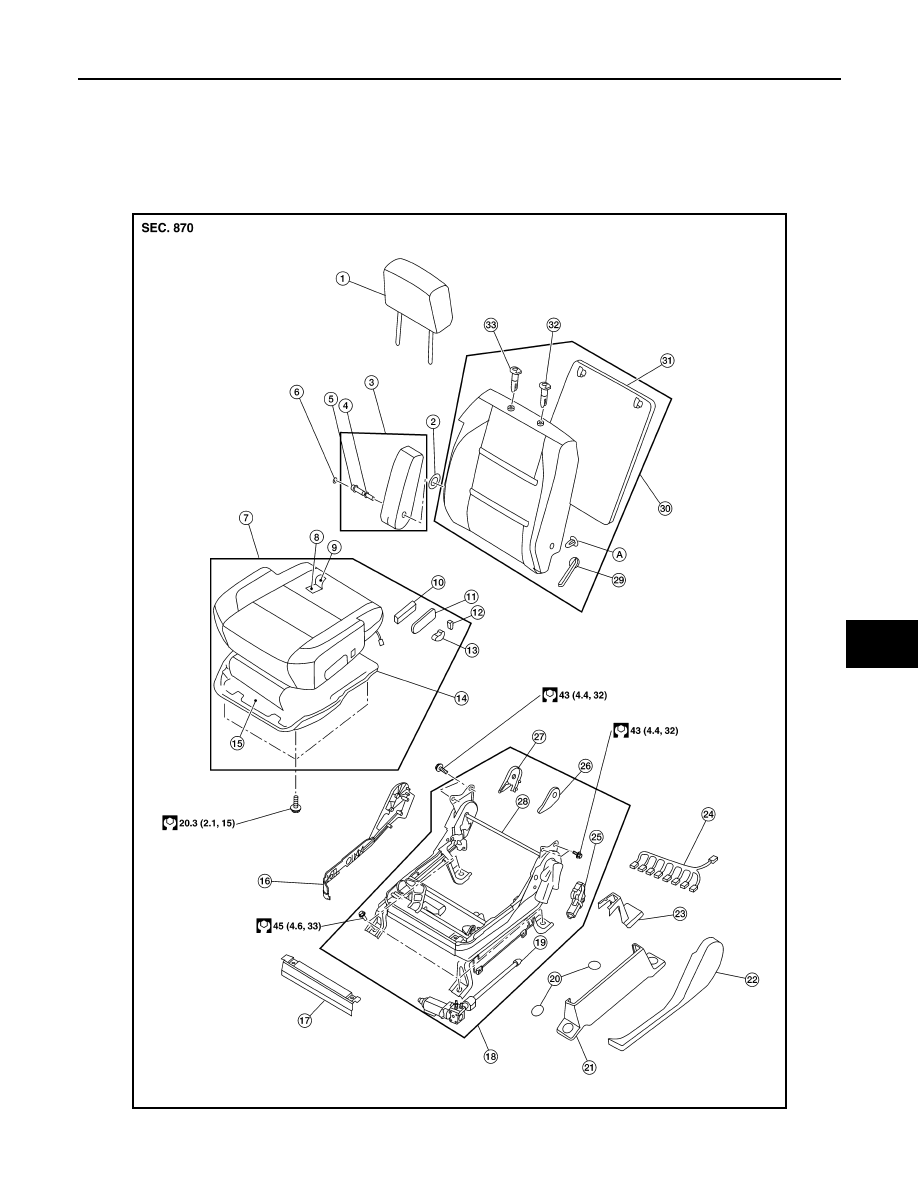

Exploded View

INFOID:0000000009882013

Power Driver Seat

ALJIA1065ZZ

SE-28

< REMOVAL AND INSTALLATION >

FRONT SEAT

1.

Headrest

2.

Armrest washer (if equipped)

3.

Armrest assembly (if equipped)

4.

Armrest insert (if equipped)

5.

Armrest pivot bolt (if equipped)

6.

Armrest pivot bolt finisher (if
equipped)

7.

Seat cushion assembly

8.

Seat cushion pad

9.

Seat cushion trim

10. Power seat switch

11. Power seat switch finisher

12. Seat recline knob

13. Seat slide knob

14. Seat cushion frame

15. Seat cushion heater (if equipped)

16. Seat cushion outer finisher (RH)

17. Seat cushion front finisher

18. Seat frame assembly

19. Seat slide motor

20. Bolt cover

21. Slide finisher (LH)

22. Seat cushion outer finisher (LH)

23. Rear slide finisher (RH)

24. Seat harness

25. Recline motor

26. Recline mechanism cover (LH)

27. Recline mechanism cover (RH)

28. Recline rod

29. Lumbar lever (if equipped)

30. Seatback assembly

31. Seatback board

32. Headrest holder (locked)

33. Headrest holder (free)

A.

Seatback board clip

FRONT SEAT

SE-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

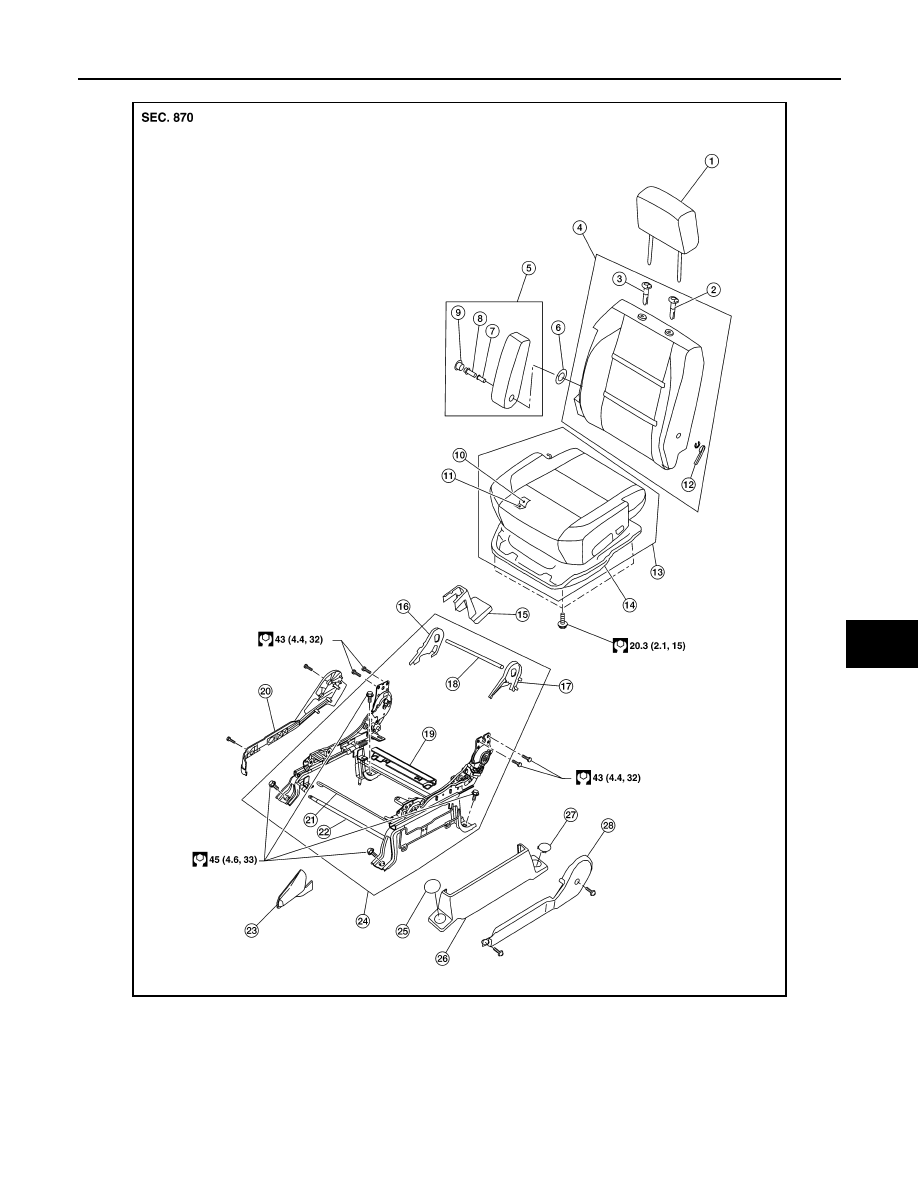

Manual Driver Seat

ALJIA1066ZZ

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback assembly

5.

Armrest assembly (if equipped)

6.

Armrest washer (if equipped)

7.

Armrest insert (if equipped)

8.

Armrest pivot bolt (if equipped)

9.

Armrest pivot bolt finisher (if
equipped)

10. Seat cushion trim

11. Seat cushion pad

12. Lumbar lever (if equipped)

13. Seat cushion assembly

14. Seat cushion frame

15. Rear slide finisher (RH)
