Nissan Titan. Manual - part 518





SE-38

< REMOVAL AND INSTALLATION >

REAR SEAT

REAR SEAT

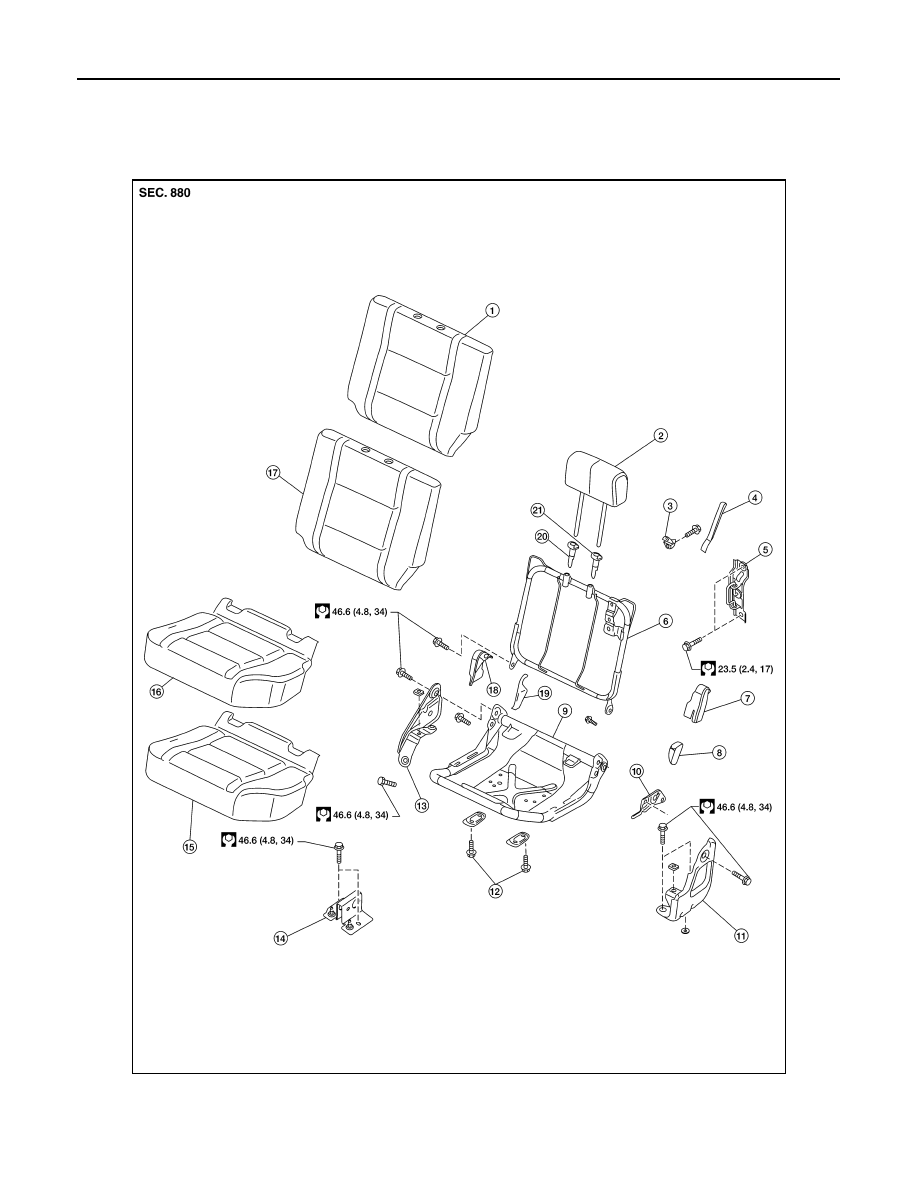

Exploded View

INFOID:0000000009882016

LH

ALJIA1070ZZ

1.

Seatback pad

2.

Headrest

3.

Seatback latch

4.

Seatback latch release strap

5.

 Seatback latch striker

6.

Seatback frame

REAR SEAT

SE-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

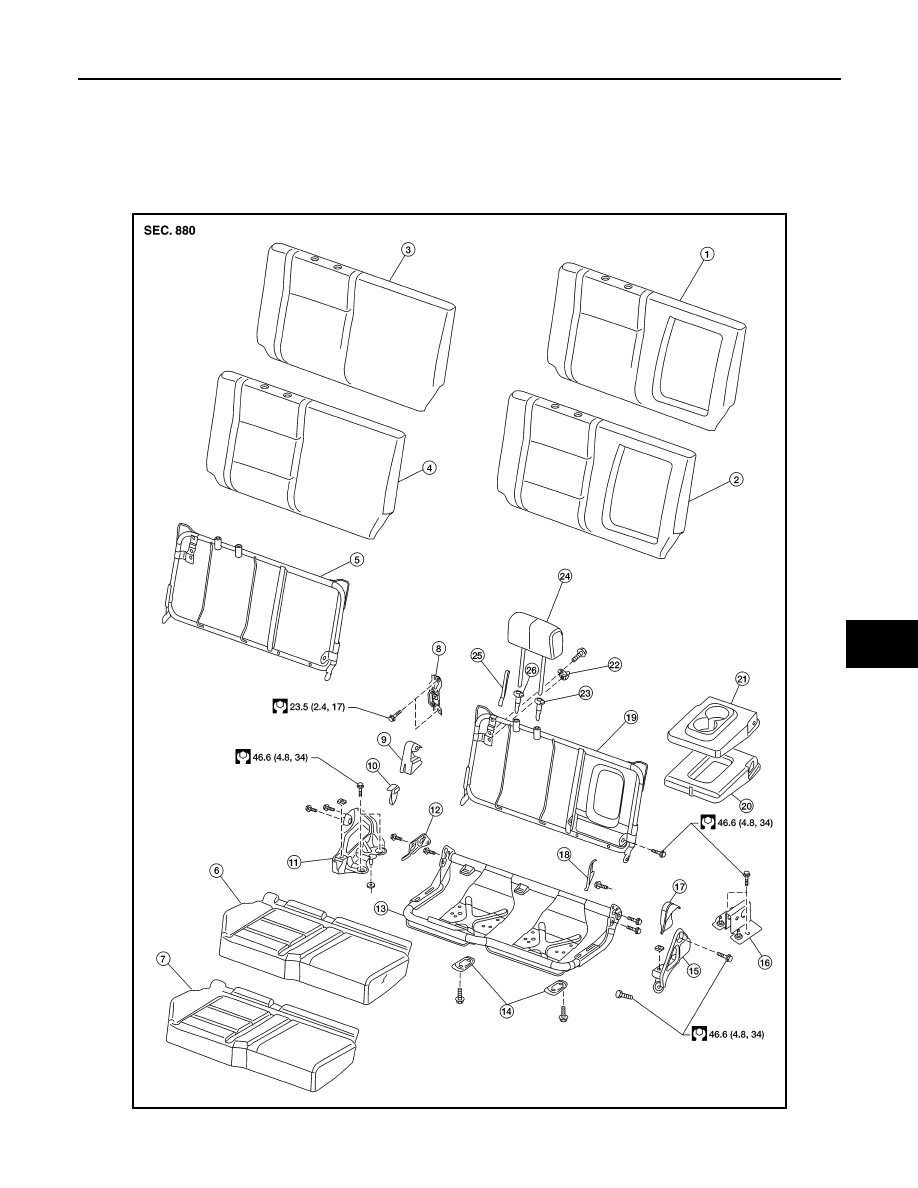

RH

7.

Outboard pivot cover

8.

Release lever handle

9.

Seat cushion frame

10. Seat cushion release assembly

11. Outboard seat support

12. Grocery bag hooks

13. Inboard seat support

14. Rear seat bracket

15. Seat cushion pad

16. Seat cushion trim

17. Seatback trim

18. Inboard outer pivot cover

19. Inboard inner pivot cover

20.  Headrest holder (free)

21.  Headrest holder (locked)

ALJIA1071ZZ

SE-40

< REMOVAL AND INSTALLATION >

REAR SEAT

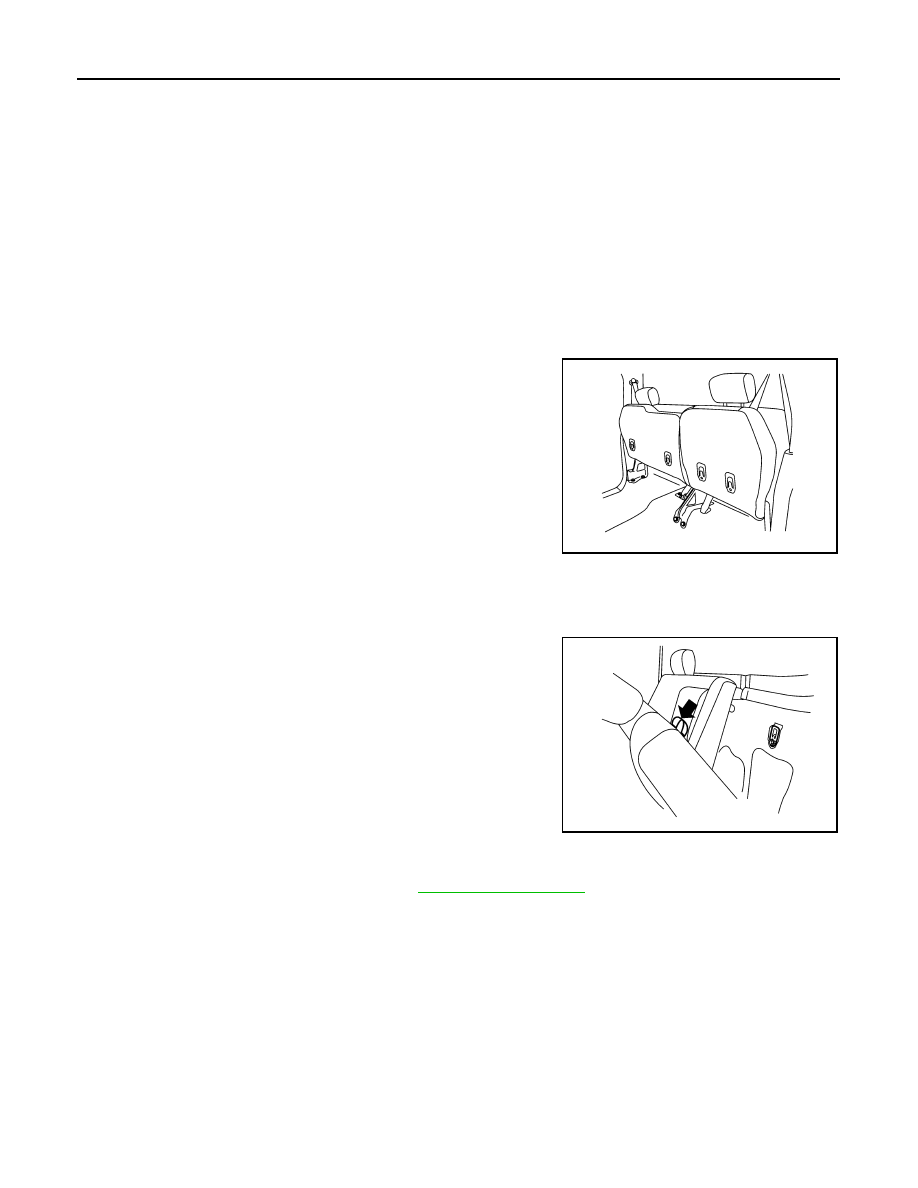

Removal and Installation

INFOID:0000000009882017

Removal

1. Lift the seat cushion into the stowed position.
2. Remove the seat belt and seat anchor bolts.

3. Remove the outboard pivot cover.
4. Remove the seatback hinge covers.
5. Remove the seat cushion release handle.
6. Release the seatback and remove the seat.

Installation

Installation is in the reverse order of removal.

• Tighten the seat bolts to specification. Refer to

SE-38, "Exploded View"

.

1.

Seatback trim with armrest

2.

Seatback pad with armrest

3.

Seatback trim without armrest

4.

Seatback pad without armrest

5.

Seatback frame without armrest

6.

Seat cushion trim

7.

Seat cushion pad

8.

Seatback striker assembly

9.

Outboard pivot cover

10. Seat cushion release handle

11. Outboard seatback pivot anchor

12. Seat cushion release lever

13. Seat cushion frame

14. Grocery bag hooks

15. Inboard seatback pivot anchor

16. Rear seat bracket

17. Outer inboard hinge cover

18. Inner inboard hinge cover

19. Seatback frame with armrest

20. Arm rest pad and frame

21. Arm rest trim

22. Seatback latch assembly

23. Headrest holder (locked)

24. Headrest

25. Seatback release strap

26. Headrest holder (free)

LIIA1187E

LIIA1188E

FRONT SEAT

SE-41

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

FRONT SEAT

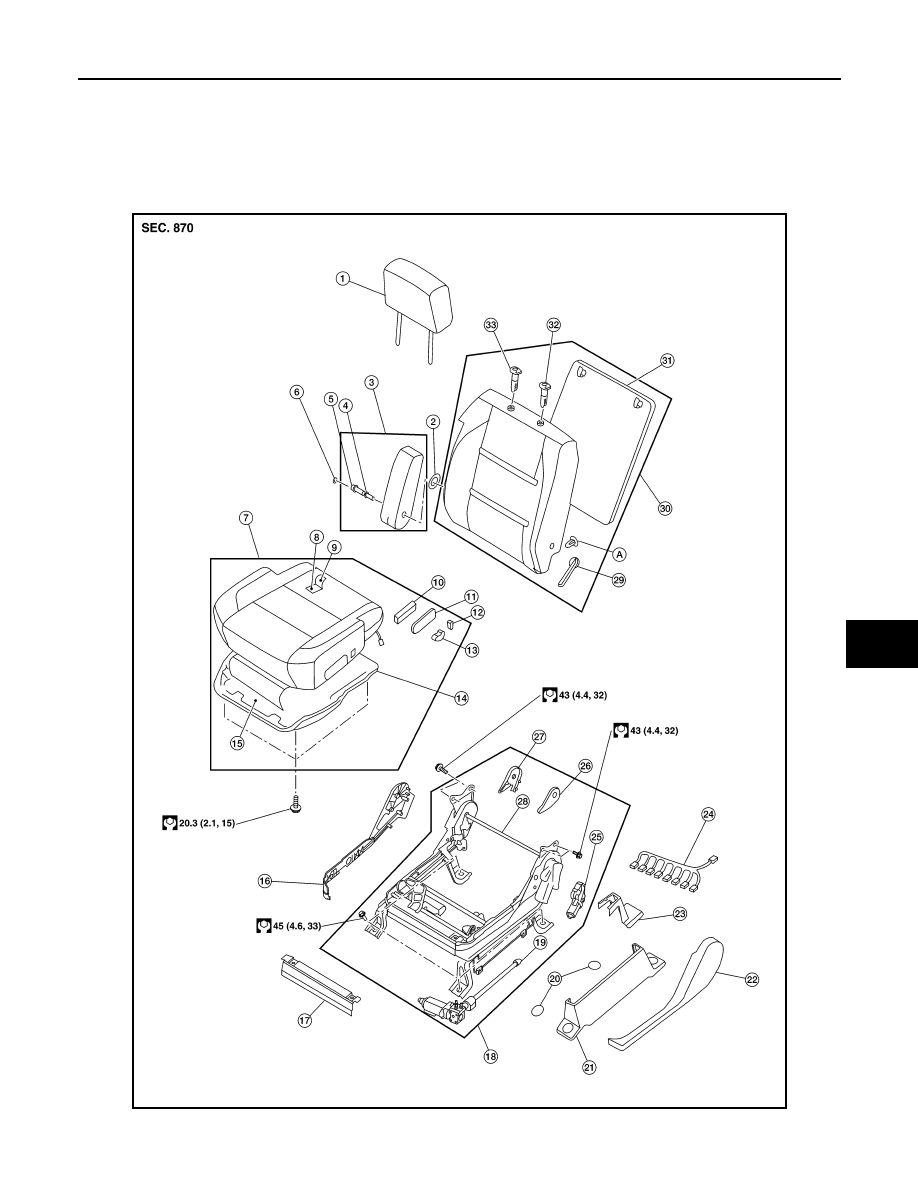

Exploded View

INFOID:0000000009882018

Power Driver Seat

ALJIA1065ZZ
