3. If the seat belt retractor does not operate within the specifications, replace the retractor assembly.

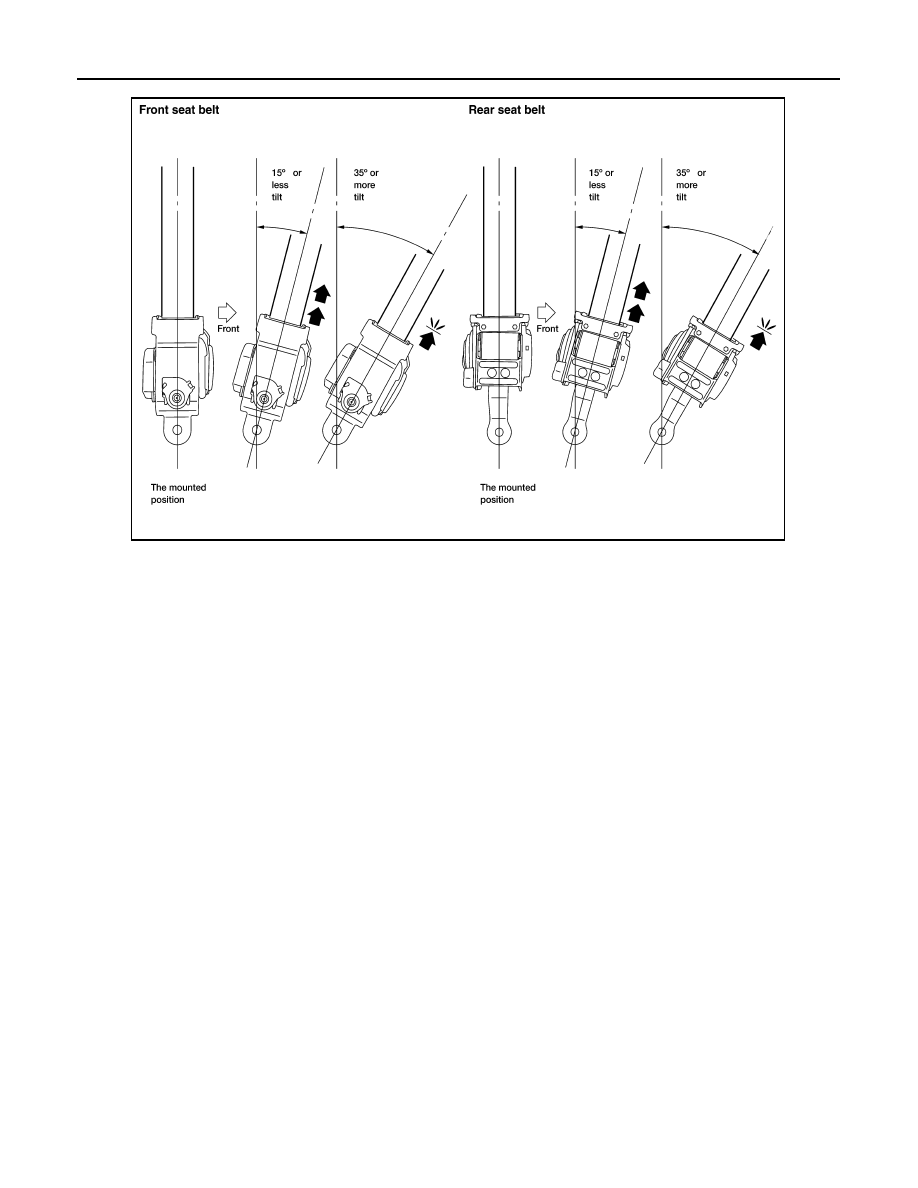

15 degrees or less tilt

: Belt can be pulled out.

35 degrees or more tilt

: Belt locks and cannot be pulled out.

LRS199

LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEM

SB-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEM

Removal and Installation

INFOID:0000000009882838

NOTE:

The LATCH (Lower Anchors and Tether for Children) system is not serviceable.

SB-14

< REMOVAL AND INSTALLATION >

TOP TETHER STRAP CHILD RESTRAINT

TOP TETHER STRAP CHILD RESTRAINT

Removal and Installation

INFOID:0000000009882839

REMOVAL

1. Fold rear seat backs down.

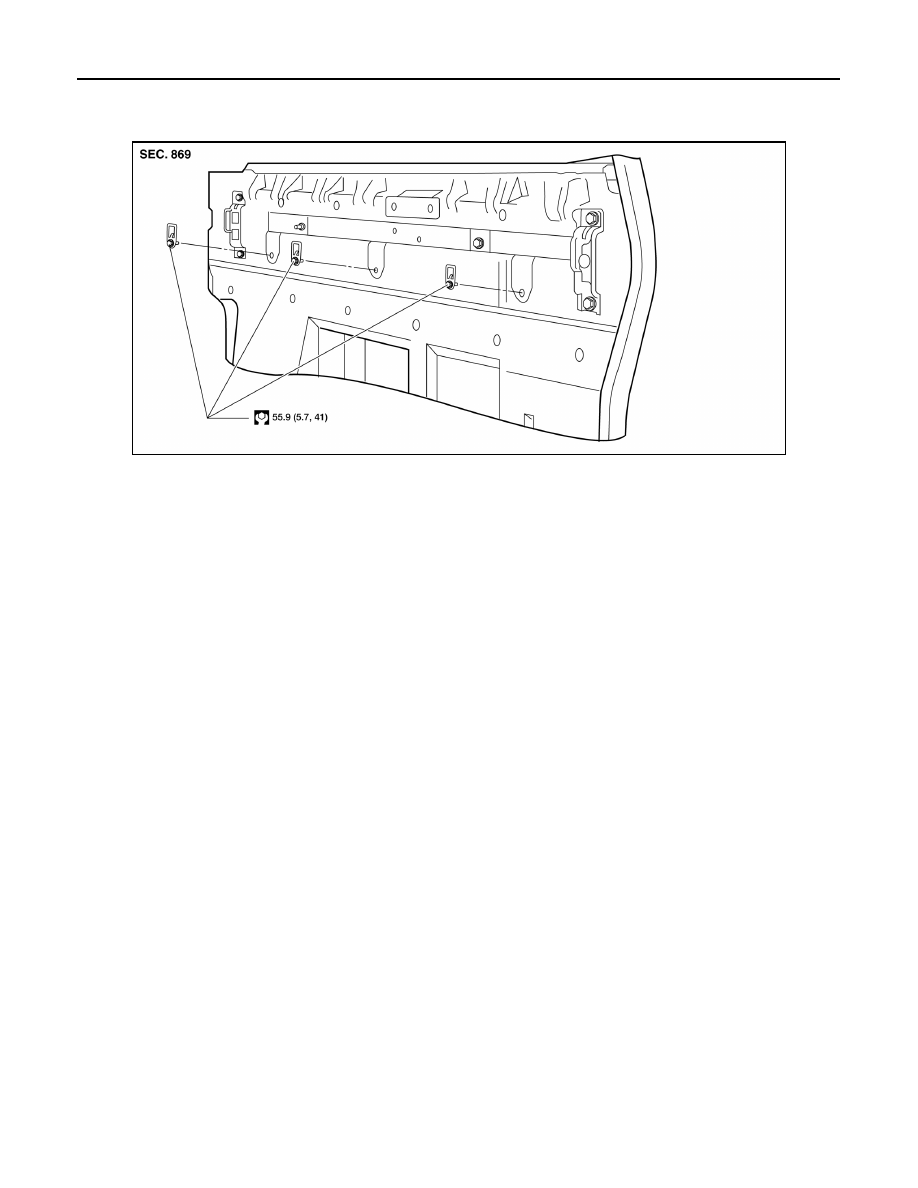

2. Remove bolts and remove tether anchors.

INSTALLATION

Installation is in the reverse order of removal.

AWHIA0265GB
