HEATED SEAT

DTC/CIRCUIT DIAGNOSIS

HEATED SEAT

Description

INFOID:0000000009882001

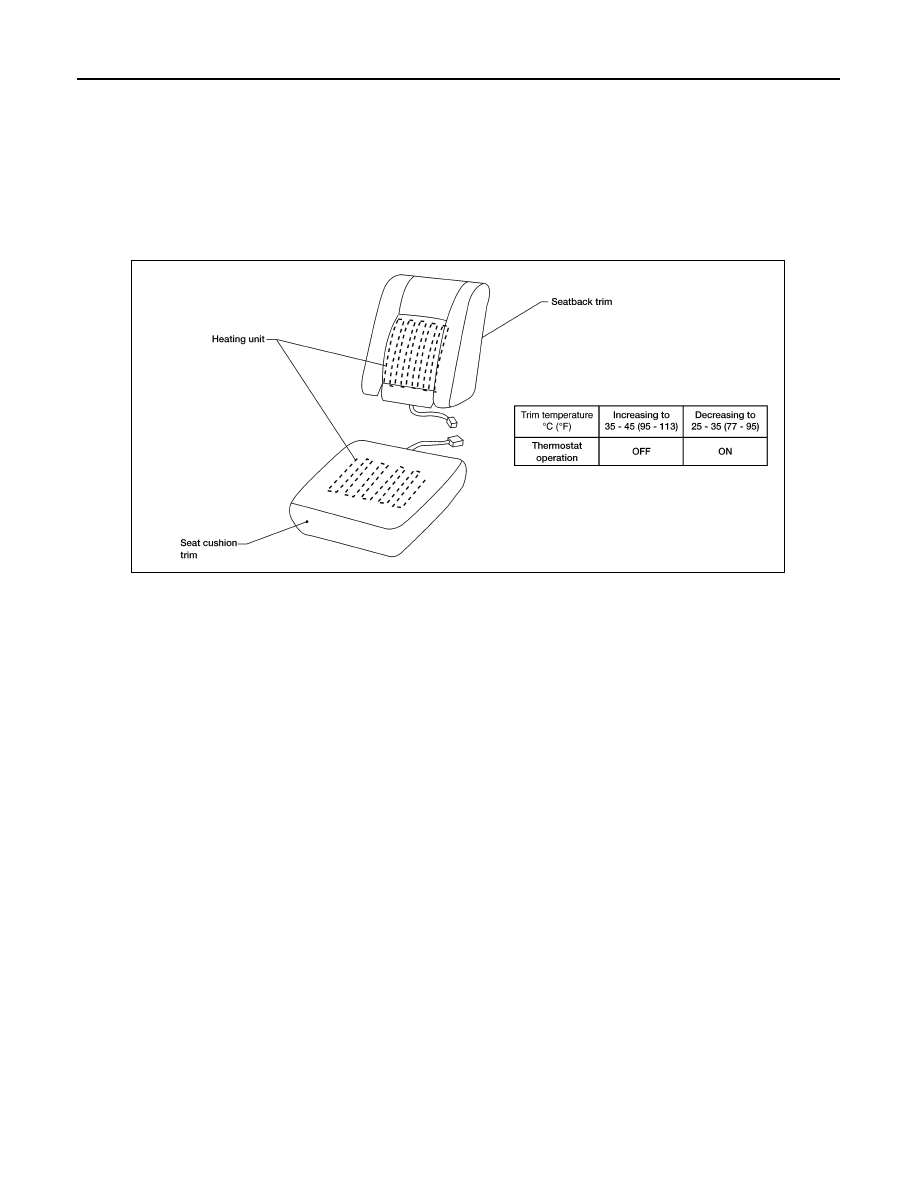

• When handling seat, be extremely careful not to scratch heating unit.

• Front passenger seat cushion and seatbacks equipped with air bags cannot be disassembled. They are

replaced as assemblies only.

• Do not use any organic solvent, such as thinner, benzene, alcohol, etc. to clean trim.

WIIA0031E

POWER SEAT FOR DRIVER SIDE

SE-3

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

WIRING DIAGRAM

POWER SEAT FOR DRIVER SIDE

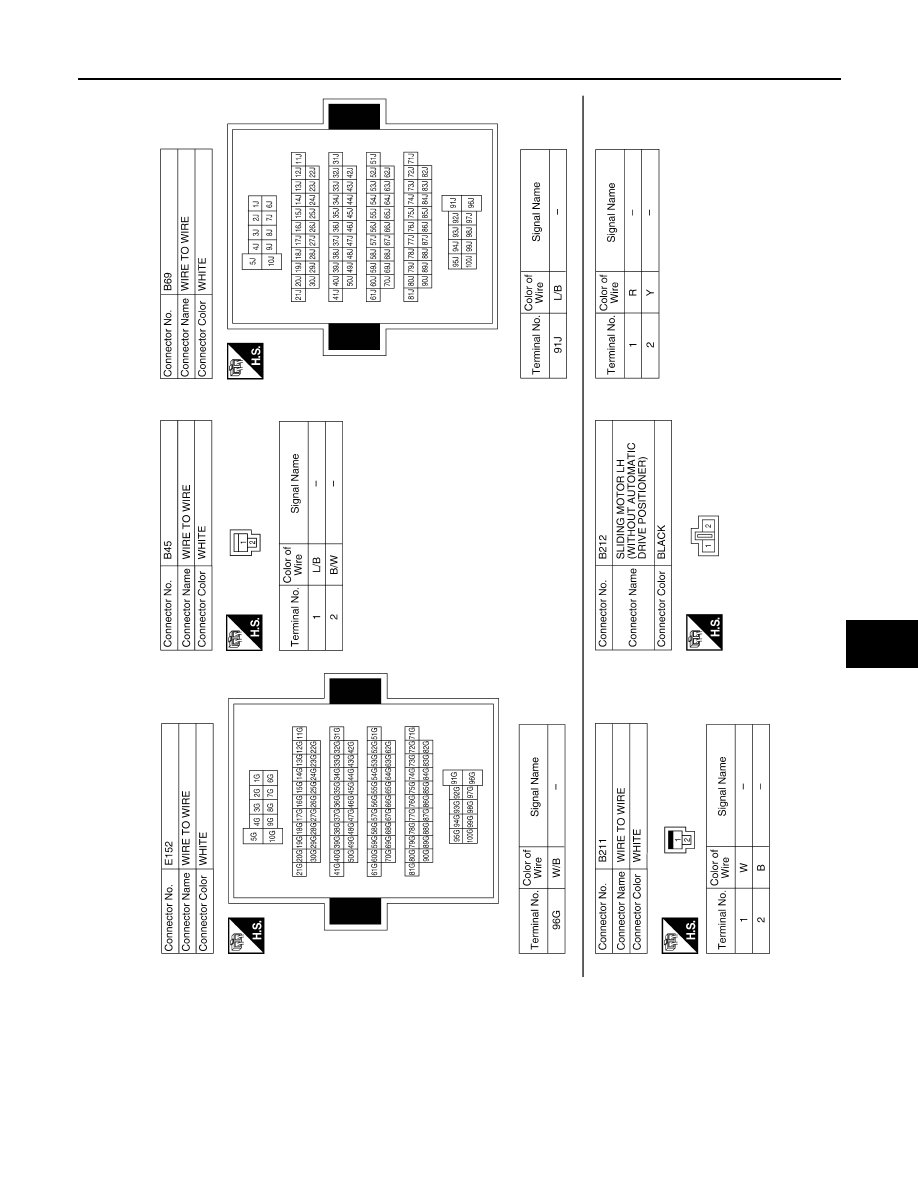

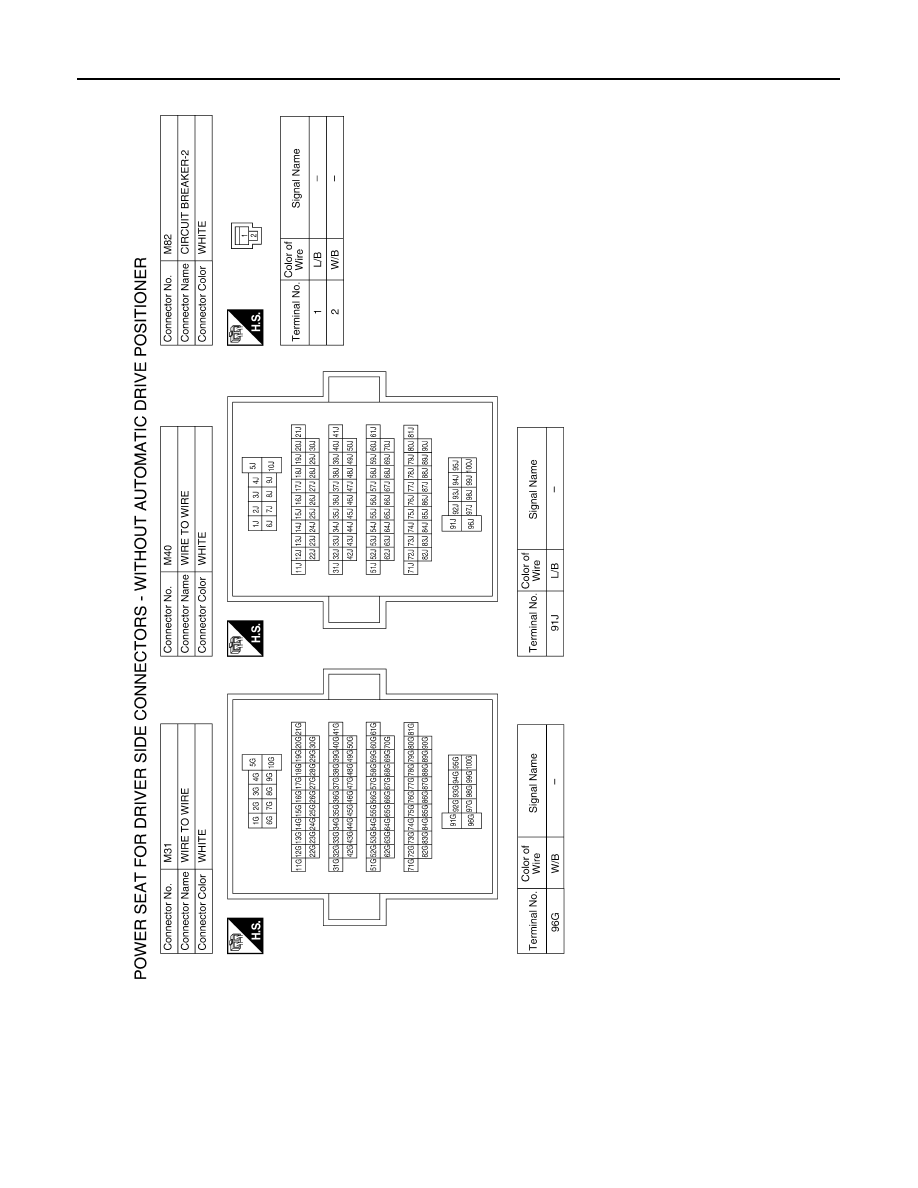

Wiring Diagram - Without Automatic Drive Positioner

INFOID:0000000009882002

ABJWA0297GB
