ENGINE OIL

• Always use the oil level gauge to determine when the proper amount of engine oil is in the

engine.

8. Warm up engine and check area around drain plug and oil filter for oil leaks.
9. Stop engine and wait for 10 minutes.
10. Install engine under cover (without off road package) or skid plate (with off road package). Refer to

EXT-

15, "Removal and Installation"

11. Check engine oil level. Refer to

LU-8, "Inspection"

OIL FILTER

LU-11

< PERIODIC MAINTENANCE >

OIL FILTER

Removal and Installation

INFOID:0000000009886458

REMOVAL

1. Remove the engine under cover (without off road package) or skid plate (with off road package). Refer to

EXT-15, "Removal and Installation"

2. Drain the engine oil. Refer to

LU-9, "Changing Engine Oil"

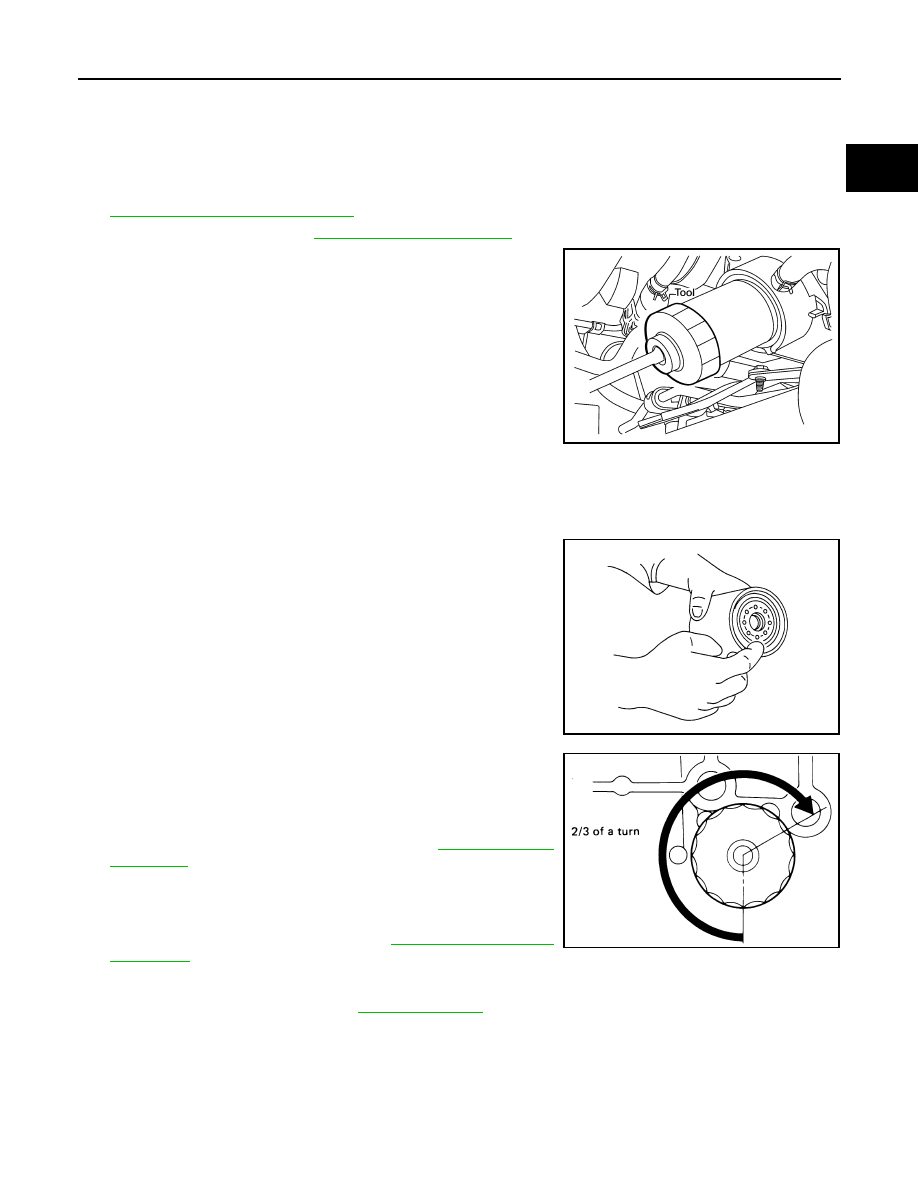

3. Remove the oil filter using Tool.

WARNING:

• Be careful not to get burned when the engine and engine

oil are hot.

CAUTION:

• The oil filter is provided with a relief valve.

• Use Genuine NISSAN oil filter or equivalent.

• When removing, prepare a shop cloth to absorb any

engine oil leaks or spills.

• Do not allow engine oil to adhere to the drive belt.

• Completely wipe off any engine oil that adheres to the engine and the vehicle.

INSTALLATION

1. Remove foreign materials adhering to the oil filter installation surface.
2. Apply engine oil to the oil seal circumference of the new oil filter.

3. Screw the oil filter manually until it touches the installation sur-

face, then tighten it by 2/3 turn. Or tighten to specification.

4. Refill the engine with new engine oil. Refer to

LU-9, "Changing

Engine Oil"

5. Inspect the engine for oil leaks. Follow the "INSPECTION

AFTER INSTALLATION" procedure.

6. Install the engine under cover (without off road package) or skid

plate (with off road package). Refer to

EXT-15, "Removal and

Installation"

INSPECTION AFTER INSTALLATION

1. Check the engine oil level. Refer to

LU-8, "Inspection"

2. Start the engine and check for engine oil leaks.
3. Stop the engine and wait for 10 minutes.
4. Check the engine oil level and add engine oil as required.

Tool number

: KV10115801 (J-38956)

WBIA0388E

SMA010

Oil filter

: 18.0 N·m (1.8 kg-m, 13 ft-lb)

SMA229B

LU-12

< REMOVAL AND INSTALLATION >

OIL COOLER

REMOVAL AND INSTALLATION

OIL COOLER

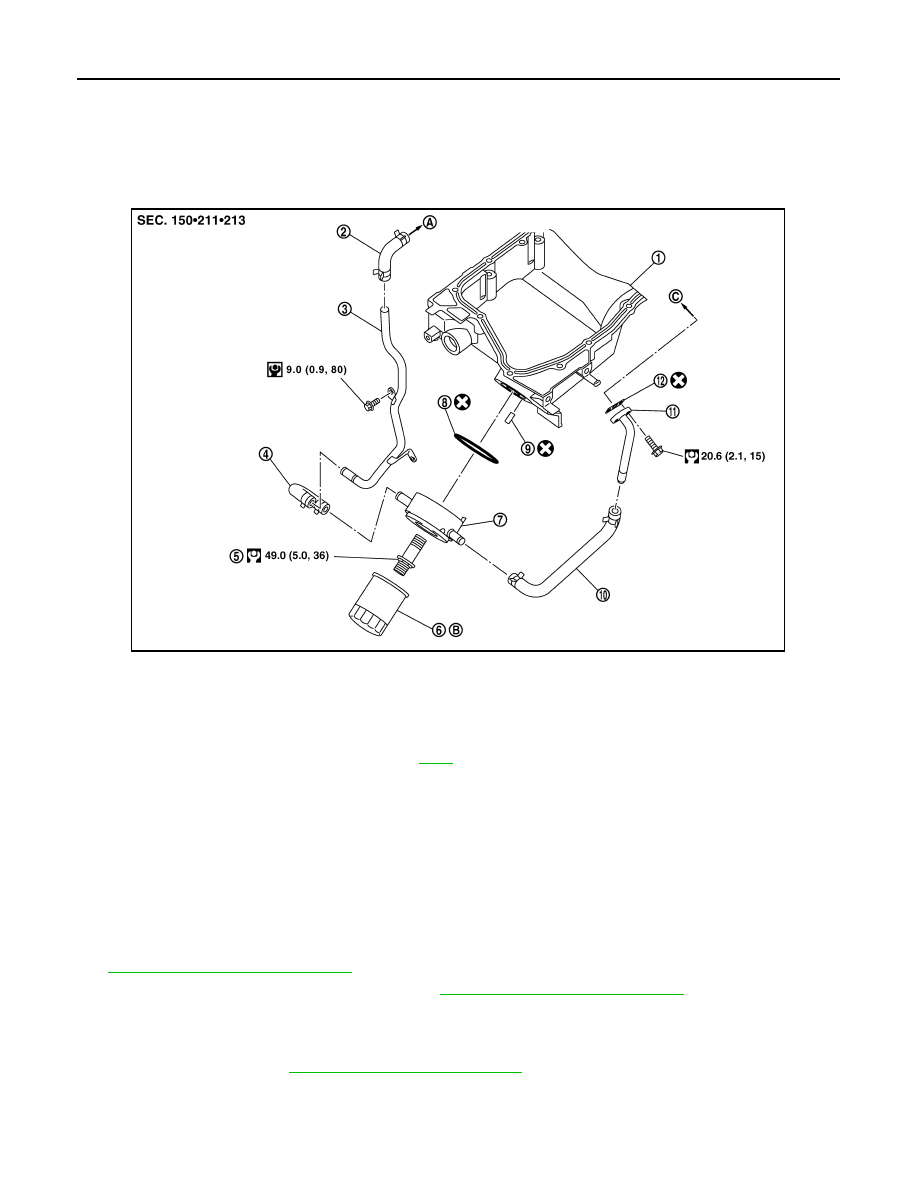

Exploded View

INFOID:0000000009886459

Removal and Installation

INFOID:0000000009886460

WARNING:

Be careful not to burn yourself, as the engine oil and engine coolant may be hot.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove the engine under cover (without off road package) or skid plate (with off road package). Refer to

EXT-15, "Removal and Installation"

2. Drain engine coolant from the radiator. Refer to

CO-11, "Changing Engine Coolant"

3. Disconnect water hoses from the oil cooler.

CAUTION:

Do not spill engine coolant on the drive belt.

4. Remove oil filter. Refer to

LU-11, "Removal and Installation"

CAUTION:

Do not spill engine oil on the drive belts.

5. Remove connector bolt, oil cooler and O-ring.

Oil pan (Upper)

Water hose

Water pipe

Water hose

Connector bolt

Oil filter

Oil cooler

O-ring

Relief valve

10. Water hose

11. Connector pipe

12. Gasket

To thermostat housing

Refer to

LU-11

To cylinder block

WBIA0790E

OIL COOLER

LU-13

< REMOVAL AND INSTALLATION >

CAUTION:

Do not reuse O-ring.

INSPECTION AFTER REMOVAL

Oil Cooler

Check oil cooler for cracks. Check oil cooler for clogging by blowing compressed air through engine coolant

inlet. If necessary, replace oil cooler assembly.

Relief Valve

Inspect relief valve for movement, cracks and breaks by pushing the ball. If replacement is necessary, remove

the valve by prying it out using a suitable tool. Install a new valve by tapping it in place.

INSTALLATION

Installation is in the reverse order of removal, paying attention to the following:

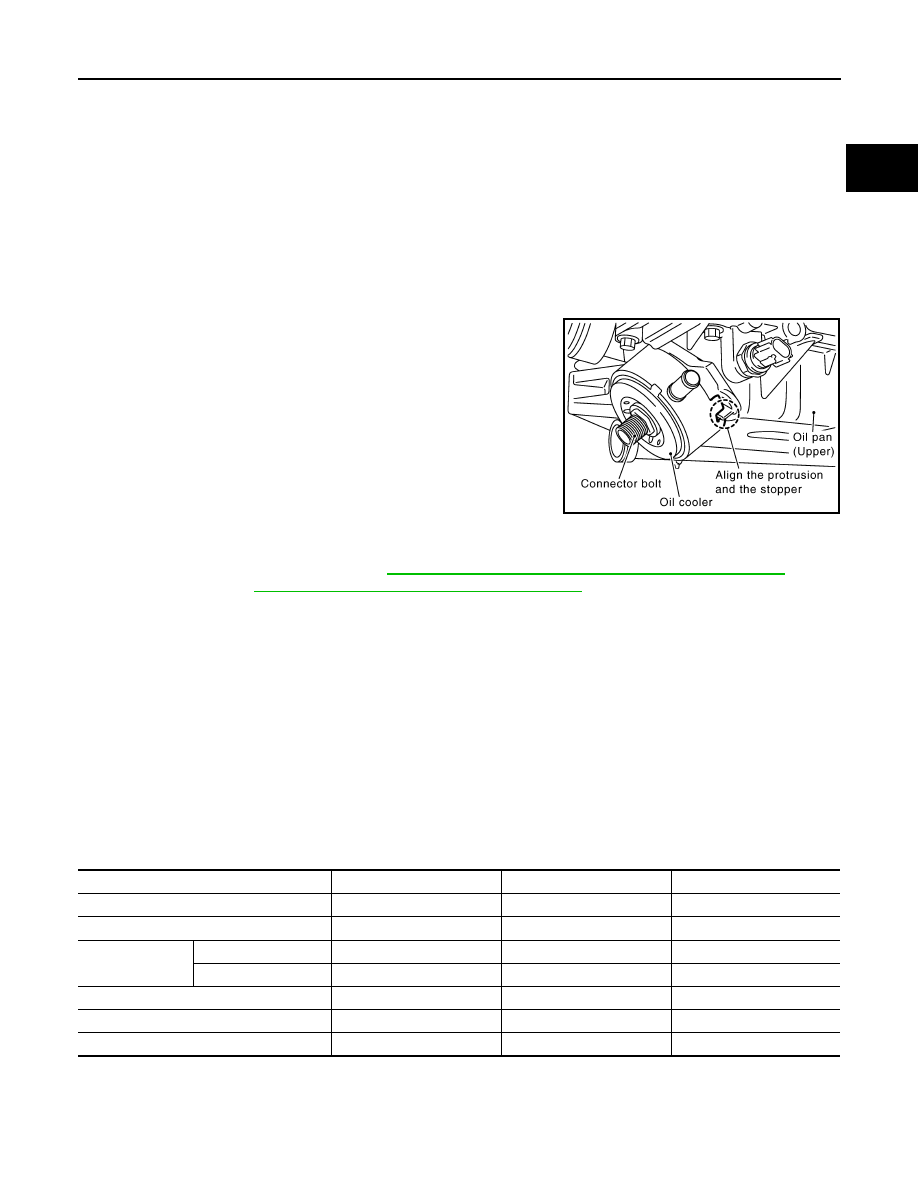

• Confirm that no foreign objects are adhering to the sealing sur-

faces of the oil cooler or oil pan.

• Tighten the connector bolt after aligning the protrusion of the oil

cooler with the stopper on the oil pan (upper).

INSPECTION AFTER INSTALLATION

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-15, "FOR NORTH AMERICA : Fluids and Lubricants"

(United

States and Canada) or

MA-16, "FOR MEXICO : Fluids and Lubricants"

(Mexico).

• Use procedure below to check for fuel leakage.

• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

• Start engine. With engine speed increased, check again for fuel leakage at connection points.

• Run engine to check for unusual noise and vibration.

NOTE:

If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guide

may generate a pounding noise during and just after engine start. However, this is normal. Noise will stop

after hydraulic pressure rises.

• Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gas, or any oils/fluids including

engine oil and engine coolant.

• Bleed air from passages in lines and hoses, such as in cooling system.

• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to spec-

ified level, if necessary.

• Summary of the inspection items:

*Power steering fluid, brake fluid, etc.

KBIA2500E

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Transmission/
transaxle fluid

A/T and CVT Models

Leakage

Level/Leakage

Leakage

M/T Models

Level/Leakage

Leakage

Level/Leakage

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Exhaust gas

—

Leakage

—
