Nissan Titan. Manual - part 450





LU-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009886450

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least 3 minutes before performing any service.

Precaution for Liquid Gasket

INFOID:0000000009886451

REMOVAL OF LIQUID GASKET

• After removing the bolts and nuts, separate the mating surface and

remove the old liquid gasket using Tool.

CAUTION:

Do not damage the mating surfaces.

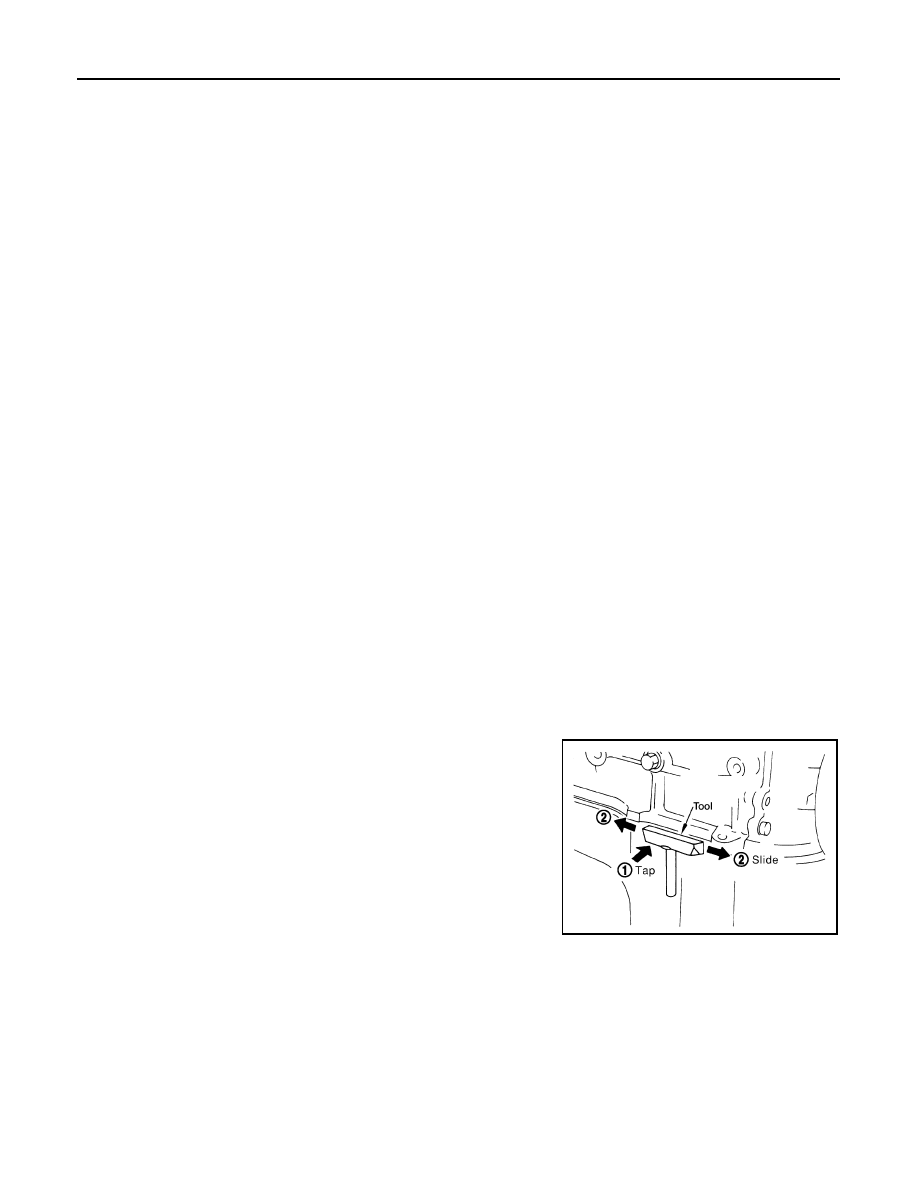

• Tap the seal cutter to insert it (1).

• In areas where the Tool is difficult to use, lightly tap to slide it (2).

LIQUID GASKET APPLICATION PROCEDURE

Tool number

: KV10111100 (J-37228)

WBIA0566E

PRECAUTIONS

LU-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

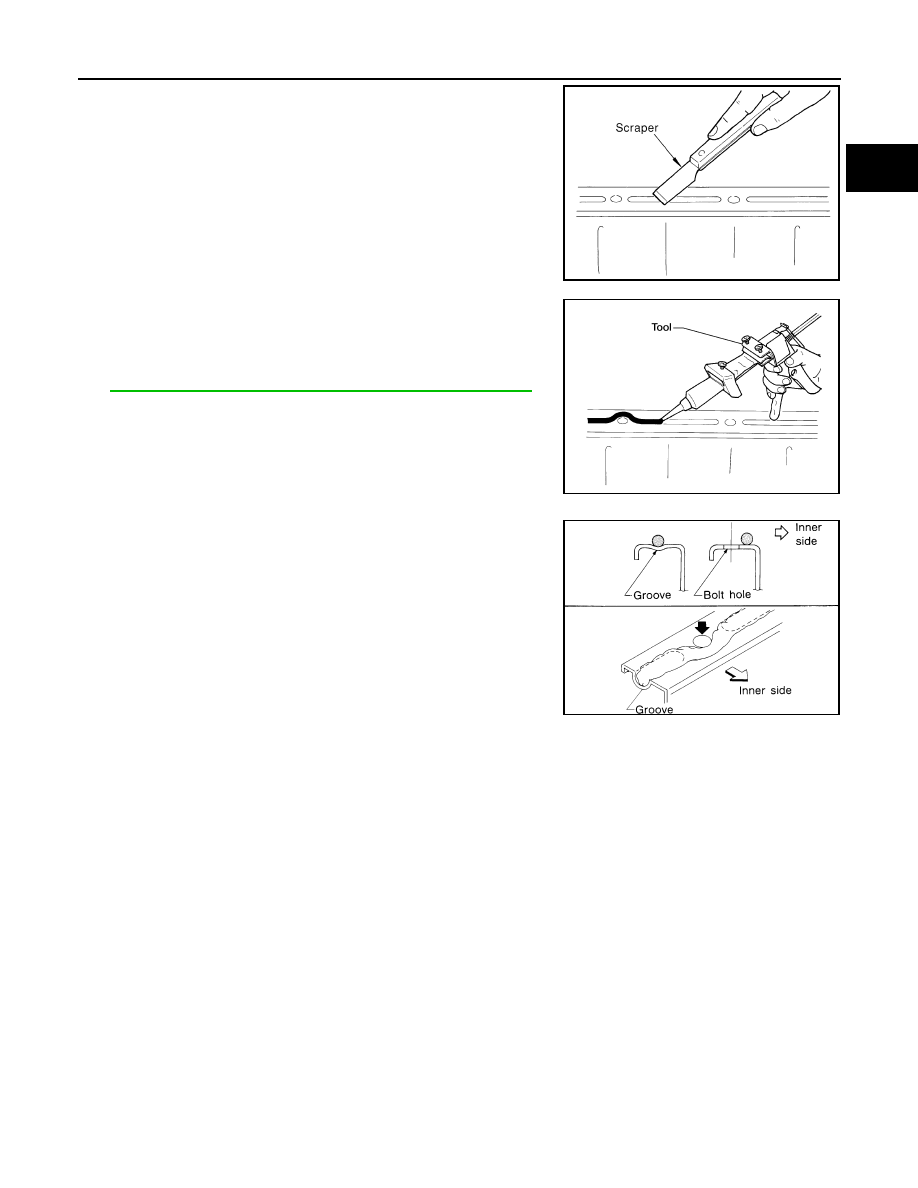

1. Remove the old liquid gasket adhering to the gasket application

surface and the mating surface using suitable tool.

• Remove the liquid gasket completely from the groove of the

liquid gasket application surface, bolts, and bolt holes.

2. Thoroughly clean the mating surfaces and remove adhering

moisture, grease and foreign material.

3. Attach the liquid gasket tube to the Tool.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-21, "Recommended Chemical Products and Sealants"

4. Apply the liquid gasket without breaks to the specified location

with the specified dimensions.

• If there is a groove for the liquid gasket application, apply the

liquid gasket to the groove.

• Normally apply the liquid gasket on the inside edge of the bolt

holes. Also apply to the outside edge of the bolt holes when

specified in the procedure.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If the liquid gasket protrudes, wipe it off immediately.

• Do not retighten after the installation.

• Wait 30 minutes or more after installation before refilling the

engine with oil or coolant.

CAUTION:

Carefully follow all of the warnings, cautions, notes, and procedures contained in this manual.

PBIC0003E

Tool number

: WS39930000 ( — )

WBIA0567E

SEM159F

LU-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009886452

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000009886453

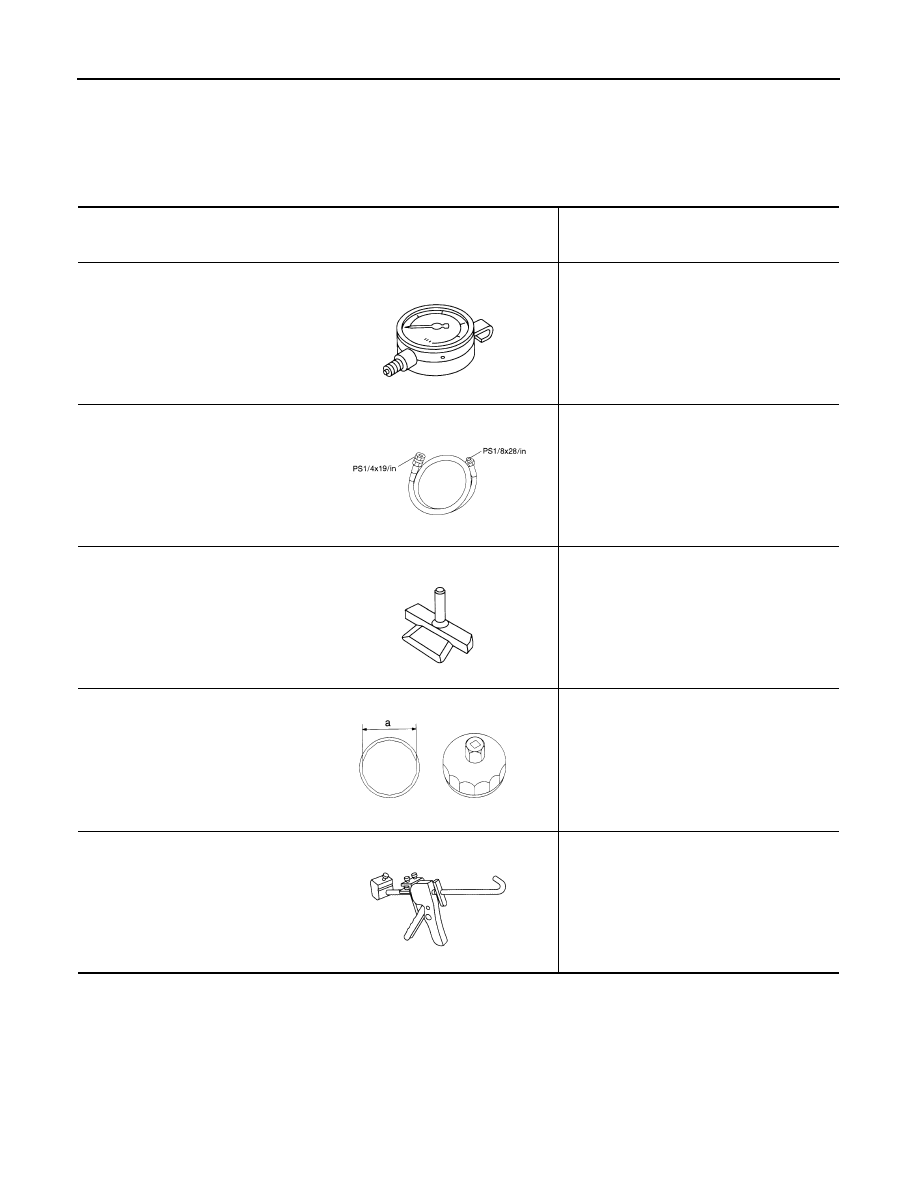

Tool number
(Kent-Moore No.)
Tool name

Description

ST25051001
(J-25695-1)
Oil pressure gauge

Measuring oil pressure
Maximum measuring range:
2,452 kPa (25 kg/cm

2

, 356 psi)

ST25052000
(J-25695-2)
Hose

Adapting oil pressure gauge to cylinder block

KV10111100
(J-37228)
Seal cutter

Removing steel oil pan and rear timing chain
case

KV10115801
(J-38956)
Oil filter wrench

Removing and installing oil filter
a: 64.3 mm (2.531 in)

WS39930000
( — )
Tube presser

Pressing the tube of liquid gasket

S-NT050

S-NT559

NT046

S-NT375

S-NT052

PREPARATION

LU-5

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

Tool name

Description

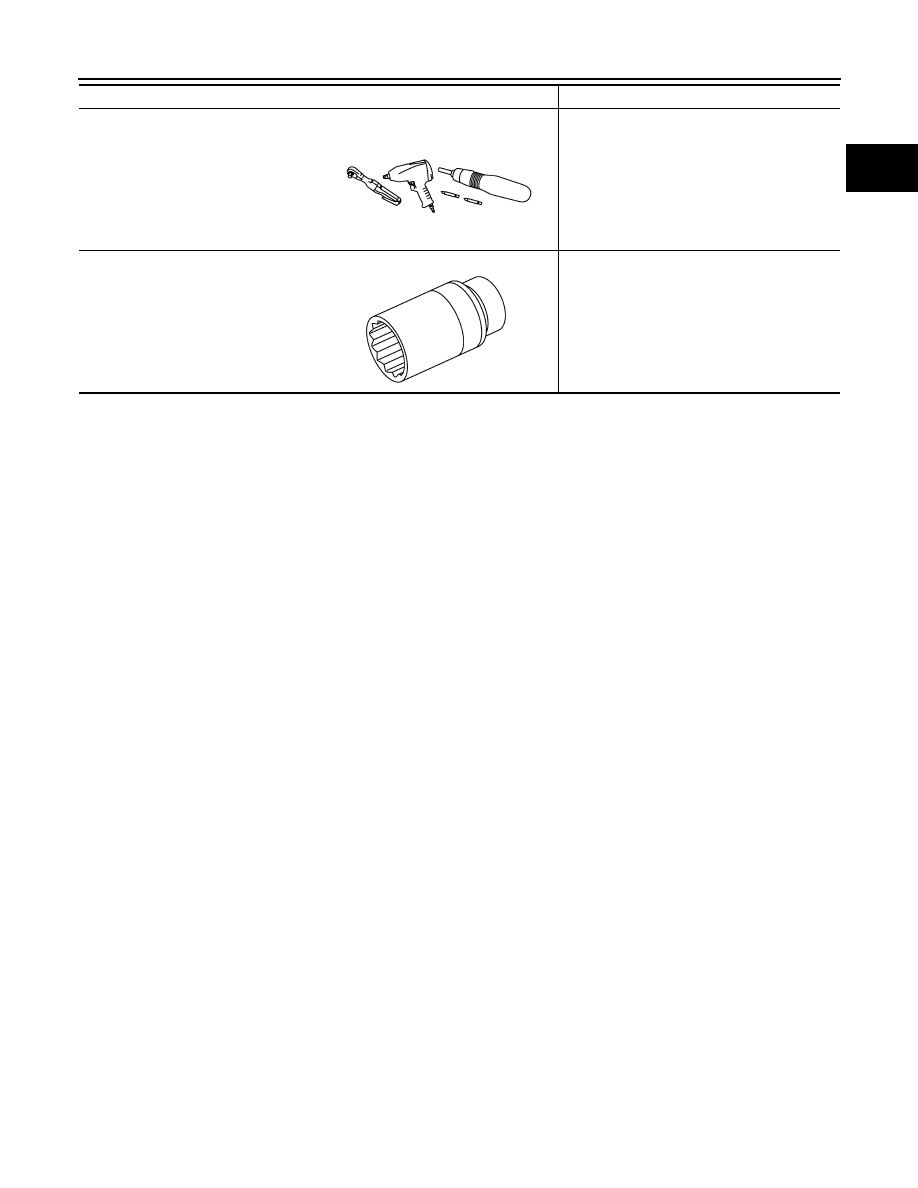

Power tool

Loosening nuts, screws and bolts

Deep socket

Removing and installing oil pressure switch
Deep socket 26 mm

PIIB1407E

NT818
