BODY SIDE TRIM

INT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

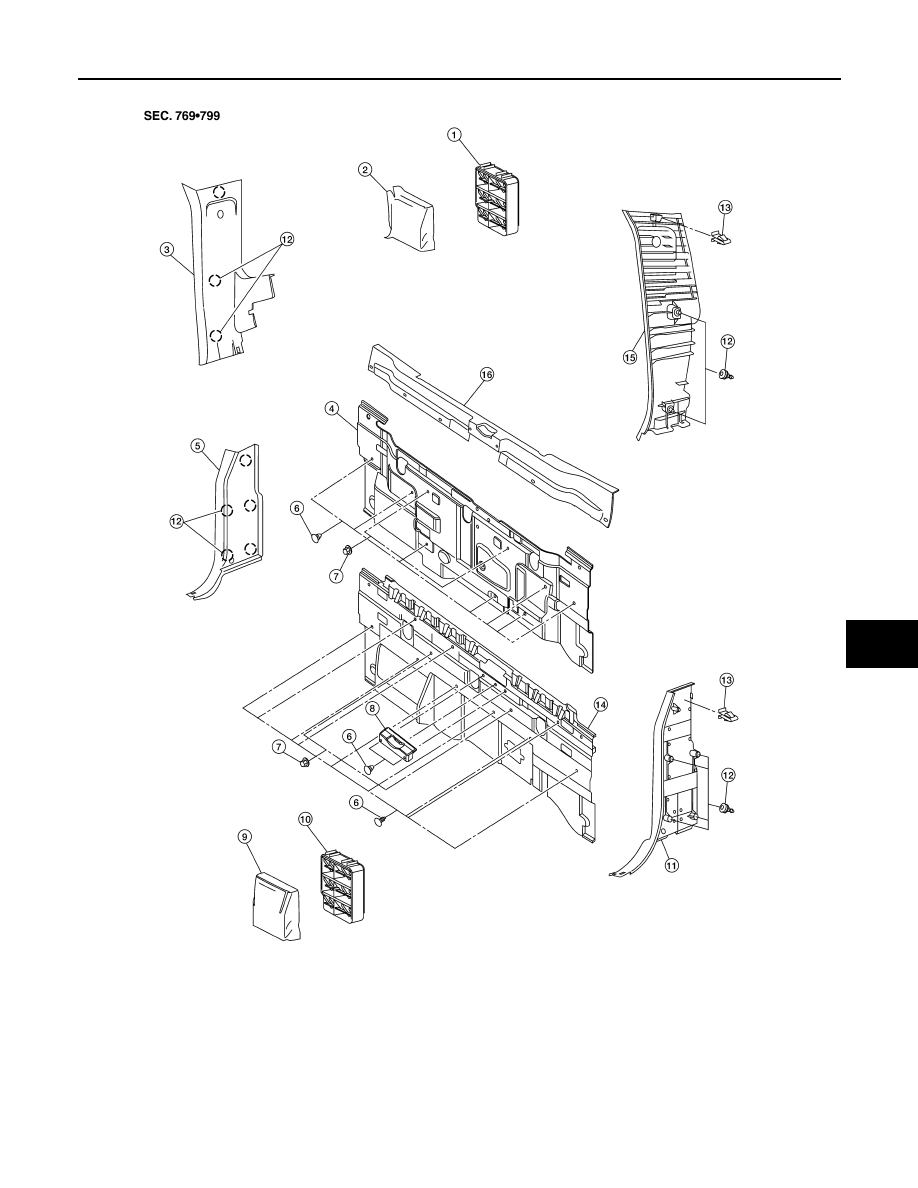

1.

Drafter duct (Crew Cab)

2.

Drafter duct cover (Crew Cab)

3.

Rear upper finisher RH

4.

Rear panel (Crew Cab)

5.

Rear lower finisher RH

6.

Push pin

7.

Nut

8.

Center anchor bracket cover

9.

Drafter duct cover (King Cab)

10. Drafter duct (King Cab)

11. Rear lower finisher LH

12. Plastic clip C101

13. Metal clip

14. Rear panel (King Cab)

15. Rear upper finisher LH

16. Rear panel upper finisher

WIIA1003E

INT-18

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

CAUTION:

• Use a suitable tool to remove metal clips from finishers.

Removal

1. Remove rear seats. Refer to

SE-40, "Removal and Installation"

.

2. Remove rear kicking plates.
3. Remove seat belt anchor bolts. Refer to

SB-13, "Removal and Installation"

.

4. Remove seatback latch strikers. Refer to

SE-40, "Removal and Installation"

.

5. Remove rear lower finishers LH/RH.
6. Remove rear upper finishers LH/RH.
7. Remove center anchor bracket cover (if equipped).
8. Remove rear panel upper finisher and rear panel.
9. Remover drafter duct cover and drafter duct.

Installation

Installation is in the reverse order of removal.

FLOOR TRIM

INT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

FLOOR TRIM

Removal and Installation

INFOID:0000000009881975

REMOVAL

1. Remove the front seats. Refer to

SE-34, "Removal and Installation - Front Seat Assembly"

.

2. Remove the subwoofer (if equipped). Refer to

AV-347, "Removal and Installation"

.

3. Remove the navigation display control unit (if equipped). Refer to

AV-342, "Removal and Installation"

.

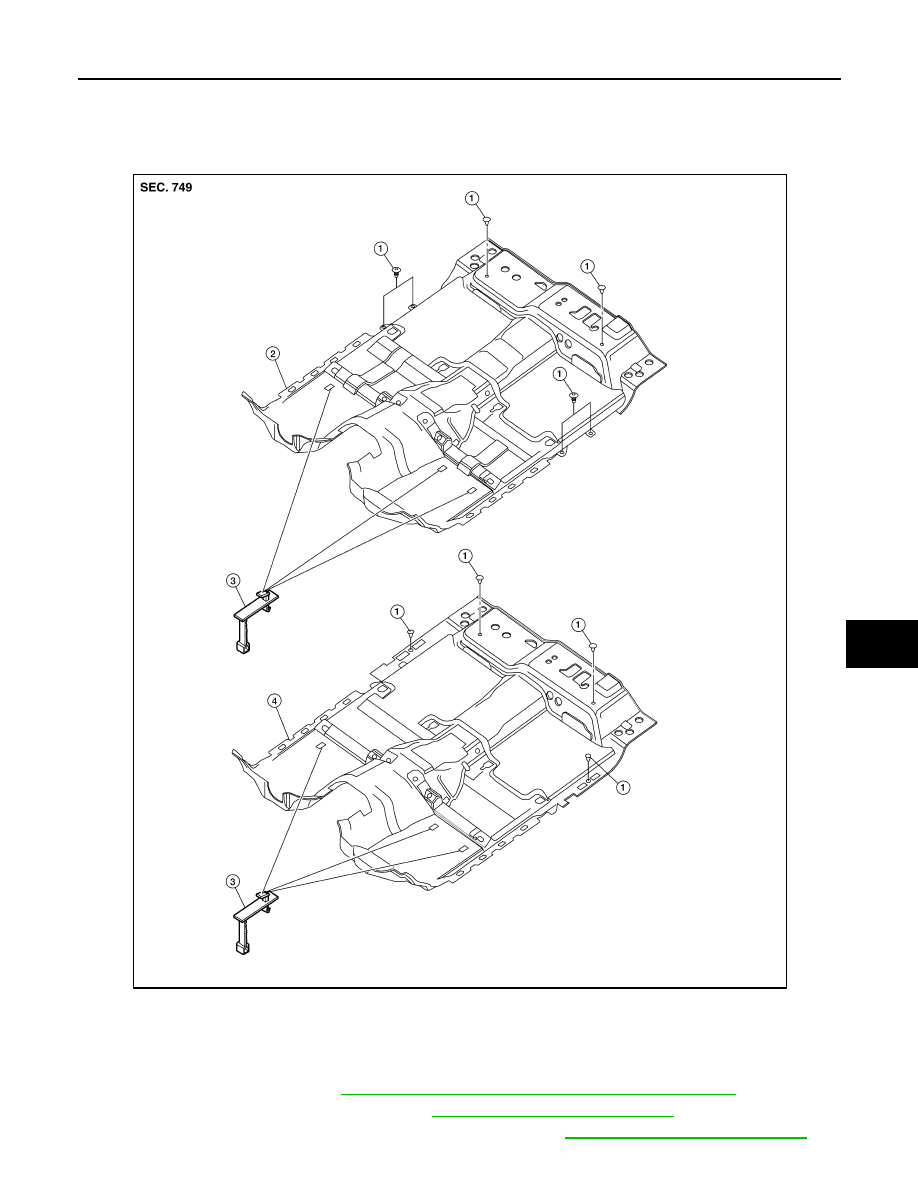

1.

Push pin

2.

King Cab carpet

3.

Floor mat hooks

4.

Crew Cab carpet

AWJIA0437ZZ

INT-20

< REMOVAL AND INSTALLATION >

FLOOR TRIM

4. Remove the rear seats. Refer to

SE-40, "Removal and Installation"

.

5. Remove the lower seat belt anchors. Refer to

SB-13, "Removal and Installation"

.

6. Remove the lower body side trim. Refer to

INT-14, "Removal and Installation"

.

7. Remove the center console (if equipped). Refer to

IP-20, "Removal and Installation"

.

8. Remove the floor mat hooks from front carpet.
9. Remove the carpet.

INSTALLATION

Installation is in the reverse order of removal.
