HEADLINING

INT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

HEADLINING

Removal and Installation

INFOID:0000000009881976

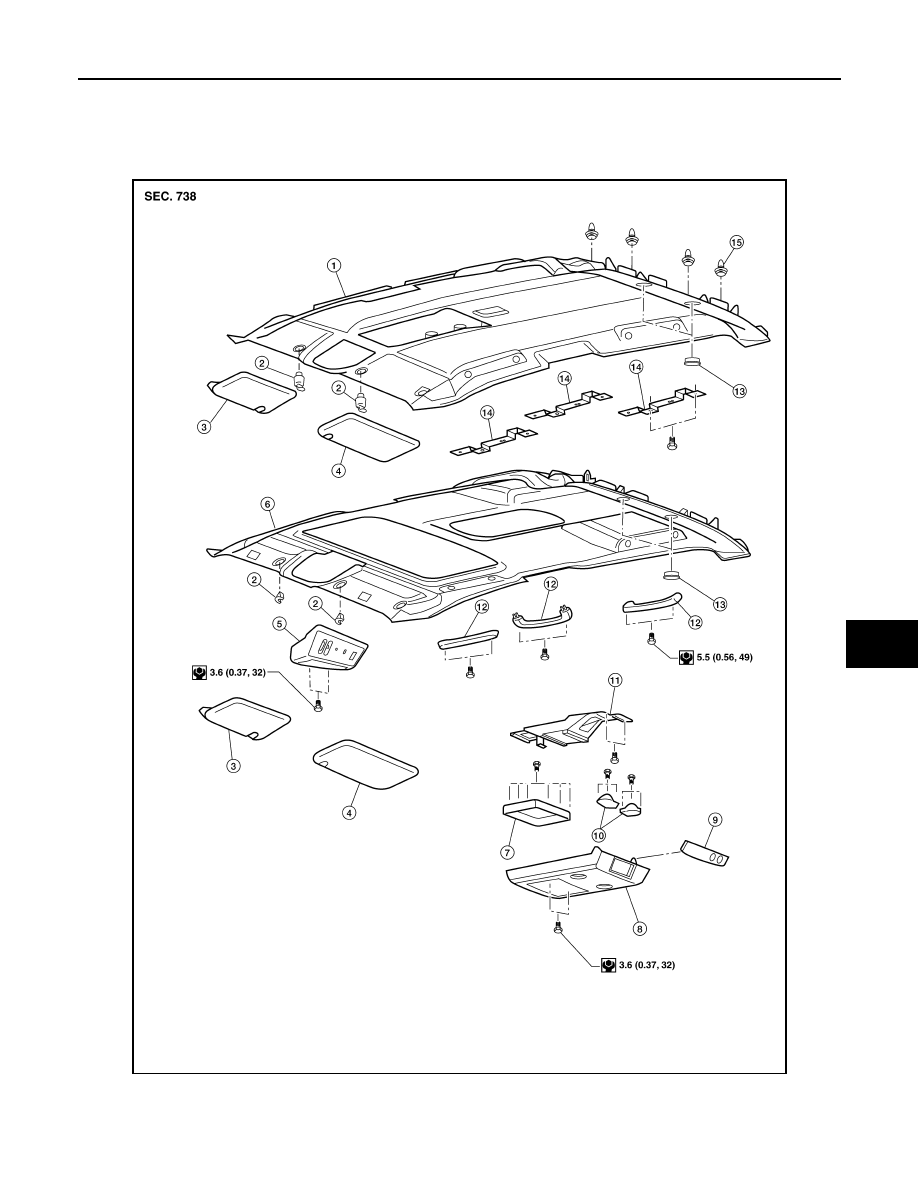

Crew Cab

AWJIA0952ZZ

1.

Headlining (without sunroof)

2.

Sun visor holder

3.

Sun visor assembly (RH)

4.

Sun visor assembly (LH)

5.

Front roof console

6.

Headlining (with sunroof)

INT-22

< REMOVAL AND INSTALLATION >

HEADLINING

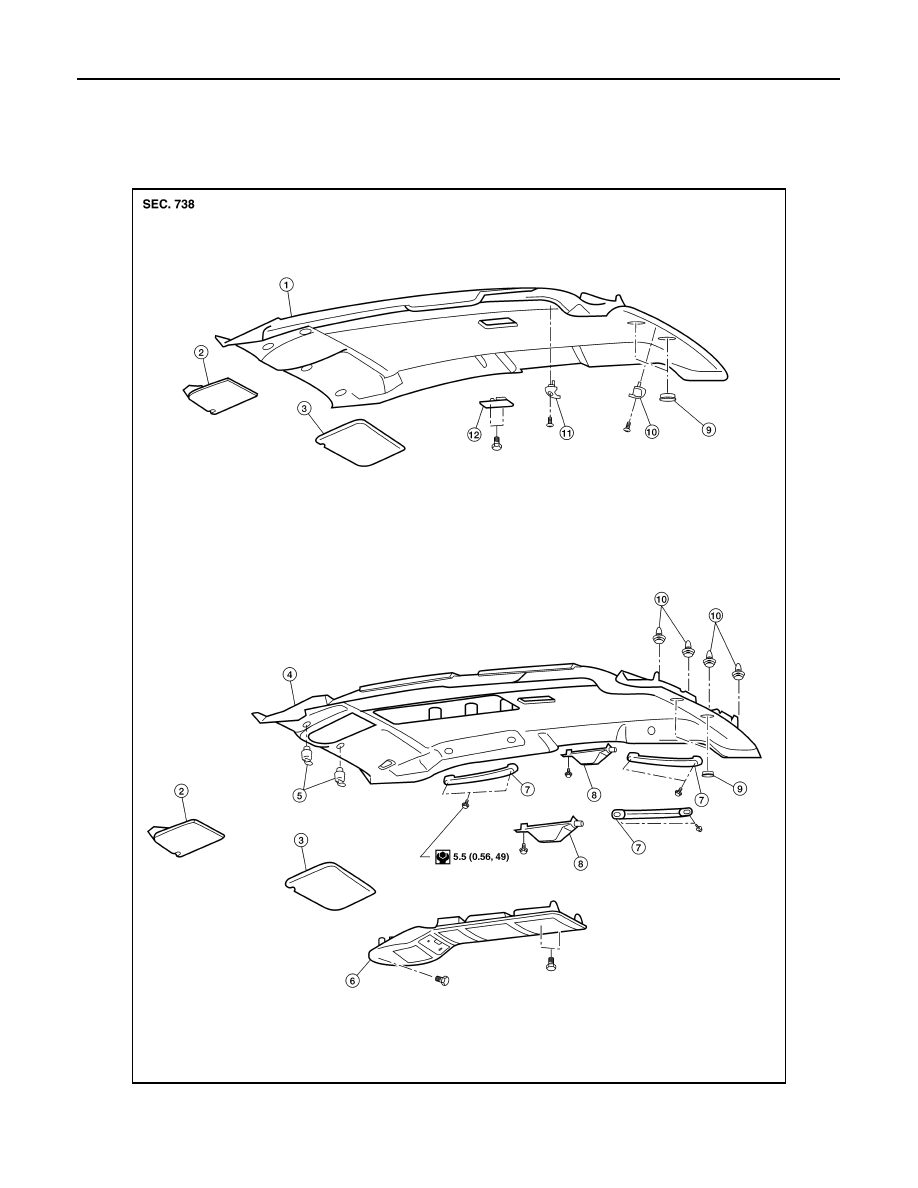

King Cab

7.

Rear storage bin

8.

Rear roof console

9.

Rear roof console finisher

10. Lamp assembly

11. Rear roof console bracket

12. Assist grip

13. High mounted stop lamp access cov-

er (CHMSL)

14. Assist grip bracket

15. Plastic clips

AWJIA0953ZZ

1.

Headlining (standard)

2.

Sun visor assembly (RH)

3.

Sun visor assembly (LH)

4.

Headlining (optional)

5.

Sun visor holder

6.

Center roof console

HEADLINING

INT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REMOVAL

CAUTION:

Disconnect both terminals from battery in advance.
1. Remove the body side trim. Refer to

INT-14

.

2. Remove the rear trim. Refer to

INT-14

.

3. Remove the sun visor assemblies.

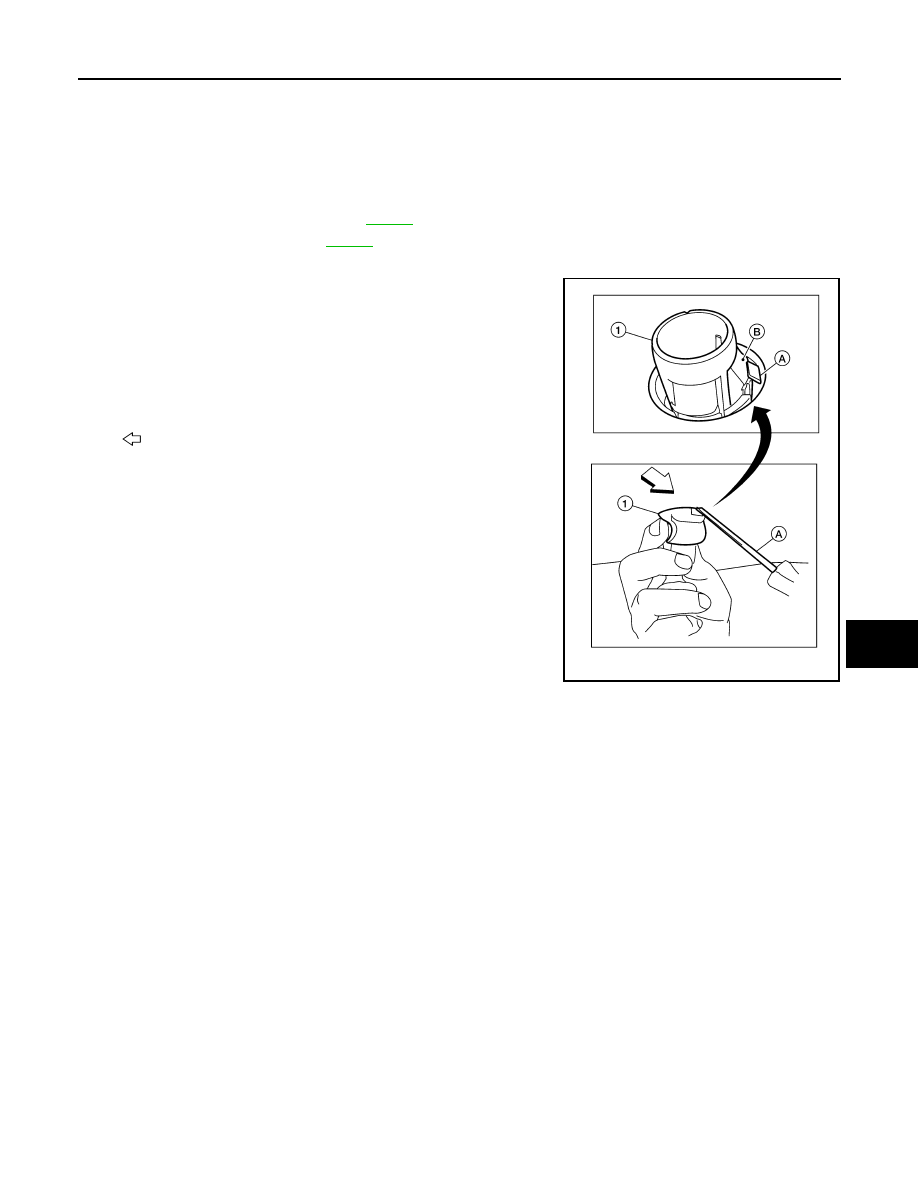

4. Insert a suitable thin tool (A) at approximately a 30 degree angle

into the sun visor holder notch on the front of the sun visor

holder (1) and press in the locking tab (B) to release it. While

holding in lock tab (B), turn the sun visor holder (1) 90 degrees

to release it from the headliner.

• If the sun visor holder (1) does not fully rotate, make sure that

the suitable thin tool (A) is pressing in on the locking tab (B)

and is not positioned under locking tab (B). Reinsert the suit-

able thin tool (A) as necessary to release the locking tab (B).

•

: Front

CAUTION:

Do not force the sun visor holder when removing as the

locking tab may be damaged if the suitable thin tool is not

positioned correctly.

5. Remove the front roof console (if equipped).

• Disconnect the harnesses.

6. Remove the rear roof console (if equipped).

• Disconnect the harnesses.

7. Remove the center roof console (if equipped).

• Disconnect the harnesses.

8. Remove the assist grips.
9. Remove the striker covers (if equipped).
10. Remove the room lamp.
11. Remove the headlining.

• Disconnect the harnesses.

12. Remove the rear audio control assembly from rear roof console (if equipped).

• Disconnect the harness.

13. Remove the lamp assemblies from roof console.

• Disconnect the harnesses.

14. Remove the rear roof console bracket (if equipped).
15. Remove the center roof console front bracket (if equipped).
16. Remove the assist grip brackets from roof (if equipped).

INSTALLATION

Installation is in the reverse order of removal.

7.

Assist grip

8.

Striker cover

9.

High mounted stop lamp access cov-
er (CHMSL)

10. Plastic clip

11. Coat hook

12. Room lamp

ALJIA0537ZZ

IP-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

IP

A

B

IP

N

O

P

CONTENTS

INSTRUMENT PANEL

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution for Work  ..................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tool  ..........................................

3

SYMPTOM DIAGNOSIS  ...............................

4

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

4

Work Flow  .................................................................

4

Generic Squeak and Rattle Troubleshooting  ............

6

Diagnostic Worksheet  ...............................................

8

REMOVAL AND INSTALLATION ...............

10

INSTRUMENT PANEL ASSEMBLY  ..................

10

Exploded View  ........................................................

10

Removal and Installation .........................................

11

CLUSTER LID A .................................................

13

Exploded View  ........................................................

13

Removal and Installation .........................................

13

CLUSTER LID C  ...............................................

14

Exploded View .........................................................

14

Removal and Installation  .........................................

14

CLUSTER LID D  ...............................................

15

Exploded View .........................................................

15

Removal and Installation  .........................................

15

INSTRUMENT LOWER PANEL RH AND
GLOVE BOX  .....................................................

16

Removal and Installation  .........................................

16

INSTRUMENT LOWER PANEL LH ..................

17

Removal and Installation  .........................................

17

A/T FINISHER  ...................................................

18

Removal and Installation  .........................................

18

CENTER CONSOLE  .........................................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

20

UNIT DISASSEMBLY AND ASSEMBLY  ....

21

INSTRUMENT LOWER PANEL RH AND
GLOVE BOX  .....................................................

21

Exploded View .........................................................

21

Disassembly and Assembly .....................................

21

CENTER CONSOLE ASSEMBLY  ....................

23

Exploded View .........................................................

23

Disassembly and Assembly .....................................

24
