FRONT DOOR GLASS AND REGULATOR

GW-19

< UNIT REMOVAL AND INSTALLATION >

Fitting Inspection

• Check that the glass is securely fit into the glass run groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)] and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide

rail bolts, and glass and guide rail bolts to correct the glass position.

FRONT DOOR GLASS REGULATOR ASSEMBLY

Removal

1. Remove the front door finisher. Refer to

INT-10, "Removal and Installation"

2. Position aside the vapor barrier.
3. Remove the hole cover over rear glass bolt.
4. Operate the power window main switch to raise/lower the door window until the glass bolts can be seen.
5. Remove the inside seal.
6. Remove the glass bolts.
7. Raise the front door glass and hold it in place with suitable tool.
8. Disconnect the harness connector from the regulator assembly.
9. Remove the bolts and the regulator assembly.

Disassembly And Assembly

Remove the regulator motor from the regulator assembly.

Inspection After Removal

Check the regulator assembly for the following items. If a malfunc-

tion is detected, replace or grease it.

• Wire wear

• Regulator deformation

• Grease condition for each sliding part

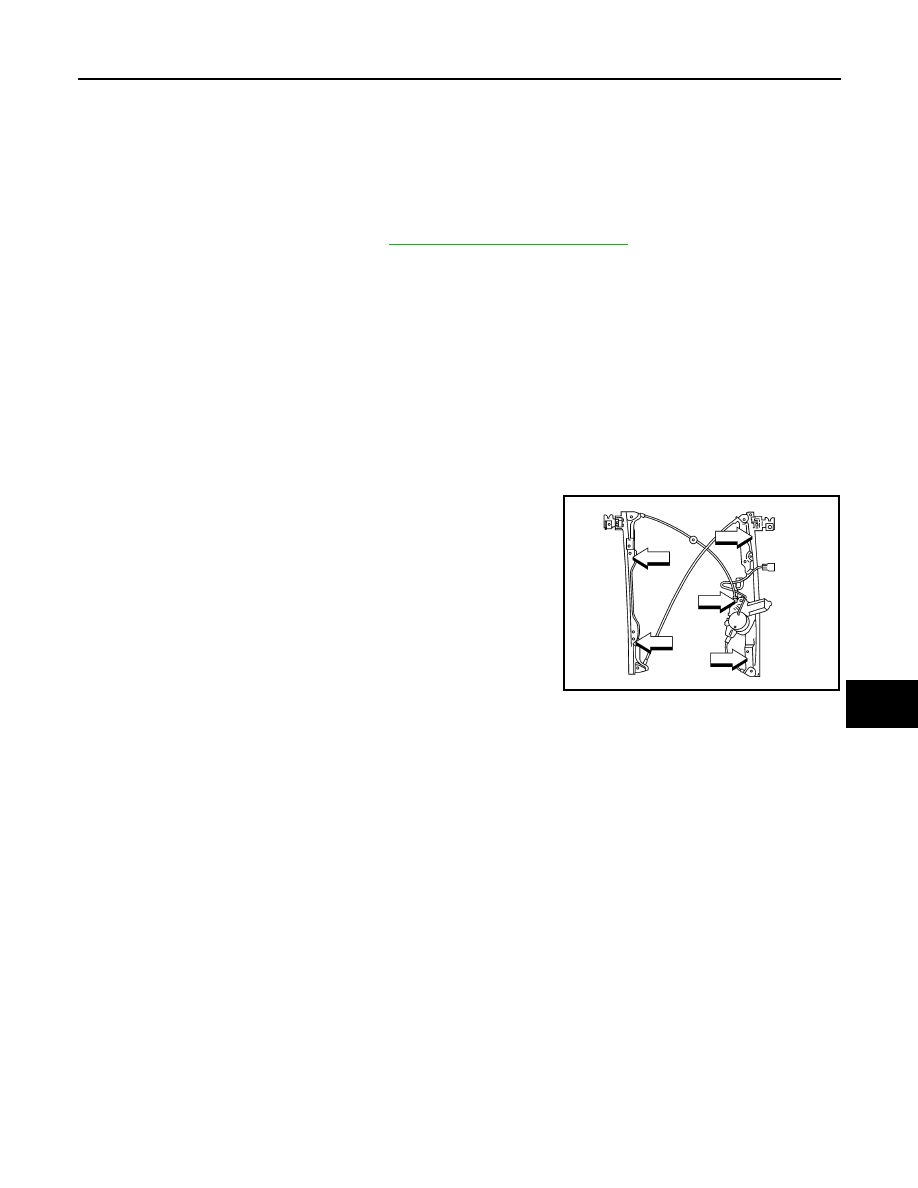

The arrows in the figure show the application points of the body

grease.

Installation

If any of the following work has been done, reset the power window motor limit switch.

• Removal and installation of the regulator assembly.

• Removal and installation of the power window motor from the regulator.

• Installation of a new glass window.

• Installation of a new glass run.

WINDOW REGULATOR RESET PROCEDURE

1. Connect the door harness connector to the power window motor, and rotate the motor more than 5 turns

in the glass raising (up) direction.

2. Install the power window motor onto the regulator.

3. Install the regulator assembly into the door and secure regulator assembly with the nuts and bolt.

4. Install the glass into the door and align with the regulator, then install the glass bolts.

5. Raise the glass to the top position.

CAUTION:

LIIA0670E

Power Window Motor Up Direction

• LH motor rotate counterclockwise
• RH motor rotate clockwise

Regulator assembly nuts
and bolt

: 7.5 N·m (0.77 kg-m, 66 in-lb)

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

GW-20

< UNIT REMOVAL AND INSTALLATION >

FRONT DOOR GLASS AND REGULATOR

Do not operate the glass automatically to raise the glass to the top.

6. Reposition the vapor barrier.

7. Install the front door finisher. Refer to

INT-10, "Removal and Installation"

REAR DOOR GLASS AND REGULATOR

GW-21

< UNIT REMOVAL AND INSTALLATION >

REAR DOOR GLASS AND REGULATOR

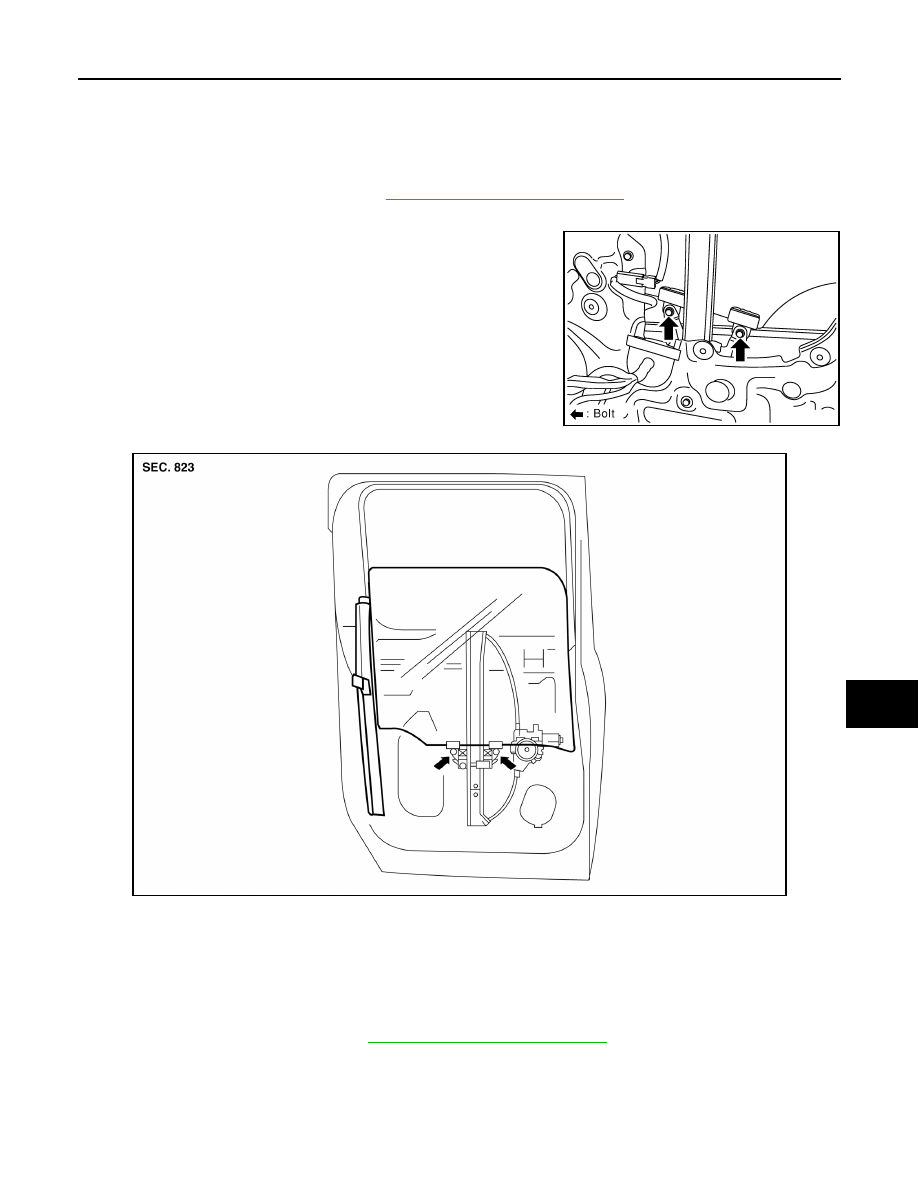

Rear Door Glass

INFOID:0000000009878928

REMOVAL

1. Remove the rear door finisher. Refer to

INT-10, "Removal and Installation"

2. Position aside the vapor barrier.
3. Operate the power window switch to raise/lower the door win-

dow until the glass bolts can be seen.

4. Remove the inside seal.
5. Remove the glass bolts and the glass.

INSTALLATION

1. Install the glass from outside to ensure that it is in both the front and rear glass channels. Tighten glass

the bolts to the specified torque.

2. Install the inside seal.
3. Reposition the vapor barrier.
4. Install the rear door finisher. Refer to

INT-10, "Removal and Installation"

FITTING INSPECTION

• Check that the glass is securely fit into the glass run groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolt, guide

rail bolts, and glass and carrier plate bolts to correct the glass position.

SIIA0290E

AWKIA1734ZZ

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

GW-22

< UNIT REMOVAL AND INSTALLATION >

REAR DOOR GLASS AND REGULATOR

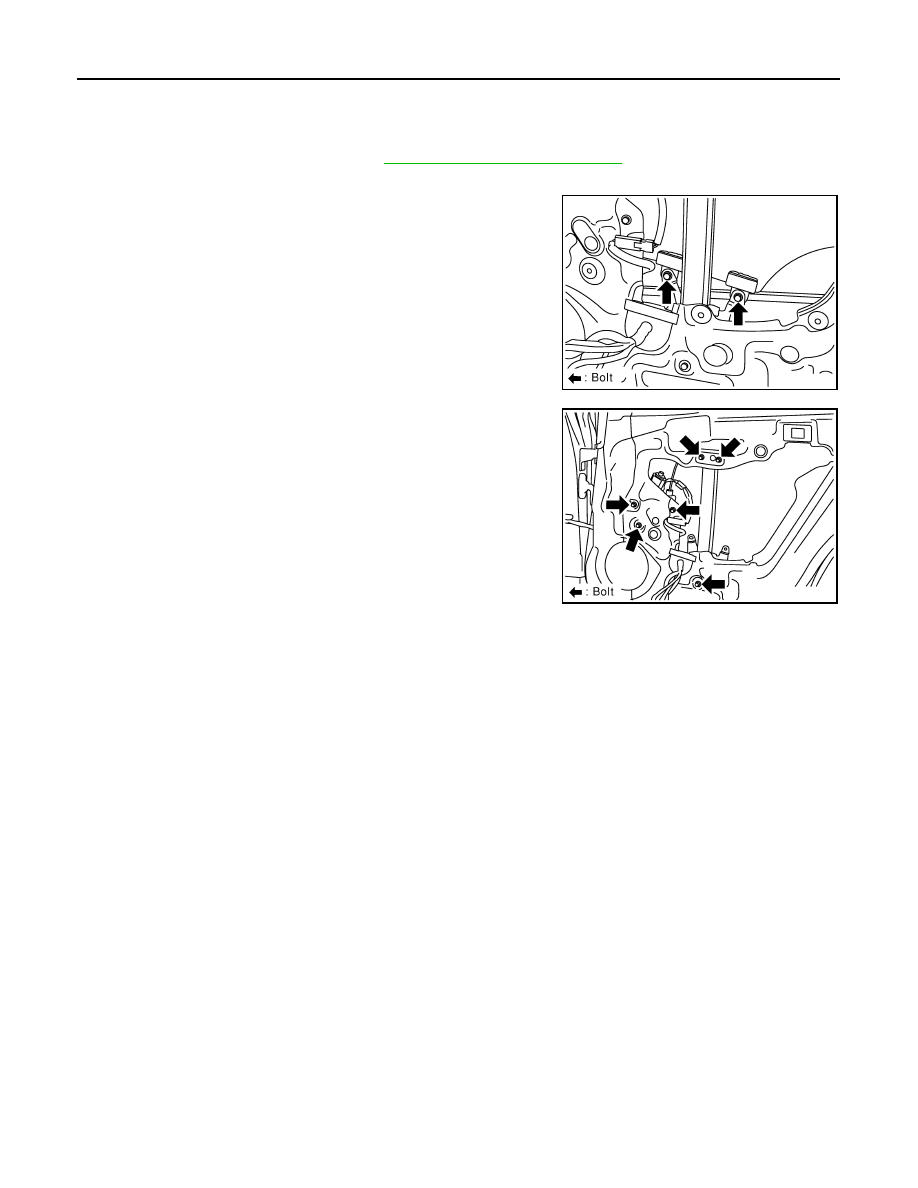

Rear Door Glass Regulator Assembly

INFOID:0000000009878929

REMOVAL

1. Remove the rear door finisher. Refer to

INT-10, "Removal and Installation"

2. Position aside the vapor barrier.
3. Operate the power window switch to raise/lower the door win-

dow until the glass bolts can be seen.

4. Remove the inside seal.
5. Remove the glass bolts, raise the glass and hold in place with

suitable tool.

6. Remove the bolts and the regulator and guide channel from the

panel.

7. Disconnect the connector for the regulator assembly.

INSPECTION AFTER REMOVAL

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.

• Gear wear

• Regulator deformation

• Spring damage

• Grease condition for each sliding part

INSTALLATION

Installation is in the reverse order of removal.

SIIA0290E

SIIA0291E
