REAR WINDOW GLASS AND MOLDING

GW-15

< UNIT REMOVAL AND INSTALLATION >

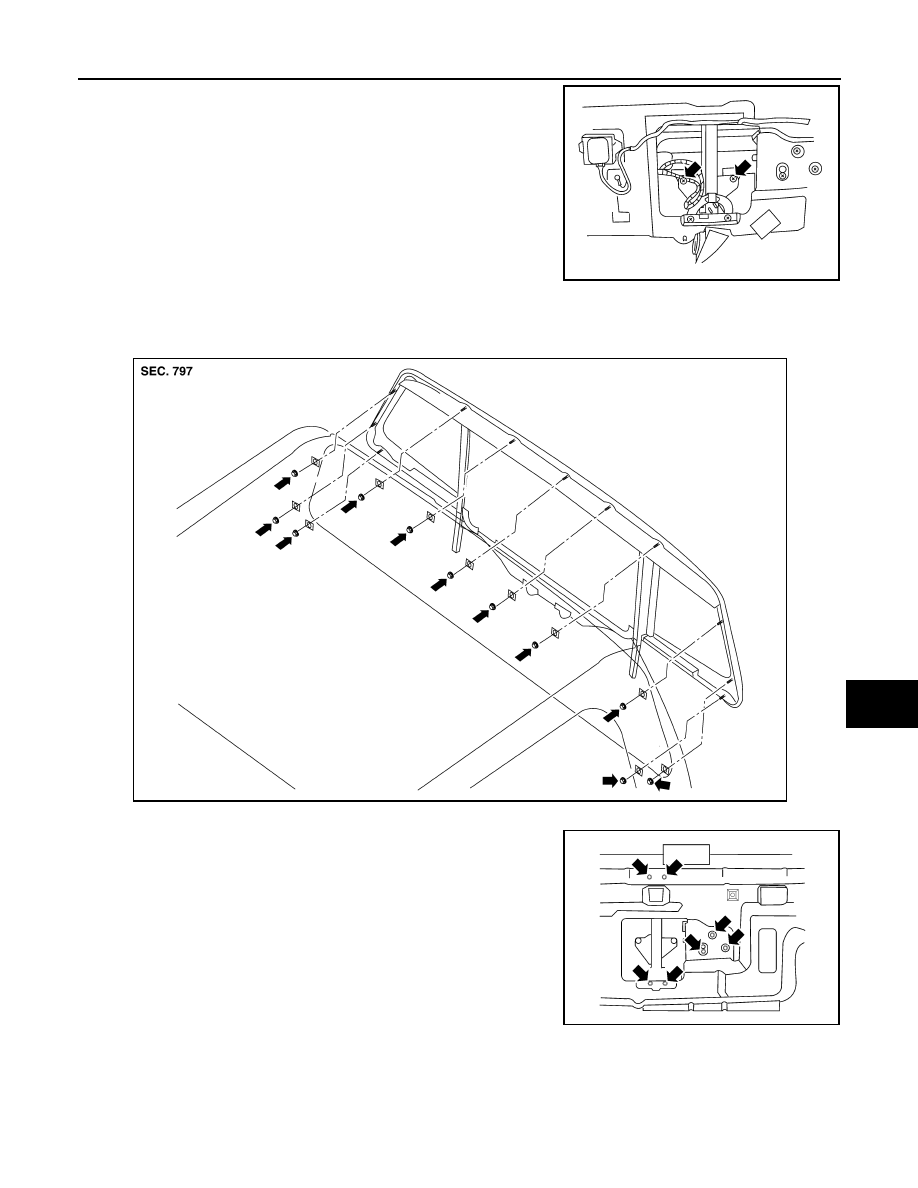

5. If equipped, lower the window and remove the rear window

glass bolts.

6. If equipped, raise the window and hold it in place with tape.
7. Disconnect the rear window defogger harness connector.
8. Remove the nuts and rear window glass assembly.

9. Disconnect the rear window motor wiring harness connector.
10. Remove the bolts and the regulator and motor assembly.

Installation

LIIA1826E

WIIA0938E

LIIA1827E

GW-16

< UNIT REMOVAL AND INSTALLATION >

REAR WINDOW GLASS AND MOLDING

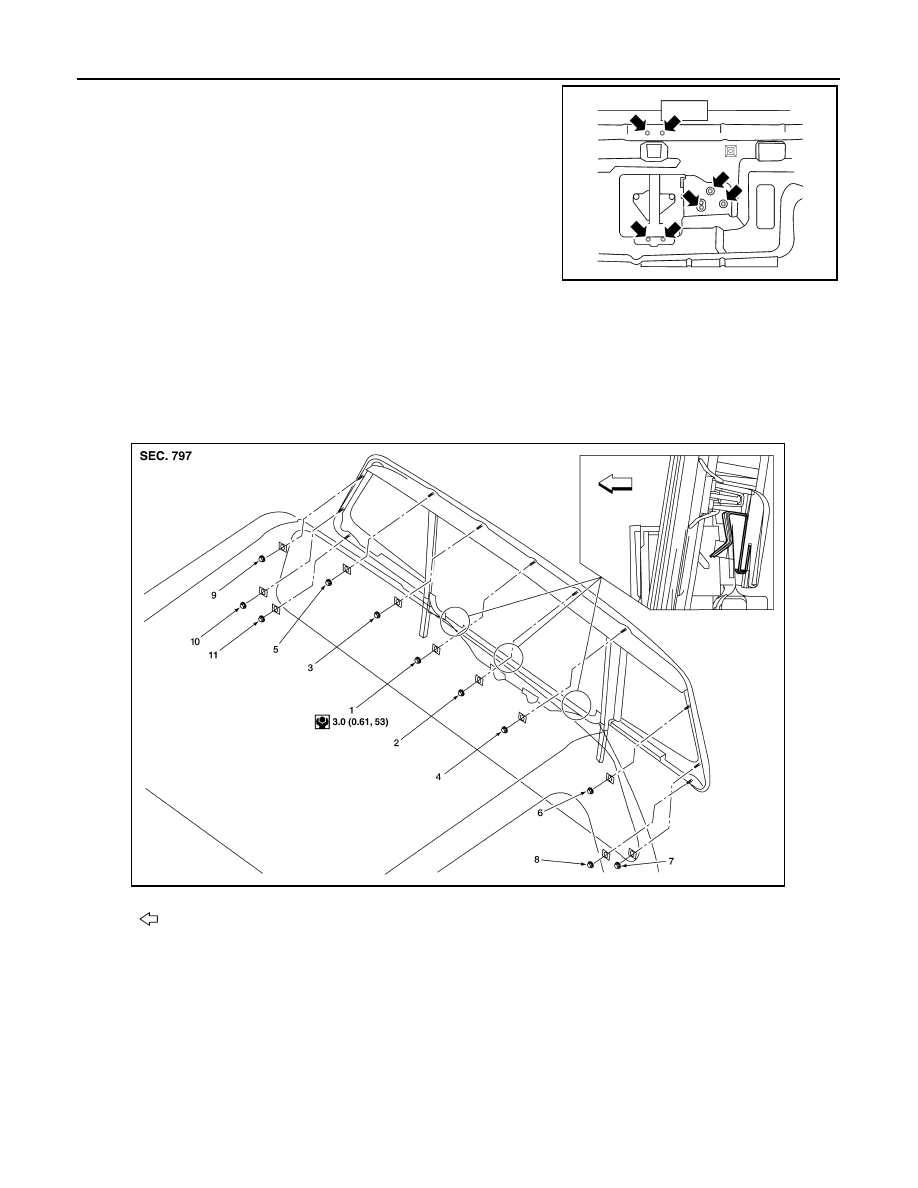

1. Position the regulator and motor assembly and install the bolts.

2. Connect the rear window motor wiring harness connector.

3. Install the rear window.

• While installing the rear window, make sure that the bottom clips are engaged on the back panel, then

rotate the glass into position.

- If reusing the existing window assembly, clean the opening and assembly, then apply new butyl to the

window assembly.

- If installing a new window, clean the opening and remove the plastic liner from the butyl on the new win-

dow assembly.

4. Connect the rear window defogger.
5. Lower the window and install the rear window glass bolts.

Regulator and motor as-
sembly

7.5 N·m (0.76 Kg-m, 66 in-lb)

LIIA1827E

Front

AWIIA1302GB

REAR WINDOW GLASS AND MOLDING

GW-17

< UNIT REMOVAL AND INSTALLATION >

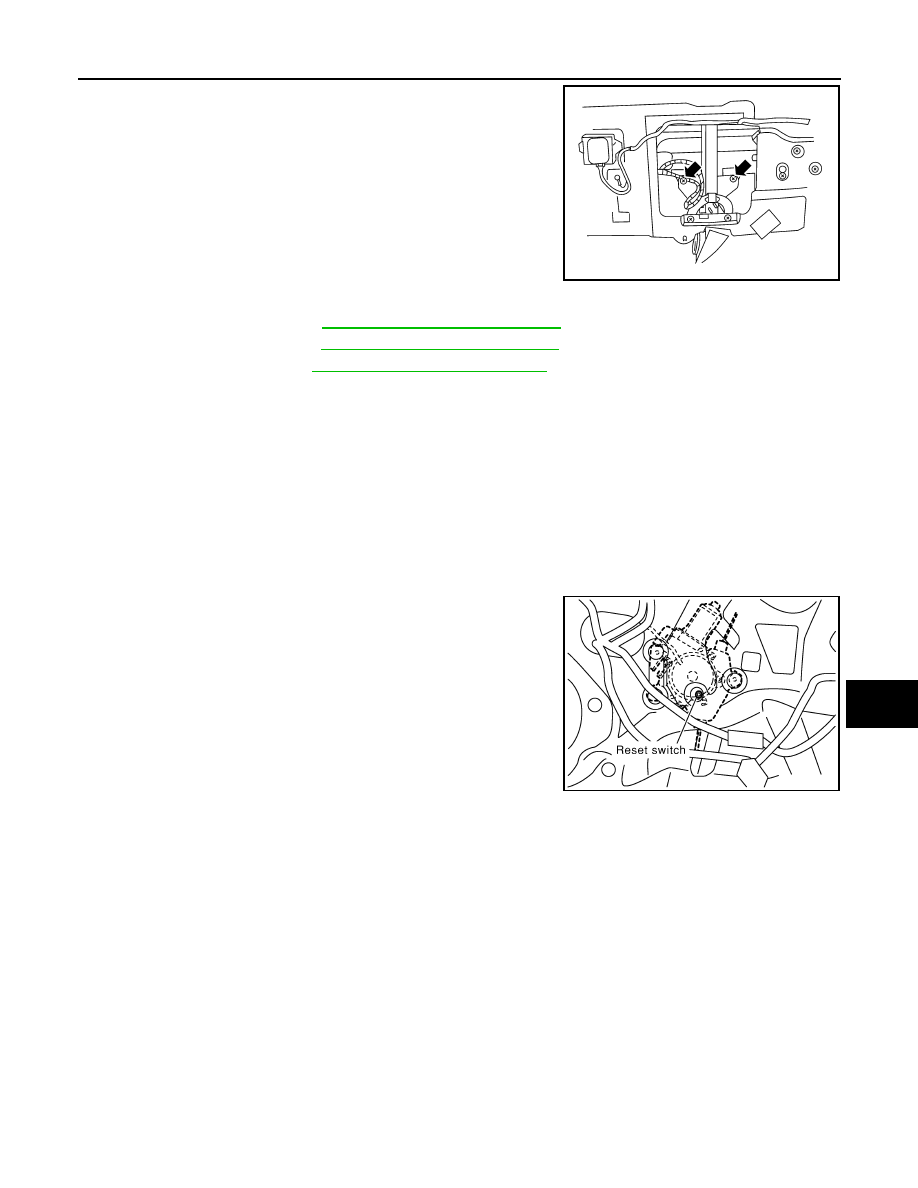

6. Install the sealing screen.
7. Install the headlining. Refer to

INT-21, "Removal and Installation"

8. Install the rear panel. Refer to

INT-14, "Removal and Installation"

9. Install the rear seat. Refer to

SE-40, "Removal and Installation"

SETTING AFTER INSTALLATION

Setting of Limit Switch

If any of the following operations are performed the limit switch must be reset.

• Motor operation when not installed in the vehicle.

• Removal and installation of the regulator.

• Removal and installation of the motor from the regulator.

• Removal and installation of the glass.

• Removal and installation of the glass run.

Resetting

After installing each component, perform the following procedure to reset the limit switch.

1. Raise the glass to the top.

2. While pressing and holding the reset switch, lower the glass to

the bottom.

3. Release the reset switch. Verify that the reset switch returns to

the original position, if not pull the switch using suitable tool.

4. Raise the glass to the top position

CAUTION:

Do not operate the glass automatically to raise the glass to

the top position.

REPAIRING WATER LEAKS FOR REAR WINDOW GLASS

Leaks can be repaired without removing or reinstalling glass.

If water is leaking between butyl adhesive material and body or glass, determine the extent of leakage.

This can be done by applying water to the rear window area while pushing glass outward.

To stop leak, apply primer (if necessary) and then butyl adhesive to the leak point.

Rear window glass bolts

6.0 N·m (0.61 Kg-m, 53 in-lb)

LIIA1826E

SIIA0347E

GW-18

< UNIT REMOVAL AND INSTALLATION >

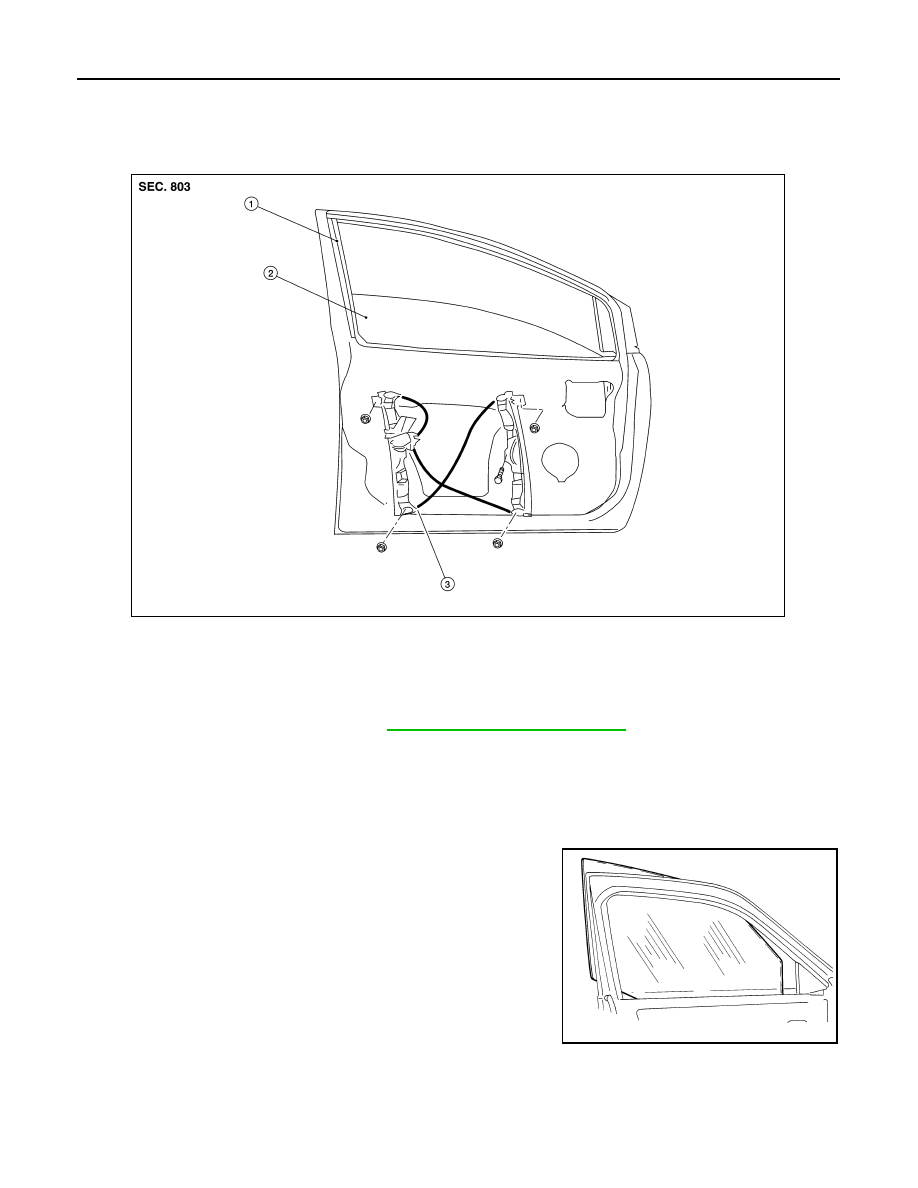

FRONT DOOR GLASS AND REGULATOR

FRONT DOOR GLASS AND REGULATOR

Removal and Installation

INFOID:0000000009878927

FRONT DOOR GLASS

Removal

1. Remove the front door finisher. Refer to

INT-10, "Removal and Installation"

2. Position aside the vapor barrier.
3. Remove the hole cover over rear glass bolt.
4. Operate the power window main switch to raise/lower the door window until the glass bolts can be seen.
5. Remove the inside seal.
6. Remove the glass bolts.
7. While holding the front door glass, raise it at the rear end and

pull the glass out of the sash toward the outside of the door.

Installation

Installation is in the reverse order of removal.

Door glass run

Door glass

Front door glass regulator assembly

WIIA0941E

LIIA1687E

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)
