Nissan Titan. Manual - part 359

WINDSHIELD GLASS

GW-11

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

Installation is in the reverse order of removal.

• Use a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-

nished with it.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger compartment air pressure when a door is closed.

• The molding must be installed securely so that it is in position and leaves no gap.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the windshield in case of an accident.

CAUTION:

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed

on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidities. The curing time will increase

under lower temperatures and lower humidities.

Repairing Water Leaks for Windshield

Leaks can be repaired without removing and reinstalling glass.

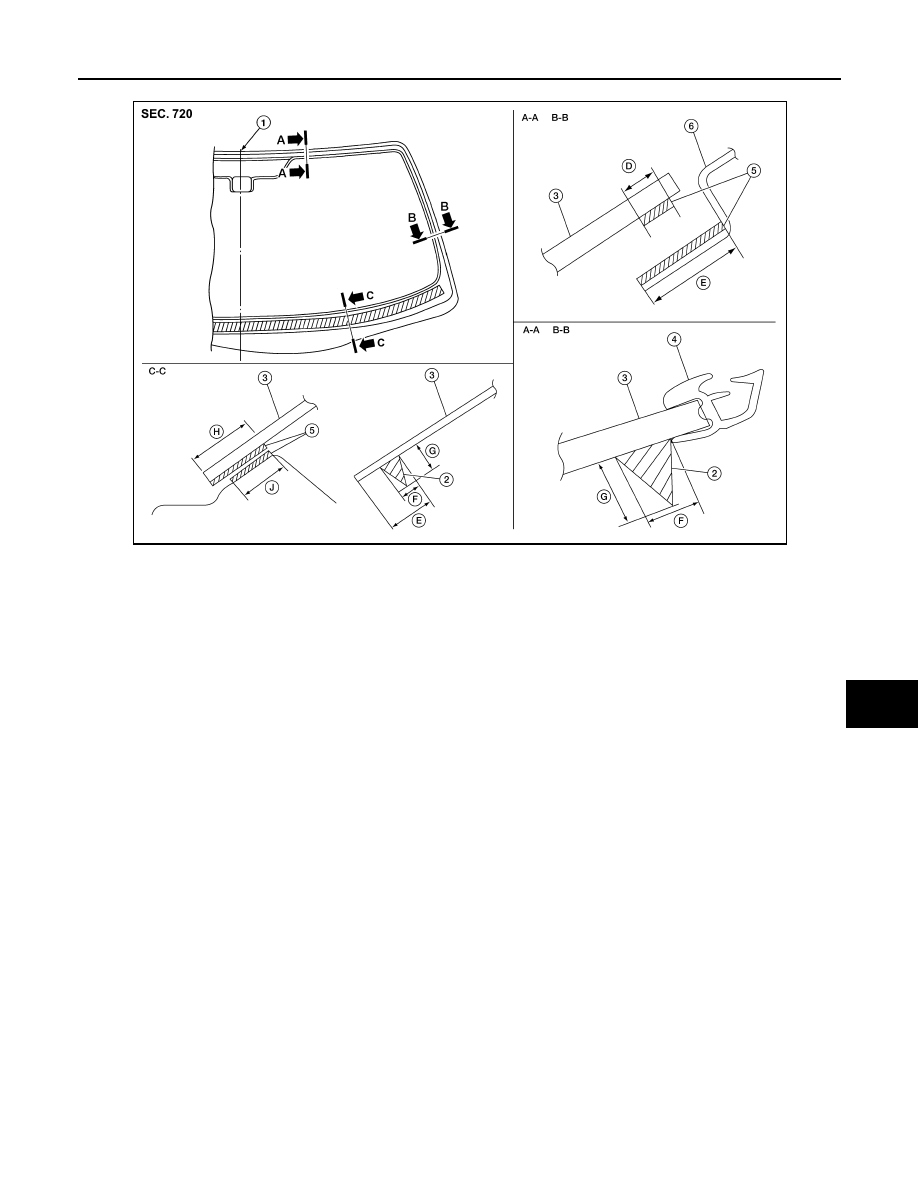

1.

Vehicle center

2.

Sealant

3.

Windshield glass

4.

Molding

5.

Primer portion

6.

Body panel

D.

14 mm (0.55 in)

E.

22.0 mm (0.87 in)

F.

8.5 mm (0.33 in)

G.

15.0 mm (0.59 in)

H.

26.0 mm (1.02 in)

J.

19.0 mm (0.75 in)

AWKIA1322GB

GW-12

< UNIT REMOVAL AND INSTALLATION >

WINDSHIELD GLASS

If water is leaking between the urethane adhesive material and body or glass, determine the extent of leakage.

This can be done by applying water to the windshield area while pushing glass outward.

To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.

REAR WINDOW GLASS AND MOLDING

GW-13

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REAR WINDOW GLASS AND MOLDING

Removal and Installation

INFOID:0000000009878926

FIXED AND SLIDING REAR WINDOW GLASS

Removal

1. Remove the rear pillar finishers. Refer to

INT-14, "Removal and Installation"

.

2. If the rear window glass is to be reused, mark the body and the glass with mating marks.

WARNING:

When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help pre-

vent glass splinters from entering your eyes or cutting your hands.

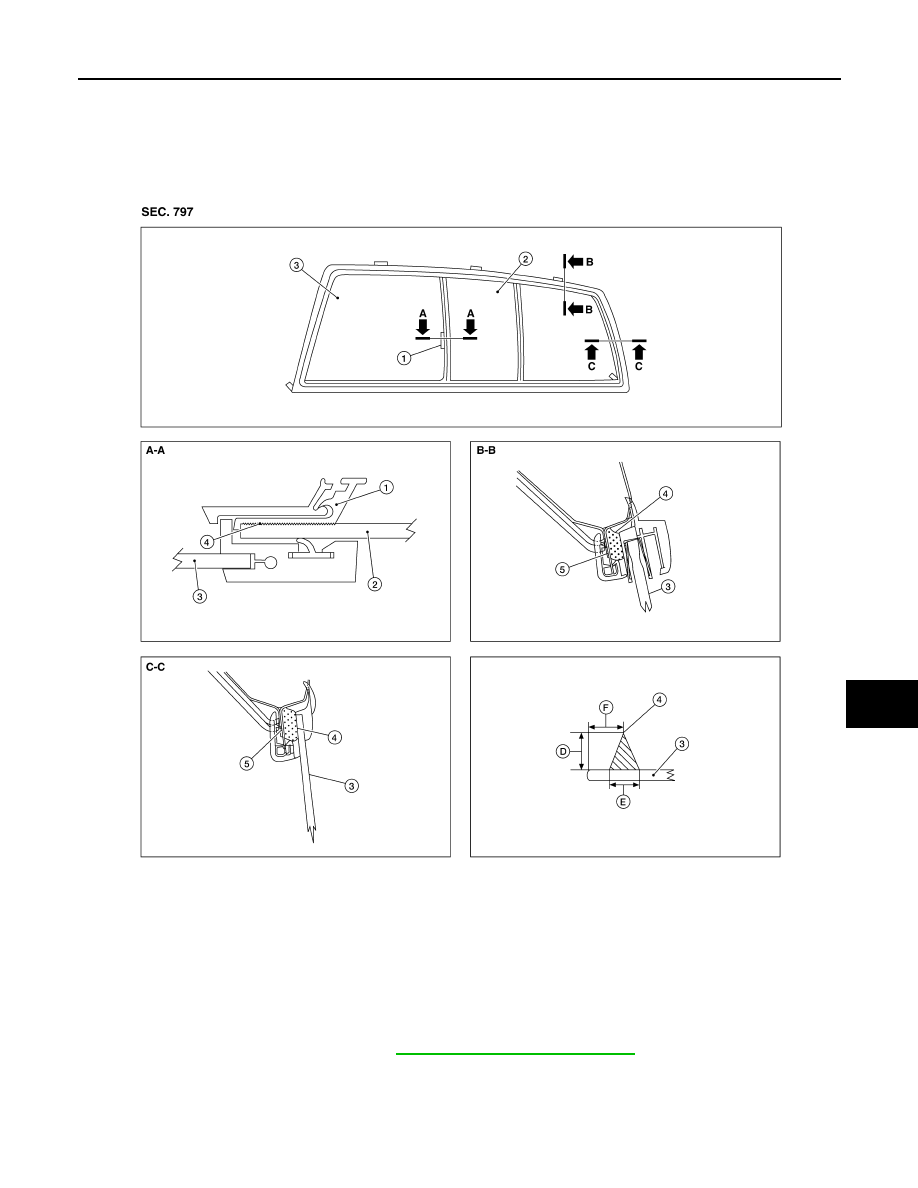

1.

Latch

2.

Sliding glass

3.

Rear window glass

4.

Urethane

5.

Body panel

D.

15 mm (0.59 in)

E.

8.5 mm (0.31 in)

F.

16.9 mm (0.67 in) - Top of glass
17.5 mm (0.69 in) - Side of glass
14.9 mm (0.59 in) - Bottom of glass

AWHIA1315GB

GW-14

< UNIT REMOVAL AND INSTALLATION >

REAR WINDOW GLASS AND MOLDING

CAUTION:

• When the rear window glass is to be reused, do not use a cutting knife or power cutting tool.

• Be careful not to scratch the glass when removing.

• Do not set or stand the glass on its edge. Small chips may develop into cracks.

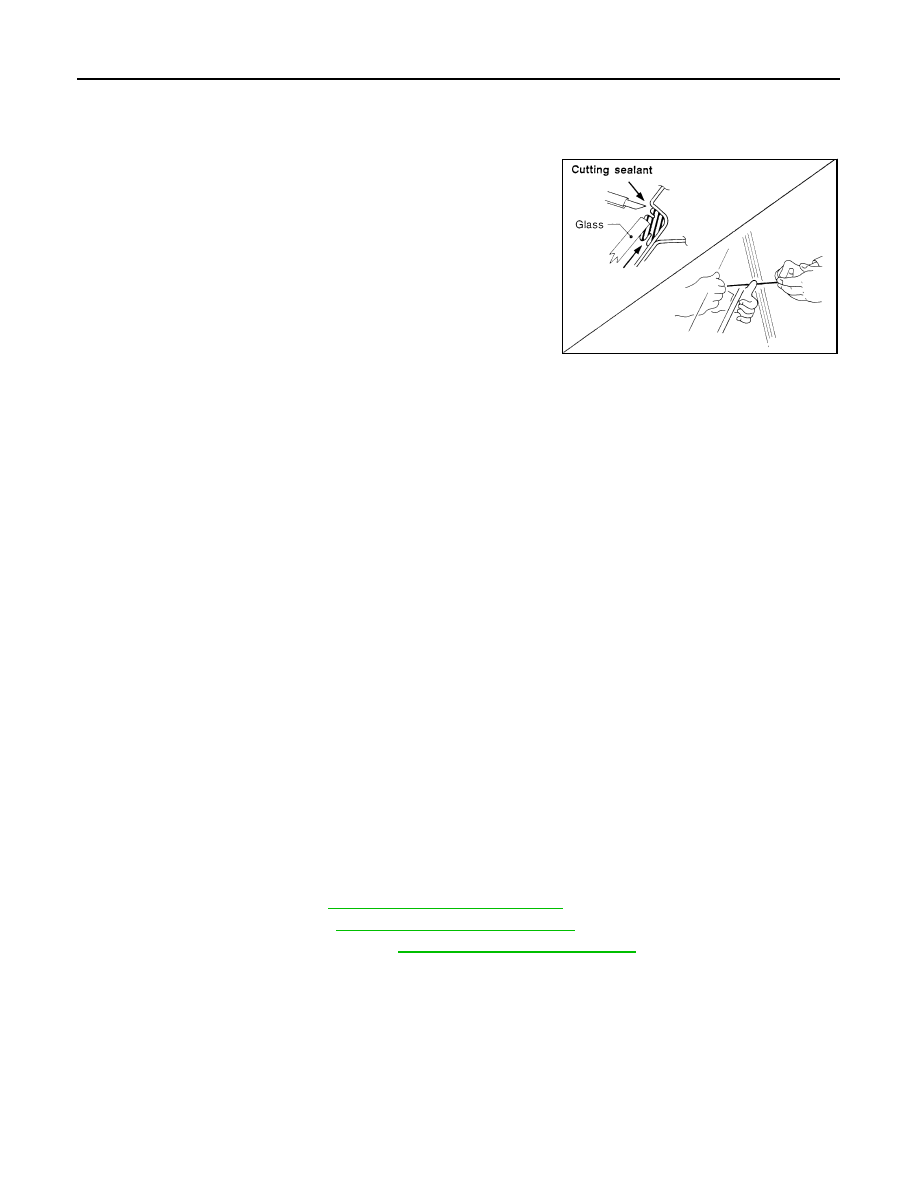

3. Remove glass using piano wire or power cutting tool and an

inflatable pump bag.

Installation

Installation is in the reverse order of removal.

• Use a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-

nished with it.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger compartment air pressure when a door is closed.

• The molding must be installed securely so that it is in position and leaves no gap.

• Check gap along bottom to confirm that glass does not contact sheet metal.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the rear window in case of an accident.

CAUTION:

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed

on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidity. The curing time will increase

under lower temperatures and lower humidities.

REAR WINDOW GLASS AND REGULATOR

Removal

1. Remove the rear seat. Refer to

SE-40, "Removal and Installation"

2. Remove the rear panel. Refer to

INT-14, "Removal and Installation"

3. Lower the rear of the headlining. Refer to

INT-21, "Removal and Installation"

.

4. Remove the sealing screen.

SBF034B
