[REAR FINAL DRIVE: M226 (ELD) ]
P1848 SOLENOID DISCONNECT
P1848 SOLENOID DISCONNECT
Description
INFOID:0000000009886130
When power and ground is supplied from the differential lock control unit, the differential lock solenoid will
actuate to move the pressure plate against the cam ring to lock the differential. By reversing polarity at the dif-
ferential lock control unit, the differential lock solenoid moves the pressure plate away from the cam ring to
unlock the differential.
DTC Logic
INFOID:0000000009886131
Diagnosis Procedure
INFOID:0000000009886132
Regarding Wiring Diagram information, refer to
1.
CHECK DIFFERENTIAL SOLENOID CONTROL
1. Start engine.
2. Using CONSULT, select “RELAY ON”, “RELAY MTR”, “SOL MTR” of DIFF LOCK data monitor.
3. Observe the display values while operating the differential lock system.
Is the inspection result normal?
YES
>> Differential lock solenoid control system is operating normally.
NO
>> GO TO 2.
2.

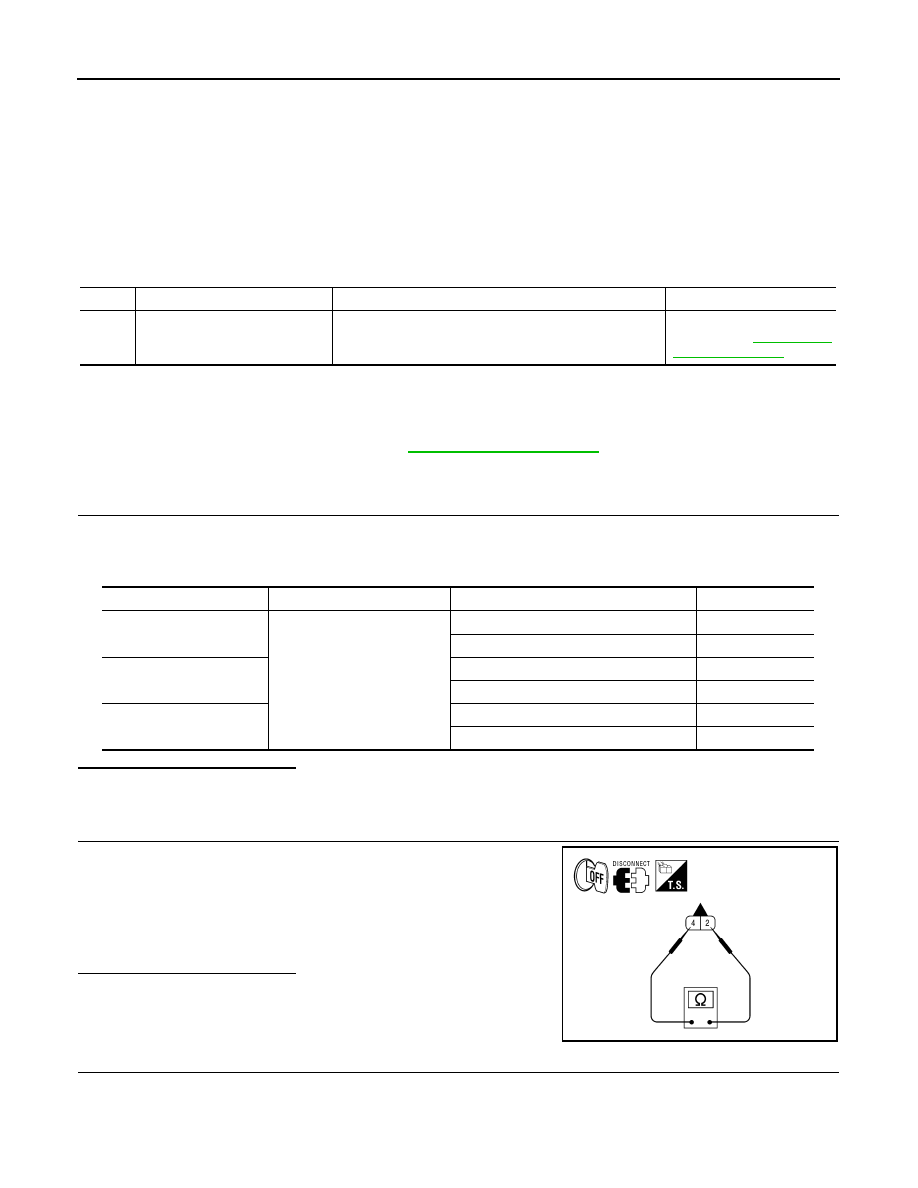

CHECK DIFFERENTIAL LOCK SOLENOID RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect differential lock solenoid connector.
3. Check resistance between differential lock solenoid terminals 2
and 4.
Is the inspection result normal?
YES
>> GO TO 3.
NO
>> Replace differential lock solenoid.

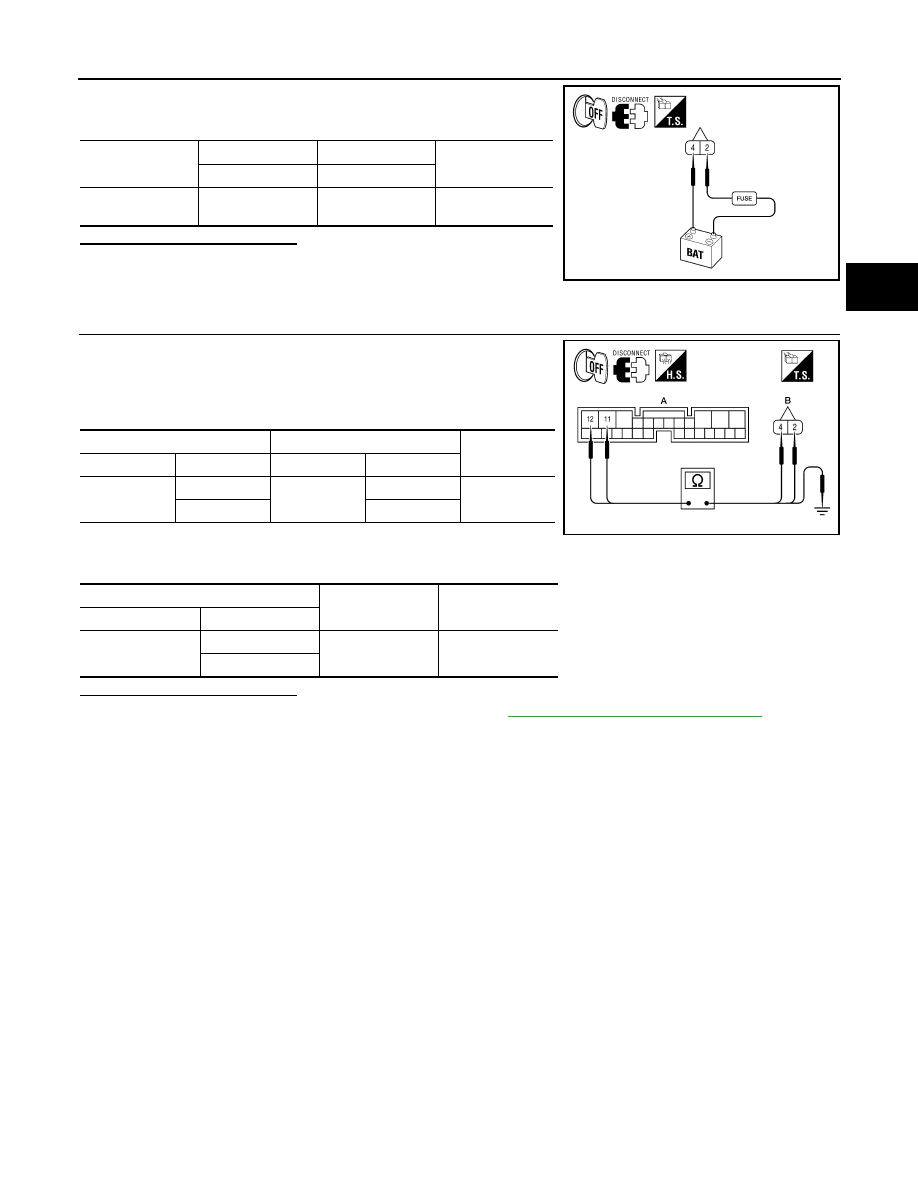

3.
CHECK DIFFERENTIAL LOCK SOLENOID OPERATION
DTC
Display contents of CONSULT
DTC Detection Condition
Action to take
P1848
SOL DISCONNECT
[P1848]
An open was detected in the differential lock solenoid or
circuit.
Inspect differential lock sole-
noid. Refer to
Monitor item
Condition
Differential lock mode switch
Display value
RELAY ON
• Vehicle stopped
• Engine running
• VDC OFF switch (if
equipped): ON
• 4WD shift switch: 4LO
ON
ON
OFF
OFF
RELAY MTR
ON
ON
OFF
OFF
SOL MTR
ON
ON
OFF
OFF
2 - 4
: Approx. 3.4
Ω
AWDIA0394ZZ
