Nissan Titan. Manual - part 163





DLN-224

< DTC/CIRCUIT DIAGNOSIS >

[REAR FINAL DRIVE: M226 (ELD) ]

P1839 POSITION SWITCH ON

P1839 POSITION SWITCH ON

Description

INFOID:0000000009886122

The differential lock position switch sends a signal to the differential lock control module when the differential

lock is engaged. The differential lock control module monitors the left and right rear wheel speed sensor sig-

nals to determine wheel slippage. When the differential lock is engaged the left and right rear wheel speed

sensor signals should match.

DTC Logic

INFOID:0000000009886123

Diagnosis Procedure

INFOID:0000000009886124

Regarding Wiring Diagram information, refer to

DLN-238, "Wiring Diagram"

.

1.

CHECK DIFFERENTIAL LOCK POSITION SWITCH SIGNAL

1. Start engine.

2. Select “D-LOCK POS SW SIG” of DIFF LOCK data monitor.

3. Activate the differential lock according to the directions listed in the table and monitor the display value.

Is the inspection result normal?

YES

 >> Differential lock position switch is operating normally.

NO

>> GO TO 2.

2.

CHECK DIFFERENTIAL LOCK POSITION SWITCH

1. Disconnect differential lock position switch harness connector C16.

2. Turn ignition switch ON.

3. Select “D-LOCK POS SW SIG” of DIFF LOCK data monitor.

4. Monitor the display value while connecting and disconnecting a jumper wire between differential lock posi-

tion switch terminals 1 and 3.

Is the inspection result normal?

YES

>> Check the mechanical operation of the differential lock. Replace the differential lock position

switch. Refer to

DLN-252, "Removal and Installation"

.

NO

>> GO TO 3.

3.

CHECK DIFFERENTIAL LOCK POSITION SWITCH VOLTAGE

Check voltage between differential lock position switch connector C16 terminal 1 and ground.

DTC

Display contents of CONSULT

DTC Detection Condition

Action to take

P1839

POSI SW ON
[P1839]

The differential lock position switch is ON indicating the
differential is locked, but the differential lock control mod-
ule detects a difference between left and right rear wheel
speeds.

Inspect the differential lock
position switch. Refer to

DLN-224, "Diagnosis Proce-
dure"

.

Monitor item

Condition

Display value

D-LOCK POS SW SIG

• Vehicle stopped
• Engine running
• VDC OFF switch (if

equipped): ON

• 4WD shift switch: 4LO

Differential lock mode switch: ON
(DIFF LOCK indicator lamp: ON)

ON

Differential lock mode switch: OFF
(DIFF LOCK indicator lamp: OFF)

OFF

Monitor item

Condition

Display value

D-LOCK POS SW SIG

Jumper wire connected

ON

Jumper wire disconnected

OFF

P1839 POSITION SWITCH ON

DLN-225

< DTC/CIRCUIT DIAGNOSIS >

[REAR FINAL DRIVE: M226 (ELD) ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between differential lock position switch harness connector C16 terminal 3 and ground.

Is the inspection result normal?

YES

>> Replace the differential lock control unit. Refer to

DLN-251, "Removal and Installation"

.

NO

>> Repair harness or connector.

5.

CHECK HARNESS BETWEEN DIFFERENTIAL LOCK CONTROL UNIT AND DIFFERENTIAL LOCK PO-

SITION SWITCH

1. Turn ignition switch OFF.

2. Disconnect differential lock control unit harness connector B77.

3. Check continuity between differential lock control unit harness connector B77 terminal 20 and differential

lock position switch harness connector C16 terminal 1.

4. Check continuity between differential lock control unit harness connector B77 terminal 20 and ground.

Is the inspection result normal?

 YES  >> Replace differential lock control unit. Refer to

DLN-251, "Removal and Installation"

.

 NO

>> Repair harness or connector.

(+)

(-)

Voltage (Approx.)

Connector

Terminal

C16

1

Ground

Battery voltage

Connector

Terminal

Continuity

C16

3

Ground

Yes

Connector

Terminal

Connector

Terminal

Continuity

B77

20

C16

1

Yes

Connector

Terminal

Ground

No

B77

20

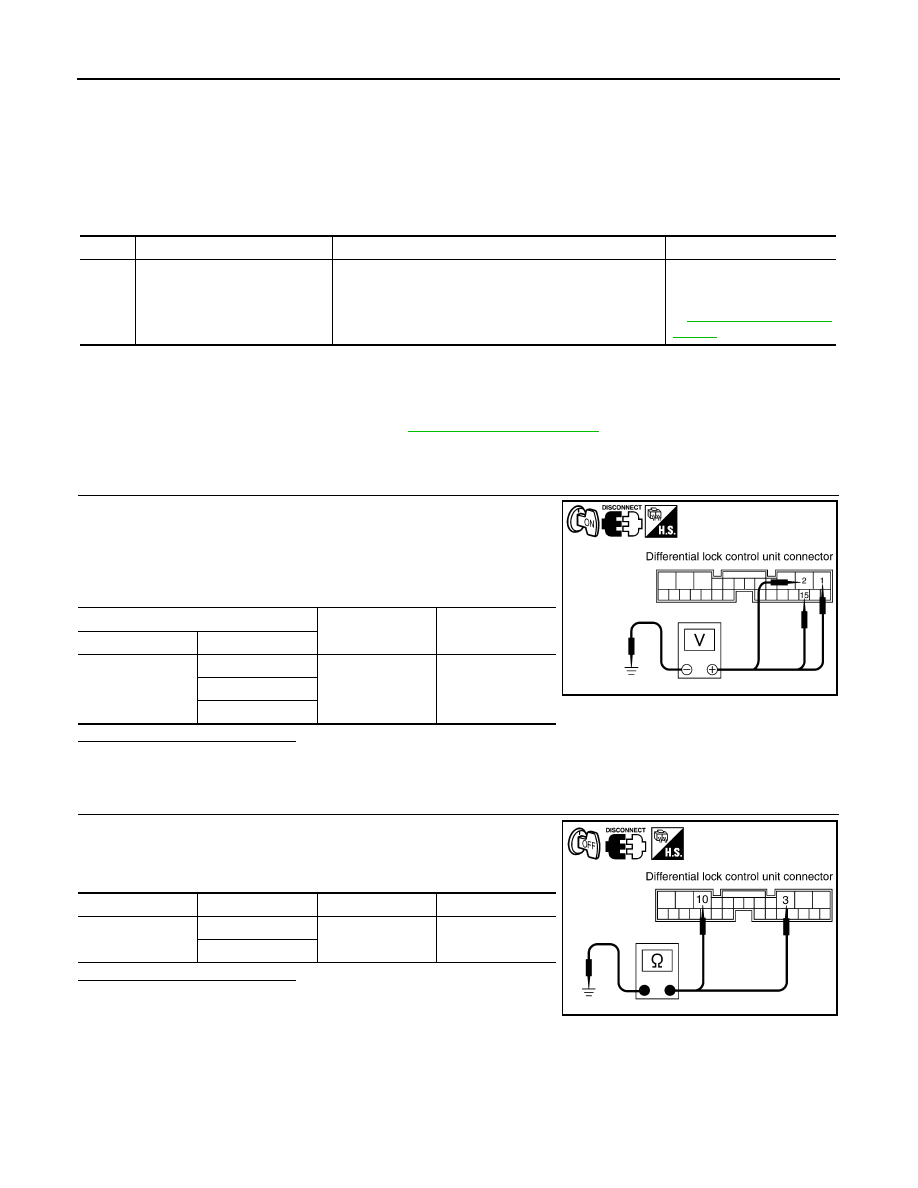

DLN-226

< DTC/CIRCUIT DIAGNOSIS >

[REAR FINAL DRIVE: M226 (ELD) ]

P1844 RELAY

P1844 RELAY

Description

INFOID:0000000009886125

The differential lock solenoid relay is an integral part of the differential lock control unit.

DTC Logic

INFOID:0000000009886126

Diagnosis Procedure

INFOID:0000000009886127

Regarding Wiring Diagram information, refer to

DLN-238, "Wiring Diagram"

.

1.

CHECK DIFFERENTIAL LOCK CONTROL UNIT POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect differential lock control unit connector.

3. Turn ignition switch ON.

4. Check voltage between differential lock control unit connector

B77 terminals 1, 2, 15 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Check fuse. Repair harness or connectors.

2.

CHECK DIFFERENTIAL LOCK CONTROL UNIT GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between differential lock control unit connector

B77 terminals 3, 10 and ground.

Is the inspection result normal?

YES

>> Power and ground supply is normal.

NO

>> Repair harness or connectors.

DTC

Display contents of CONSULT

DTC Detection Condition

Action to take

P1844

RELAY
[P1844]

The differential lock control unit relay monitor did not de-
tect expected voltage at the relay.

Inspect differential lock con-
trol unit relay power and
ground supply circuit. Refer
to

DLN-226, "Diagnosis Pro-

cedure"

.

(+)

(-)

Voltage (Approx.)

Connector

Terminal

B77

1

Ground

Battery voltage

2

15

SDIA2563E

Connector

Terminal

Continuity

B77

3

Ground

Yes

10

SDIA2564E

P1847 SOLENOID CIRCUIT

DLN-227

< DTC/CIRCUIT DIAGNOSIS >

[REAR FINAL DRIVE: M226 (ELD) ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

P1847 SOLENOID CIRCUIT

Description

INFOID:0000000009886128

Replace the differential lock control unit if this DTC is displayed. Refer to

DLN-251, "Removal and Installation"

.

DTC Logic

INFOID:0000000009886129

DTC

Display contents of CONSULT

DTC Detection Condition

Action to take

P1847

SOL CIRCUIT
[P1847]

A malfunction is detected in the differential lock control
unit internal circuit.

Replace differential lock
control unit. Refer to

DLN-

251, "Removal and Installa-
tion"
