< UNIT DISASSEMBLY AND ASSEMBLY >

[PROPELLER SHAFT: 3S1410]

REAR PROPELLER SHAFT

UNIT DISASSEMBLY AND ASSEMBLY

REAR PROPELLER SHAFT

Disassembly and Assembly

INFOID:0000000009886066

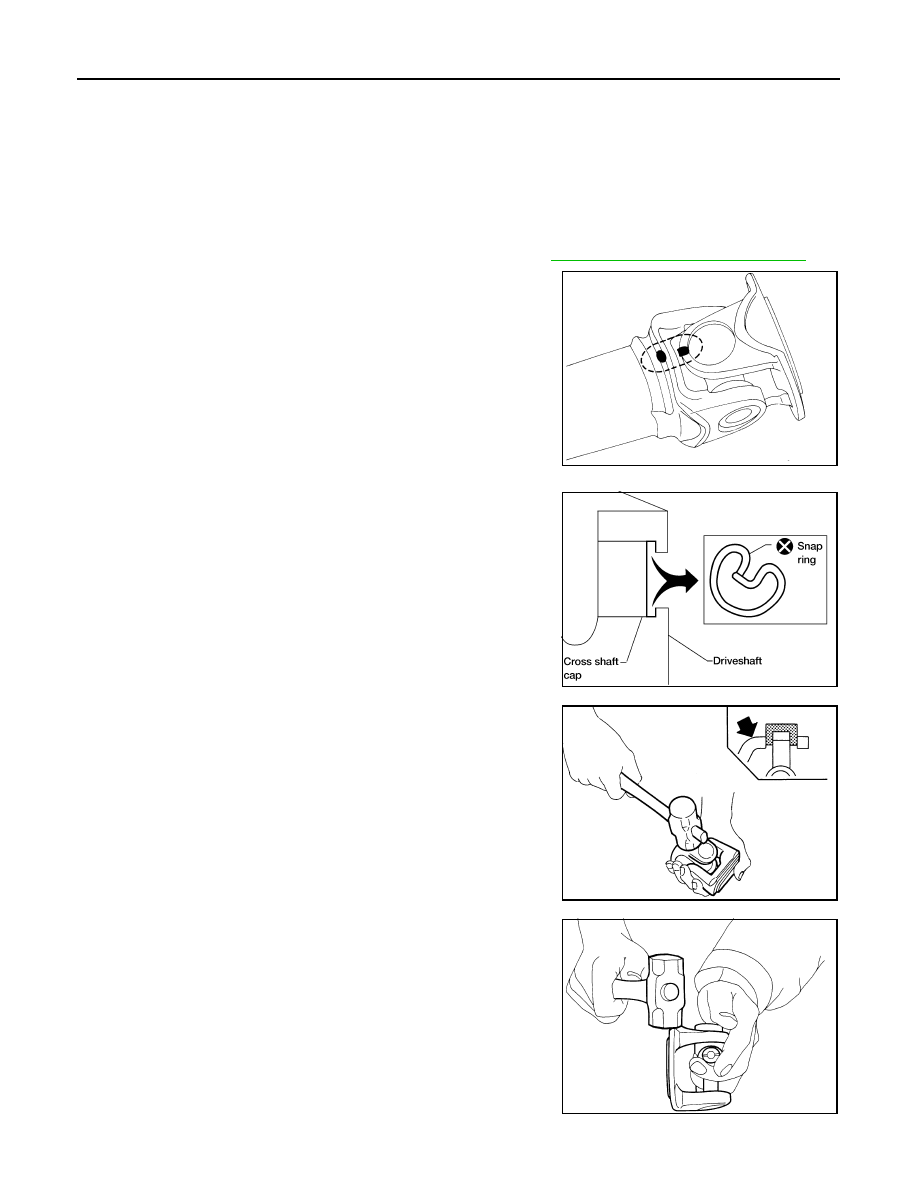

DISASSEMBLY

Journal

1. Remove the propeller shaft assembly from the vehicle. Refer to

DLN-148, "Removal and Installation"

2. Put matching marks on the rear propeller shaft tube and flange

yoke as shown.

CAUTION:

For matching marks use paint. Do not damage the rear pro-

peller shaft or flange yoke.

3. Remove the snap rings.

CAUTION:

Do not reuse snap rings.

4. Push out and remove the journal bearing by lightly tapping the

yoke with a hammer, taking care not to damage the journal or

yoke hole.

5. Remove the bearing at the opposite side of above operation.

NOTE:

Put marks on the disassembled parts so that they can be rein-

stalled in their original positions from which they were removed.

SPD128

APD011

SPD732

SPD131

REAR PROPELLER SHAFT

DLN-153

< UNIT DISASSEMBLY AND ASSEMBLY >

[PROPELLER SHAFT: 3S1410]

DLN

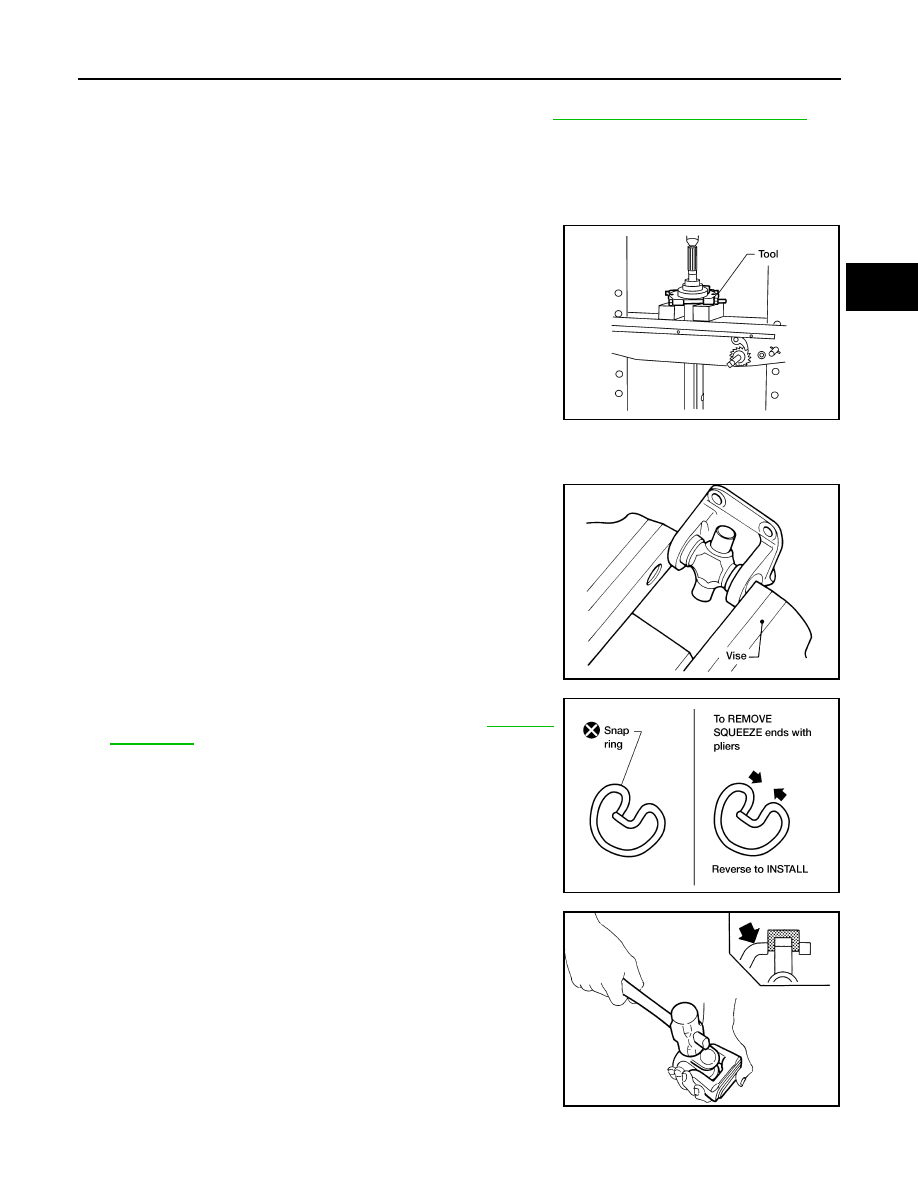

Center Support Bearing

1. Remove the propeller shaft assembly from the vehicle. Refer to

DLN-148, "Removal and Installation"

2. Put matching marks on the propeller shaft tube and the slip yoke.

CAUTION:

For matching marks, use paint. Do not damage the propeller shaft tube or slip yoke.

3. Remove and discard the clamp near the center support bearing, then slide the slip yoke off of propeller

shaft tube.

4. Press the center support bearing off the propeller shaft tube

using Tool and suitable hydraulic press.

ASSEMBLY

Journal

1. Assemble the journal bearings. Apply multipurpose grease on

the bearing inner surface.

NOTE:

During assembly, use caution so that the needle bearings do not

fall down.

2. Select snap rings that will provide the specified play in an axial

direction of the journal, and install them. Refer to

DLN-156,

"Snap Ring"

NOTE:

Select snap rings with a difference in thickness at both sides

within 0.02 mm (0.0008 in).

3. Adjust the thrust clearance between the bearing and snap ring

to zero by tapping the yoke.

Tool number

: 205-D002

LDIA0152E

WPD019

APD012

SPD732

DLN-154

< UNIT DISASSEMBLY AND ASSEMBLY >

[PROPELLER SHAFT: 3S1410]

REAR PROPELLER SHAFT

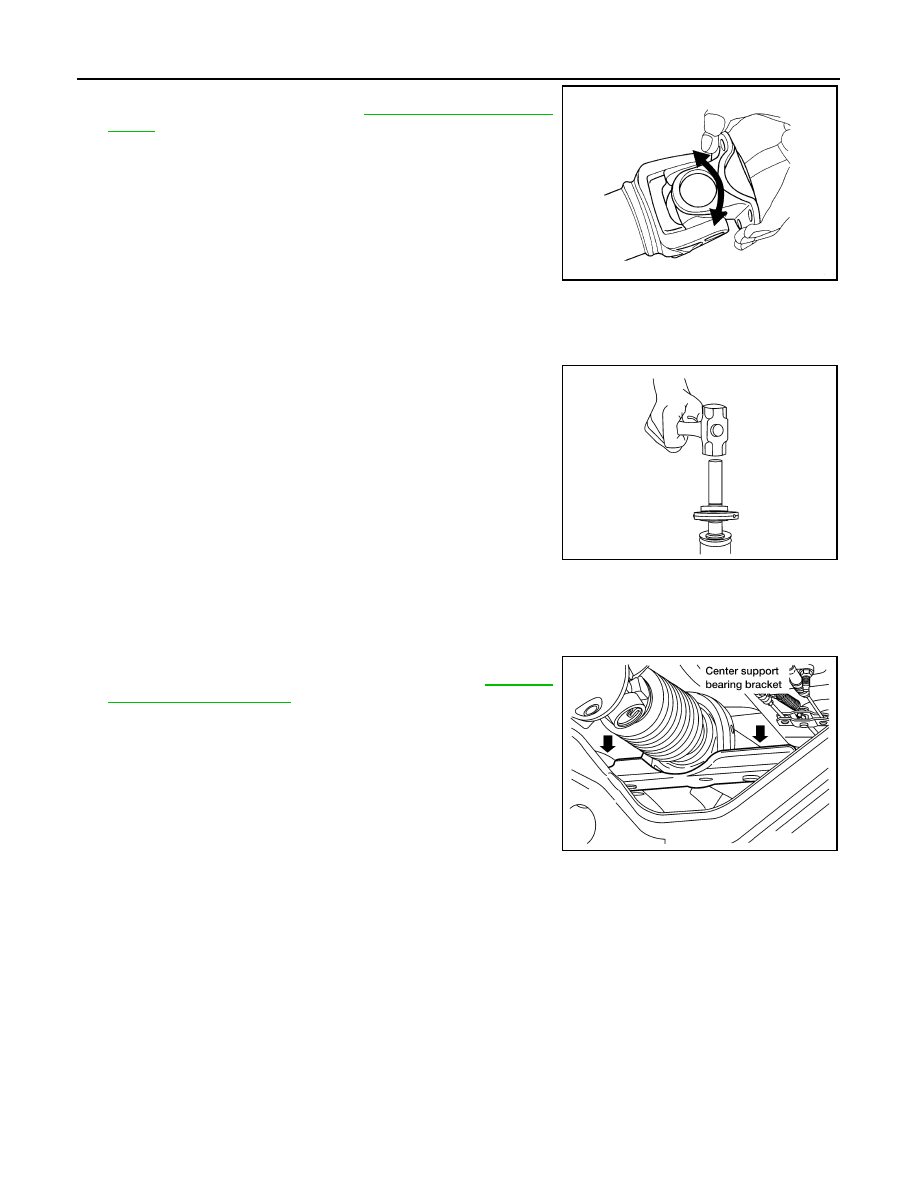

4. Make sure that the journal moves smoothly and is below the

joint flex effort specification. Refer to

DLN-155, "General Specifi-

cation"

Center Support Bearing

1. Apply a thin coat of multi-purpose grease to both the propeller shaft tube and the inside surface of the

center support bearing.

2. Install the center support bearing on the propeller shaft tube

using a suitable pipe pressing on the inner race.

3. Install a new clamp over the boot on the slip yoke.
4. Align the matching marks and install the slip yoke on the propeller shaft tube.

5. Clean the surfaces and position the boot over the propeller shaft tube and tighten the clamp.
6. Install the center support bearing bracket, then install the rear

propeller shaft assembly in the vehicle. Refer to

DLN-148,

"Removal and Installation"

LDIA0119E

LDIA0153E

WDIA0066E

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-155

< SERVICE DATA AND SPECIFICATIONS (SDS)

[PROPELLER SHAFT: 3S1410]

DLN

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000009886067

2WD Model

Unit: mm (in)

PROPELLER SHAFT RUNOUT

Unit: mm (in)

JOURNAL AXIAL PLAY

Unit: mm (in)

PROPELLER SHAFT JOINT FLEX EFFORT

Unit: N·m (kg-m, in-lb)

4WD Model

Unit: mm (in)

PROPELLER SHAFT RUNOUT

Unit: mm (in)

Applied model

2WD

Body

SWB

LWB

Propeller shaft model

3S1410

Number of joints

Coupling method with rear final drive

Flange type

Coupling method with transmission

Sleeve type

Installed shaft length

1st (Spider to spider)

829.4

± 1.5 (32.65 ± 0.06)

1194.7

± 1.5 (47.04 ± 0.06)

2nd (Spider to spider)

1205.6

± 1.5 (47.46 ± 0.06)

1377.6

± 1.5 (54.24 ± 0.06)

Shaft outer diameter

1st

88.9 + 0.00 - 0.13 (3.50 + 0.00 - 0.01)

2nd

88.9 + 0.00 - 0.13 (3.50 + 0.00 -

0.01)

101.6 + 0.00 - 0.13 (4.00 + 0.00 -

0.01)

Item

Limit

Propeller shaft runout limit

0.60 (0.024) or less

Item

Limit

Journal axial play

0.02 (0.0008) or less

Item

Limit

Propeller shaft joint flex effort

2.26 (0.23, 20) or less

Applied model

4WD

Body

LWB

Propeller shaft model

3S1410

Number of joints

Coupling method with rear final drive

Flange type

Coupling method with transfer

Sleeve type

Installed shaft length

1st (Spider to spider)

738.7

± 1.5 (29.08 ± 0.06)

2nd (Spider to spider)

1377.6

± 1.5 (54.24 ± 0.06)

Shaft outer diameter

1st

88.9 + 0.00 - 0.13 (3.50 + 0.00 - 0.01)

2nd

101.6 + 0.00 - 0.13 (4.00 + 0.00 - 0.01)

Item

Limit

Propeller shaft runout limit

0.60 (0.024) or less
