Nissan Titan. Manual - part 143





DLN-144

< PRECAUTION >

[PROPELLER SHAFT: 3S1410]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009886061

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

PREPARATION

DLN-145

< PREPARATION >

[PROPELLER SHAFT: 3S1410]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PREPARATION

PREPARATION

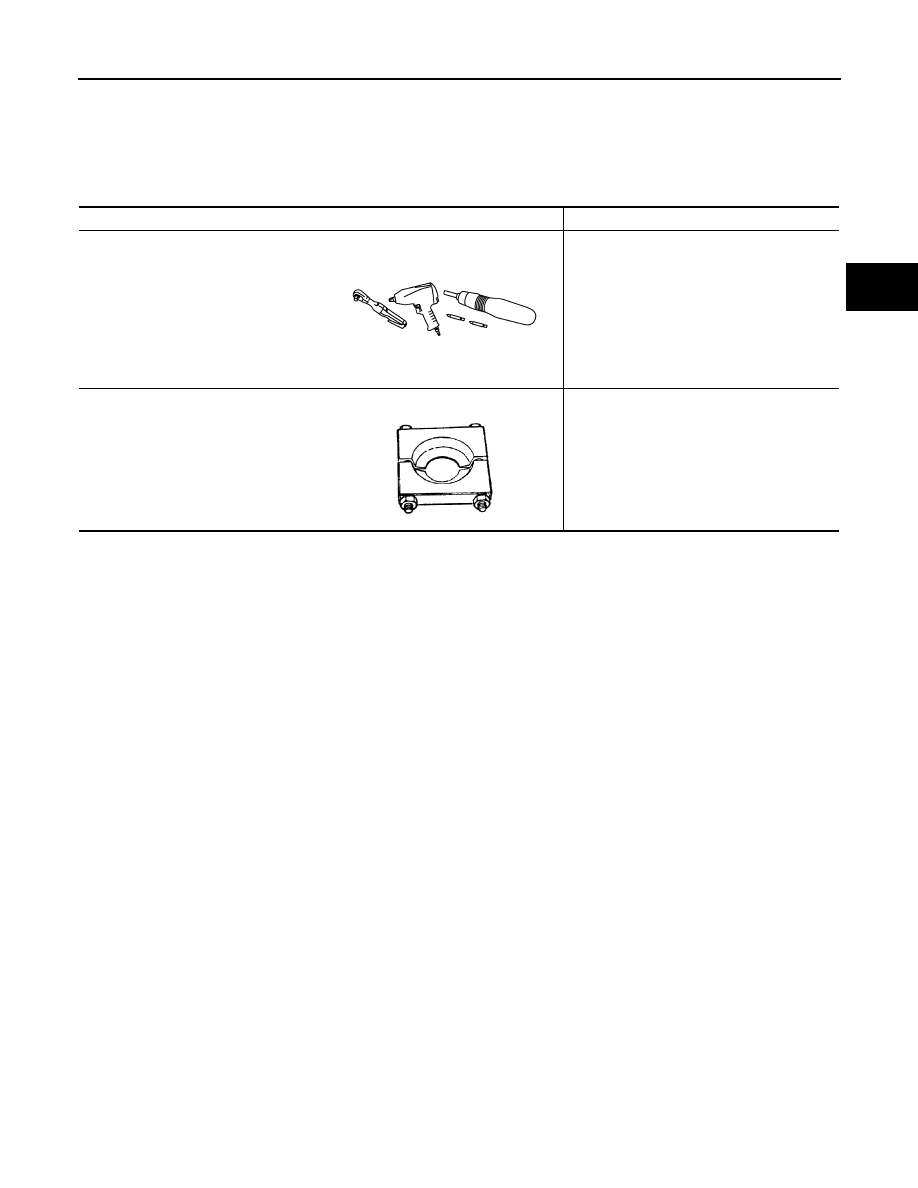

Commercial Service Tool

INFOID:0000000009886062

Tool name

Description

Power tool

Loosening nuts, screws and bolts

205-D002
Bearing splitter

Removing center support bearing

PIIB1407E

ZZA0700D

DLN-146

< SYSTEM DESCRIPTION >

[PROPELLER SHAFT: 3S1410]

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

SYSTEM DESCRIPTION

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000009886063

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×: Applicable

Reference page

DLN-1

47

, "O

n-V

e

hi

cl

e Serv

ic

e"

DLN-1

47

, "O

n-V

e

hi

cl

e Serv

ic

e"

DLN-1

47

, "O

n-V

e

hi

cl

e Serv

ic

e"

DL

N-21

5,

"NVH T

ro

ub

les

ho

ot

ing

 Cha

rt"

RA

X-4,

"NVH T

rou

bl

es

ho

ot

ing

 Cha

rt"

RS

U-4

, "

N

V

H

 T

rou

bl

es

ho

oti

ng

 Cha

rt"

WT

-4

4,

"NVH T

rou

bl

es

ho

ot

ing

 Cha

rt"

WT

-4

4,

"NVH T

rou

bl

es

ho

ot

ing

 Cha

rt"



FAX-4

, "NVH T

rou

ble

sh

oo

tin

g Chart

"

BR-5,

"NVH T

rou

bl

es

ho

oti

ng

 Cha

rt"

ST

-5,

 "NVH T

rou

bl

es

ho

ot

in

g Cha

rt"

Possible cause and suspected parts

Une

ven

 rot

a

tion

 torq

ue

Rot

ati

on

 im

ba

la

nc

e

Ex

ce

ss

iv

e run

 ou

t

Di

ffere

n

tial

Axle

Su

sp

en

si

on

Ti

re

s

Road wheel

Driv

e sh

af

t

Brak

es

S

tee

ring

Symptom

Noise

×

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

×

REAR PROPELLER SHAFT

DLN-147

< REMOVAL AND INSTALLATION >

[PROPELLER SHAFT: 3S1410]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

REMOVAL AND INSTALLATION

REAR PROPELLER SHAFT

On-Vehicle Service

INFOID:0000000009886064

PROPELLER SHAFT VIBRATION

NOTE:

If vibration is present at high speed, check propeller shaft runout first, then check mounting between propeller

shaft and companion flange.

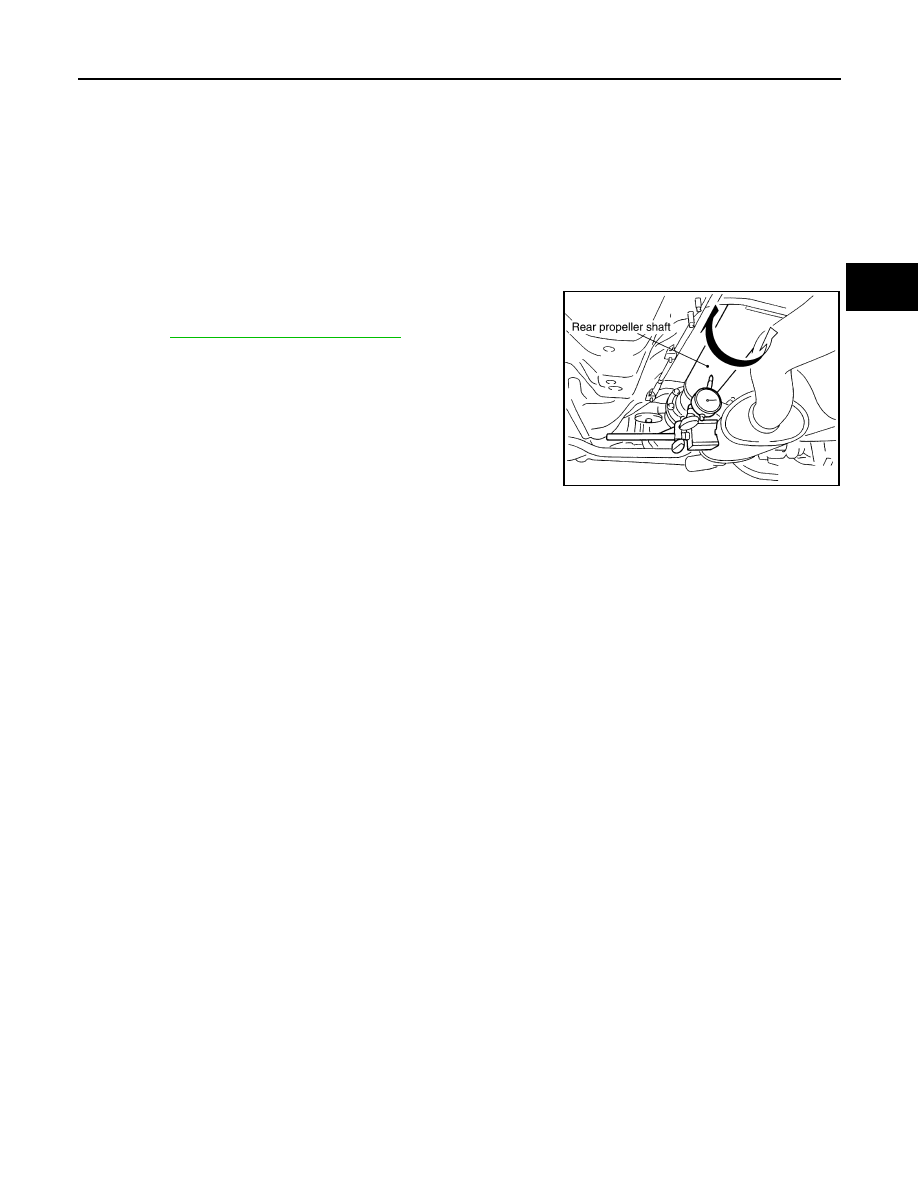

1. Measure the runout of the propeller shaft tube at several points

by rotating the final drive companion flange with your hands.

Refer to

DLN-155, "General Specification"

.

2. If the runout still exceeds specifications, disconnect the propeller

shaft at the final drive companion flange; then rotate the com-

panion flange 90

°, 180°, 270° and reconnect propeller shaft.

3. Check the runout again. If the runout still exceeds specifications,

replace the propeller shaft assembly.

4. After installation, check for vibration by driving vehicle.

INSPECTION

Inspect the propeller shaft tube for dents or cracks. If damaged, replace the propeller shaft assembly.

SDIA1781E
