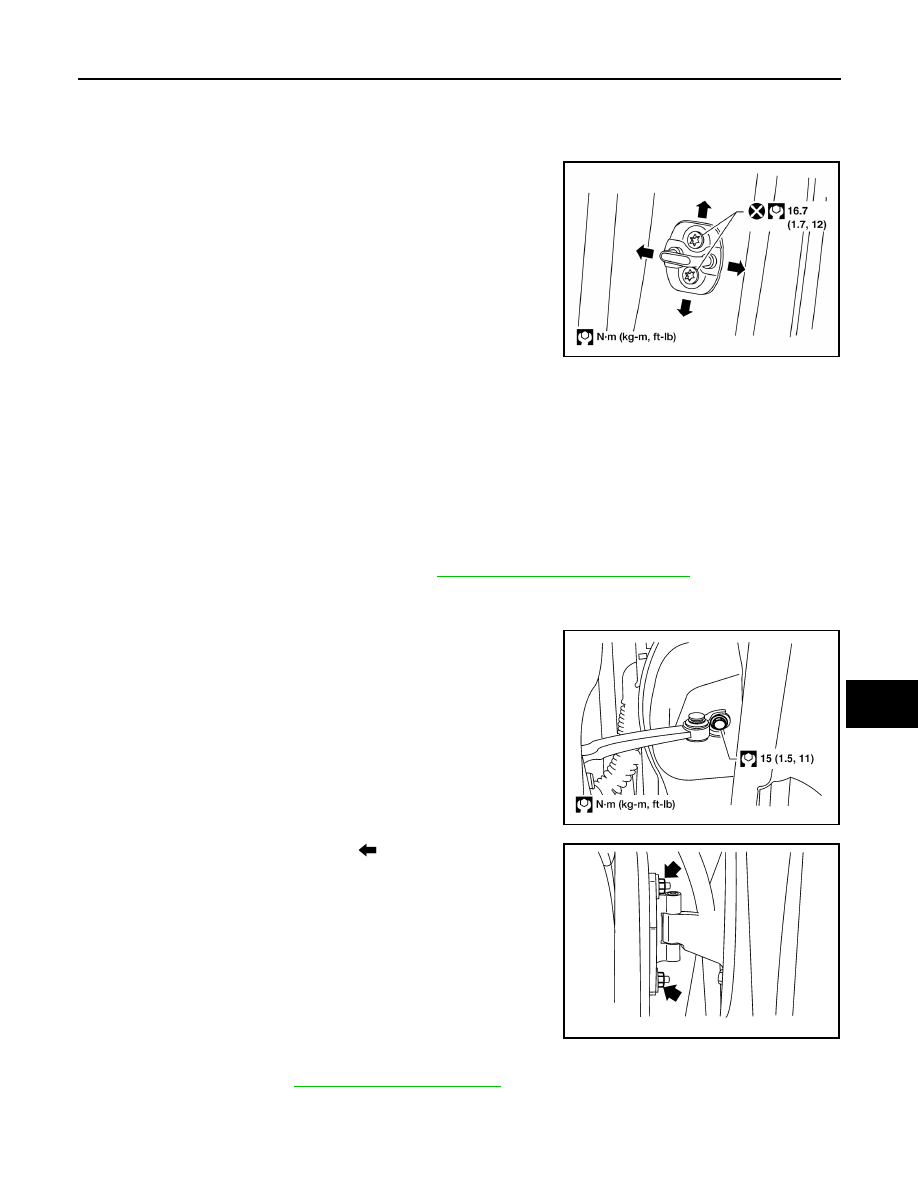

Striker adjustment

1. Loosen striker bolts.
2. Adjust the striker so that it becomes parallel with the lock inser-

tion direction.

3. Tighten striker bolts.

Removal and Installation

INFOID:0000000009878841

KING CAB

Front Door

CAUTION:

• Use two people when removing or installing the front door assembly due to its heavy weight.

• When removing and installing front door assembly, support front door with a suitable tool.

• Check the hinge rotating part for poor lubrication. If necessary, apply a suitable multipurpose

grease.

• When removing and installing front door assembly, be sure to carry out the fitting adjustment.
1. Remove the front door lock assembly. Refer to

DLK-128, "Removal and Installation"

.

2. Remove the door harness.
3. Remove the check link cover.
4. Remove the check link bolt from the hinge pillar.

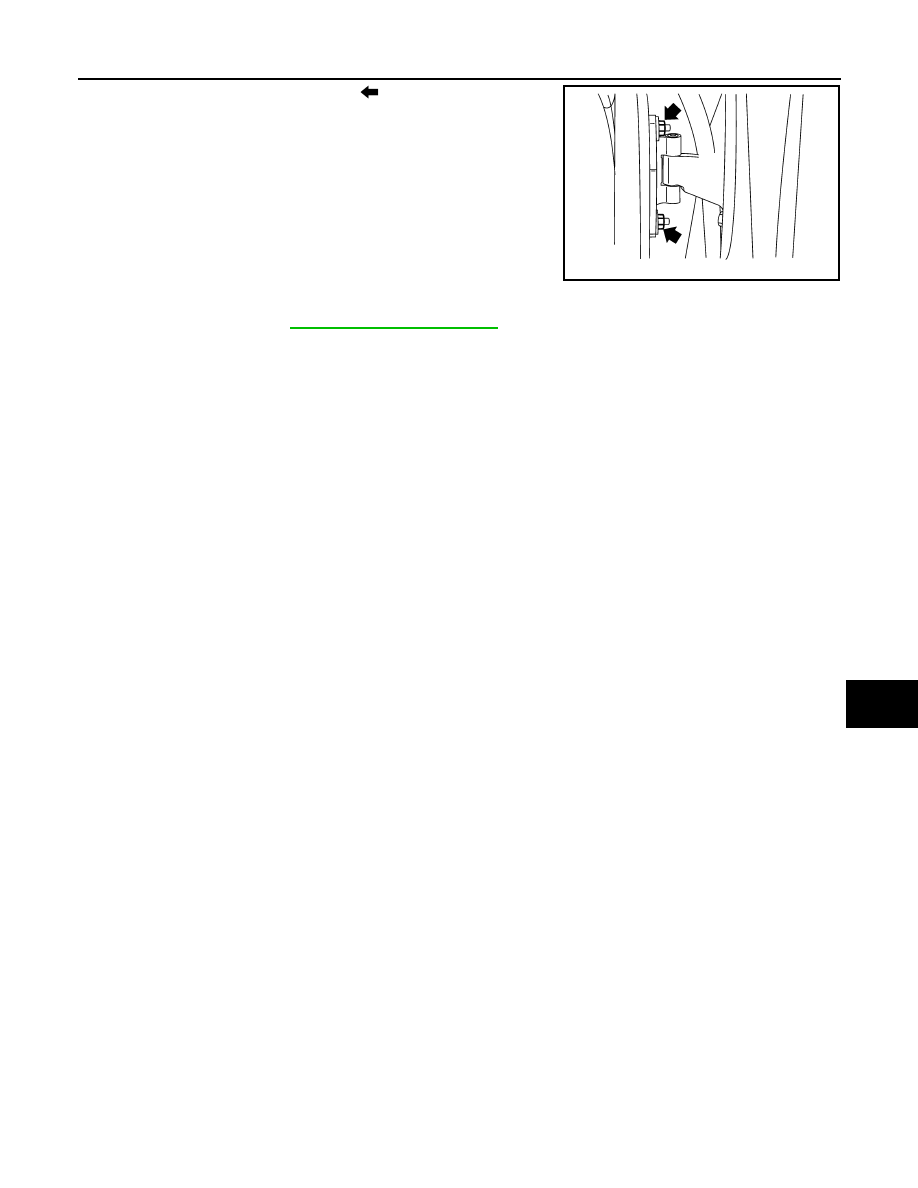

5. Remove the door-side hinge nuts (

) and bolts, and the front

door assembly.

Installation is in the reverse order of removal.

• Align the front door. Refer to

DLK-123, "Fitting Adjustment"

.

Rear Door

CAUTION:

Rear door hinge nuts

: 24.5 N·m (2.5 kg-m, 18 ft-lb)

AWKIA1766ZZ

LIIA1503E

LIIA1727E

DLK-126

< REMOVAL AND INSTALLATION >

DOOR

• Use two people when removing or installing the rear door assembly due to its heavy weight.

• When removing and installing rear door assembly, support rear door with a suitable tool.

• Check the hinge rotating part for poor lubrication. If necessary, apply a suitable multipurpose

grease.

• When removing and installing rear door assembly, be sure to carry out the fitting adjustment.
1. Remove the door glass. Refer to

GW-23, "Removal"

.

2. Remove the speaker.
3. Remove the door handles and latch assembly. Refer to

DLK-131, "Component Structure"

.

4. Remove the check link.
5. Remove the wire harness.
6. Remove the door assembly.
Installation is in the reverse order of removal.

• Align the rear door. Refer to

DLK-123, "Fitting Adjustment"

.

CREW CAB

CAUTION:

• Use two people when removing or installing the rear door assembly due to its heavy weight.

• When removing and installing rear door assembly, support rear door with a suitable tool.

• Check the hinge rotating part for poor lubrication. If necessary, apply a suitable multipurpose

grease.

• When removing and installing rear door assembly, be sure to carry out the fitting adjustment.
1. Remove the rear door lock assembly. Refer to

DLK-132, "Removal and Installation"

.

2. Remove the door harness.
3. Remove the check link cover.
4. Remove the check link bolt from the hinge pillar.

WIIA0334E

LIIA1503E

DOOR

DLK-127

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

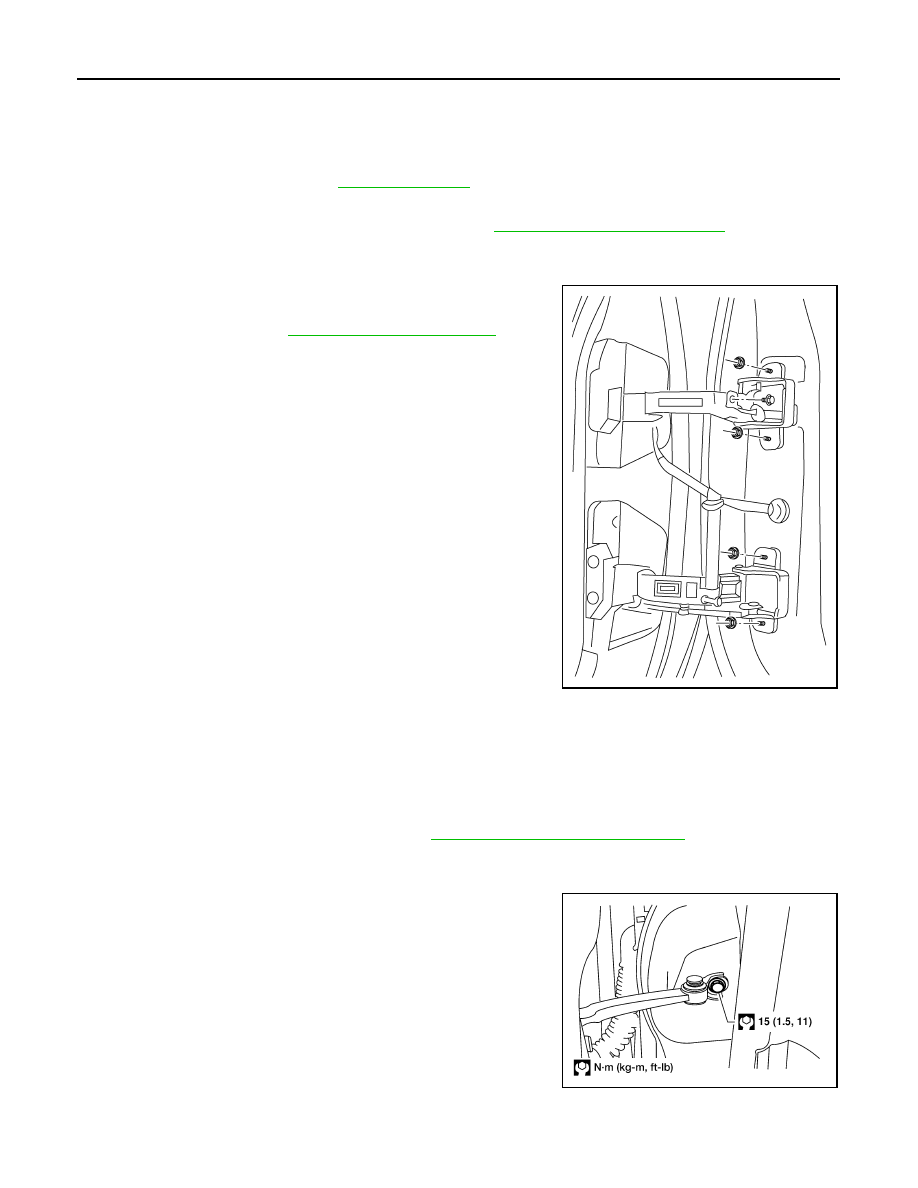

5. Remove the door-side hinge nuts (

) and bolts, and the rear

door assembly.

Installation is in the reverse order of removal.

• Align the rear door. Refer to

DLK-123, "Fitting Adjustment"

.

LIIA1727E

DLK-128

< REMOVAL AND INSTALLATION >

FRONT DOOR LOCK

FRONT DOOR LOCK

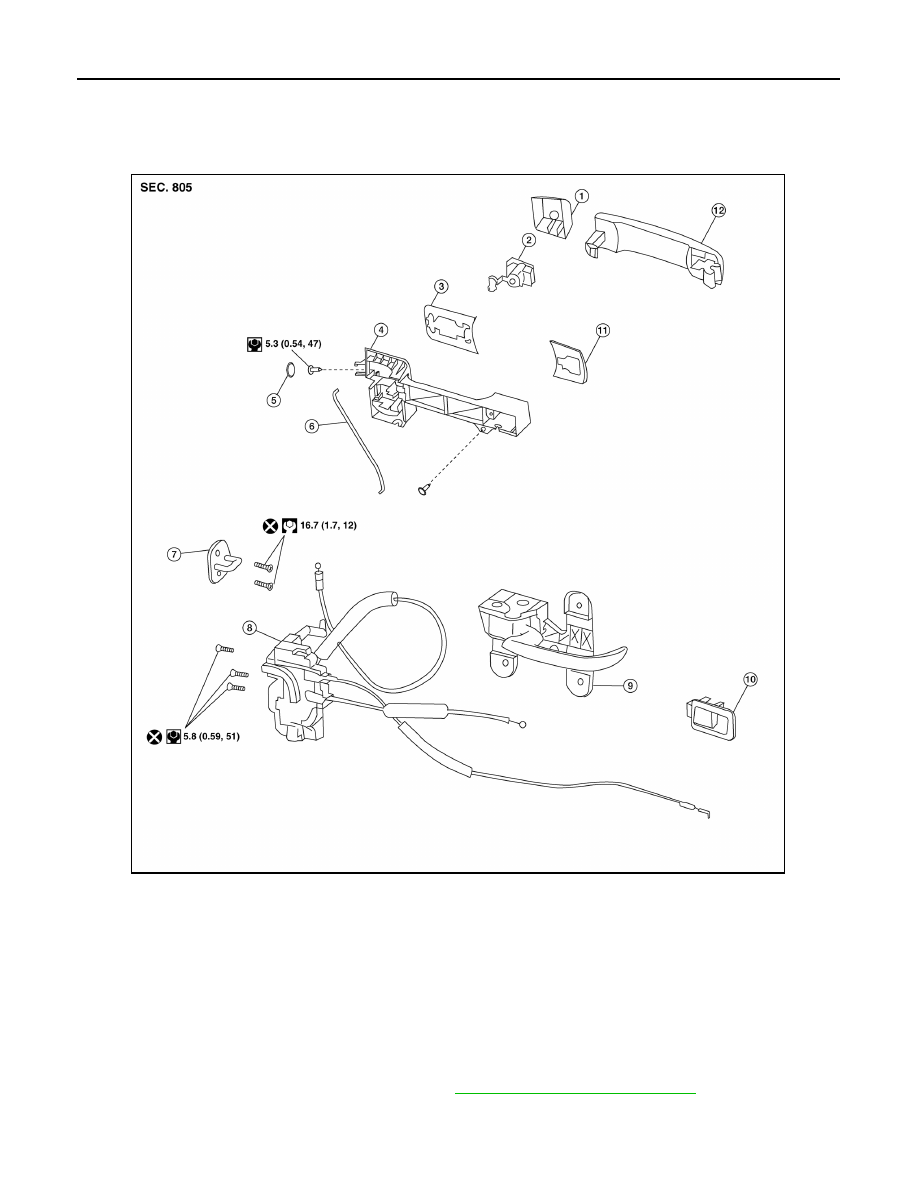

Component Structure

INFOID:0000000009878842

Removal and Installation

INFOID:0000000009878843

REMOVAL

1. Remove the front door window regulator. Refer to

GW-18, "Removal and Installation"

.

2. Remove the front door window rear glass run.
3. Position aside vapor barrier.

1.

Door key cylinder assembly (Driver
side) Outside handle escutcheon
(Passenger side)

2.

Key cylinder assembly (Driver side
only)

3.

Rear gasket

4.

Outside handle bracket

5.

Grommet

6.

Key cylinder rod (Driver side only)

7.

Front door striker

8.

Door lock assembly

9.

Inside handle assembly

10. Inside door lock lever

11. Front gasket

12. Outside handle assembly

AWKIA1792GB
