INSTALLATION

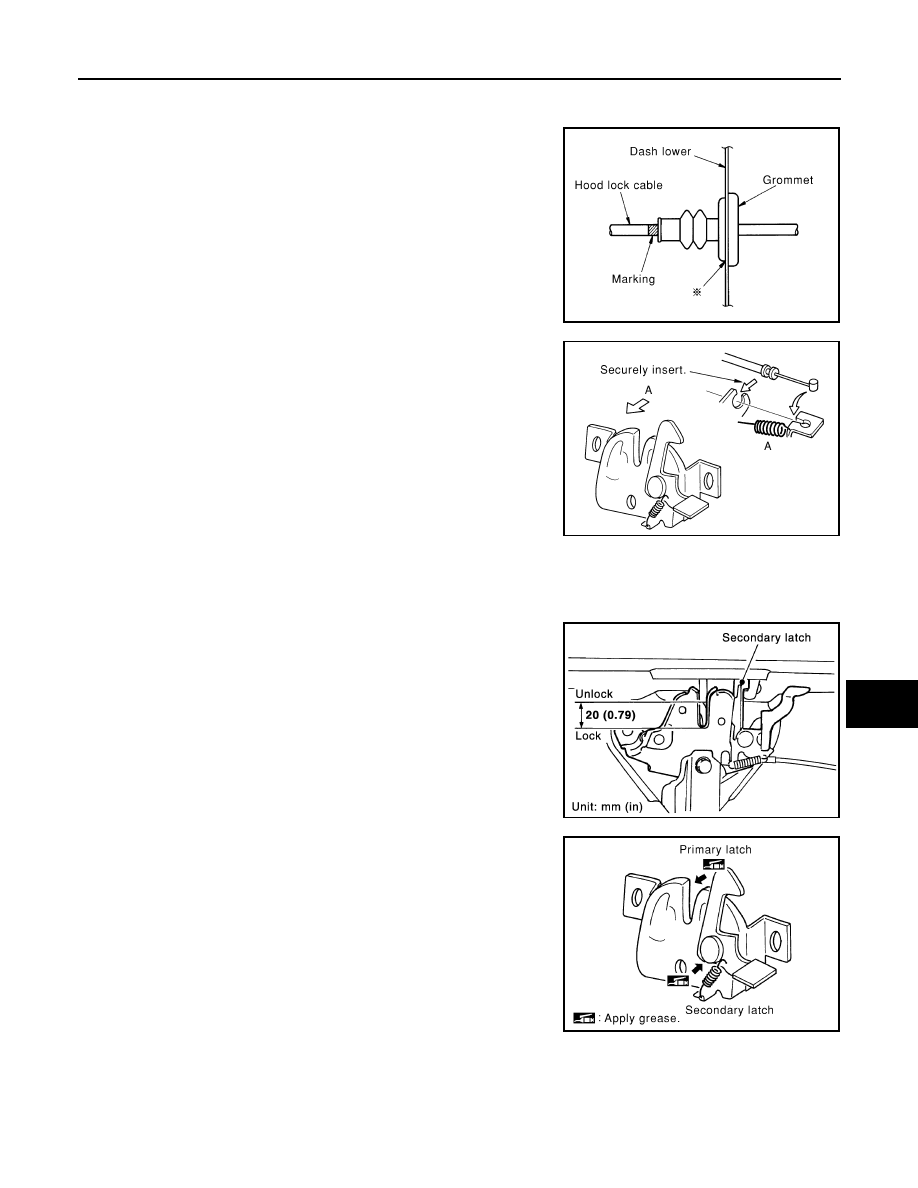

1. Pull the hood lock release cable through the hole in dash lower panel into the engine room.

Be careful not to bend the cable too much, keeping the radius

100mm (3.94 in) or more.

2. Make sure the hood lock release cable is not offset from the

positioning grommet, and from inside the vehicle, push the

grommet into the dash lower hole securely.

3. Apply the sealant around the grommet at (*) mark.

4. Install the hood lock release cable securely to the hood lock.
5. After installing, check the hood lock adjustment and hood lock

release handle operation.

Hood Lock Control Inspection

INFOID:0000000009878838

CAUTION:

If the hood lock release cable is bent or deformed, replace it.
1. Make sure the secondary latch is properly engaged with the sec-

ondary striker with hood's own weight by dropping it from

approx. 200 mm (7.87 in) height.

2. While operating the hood lock release handle, carefully make

sure the front edge of the hood is raised by approx. 20 mm (0.79

in). Also make sure the hood lock release handle returns to the

original position.

3. Check the hood lock lubrication condition. If necessary, apply a

suitable multi-purpose grease to the points shown.

PIIA0173E

PIIA0174E

PIIA1086E

PIIA0176E

DLK-122

< REMOVAL AND INSTALLATION >

HOOD

Hood Stay Disposal

INFOID:0000000009878839

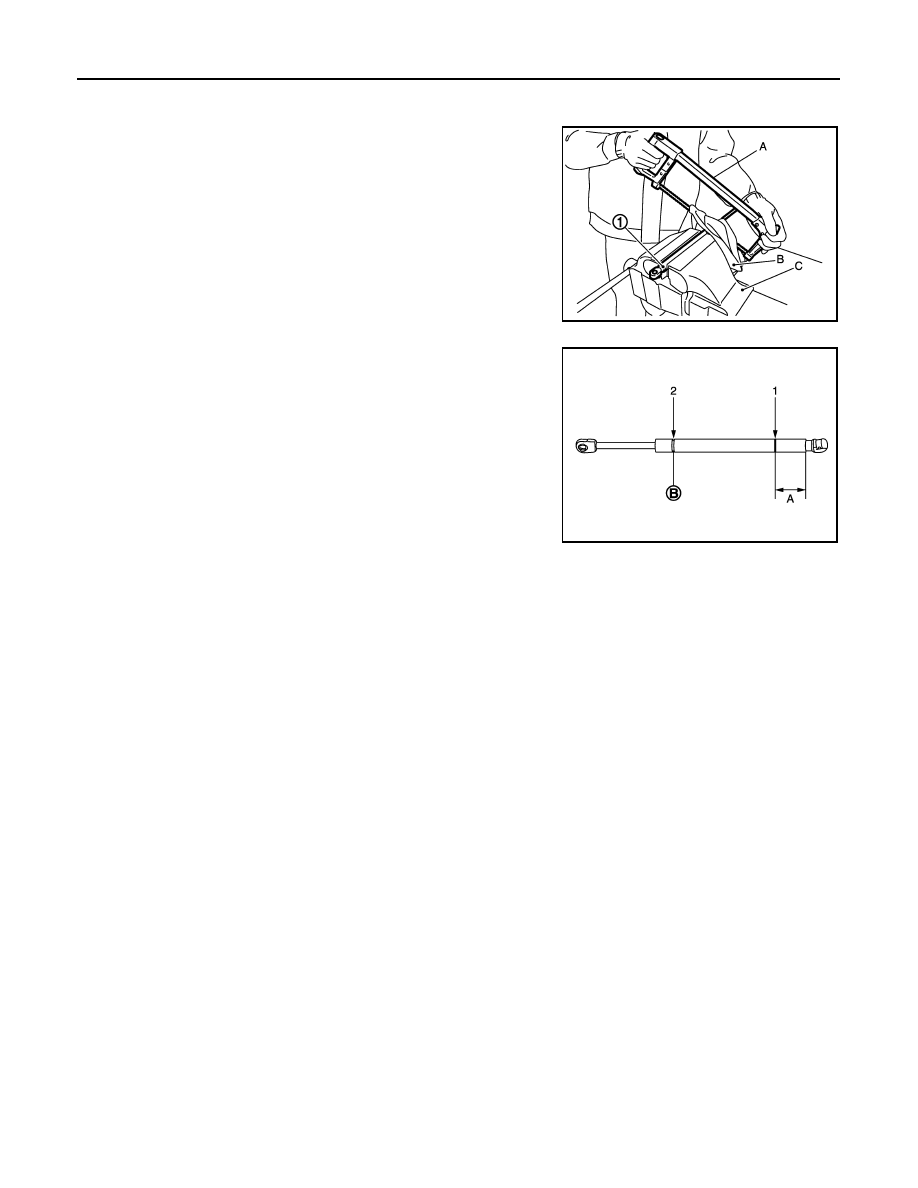

1. Fix hood stay (1) using a vise (C).
2. Using hacksaw (A) slowly make 2 holes in the hood stay, in

numerical order as shown.

CAUTION:

• When cutting a hole on hood stay, always cover hacksaw

with shop cloths (B) to avoid scattering metal fragments

or oil.

• Wear eye protection (safety glasses).

• Wear gloves.

JMKIA3336ZZ

A: 20 mm (0.8 in)
B: Cut at the groove.

JMKIA3609ZZ

DOOR

DLK-123

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR

Fitting Adjustment

INFOID:0000000009878840

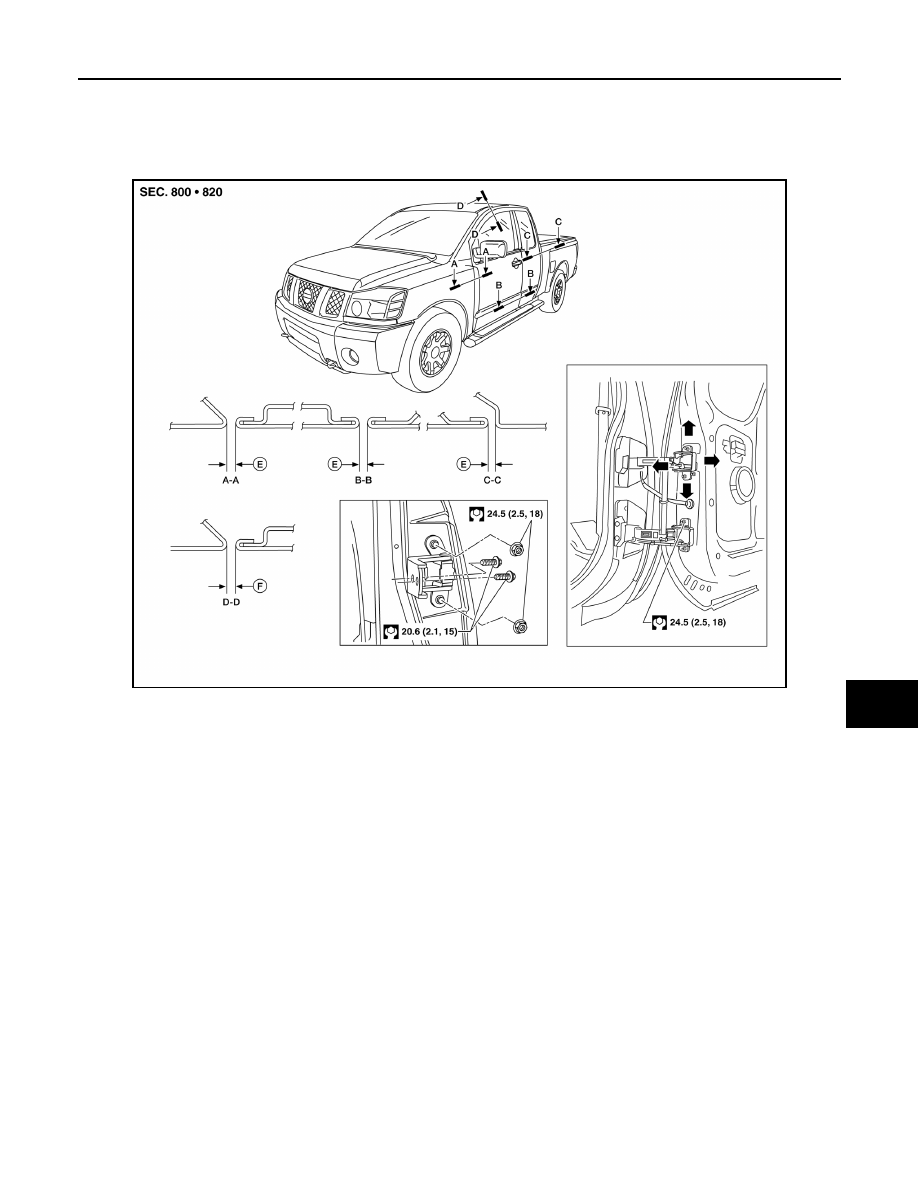

KING CAB

AWKIA1728GB

E.

4.5

± 1.0 mm (0.177 ± 0.039 in)

F.

6.5

± 1.0 mm (0.256 ± 0.039 in)

DLK-124

< REMOVAL AND INSTALLATION >

DOOR

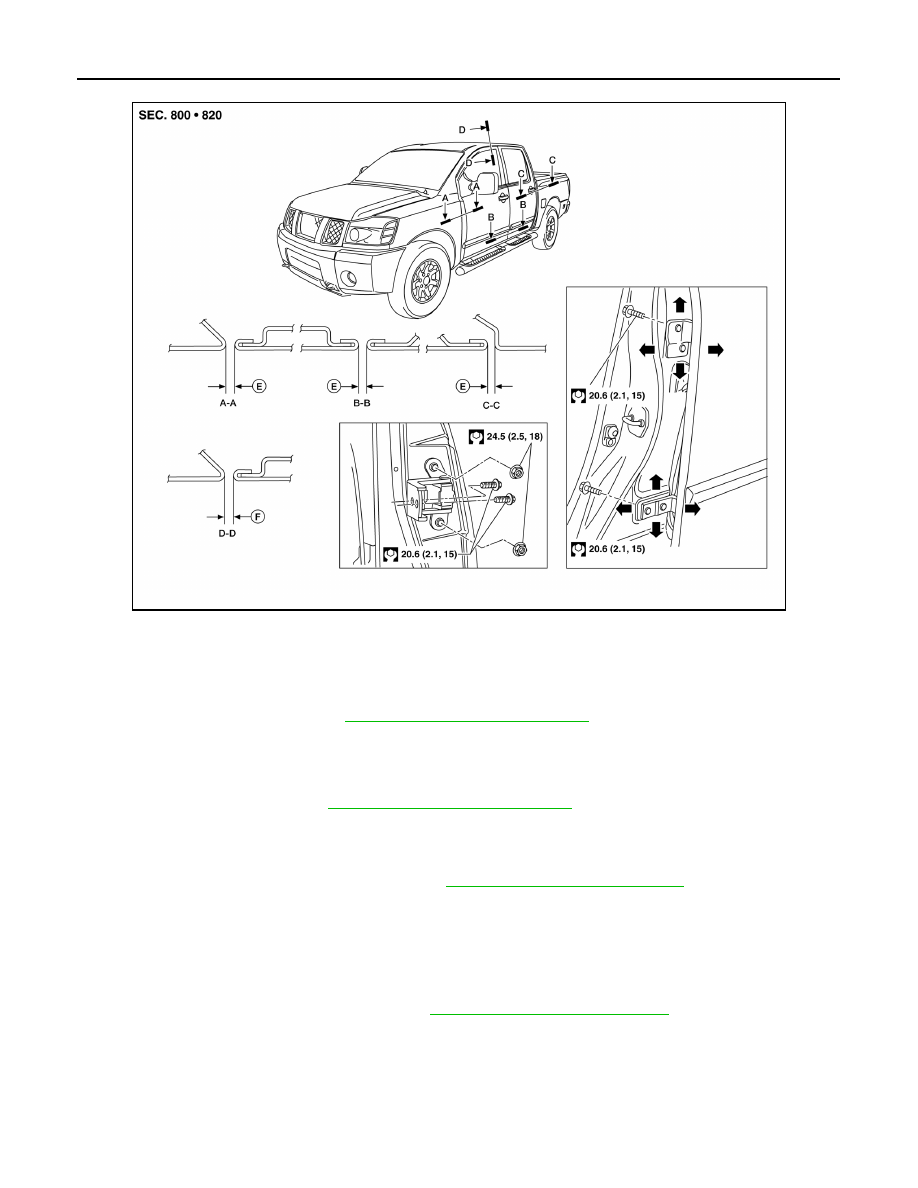

CREW CAB

Front Door

Longitudinal clearance and surface height adjustment at front end

1. Remove the front fender. Refer to

EXT-23, "Removal and Installation"

.

2. Loosen the hinge bolts.
3. Raise the front door at rear end to adjust.
4. Tighten the hinge bolts
5. Install the front fender. Refer to

EXT-23, "Removal and Installation"

.

Rear Door Crew Cab

Longitudinal clearance and surface height adjustment at rear end

1. Remove the center pillar upper finisher. Refer to

INT-14, "Removal and Installation"

.

2. Accessing from inside the vehicle, loosen the nuts. Open the rear door, and raise the rear door at rear end

to adjust.

3. Tighten the nuts to specification.

4. Install the center pillar upper garnish. Refer to

INT-14, "Removal and Installation"

.

Rear Door King Cab

Longitudinal clearance and surface height adjustment at front end

1. With the door open, support and loosen the hinge to door nuts.
2. Adjust the door position as necessary.
3. Tighten the nuts to specification.

AWKIA1730GB

E.

4.5

± 1.0 mm (0.177 ± 0.039 in)

F.

6.5

± 1.0 mm (0.256 ± 0.039 in)

Rear door hinge nuts

: 24.5 N·m (2.5 kg-m, 18 ft-lb)
