PREPARATION

DLK-117

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Commercial Service Tool

INFOID:0000000009878834

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

SIIA0995E

DLK-118

< REMOVAL AND INSTALLATION >

HOOD

REMOVAL AND INSTALLATION

HOOD

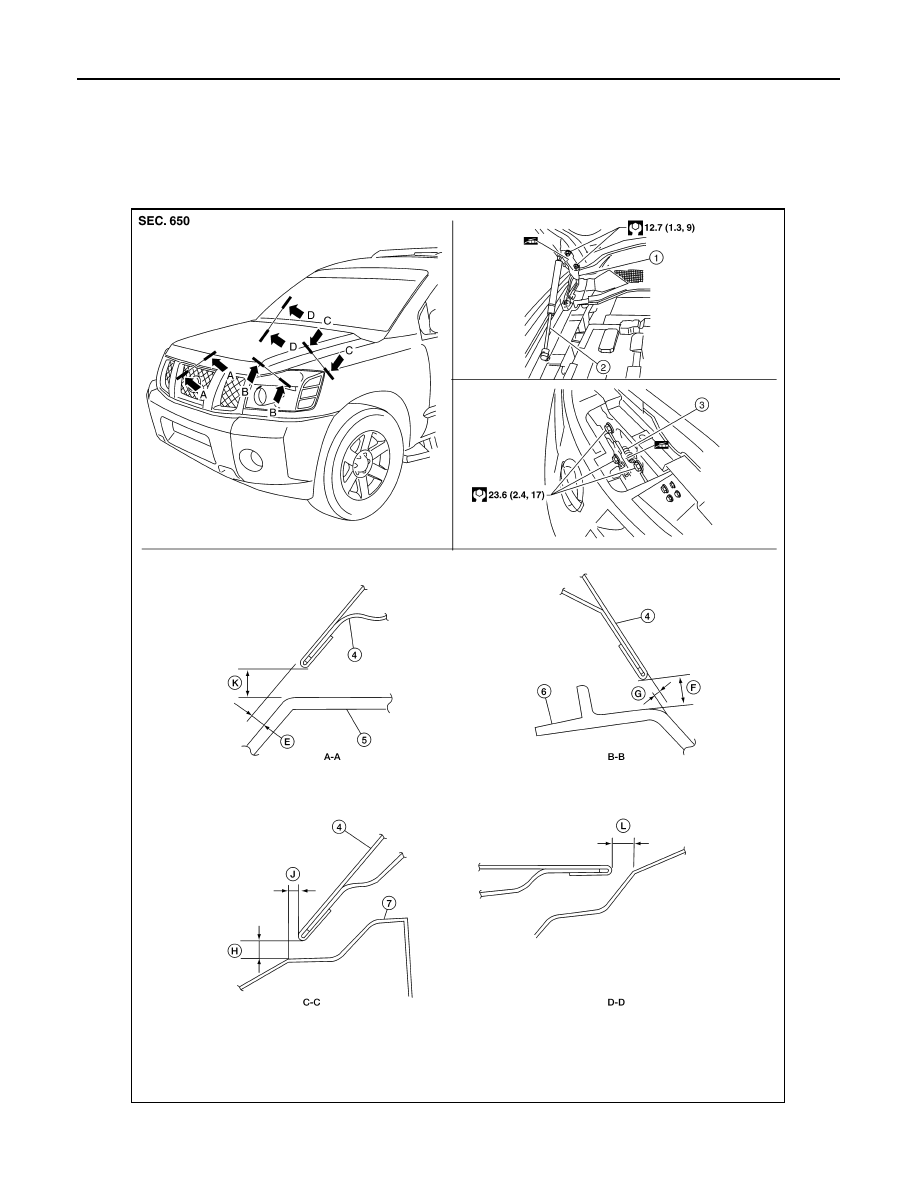

Fitting Adjustment

INFOID:0000000009878835

AWKIA2077ZZ

HOOD

DLK-119

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CLEARANCE AND SURFACE HEIGHT ADJUSTMENT

1. Remove the front grille. Refer to

EXT-20, "Removal and Installation"

.

2. Remove the hood lock assembly and adjust the height by rotating the bumper rubber until the hood clear-

ance of hood and fender becomes 1 mm (0.04 in) lower than fitting standard dimension.

3. Temporarily tighten the hood lock, and position it by engaging it with the hood striker. Check the lock and

striker for looseness, and tighten the lock bolt to the specified torque.

4. Adjust the clearance and surface height of hood and fender according to the fitting standard dimension by

rotating right and left bumper rubbers.

CAUTION:

Adjust right/left gap between hood and each part to the following specification.

5. Install the front grille. Refer to

EXT-20, "Removal and Installation"

.

HOOD LOCK ADJUSTMENT

1. Remove the front grille. Refer to

EXT-20, "Removal and Installation"

.

2. Move the hood lock to the left or right so that striker center is vertically aligned with hood lock center

(when viewed from vehicle front).

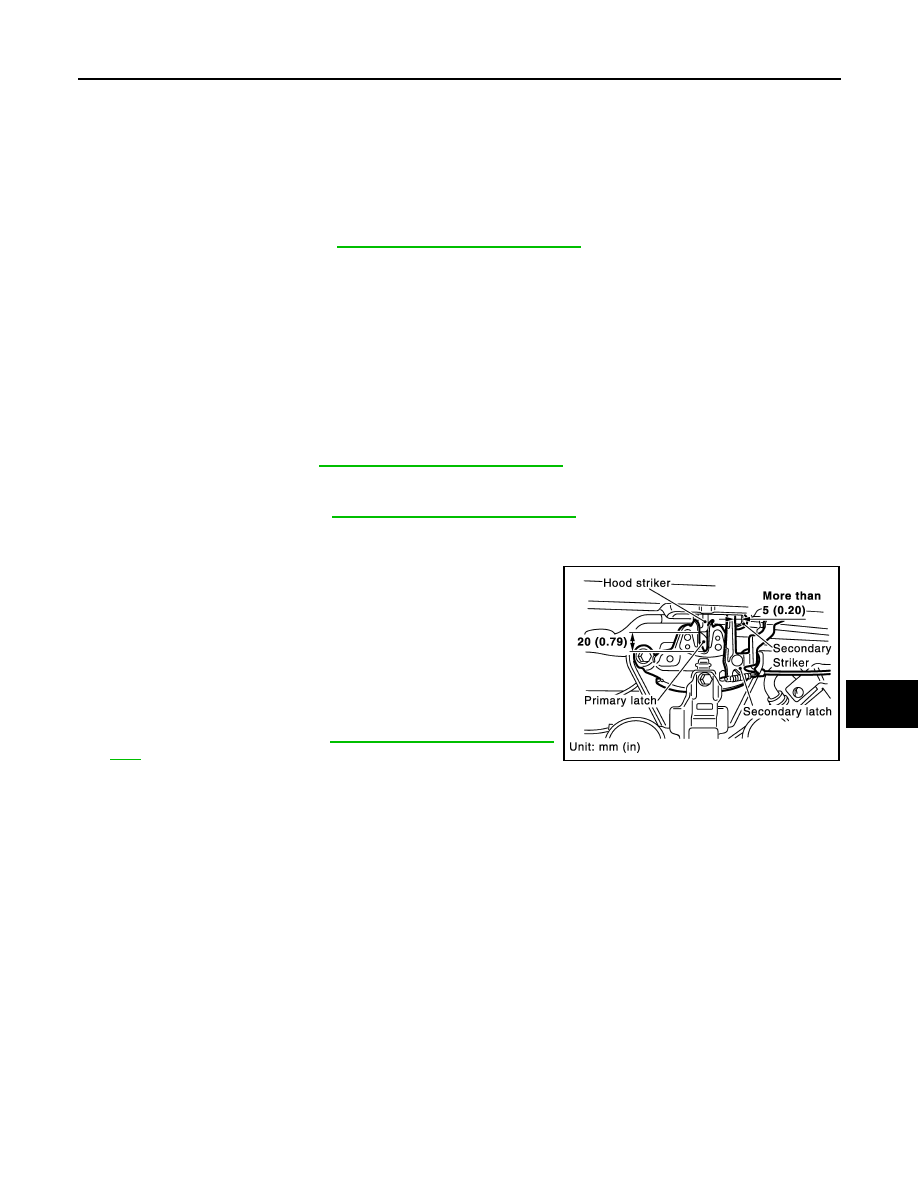

3. Make sure the secondary latch is properly engaged with the sec-

ondary striker with hood's own weight by dropping it from

approx. 200 mm (7.87 in) height or by pressing it lightly approx.

3 kg (29 N, 7lb).

CAUTION:

Do not drop the hood from 300 mm (11.81 in) height or

higher.

4. After adjusting hood lock, tighten the lock bolts to the specified

torque.

5. Install the front grille. Refer to

EXT-20, "Removal and Installa-

tion"

.

Removal and Installation of Hood Assembly

INFOID:0000000009878836

CAUTION:

• Use two people when removing or installing hood assembly due to its heavy weight.

• Use protective tape or shop cloths to protect surrounding components from damage during removal

and installation of hood assembly.

REMOVAL

1. Support the hood assembly using a suitable tool.

WARNING:

Bodily injury may occur if hood assembly is not supported properly when removing hood assem-

bly.

1.

Hood hinge

2.

Hood stay

3.

Hood lock assembly

4.

Hood assembly

5.

Front grille

6.

Headlamp

7.

Front fender

E.

2.0 mm (0.079 in)

F.

8.0mm (0.315 in)

G.

0.8 mm (0.031 in)

H.

5.0 mm (0.197 in)

J.

0.0 mm (0.00 in)

K.

8.0 mm (0.315 in)

L.

8.8 mm (0.346 in)

Hood and headlamp (B–B)

 8.0

± 2.0 mm (0.315 ± 0.079 in)

PIIA3806E

DLK-120

< REMOVAL AND INSTALLATION >

HOOD

2. Remove the hinge nuts (

) and the hood assembly.

INSTALLATION

Installation is in the reverse order of removal.

• Adjust the hood. Refer to

DLK-118, "Fitting Adjustment"

.

• Adjust the hood lock. Refer to

DLK-118, "Fitting Adjustment"

.

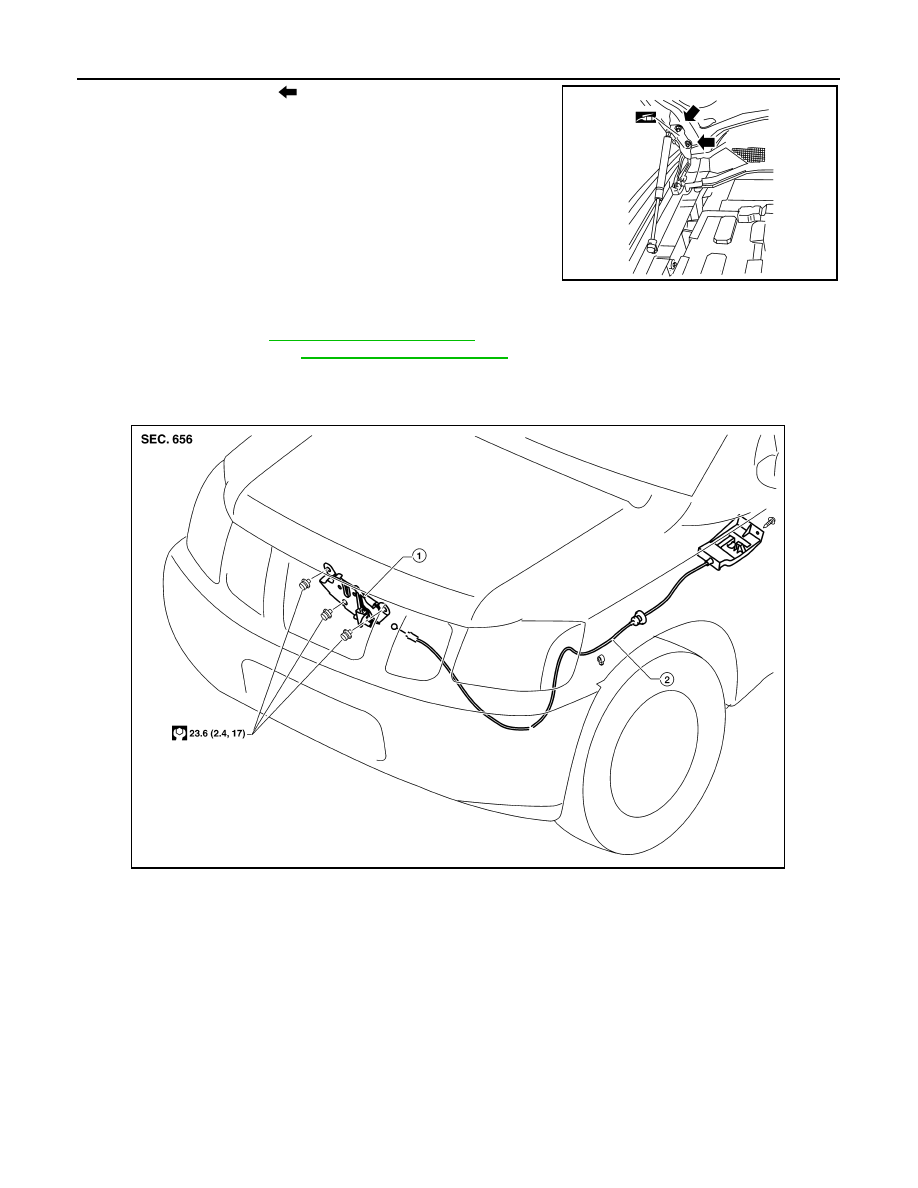

Removal and Installation of Hood Lock Control

INFOID:0000000009878837

REMOVAL

1. Remove the hood lock assembly bolts.
2. Disconnect the hood lock release cable from the hood lock assembly, and unclip it from the radiator core

support upper and hoodledge.

3. Remove the bolt and the hood lock release handle.
4. Remove the grommet from the dash lower, and pull the hood lock release cable toward the passenger

compartment.

CAUTION:

While pulling, be careful not to damage the outside of the hood lock release cable, keep the radius

100mm (3.94 in) or more.

5. Remove the hood lock assembly.

WIIA0885E

1.

Hood lock assembly

2.

Hood lock release cable
