TM-272

< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

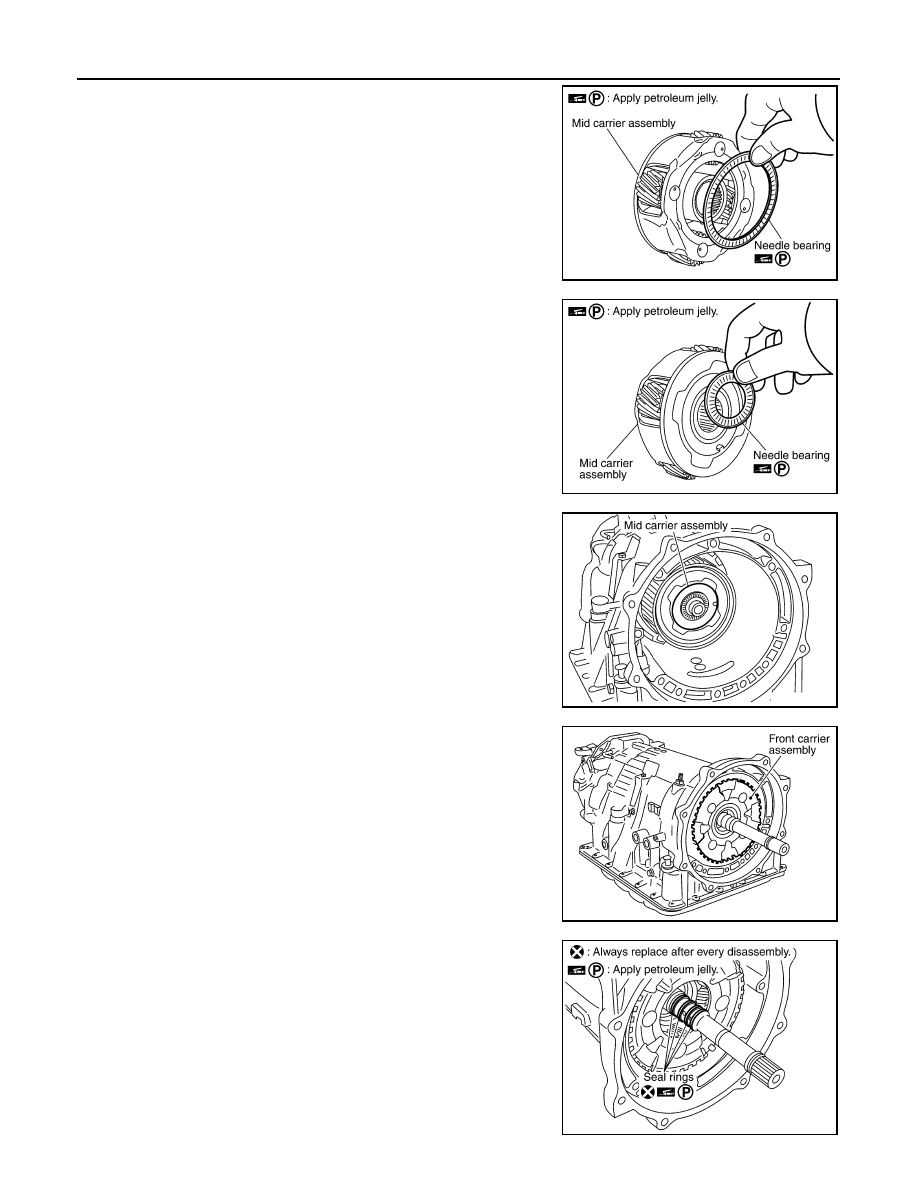

43. Install needle bearing (rear side) to mid carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

44. Install needle bearing (front side) to mid carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

45. Install mid carrier assembly in rear carrier assembly.

46. Install front carrier assembly, input clutch assembly and rear

internal gear as a unit.

47. Install seal rings in input clutch assembly.

CAUTION:

• Do not reuse seal rings.

• Apply petroleum jelly to seal rings.

SCIA2804E

SCIA2805E

SCIA5017E

SCIA5015E

SCIA2470E

ASSEMBLY

TM-273

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

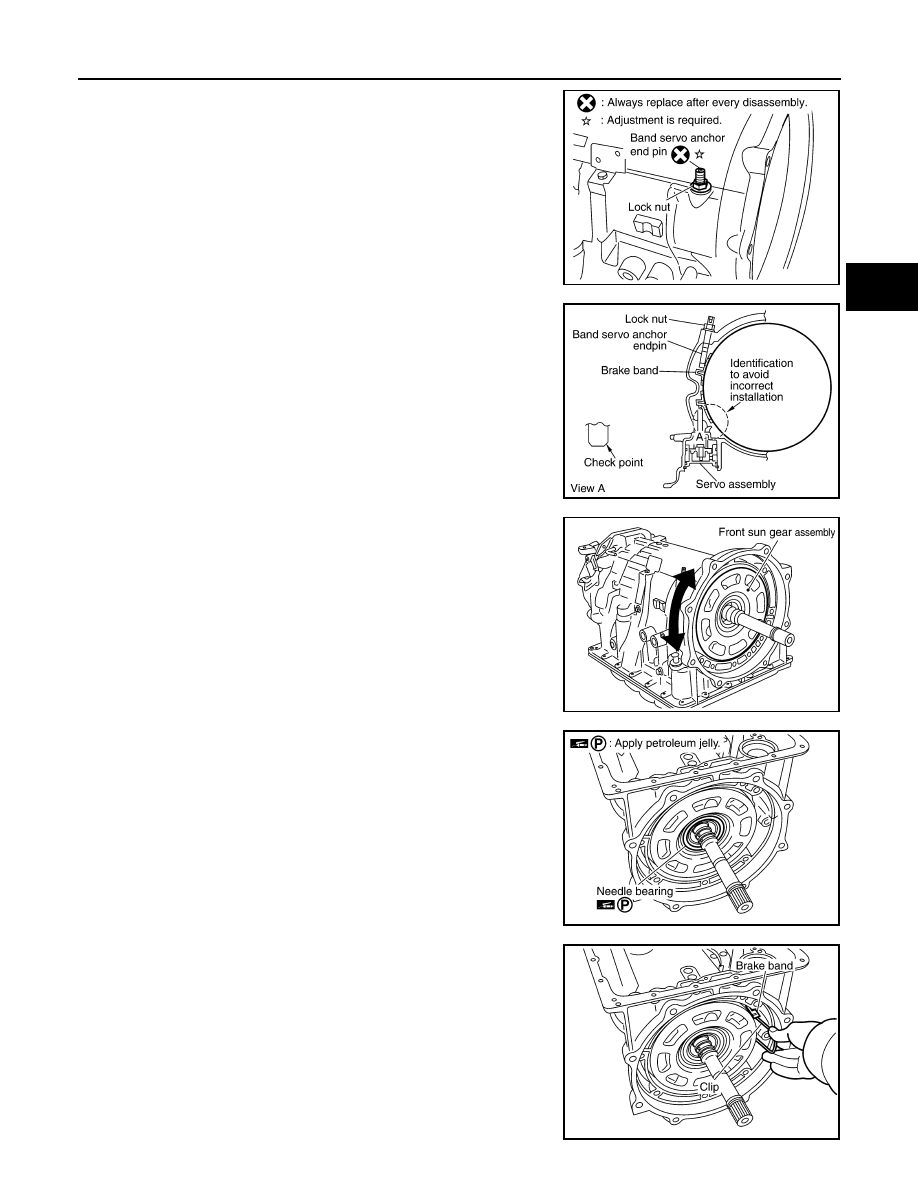

48. Install band servo anchor end pin and lock nut in transmission

case.

CAUTION:

Do not reuse band servo anchor end pin.

49. Install brake band in transmission case.

CAUTION:

Install it so that the identification to avoid incorrect installa-

tion faces the servo side.

50. Install front sun gear to front carrier assembly.

CAUTION:

Apply ATF to front sun gear bearing and 3rd one-way clutch

end bearing.

51. Install needle bearing to front sun gear.

CAUTION:

Apply petroleum jelly to needle bearing.

52. Adjust brake band tilting using a clip so that brake band contacts

front sun gear drum evenly.

SCIA6512E

SCIA5498E

SCIA5014E

SCIA2808E

SCIA5033E

TM-274

< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

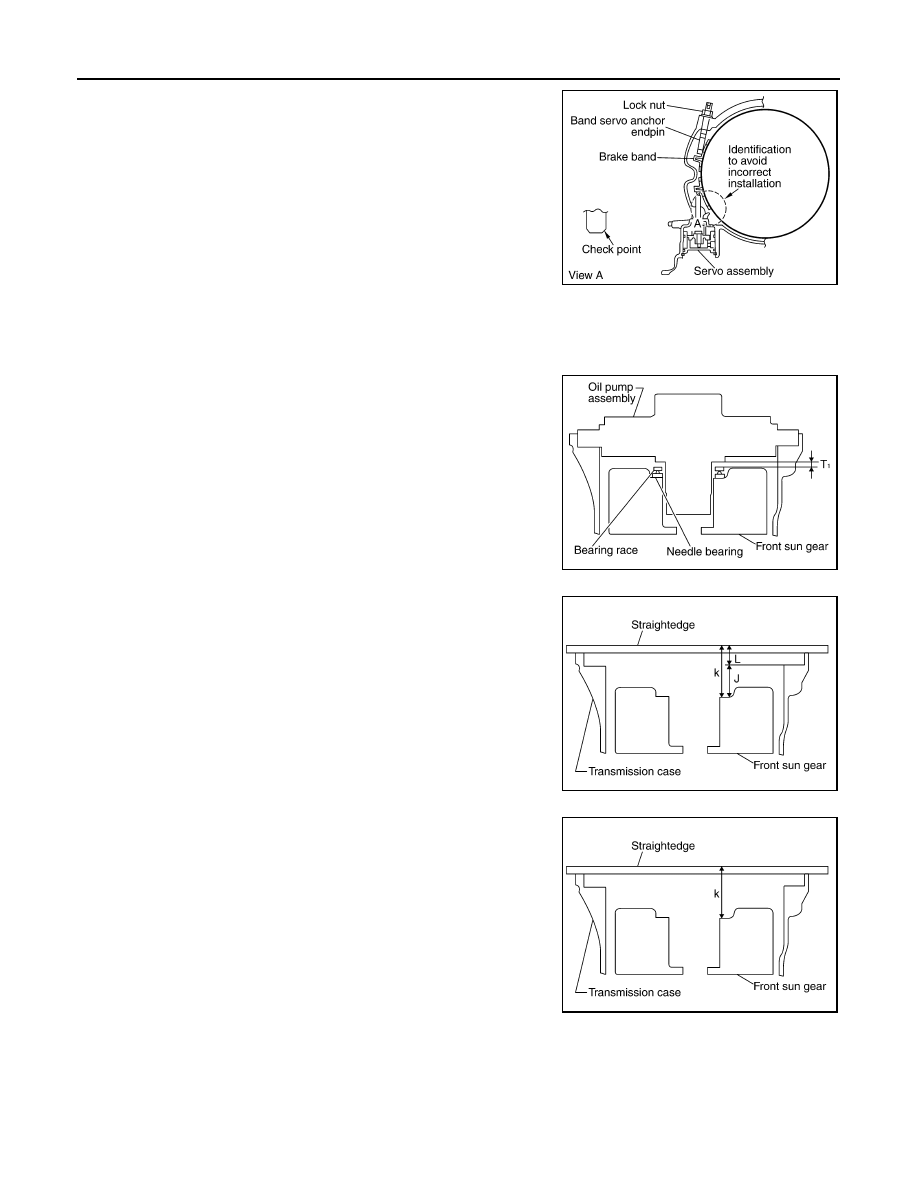

53. Adjust brake band.
a. Loosen lock nut.
b. Tighten band servo anchor end pin to specified torque.

c.

Back off band servo anchor end pin three turns.

d. Holding band servo anchor end pin, tighten lock nut to specified

torque.

Adjustment

INFOID:0000000006159472

TOTAL END PLAY

• Measure clearance between front sun gear and bearing race for oil

pump cover.

• Select proper thickness of bearing race so that end play is within

specifications.

1. Measure dimensions “K” and “L” and then calculate dimension

“J”.

a. Measure dimension “K”.

Anchor end pin

: 5.0 N·m (0.51 kg-m, 44 in-lb)

Lock nut

: 46 N·m (4.7 kg-m, 34 ft-lb)

SCIA5498E

SCIA2810E

SCIA5350E

SCIA5351E

ASSEMBLY

TM-275

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

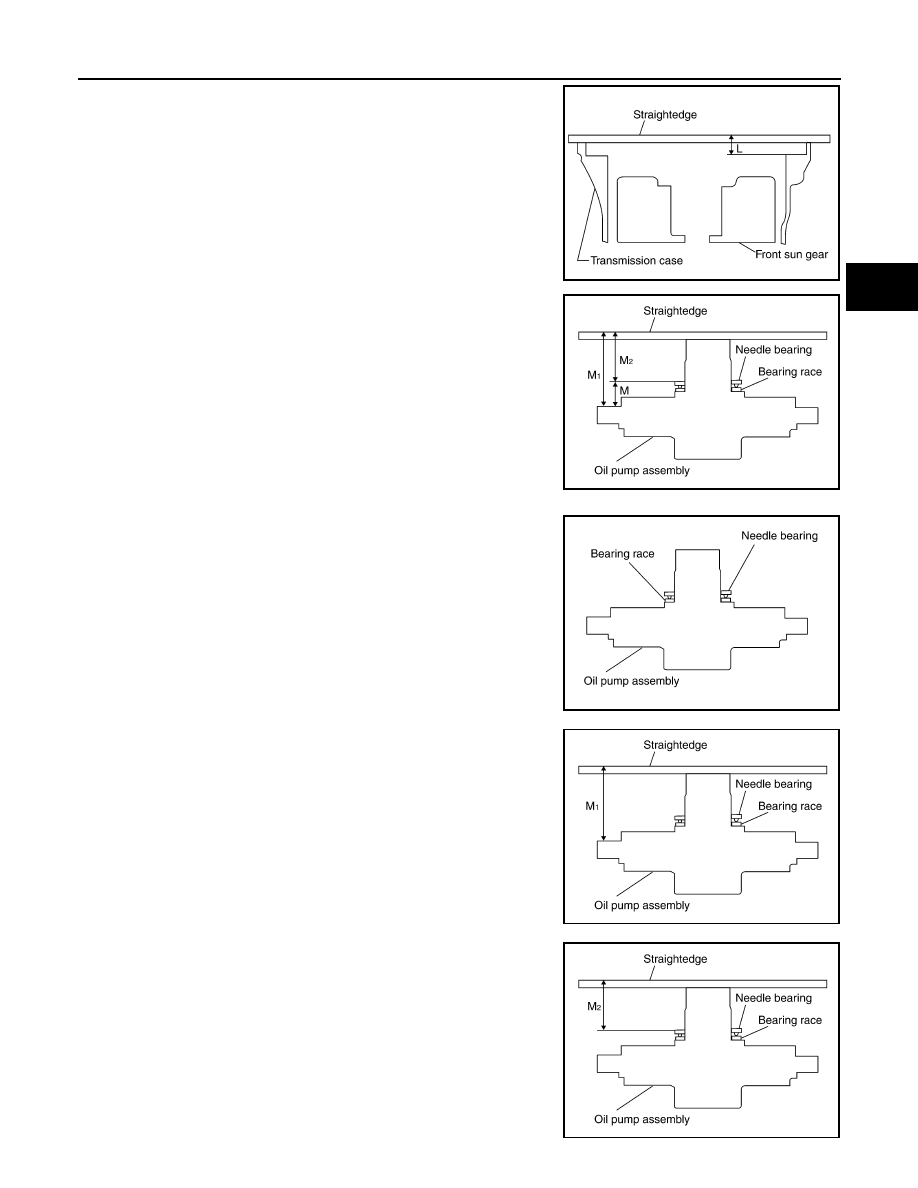

b. Measure dimension “L”.
c. Calculate dimension “J”.

2. Measure dimensions “M

1

” and “M

2

” and then calculate dimen-

sion “M”.

a. Place bearing race and needle bearing on oil pump assembly.

b. Measure dimension “M

1

”.

c. Measure dimension “M

2

”.

“J”: Distance between oil pump fitting surface of
transmission case and needle bearing mating surface
of front sun gear.

J = K – L

SCIA5352E

SCIA3125E

SCIA3124E

SCIA3126E

SCIA3127E
