TM-268

< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

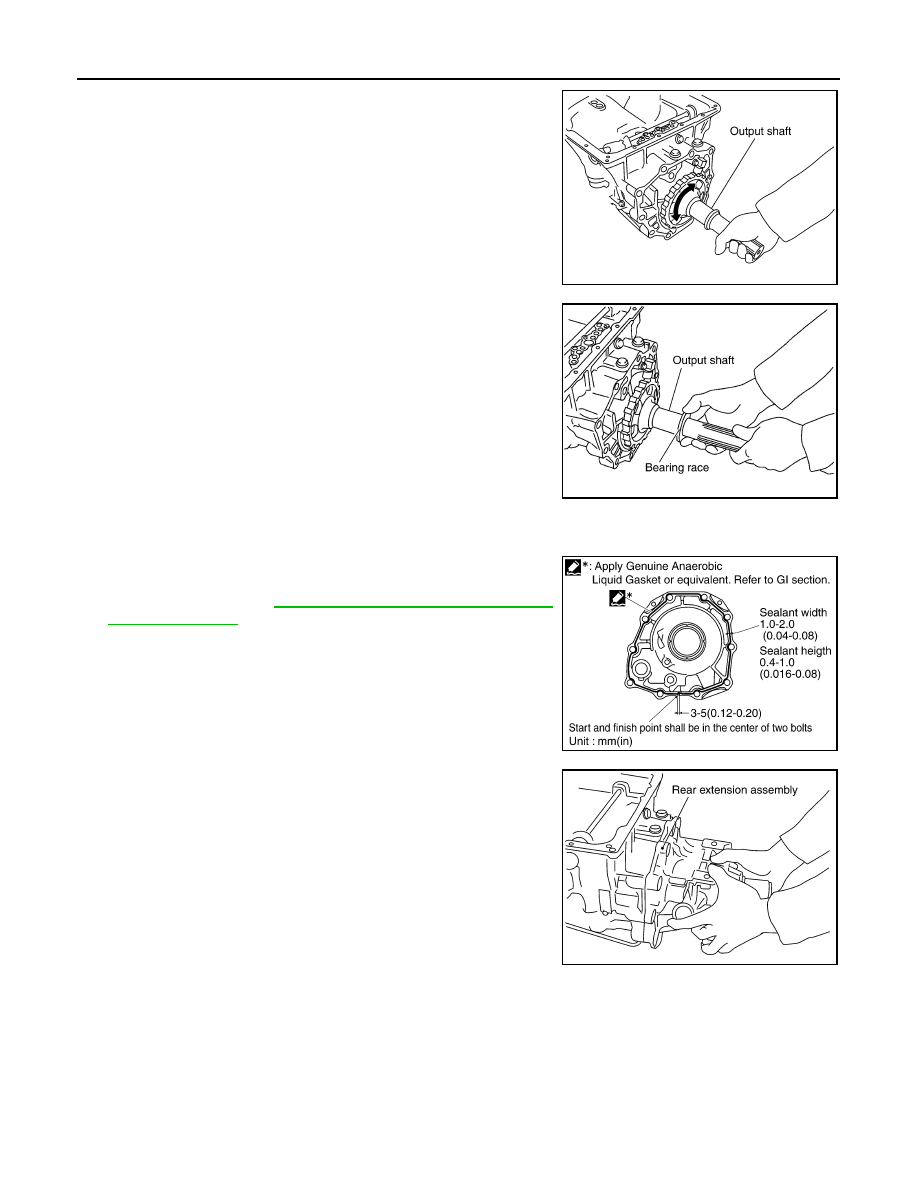

32. Install output shaft in transmission case.

CAUTION:

Do not mistake front of shaft for rear because both sides

look similar (thinner end is front side).

33. Install bearing race to output shaft.

34. Install rear extension assembly (2WD models) or adapter case assembly (4WD models) according to the

following procedures.

a. 2WD models
i.

Apply recommended sealant (Genuine Anaerobic Liquid Gasket

or equivalent. Refer to

GI-15, "Recommended Chemical Prod-

ucts and Sealants"

.) to rear extension assembly as shown.

CAUTION:

Completely remove all moisture, oil, old sealant and any

foreign material from the transmission case and rear exten-

sion assembly mating surfaces.

ii.

Install rear extension assembly to transmission case.

CAUTION:

Insert the tip of parking rod between the parking pawl and

the parking actuator support when assembling the rear

extension assembly.

SCIA5030E

SCIA5245E

SCIA5212E

SCIA5029E

ASSEMBLY

TM-269

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

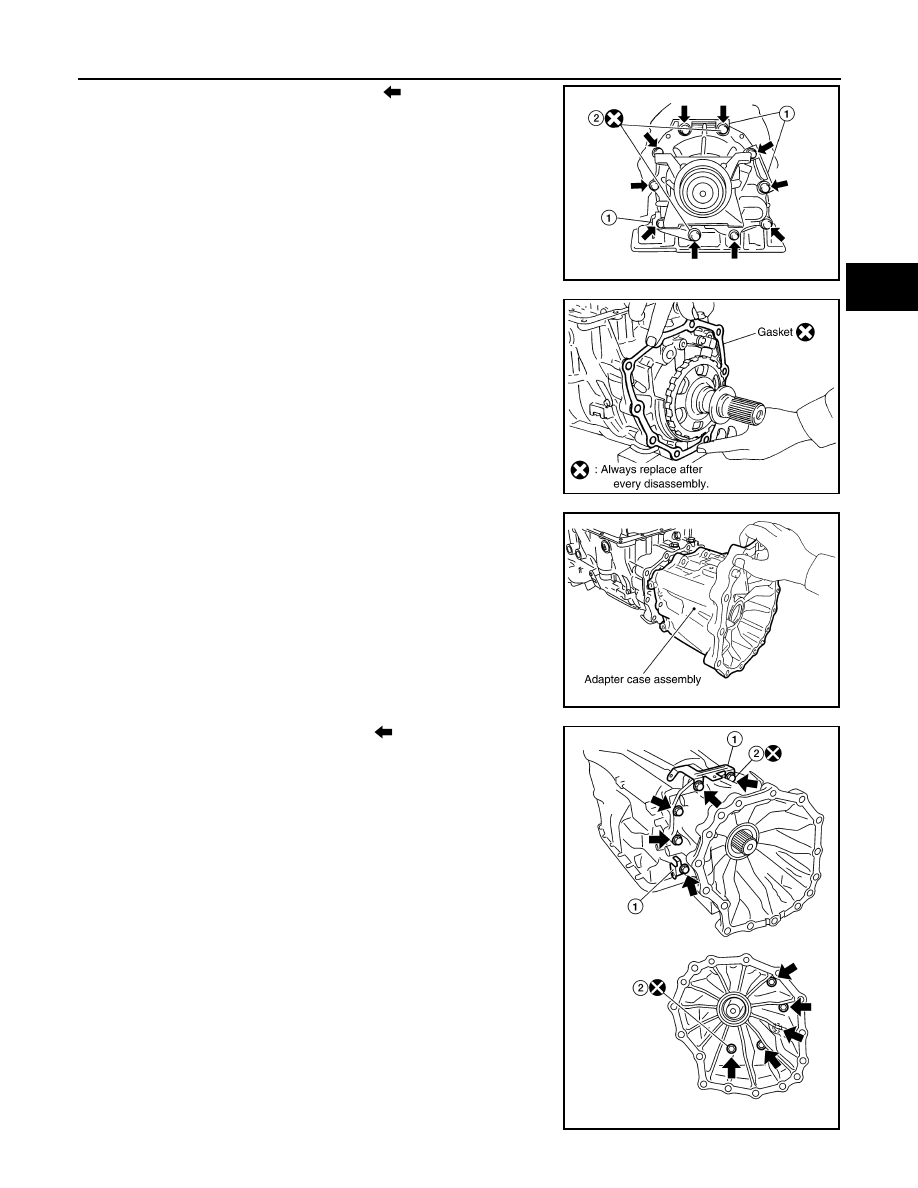

iii. Tighten rear extension assembly bolts (

) to specified torque.

• Brackets (1)

• Self-sealing bolts (2)

CAUTION:

Do not reuse self-sealing bolt.

b. 4WD models
i.

Install gasket onto transmission case.

CAUTION:

• Completely remove all moisture, oil, old gasket and any

foreign material from the transmission case and adapter

case assembly mating surfaces.

• Do not reuse gasket.

ii.

Install adapter case assembly to transmission case.

CAUTION:

Insert the tip of parking rod between the parking pawl and

the parking actuator support when assembling the rear

extension assembly.

iii. Tighten adapter case assembly bolts (

) to specified torque.

• Brackets (1)

• Self-sealing bolts (2)

CAUTION:

Do not reuse self-sealing bolt.

Rear extension
assembly bolt

: 52 N·m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt

: 61 N·m (6.2 kg-m, 45 ft-lb)

WCIA0562E

SCIA5231E

SCIA5186E

Adapter case
assembly bolt

: 52 N·m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt : 61 N·m (6.2 kg-m, 45 ft-lb)

WCIA0563E

TM-270

< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

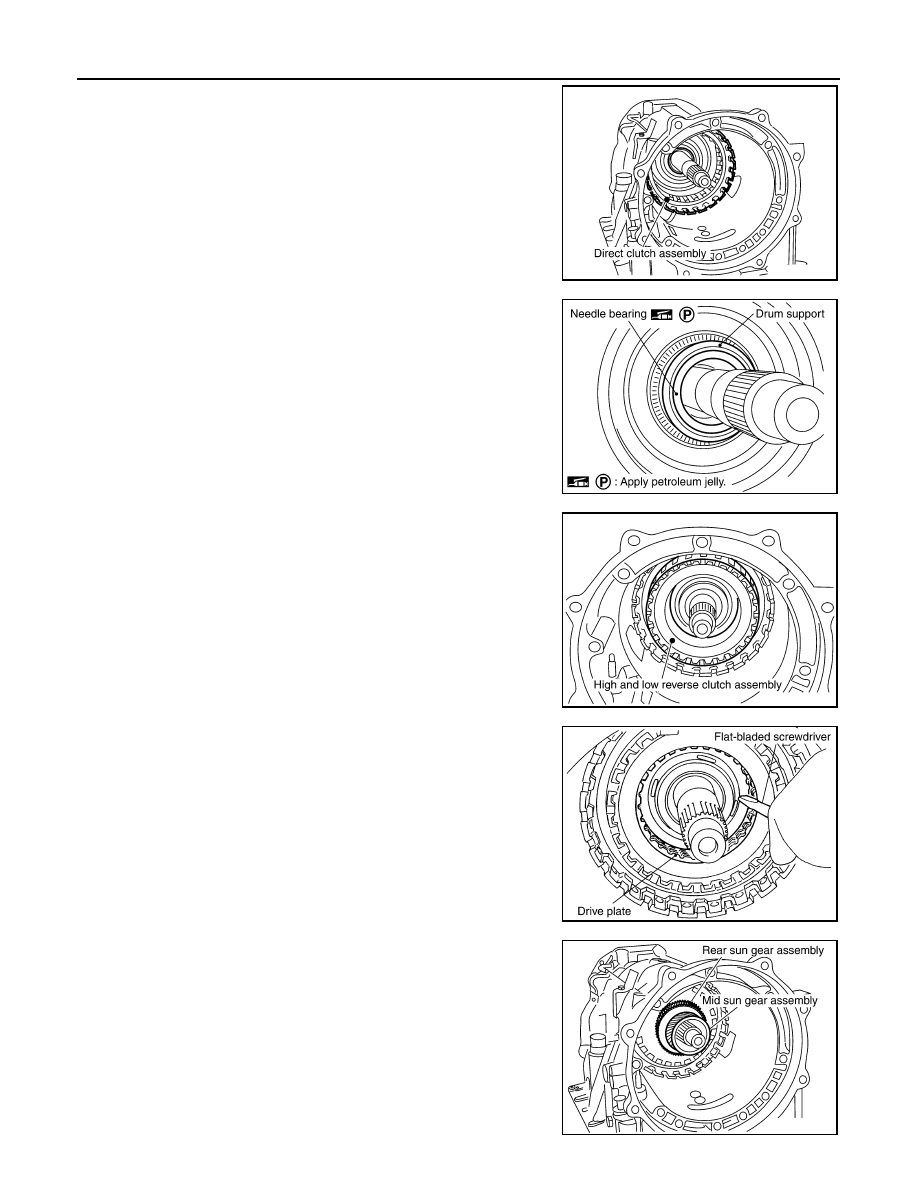

35. Install direct clutch assembly in reverse brake.

CAUTION:

Make sure that drum support edge surface and direct clutch

inner boss edge surface come to almost same place.

36. Install needle bearing in drum support.

CAUTION:

Apply petroleum jelly to needle bearing.

37. Install high and low reverse clutch assembly in direct clutch.

38. Align the drive plate using suitable tool.

39. Install high and low reverse clutch hub, mid sun gear assembly

and rear sun gear assembly as a unit.

SCIA5019E

SCIA5198E

SCIA2306E

SCIA3169E

SCIA5018E

ASSEMBLY

TM-271

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

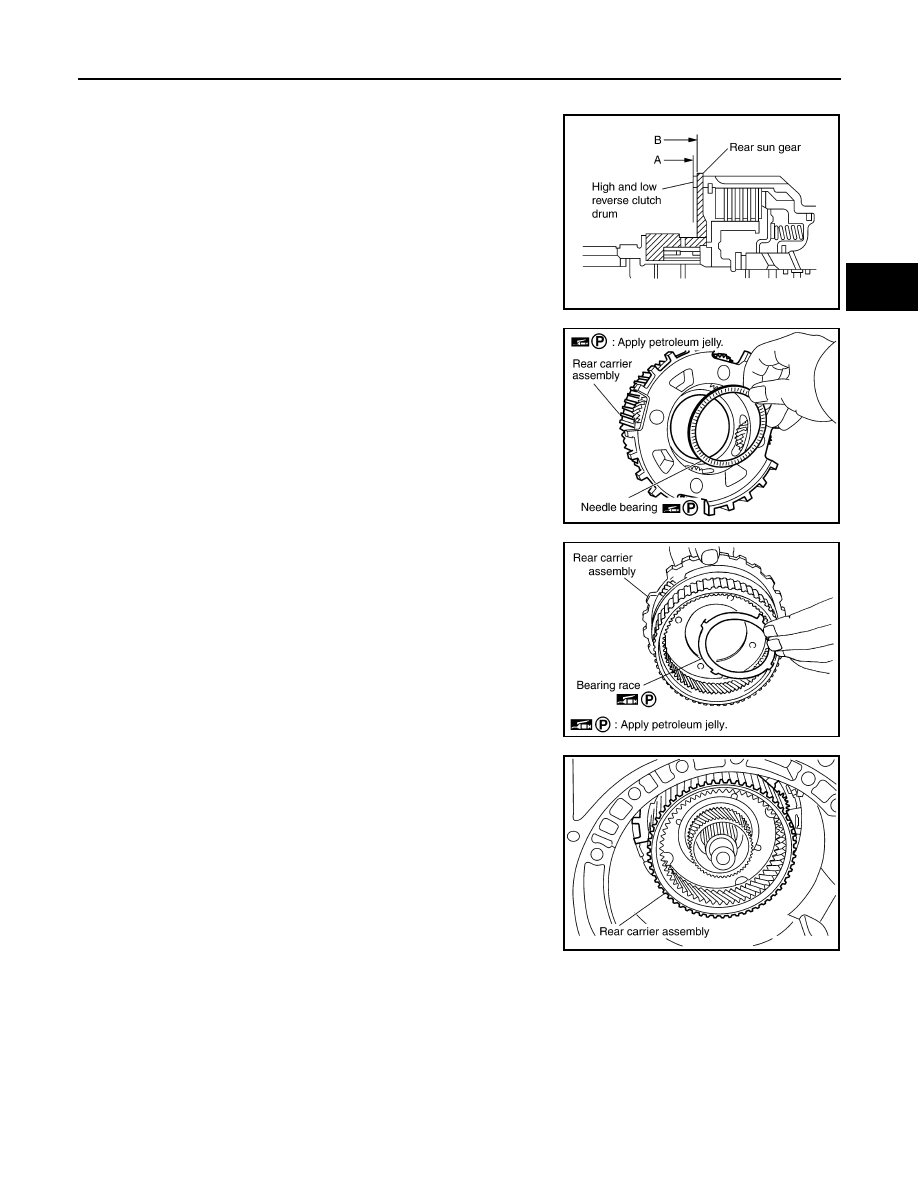

CAUTION:

Make sure that portion “A” of high and low reverse clutch

drum protrudes approximately 2 mm (0.08 in) beyond por-

tion “B” of rear sun gear.

40. Install needle bearing in rear carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

41. Install bearing race in rear carrier assembly.

CAUTION:

Apply petroleum jelly to bearing race.

42. Install rear carrier assembly in direct clutch drum.

SCIA3130E

SCIA2803E

SCIA5175E

SCIA2462E
