STEERING WHEEL

ST-9

< REMOVAL AND INSTALLATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

7. If steering column meets specification, repair steering gear. Refer to

ST-22, "Disassembly and Assembly"

.

CHECKING FRONT WHEEL TURNING ANGLE

When checking front wheel turning angle, refer to

FSU-6, "Front Wheel Alignment"

.

ST-10

< REMOVAL AND INSTALLATION >

POWER STEERING OIL PUMP

POWER STEERING OIL PUMP

On-Vehicle Inspection and Service

INFOID:0000000006164501

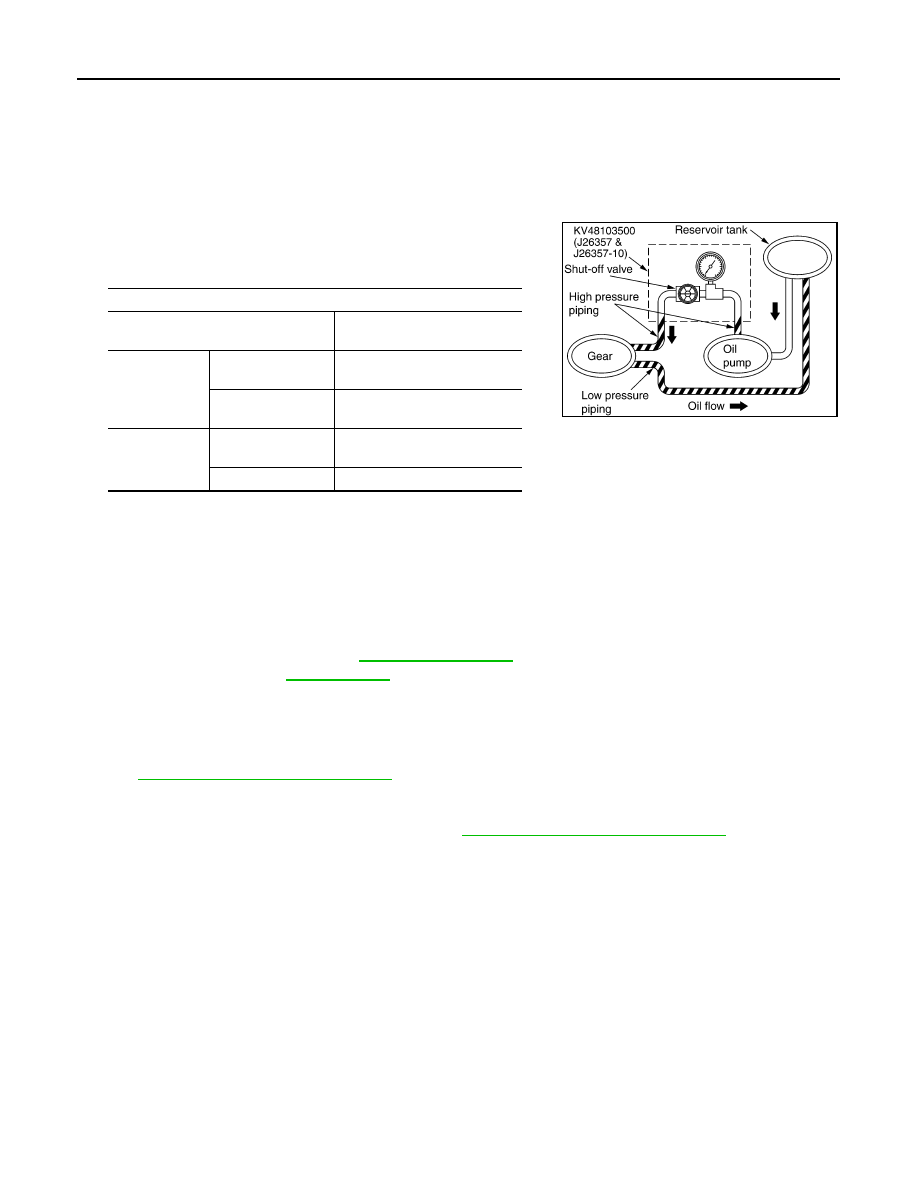

CHECKING RELIEF OIL PRESSURE

CAUTION:

Before starting work, confirm belt tension is proper.
1. Connect Tool between power steering oil pump discharge con-

nector and high pressure hose and then bleed air from the

hydraulic circuit.

2. Start engine. Allow engine to run until tank temperature reaches 50

° – 80°C (122° – 176°F).

CAUTION:

• Warm up engine with shut-off valve fully opened. If engine is started with shut-off valve closed,

fluid pressure in power steering oil pump increases to maximum. This will raise power steering

fluid temperature excessively.

• Be careful not to contact hose with belt when engine is started.

3. With engine at idle, close shut-off valve and read the relief oil pressure.

CAUTION:

Do not close shut-off valve of pressure gauge for more than 10 seconds.

4. After measurement, open shut-off valve slowly.

• If relief oil pressure is outside the specification, disassemble and repair power steering oil pump. Refer

to

ST-26, "Disassembly and Assembly"

.

5. After inspection, disconnect oil pressure gauge and oil pressure gauge adapter from hydraulic circuit, con-

nect power steering oil pump discharge connector and high pressure hose. Add power steering fluid and

bleed air from hydraulic circuit thoroughly. Refer to

ST-6, "Air Bleeding Hydraulic System"

.

Tool number:

Pressure gauge and shut-off valve

KV48103500
(J-26357 and J-26357-10)

Power steering
oil pump side

Connector A and O-
ring

KV48105300-4 and
5295262U10 (

)

Eye-bolt and O-ring

KV48105300-3 and
5295262U00 (

)

High pressure
piping side

Connector B and O-
ring

KV48105300-1 and
5295262U00 (

)

Nut

KV48105300-2 (

)

SGIA0570E

Relief oil pressure

: Refer to

ST-32, "Power Steer-

ing Oil Pump"

STEERING WHEEL

ST-11

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

UNIT REMOVAL AND INSTALLATION

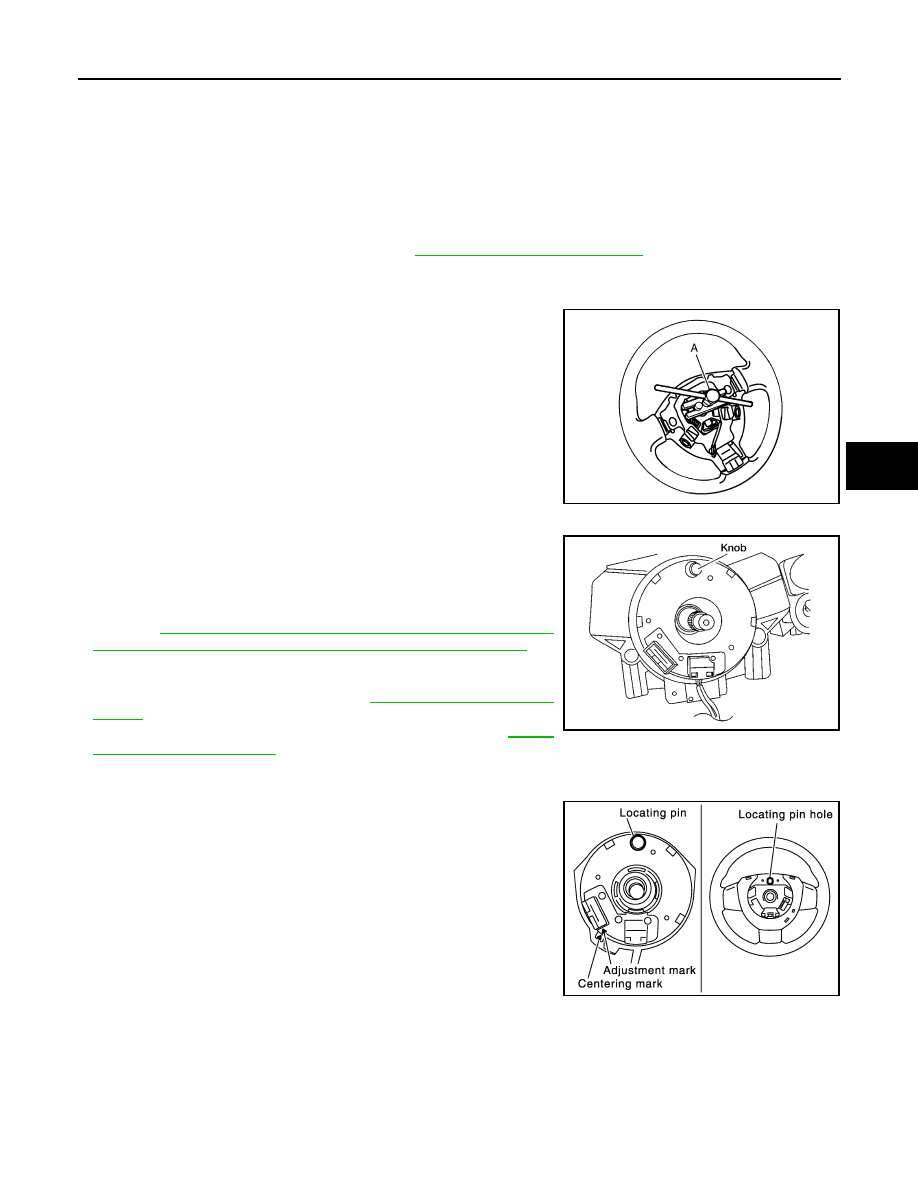

STEERING WHEEL

Removal and Installation

INFOID:0000000006164502

REMOVAL

1. Set the front wheels in the straight-ahead position.
2. Remove the driver air bag module. Refer to

SR-4, "Removal and Installation"

.

3. Disconnect steering wheel switches.
4. Remove the steering wheel center nut.
5. Remove the steering wheel using Tools.

CAUTION:

Place a piece of tape across the spiral cable so it will not be

rotated out of position.
6. Inspect the steering wheel near the puller holes for damage. If

damaged, replace the steering wheel.

• Remove steering wheel rear cover and steering wheel

switches, if required.

INSTALLATION

Installation is in the reverse order of removal.

• Align spiral cable correctly when installing steering wheel. Make

sure that the spiral cable is in the neutral position. The neutral

position is detected by turning left 2.5 revolutions from the right

end position and ending with the knob at the top.

• Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE SEN-

SOR NEUTRAL POSITION : Special Repair Requirement"

 for

steering angle sensor adjustment.

• After the work is completed, perform self-diagnosis to make sure

no malfunction is detected. Refer to

SRC-13, "SRS Operation

Check"

.

• Tighten steering wheel center nut to specification. Refer to

ST-12,

"Removal and Installation"

.

CAUTION:

• The spiral cable may snap due to steering operation if the

cable is not installed in the correct position.

• With the steering linkage disconnected, the cable may snap

by turning the steering wheel beyond the limited number of

turns. The spiral cable can be turned counterclockwise about

2.5 turns from the neutral position.

Tool number

A: ST27180001 (J-25726-A)

SGIA1524J

WGIA0038E

PHIA0275E

ST-12

< UNIT REMOVAL AND INSTALLATION >

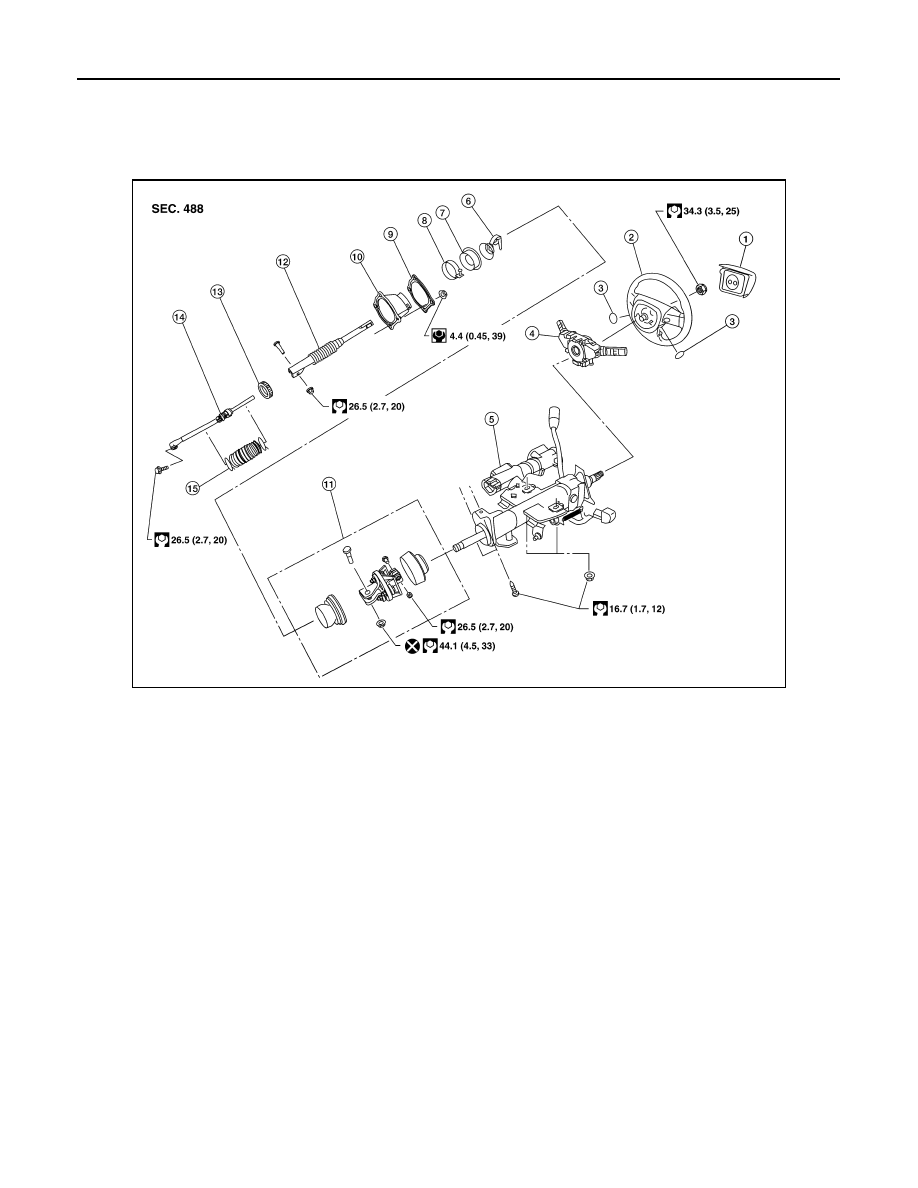

STEERING COLUMN

STEERING COLUMN

Removal and Installation

INFOID:0000000006164503

Column Shift Model

CAUTION:

• Any time the ignition switch has been disconnected, removed or installed, the keys must be re-regis-

tered in the BCM. Refer to Consult-III operations IVIS/NVIS.

• Care must be taken not to give axial impact to steering column assembly during removal and instal-

lation.

• Care must be taken not to move steering gear during removal of steering column assembly.

AWGIA0132GB

1.

Driver air bag module

2.

Steering wheel

3.

Steering wheel side cover

4.

Combination switch and spiral cable 5.

Steering column assembly

6.

Collar

7.

Hole cover seal

8.

Clamp

9.

Hole cover mounting plate

10. Hole cover

11. Upper joint

12. Upper shaft

13. Boot clamp

14. Lower joint shaft

15. Boot and clips (plastic)
