ST-1

STEERING

SECTION

CONTENTS

STEERING SYSTEM

PRECAUTION ...............................................

PRECAUTIONS ...................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

Precaution for Steering System ................................

PREPARATION ............................................

PREPARATION ...................................................

Special Service Tool .................................................

Commercial Service Tool ..........................................

SYMPTOM DIAGNOSIS ...............................

NOISE, VIBRATION, AND HARSHNESS
(NVH) TROUBLESHOOTING .............................

NVH Troubleshooting Chart ......................................

PERIODIC MAINTENANCE ..........................

POWER STEERING FLUID ................................

Checking Fluid Level .................................................

Checking Fluid Leakage ............................................

Air Bleeding Hydraulic System ..................................

REMOVAL AND INSTALLATION ................

STEERING WHEEL .............................................

On-Vehicle Inspection and Service ...........................

POWER STEERING OIL PUMP .........................

On-Vehicle Inspection and Service .........................

UNIT REMOVAL AND INSTALLATION ......

STEERING WHEEL ..........................................

Removal and Installation .........................................

STEERING COLUMN ........................................

Removal and Installation .........................................

POWER STEERING GEAR AND LINKAGE ....

Removal and Installation .........................................

POWER STEERING OIL PUMP .......................

Removal and Installation .........................................

HYDRAULIC LINE ............................................

Removal and Installation .........................................

UNIT DISASSEMBLY AND ASSEMBLY ....

STEERING COLUMN ........................................

Disassembly and Assembly .....................................

POWER STEERING GEAR AND LINKAGE ....

Disassembly and Assembly .....................................

POWER STEERING OIL PUMP .......................

Disassembly and Assembly .....................................

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

Steering Wheel ........................................................

Steering Column ......................................................

Steering Outer Socket and Steering Inner Socket ....

Power Steering Gear ...............................................

Power Steering Oil Pump ........................................

Power Steering Fluid ...............................................

ST-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006164492

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Steering System

INFOID:0000000006164493

• Before disassembly, thoroughly clean the outside of the unit.

• Disassembly should be done in a clean work area. It is important to prevent the internal parts from becoming

contaminated by dirt or other foreign matter.

• For easier and proper assembly, place disassembled parts in order on a parts rack.

• Use nylon cloth or paper towels to clean the parts; common shop rags can leave lint that might interfere with

their operation.

• Before inspection or reassembly, carefully clean all parts with a general purpose, non-flammable solvent.

• Before assembly, apply a coat of recommended Genuine NISSAN PSF or equivalent to hydraulic parts.

Petroleum jelly may be applied to O-rings and seals. Do not use any grease.

• Replace all gaskets, seals and O-rings. Avoid damaging O-rings, seals and gaskets during installation. Per-

form functional tests whenever designated.

PREPARATION

ST-3

< PREPARATION >

PREPARATION

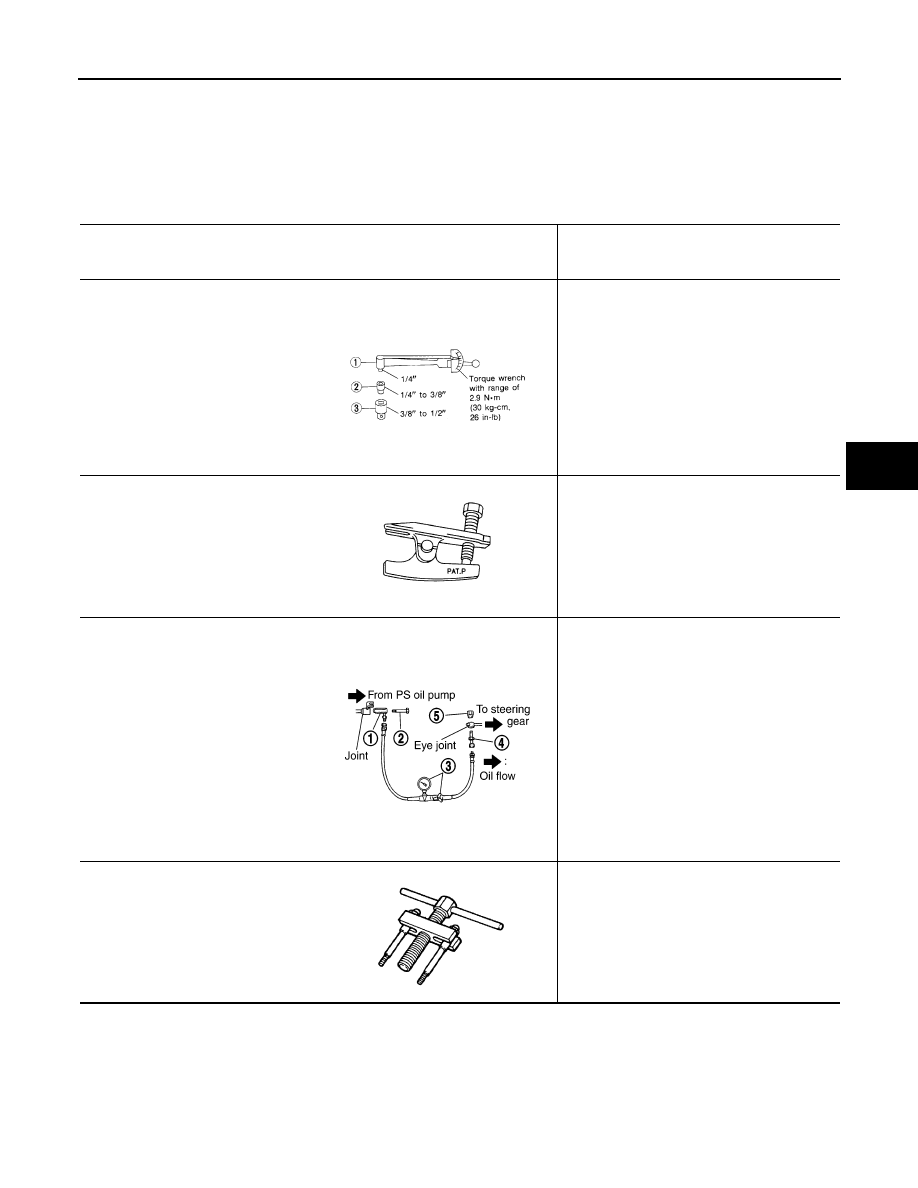

Special Service Tool

INFOID:0000000006164494

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST3127 S000
(See J-25765-A)
Preload gauge
1. GG9103000
   (J-25765-A)
   Torque wrench
2. HT62940000
   (      —       )
   Socket adapter
3. HT62900000
   (       —       )
   Socket adapter

Inspecting of pinion rotating torque and rota-
tional torque for ball joint

HT72520000
(J-25730-A)
Ball joint remover

Removing steering outer socket

1. KV48105300-4 and 5295262U10
(          —           )
Connector A and O-ring
2. KV48105300-3 and 5295262U00
(          —           )
Eye-bolt and O-ring
3. KV48103500
(J-26357 and J-26357-10)
Pressure gauge and shut-off valve
4. KV48105300-1 and 5295262U00
(          —           )
Connector B and O-ring
5. KV48105300-2
(          —           )
Nut

Measuring oil pump relief pressure

ST27180001
(J-25726-A)
Steering wheel puller

Removing steering wheel

S-NT541

NT146

SGIA0427E

ZZA0819D

ST-4

< PREPARATION >

PREPARATION

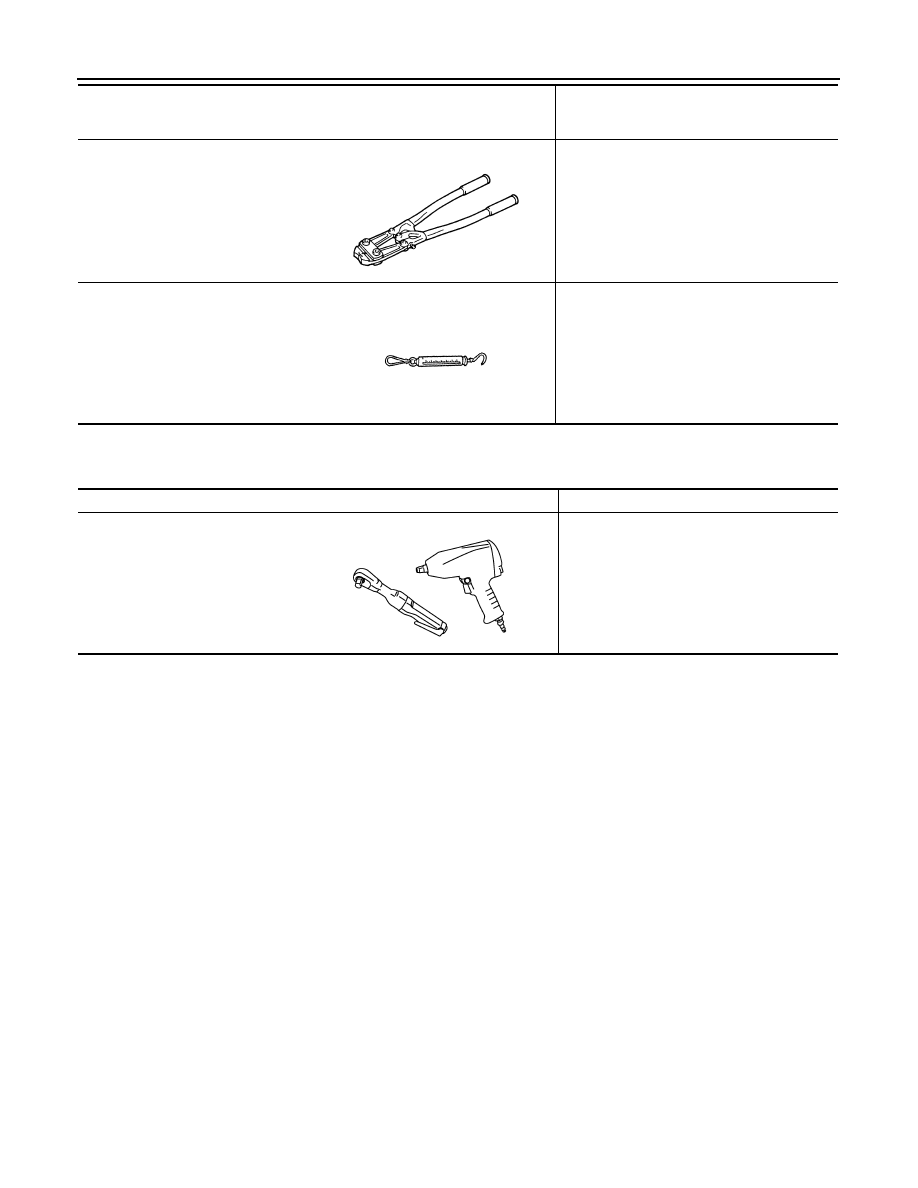

Commercial Service Tool

INFOID:0000000006164495

KV40107300
(

—

)

Crimping boot bands

—

(J-44372)
Spring gauge

Measuring steering wheel turning force

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA1229D

LST024

Tool name

Description

Power tool

Removing nuts and bolts

PBIC0190E
