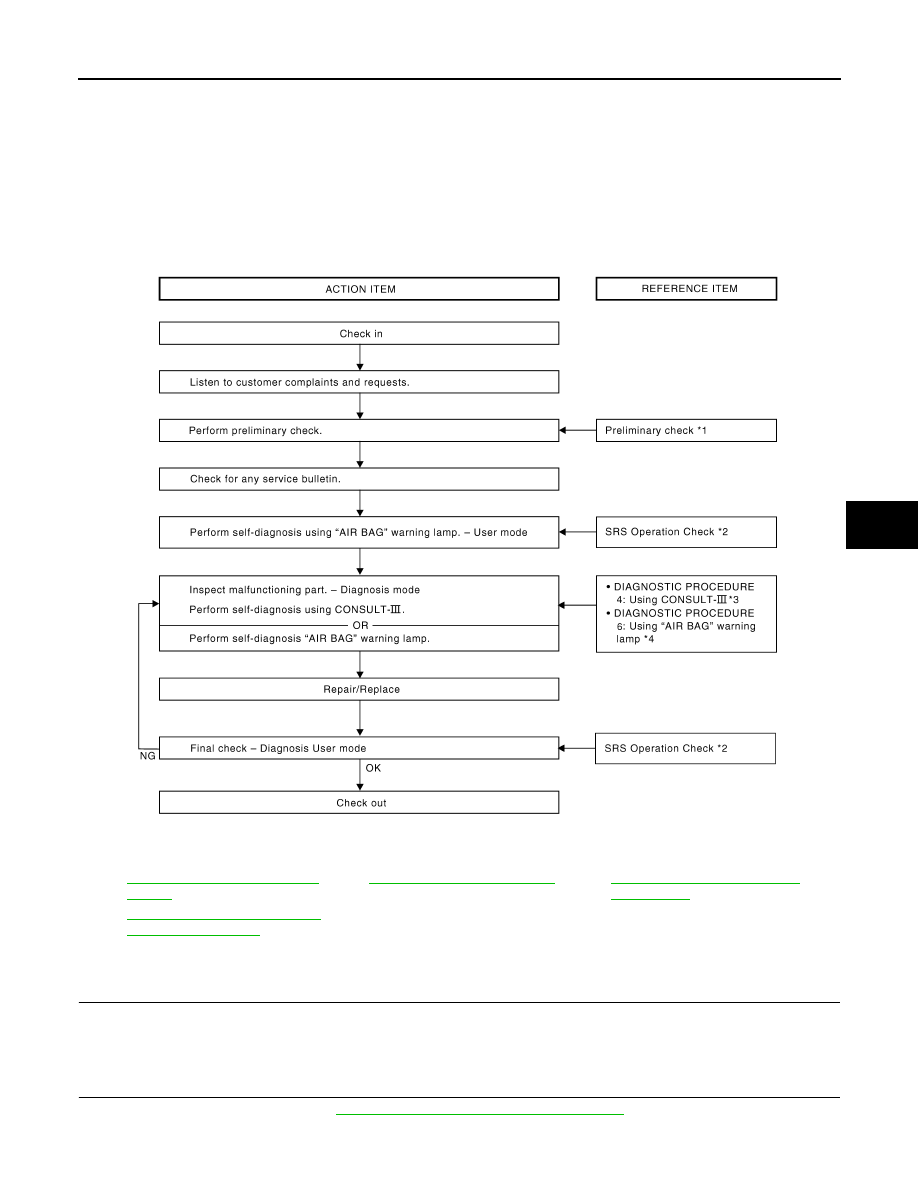

Center inner pillar
1.
Check the center inner pillar on the collision side for damage (dents, cracks, deformation,
etc.).
2.
If damaged - REPAIR the center inner pillar.
Trim/headlining
1.
Check for visible signs of damage (dents, cracks, deformation, etc.) of the interior tim on the
collision side.
2.
If damaged - REPLACE the damaged trim parts.
Door-mounted curtain air bag
module LH
If the door-mounted curtain air bag LH has NOT deployed:
1.
Check for visible signs of damage (dents tears, deformation, etc.) of the door finisher on the
collision side.
2.
If damaged - REPLACE the door finisher LH with new fasteners.
3.
Check for visible signs of damaged (dears etc.) of the door-mounted curtain air bag module
LH.
4.
Check harness and connectors for damage, and terminals for deformities.
5.
If no damage is found, reinstall door finisher.
CAUTION:
When removing door mounted curtain air bag module from door finisher, never reuse
door finisher.
6.
If damaged - REPLACE the door finisher LH and door-mounted curtain air bag module LH
with new fasteners.
Door-mounted curtain air bag
module RH
If the door-mounted curtain air bag RH has NOT deployed:
1.
Check for visible signs of damage (dents tears, deformation, etc.) of the door finisher on the
collision side.
2.
If damaged - REPLACE the door finisher RH with new fasteners.
3.
Check for visible signs of damaged (tears etc.) of the door-mounted curtain air bag module
RH.
4.
Check harness and connectors for damage, and terminals for deformities.
5.
If no damage is found, reinstall door finisher.
CAUTION:
When removing door mounted curtain air bag module from door finisher, never reuse
door finisher.
6.
If damaged - REPLACE the door finisher RH and door-mounted curtain air bag module RH
with new fasteners.
Pop-up roll bar
If the pop-up roll bar NOT deployed:
1.
Check for visible signs of damage (dents tears, deformation, etc.) of the pop-up roll bar.
2.
If damaged - REPLACE the pop-up roll bar with new fasteners.
3.
Check harness and connectors for damage, and terminals for deformities.
4.
If no damage is found, reinstall the pop-up roll bar with new fasteners.
5.
Check for visible signs of damage (dents, cracks, deformation, etc.) of the seatback support
brace assembly.
6.
If damaged - REPAIR the seatback support brace assembly.
