SRC-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

>> GO TO 3

3.

TECHNICAL SERVICE BULLETINS

Check for technical service bulletins.

>> GO TO 4

4.

USER MODE

Perform self-diagnosis using the AIR BAG warning lamp in User mode.  Refer to

SRC-13, "SRS Operation

Check"

.

>> GO TO 5

5.

SELF-DIAGNOSIS

Perform SELF-DIAGNOSIS.  Refer to

SRC-60, "Trouble Diagnosis with CONSULT-III"

 (w/CONSULT-III) or

SRC-62, "Trouble Diagnosis without CONSULT-III"

 (w/o CONSULT- III).

>> GO TO 6

6.

REPLACE PART

Replace the malfunctioning part.

>> GO TO 7

7.

FINAL CHECK

Check SRS using Diagnosis mode and User mode.
Does Diagnosis mode and User mode indicate SRS normal?

YES

>> Inspection end.

NO

>> GO TO 5

INTERMITTENTS INCIDENT

SRC-5

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

INTERMITTENTS INCIDENT

Inspection Procedure

INFOID:0000000006163123

INTERMITTENT TROUBLE

An intermittent incident may have occurred in the past but is not being detected currently.  This DTC will not be

detected on SELF DIAG [CURRENT], but may be viewed on SELF DIAG [PAST] using CONSULT-III.

Trouble Diagnosis with CONSULT-III

INFOID:0000000006163124

DIAGNOSTIC PROCEDURE 4

Check SRS Repair History

1.

CONSIDER POSSIBILITY THAT SELF-DIAGNOSTIC RESULT WAS NOT ERASED AFTER REPAIR

Check repair history of the SRS.
Have any previous repairs been made to the SRS?

Yes

>> Self-diagnostic result SELF-DIAG [PAST] (previously stored in the memory) might not be erased

after repair. Go to DIAGNOSTIC PROCEDURE 3.  Refer to

SRC-15, "Self-Diagnosis Function

(Without CONSULT-III)"

.

No

>> Go to DIAGNOSTIC PROCEDURE 2.  Refer to

SRC-13, "SRS Operation Check"

.

SRC-6

< SYSTEM DESCRIPTION >

SRS AIR BAG SYSTEM

SYSTEM DESCRIPTION

SRS AIR BAG SYSTEM

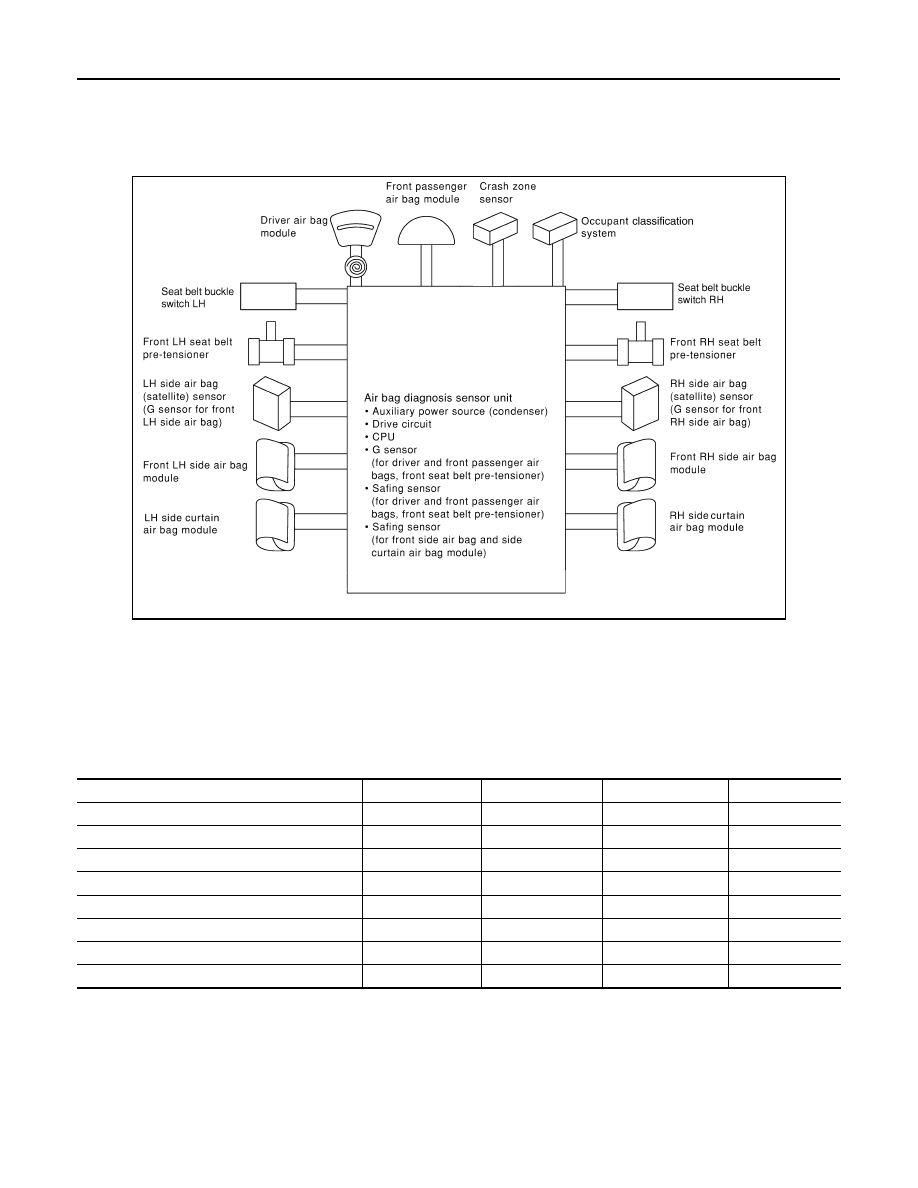

SRS Configuration

INFOID:0000000006163125

The air bag deploys if the air bag diagnosis sensor unit is activated while the ignition switch is in the ON or

START position.

The collision modes for which supplemental restraint systems are activated are different among the SRS sys-

tems. For example, the driver air bag module, front passenger air bag module and front seat belt pre-tension-

ers are activated in a frontal collision but not in a side collision.

SRS configurations for some collision modes are as follows:

WHIA0186E

SRS configuration

Frontal collision

Left side collision

Right side collision

Rollover

Driver air bag module

×

—

—

—

Front passenger air bag module

×

—

—

—

Front LH seat belt pre-tensioner

×

—

—

×

Front RH seat belt pre-tensioner

×

—

—

×

Front LH side air bag module

—

×

—

—

Front RH side air bag module

—

—

×

—

LH side curtain air bag module

—

×

—

×

RH side curtain air bag module

—

—

×

×

SRS AIR BAG SYSTEM

SRC-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

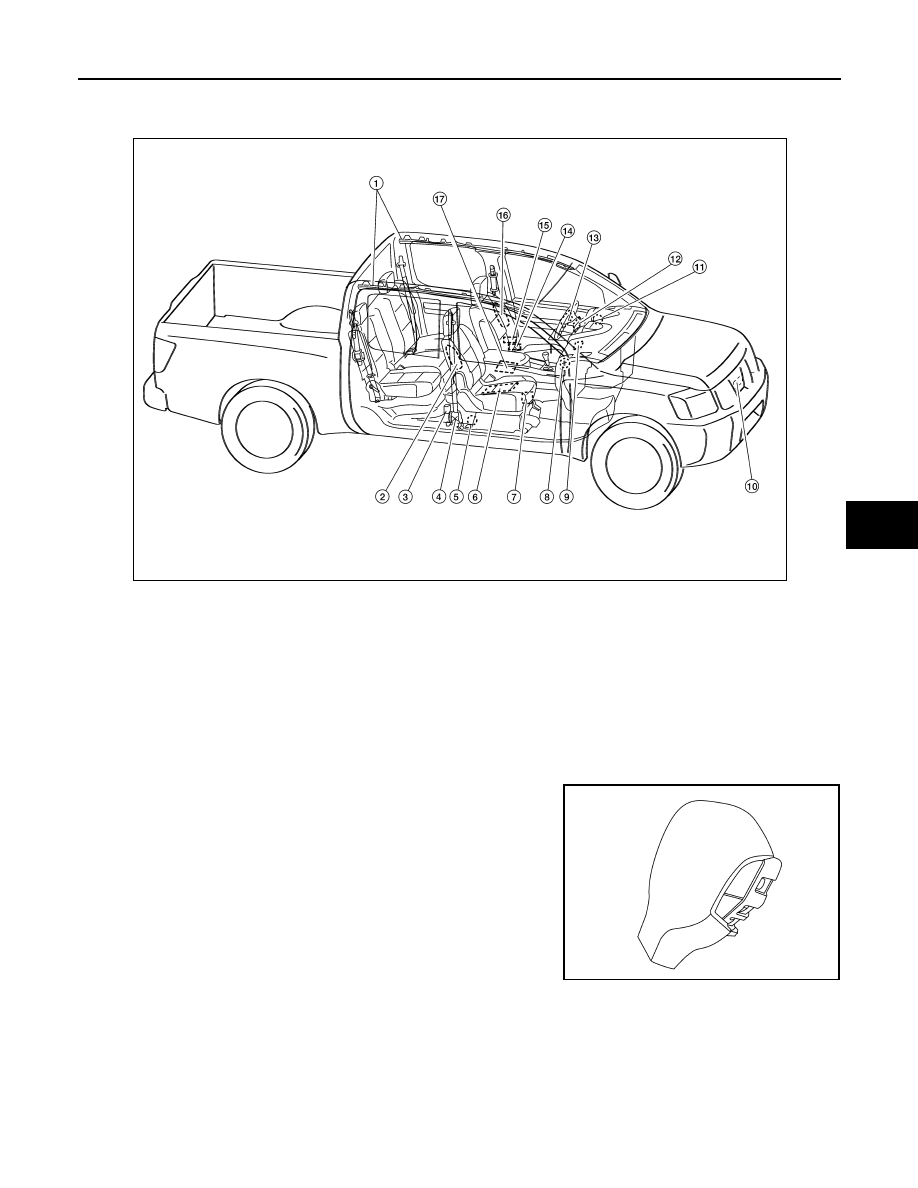

SRS Component Parts Location

INFOID:0000000006163126

Driver Air Bag Module

INFOID:0000000006163127

The driver air bag module is dual stage and located in the steering

wheel assembly.  It operates with the SRS system in a frontal colli-

sion exceeding a specified level.

1.

Side curtain air bag modules

2.

Front RH side air bag module

3.

RH side air bag (satellite) sensor

4.

Front RH seatbelt pre-tensioner

5.

Belt tension sensor

6.

Occupant classification system sensor

7.

Occupant classification system con-
trol unit

8.

Front passenger air bag off indi-
cator

9.

Front passenger air bag module

10. Crash zone sensor

11. Air bag warning lamp

12. Spiral cable

13. Driver air bag module

14. Front LH seatbelt pre-tensioner 15. LH side air bag (satellite) sensor

16. Front LH side air bag module

17. Air bag diagnosis sensor unit

WHIA0221E

WHIA0325E
