Nissan Titan A60. Manual - part 769

PG

HARNESS

PG-57

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

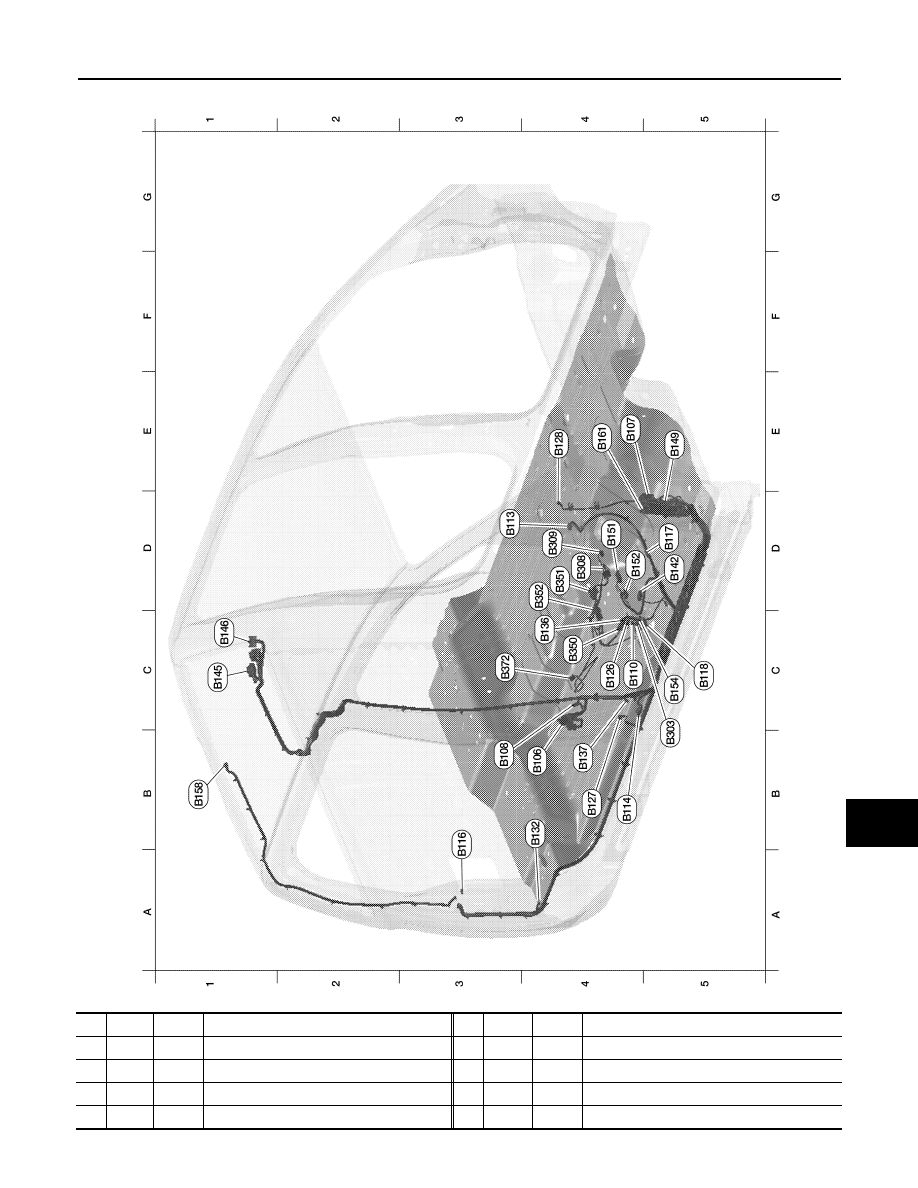

BODY NO. 2 HARNESS (CREW CAB MODELS)

ABMIA0125GB

B4

B106

W/18

: To D301

C1 B145

W/16

: To R200

E4

B107

W/8

: To E139

C1 B146

BR/24

: To R201

B3

B108

W/3

: Front door switch RH

E5

B149

SMJ

: To M36

C4 B110

W/3

: Seat belt buckle switch RH

D4 B151

W/40

: NAVI control unit

D3 B113

Y/12

: Air bag diagnosis sensor unit

D4 B152

W/32

: NAVI control unit

PG-58

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

B4

B114

Y/2

: RH side air bag (satellite) sensor

C5 B154

W/2

: To B303

B3

B116

W/3

: Rear door switch RH

B1

B158

W/3

: High-mounted stop lamp

D5 B117

—

: Body ground

E4

B161

W/20

: To M157

C5 B118

W/3

: Front seat heater RH

Front seat RH harness

C4 B126

Y/2

: Front RH side air bag module

B5

B303

W/2

: To B154

B4

B127

Y/2

: Front RH seat belt pre-tensioner

D4 B308

W/6

: Power seat switch RH

E4

B128

Y/2

: RH side curtain air bag module

D4 B309

GR/2

: Sliding motor RH

B4

B132

—

: Body ground

C4 B350

Y/8

: To B136

C4 B136

W/8

: To B350

D4 B351

B/18

: Occupant classification control unit

B4

B137

W/3

: Belt tension sensor

D4 B352

B/3

: Occupant classification system sensor

D5 B142

W/32

: Bluetooth control unit

C3 B372

W/2

: Reclining motor RH

PG

HARNESS

PG-59

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

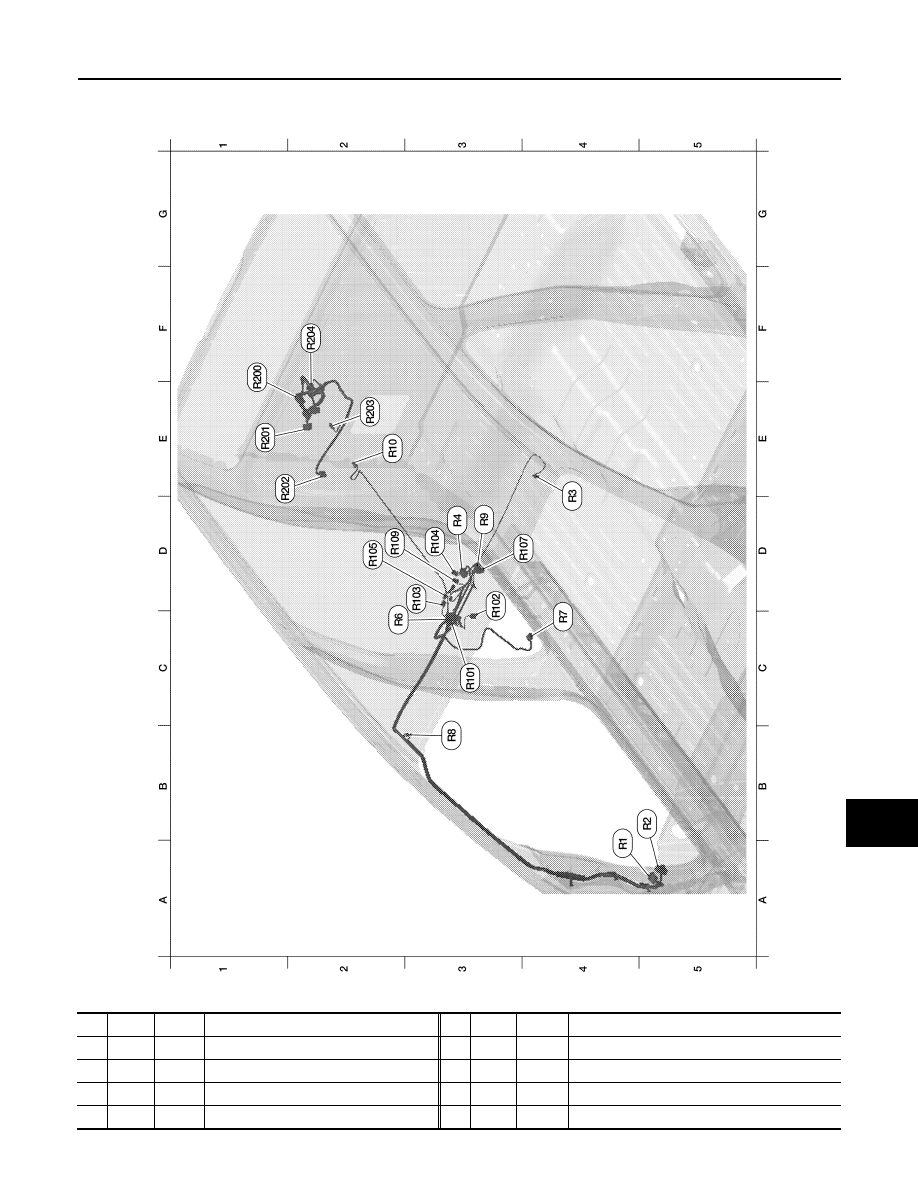

ROOM LAMP HARNESS

ABMIA0126GB

A4

R1

W/16

: To M1

D3 R103

W/6

: Rear power drop glass switch

B5

R2

W/12

: To M2

D3 R104

GR/6

: Sunroof switch

E4

R3

W/2

: Vanity lamp LH

D2 R105

W/4

: Bluetooth ON indicator

D3 R4

W/10

: Sunroof motor assembly

D3 R107

W/8

: To R9

C2 R6

W/16

: To R101

D2 R109

W/4

: Microphone

PG-60

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

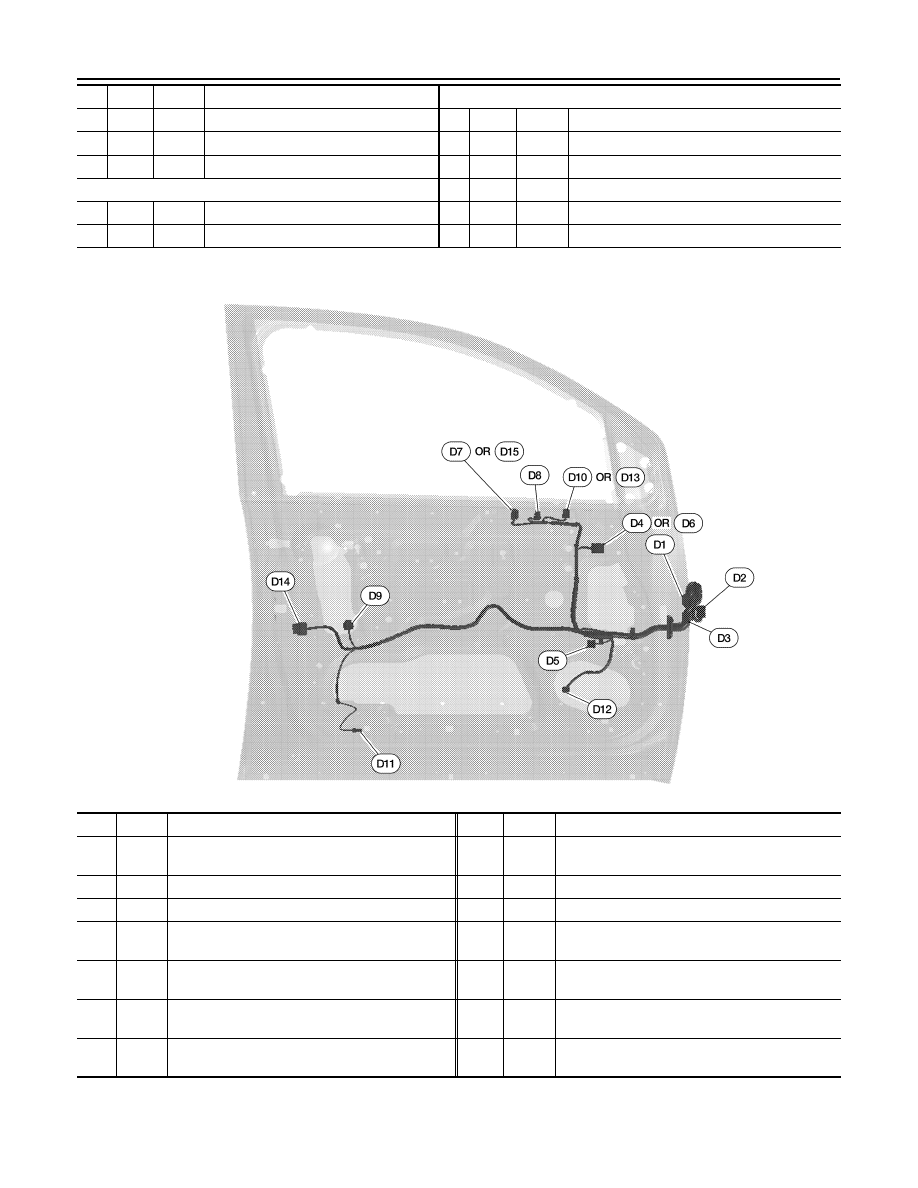

FRONT DOOR LH HARNESS

C4 R7

GR/10 : Auto anti-dazzling inside mirror

Room lamp sub-harness B

B3

R8

W/2

: Vanity lamp RH

F1

R200

W/16

: To B145

D3 R9

W/8

: To R107

E1

R201

BR/24

: To B146

E2

R10

W/2

: Room lamp

E1

R202

W/12

: Video monitor

Room lamp sub-harness A

E2

R203

W/3

: Personal lamp 2ND row

C3 R101

W/16

: To R6

F2

R204

W/16

: Rear audio remote control unit

D3 R102

GR/8

: Front room/map lamp assembly

ABMIA0127GB

D1

BR/24

: To M9

D9

GR/6

: Front power window motor LH

D2

W/16

: To M8

D10

BR/16

: Door mirror remote control switch (with
  automatic drive positioner)

D3

W/10

: To M158

D11

W/2

: Front step lamp LH

D4

W/16

: Door mirror LH (with automatic drive positioner)

D12

W/2

: Front door speaker LH

D5

W/8

: Seat memory switch

D13

W/16

: Door mirror remote control switch (without
  automatic drive positioner)

D6

W/6

: Door mirror LH (without automatic drive
  positioner)

D14

B/6

: Front door lock assembly LH

D7

W/16

: Main power window and door lock/unlock switch
  (crew cab)

D15

W/16

: Main power window and door lock/unlock switch
  (king cab)

D8

W/3

: Main power window and door lock/unlock switch
  (crew cab)
