Nissan Titan A60. Manual - part 770

PG

HARNESS

PG-61

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

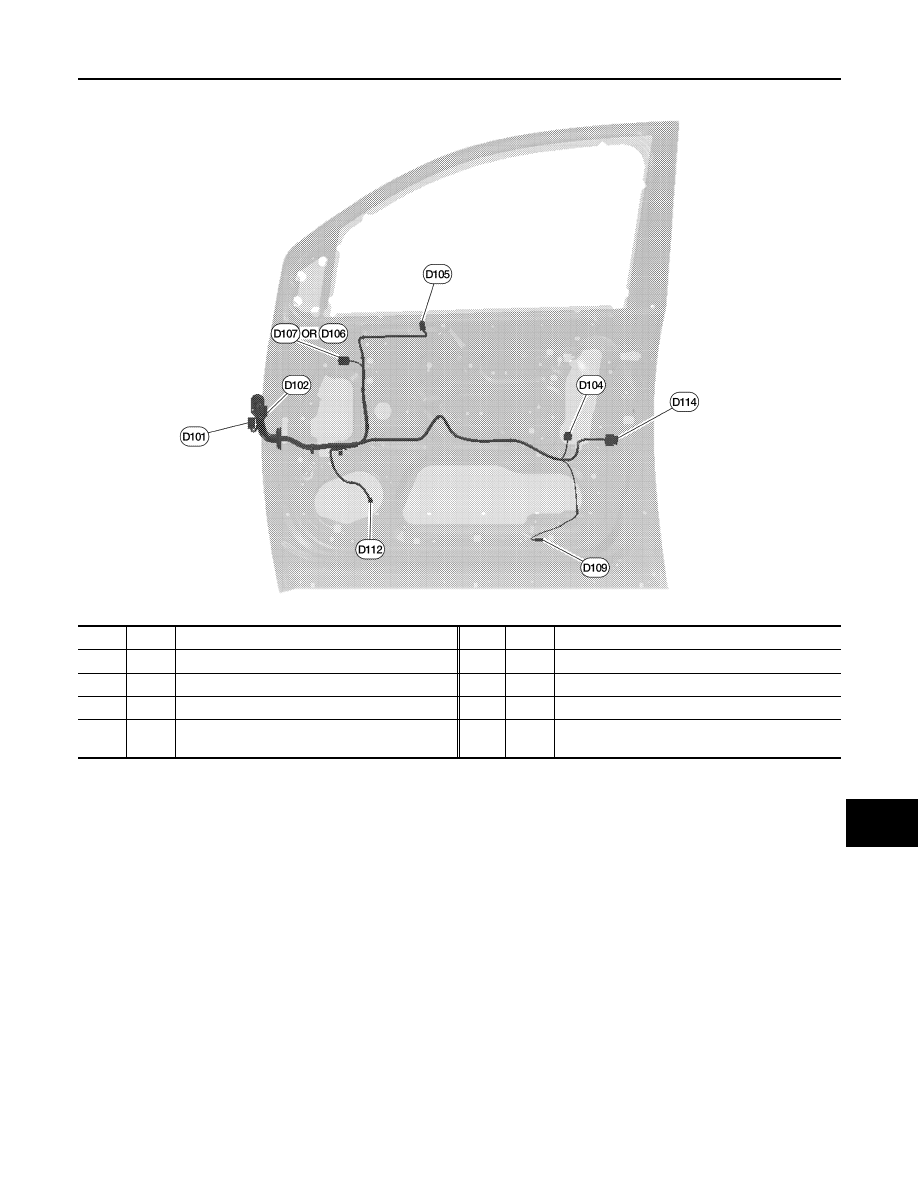

FRONT DOOR RH HARNESS

ABMIA0128GB

D101

W/10

: To M75

D107  W/16

: Door mirror RH (with automatic drive positioner)

D102

BR/20 : To M74

D109

W/2

: Front step lamp RH

D104

GR/6

: Front power window motor RH

D112

W/2

: Front door speaker RH

D105

W/16

: Power window and door lock/unlock switch RH

D114

B/6

: Front door lock actuator RH

D106 W/6

: Door mirror RH (without automatic drive
  positioner)

PG-62

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

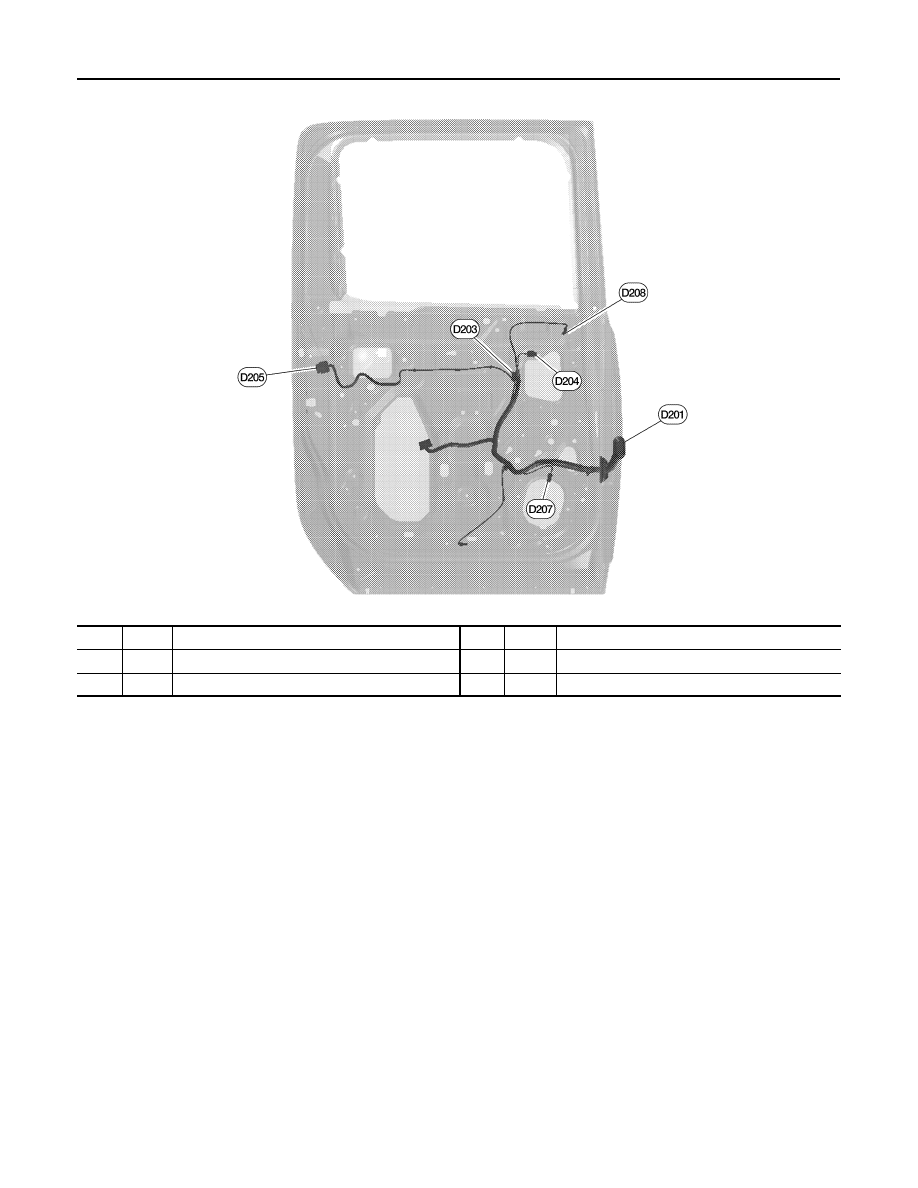

REAR DOOR LH HARNESS (CREW CAB MODELS)

ABMIA0129GB

D201

W/18

: To B6

D205 B/6

: Rear door lock actuator LH

D203

W/8

: Rear power window switch LH

D207 W/2

: Rear door speaker LH

D204

GR/2

: Rear power window motor LH

D208 BR/2

: Rear door tweeter LH

PG

HARNESS

PG-63

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

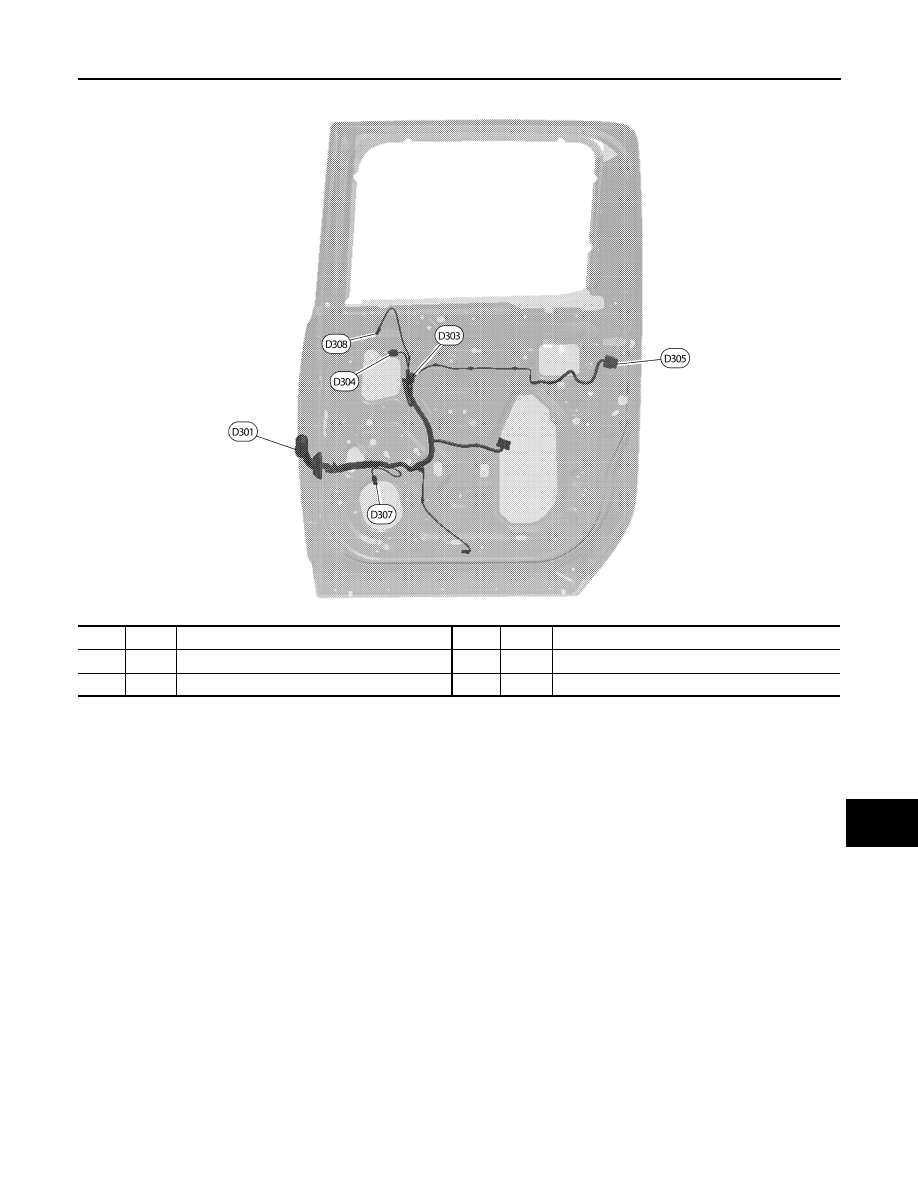

REAR DOOR RH HARNESS (CREW CAB MODELS)

ABMIA0130GB

D301

W/18

: To B106

D305

B/6

: Rear door lock actuator RH

D303

W/8

: Rear power window switch RH

D307

W/2

: Rear door speaker RH

D304

GR/2

: Rear power window motor RH

D308

BR/2

: Rear door tweeter RH

PG-64

< DTC/CIRCUIT DIAGNOSIS >

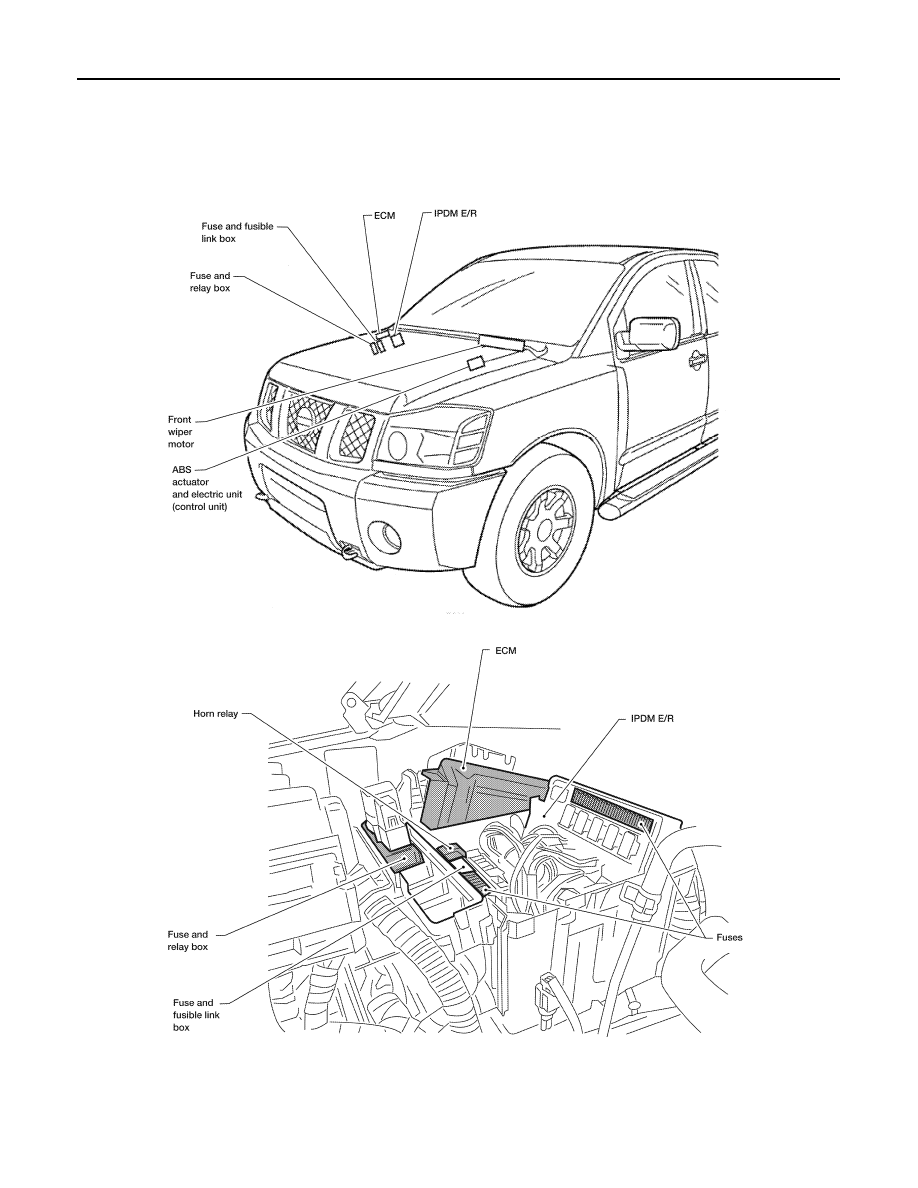

ELECTRICAL UNITS LOCATION

ELECTRICAL UNITS LOCATION

Electrical Units Location

INFOID:0000000006179649

ENGINE COMPARTMENT

ALMIA0303GB
