E5

F3

B/1

: A/C Compressor

B3

F39

—

: Fusible link (battery)

D5 F4

GR/1

: Oil pressure switch

D4

F41

GR/2

: Fuel injector No. 3

D2 F5

GR/4

: Air fuel ratio (A/F) sensor 1 (bank 2)

D4

F42

GR/2

: Fuel injector No. 5

C4 F6

GR/3

: Ignition coil No. 2 (with power transistor)

D3

F45

GR/2

: Fuel injector No. 7

C3 F7

GR/3

: Ignition coil No. 4 (with power transistor)

B4

F46

B/3

: Power steering pressure sensor

C3 F8

GR/3

: Ignition coil No. 6 (with power transistor)

E4

F47

GR/3

: Ignition coil No. 1 (with power transistor)

E2

F9

G/10

: A/T assembly (floor shift)

E4

F48

GR/3

: Ignition coil No. 3 (with power transistor)

C2 F10

—

: Engine ground

E4

F49

GR/3

: Ignition coil No. 5 (with power transistor)

D3 F11

B/3

: Crankshaft position sensor (POS)

D4

F50

B/6

: Electric throttle control actuator

E1

F12

G/4

: Heated oxygen sensor 2 (bank 2)

E4

F51

GR/3

: Ignition coil No. 7 (with power transistor)

F2

F13

G/4

: Heated oxygen sensor 2 (bank 1)

D2

F52

GR/3

: Ignition coil No. 8 (with power transistor)

C2 F14

W/24

: To E5

E5

F53

B/6

: Mass air flow sensor

D4 F15

GR/2

: EVAP canister purge volume control
  solenoid valve

B2

F54

B/81

: ECM

E5

F16

—

: Engine ground

F2

F55

B/2

: ATP switch

E2

F17

G/10

: A/T assembly (column shift)

F1

F58

B/8

: Transfer control device

C4 F18

GR/2

: Fuel injector No. 2

F2

F59

GR/2

: Wait detection switch

D4 F20

GR/2

: Fuel injector No. 4

F2

F60

GR/2

: 4LO switch

F4

F21

GR/2

: Condenser-1

D5

F61

G/2

: Intake valve timing control solenoid valve
  (bank 1)

D3 F22

GR/2

: Fuel injector No. 6

D4

F62

B/3

: Intake valve timing control position sensor
  (bank 1)

D4 F23

B/3

: Camshaft position sensor (PHASE)

C4

F63

G/2

: Intake valve timing control solenoid valve
  (bank 2)

D2 F25

W/2

: Diode-2

C4

F64

B/3

: Intake valve timing control position sensor
  (bank 2)

D4 F26

B/6

: To F101

F3

F65

GR/4

: Air fuel ratio (A/F) sensor 1 (bank 1)

E3

F27

—

: Starter motor

C2

F68

GR/2

: Water valve

E3

F28

GR/1

: Starter motor

Engine control sub-harness

D4 F30

GR/2

: Fuel injector No. 1

C5

F101

B/6

: To F26

D3 F31

GR/2

: Fuel injector No. 8

C4

F102

B/2

: Knock sensor (bank 1)

B2

F32

W/16

: To E2

C5

F103

GR/2

: Engine coolant temperature sensor

C2 F33

W/16

: To E19

D4

F104

B/2

: Knock sensor (bank 2)

C2 F34

W/2

: To E39

PG-50

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

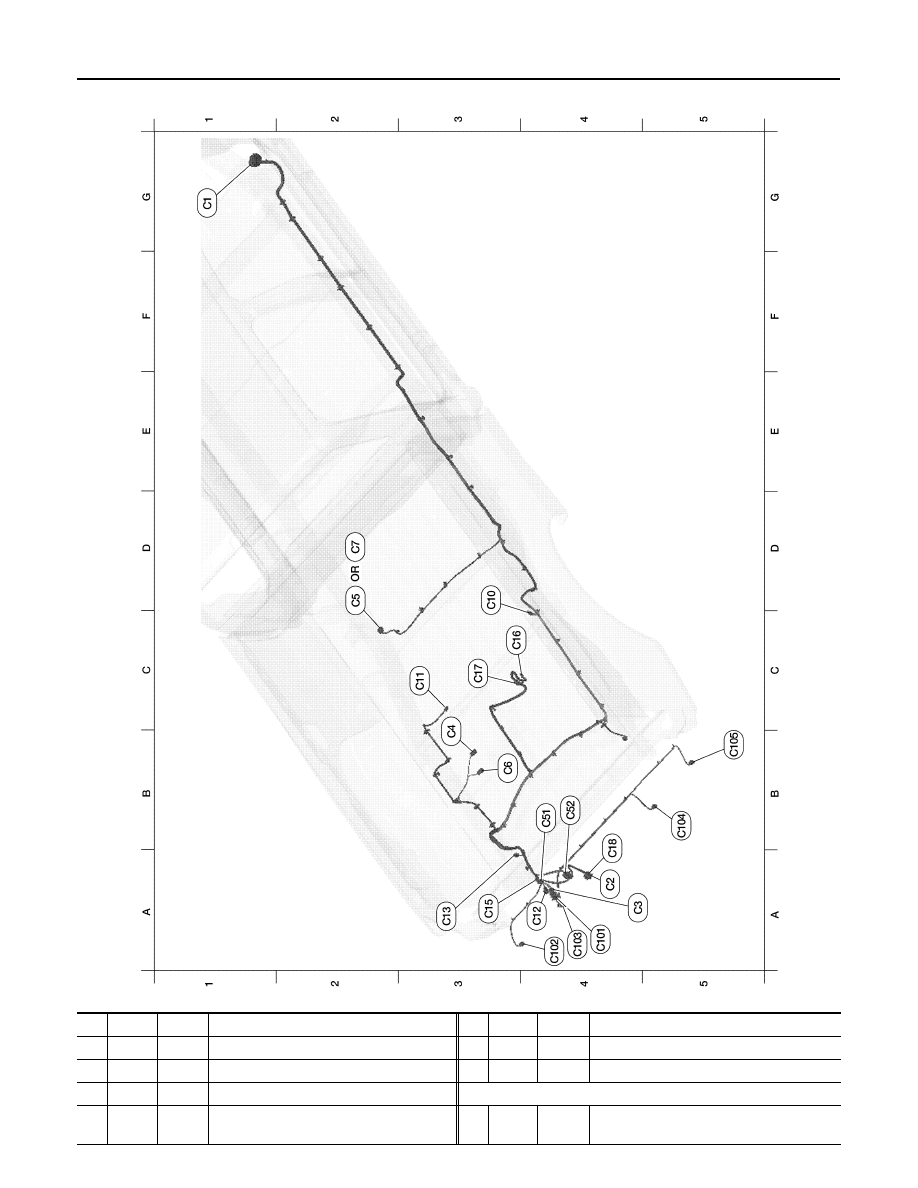

CHASIS HARNESS

ABMIA2528GB

G1 C1

SMJ

: To E41

C3 C16

GR/2

: Differential lock position switch

A4

C2

B/7

: Trailer

C3 C17

B/2

: Differential lock solenoid

A4

C3

GR/6

: To C101

A4

C18

B/7

: Trailer receptacle

C3 C4

GR/3

: Evap control system pressure sensor

Rear power socket sub-harness

D2 C5

GR/5

: Fuel level sensor unit and fuel pump
  (without flexible fuel)

B4

C51

W/2

: To C15

PG

HARNESS

PG-51

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BODY HARNESS (KING CAB MODELS)

B3

C6

B/2

: Evap canister vent control valve

B4 C52

BR/7

: Rear cargo power socket (cargo bed)

D2 C7

GR/5

: Fuel level sensor unit and fuel pump
  (with flexible fuel)

Rear sonar sensor sub-harness

D3 C10

GR/2

: Rear wheel sensor RH

A4 C101

GR/6

: To C3

C3 C11

BR/2

: Rear wheel sensor LH

A4 C102

B/3

: Rear sonar sensor LH outer

A4

C12

W/2

: License plate lamps

A4 C103

B/3

: Rear sonar sensor LH inner

A3

C13

GR/8

: Rear combination lamp LH

B5 C104

B/3

: Rear sonar sensor RH inner

C5 C14

GR/8

: Rear combination lamp RH

B5 C105

B/3

: Rear sonar sensor RH outer

A3

C15

W/2

: To C51

PG-52

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

D5 B7

—

: Body ground

F3

B77

B/26

: Differential lock control unit

F4

B8

W/3

: Front door switch LH

Front seat LH harness

D4 B9

Y/12

: Air bag diagnosis sensor unit

E5

B200

W/16

: To B37 (with automatic drive positioner)

E5

B10

Y/2

: Front LH side air bag module

D5 B202

W/32

: Driver seat control unit

E4

B12

W/4

: Seat belt buckle switch LH

D4 B203

W/16

: Driver seat control unit

E5

B14

Y/2

: Front LH seat belt pre-tensioner

D3 B204

GR/5

: Sliding motor LH (with automatic drive
  positioner)

E4

B15

Y/2

: LH side air bag (satellite) sensor

E3

B205

W/4

: Reclining motor LH (with automatic drive
  positioner)

F4

B19

—

: Body ground

D4 B206

W/5

: Lifting motor (front) (with automatic drive
  positioner)

F3

B24

W/16

: Sonar control unit

D3 B207

GR/5

: Lifting motor (rear) (with automatic drive
  positioner)

E4

B37

W/16

: To B200 (with automatic drive positioner)

D4 B208

W/10

: Power seat switch LH (with automatic
  drive positioner)

C4 B38

Y/2

: LH side curtain air bag module

E4

B209

W/3

: Front seat heater LH

D5 B41

W/12

: To E35

F5

B211

W/2

: To B45

E4

B45

W/2

: To B211

E3

B212

B/2

: Sliding motor LH (without automatic drive
  positioner)

B3

B69

SMJ

: To M40

D4 B214

GR/2

: Lifting motor (front) (without automatic
  drive positioner)

D5 B72

W/4

: Subwoofer

E3

B215

GR/2

: Lifting motor (rear) (without automatic
  drive positioner)

F4

B73

B/2

: Rear door switch upper LH

D4 B216

W/10

: Power seat switch LH (without automatic
  drive positioner)

E4

B74

B/2

: Rear door switch lower LH

E3

B232

W/2

: Reclining motor LH (without automatic
  drive positioner)

C5 B75

BR/2

: To E50

F5

B211

W/2

: To B45

F3

B76

W/2

: Rear door speaker LH
