DOOR MIRROR

MIR-17

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

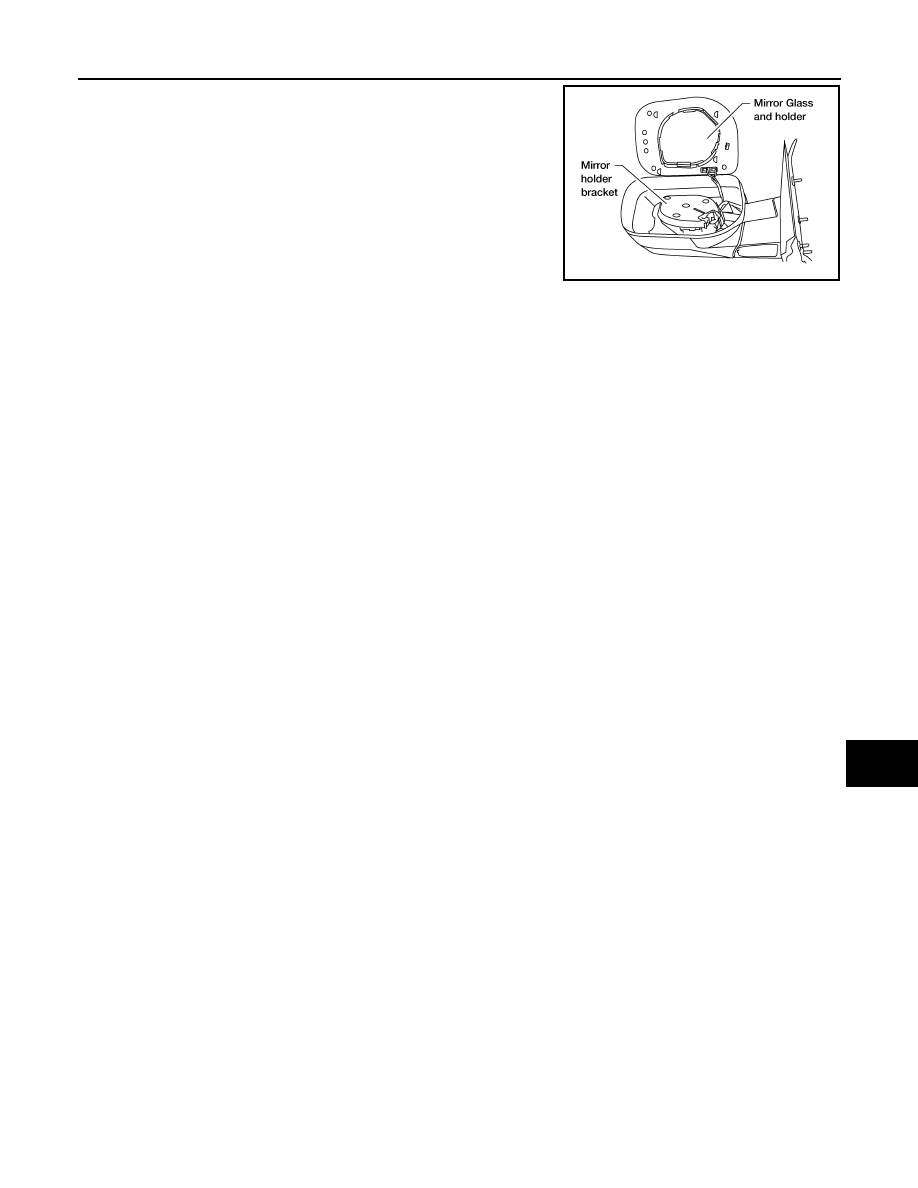

1. Set mirror holder bracket and mirror glass and holder in the hor-

izontal position.

2. Connect the two connectors to the back of the mirror holder.
3. Align mirror glass and holder with mirror holder bracket and

push mirror glass and holder onto mirror holder bracket.

4. Rotate mirror to ensure proper installation.

LIIA1592E

MIR-18

< UNIT DISASSEMBLY AND ASSEMBLY >

DOOR MIRROR

UNIT DISASSEMBLY AND ASSEMBLY

DOOR MIRROR

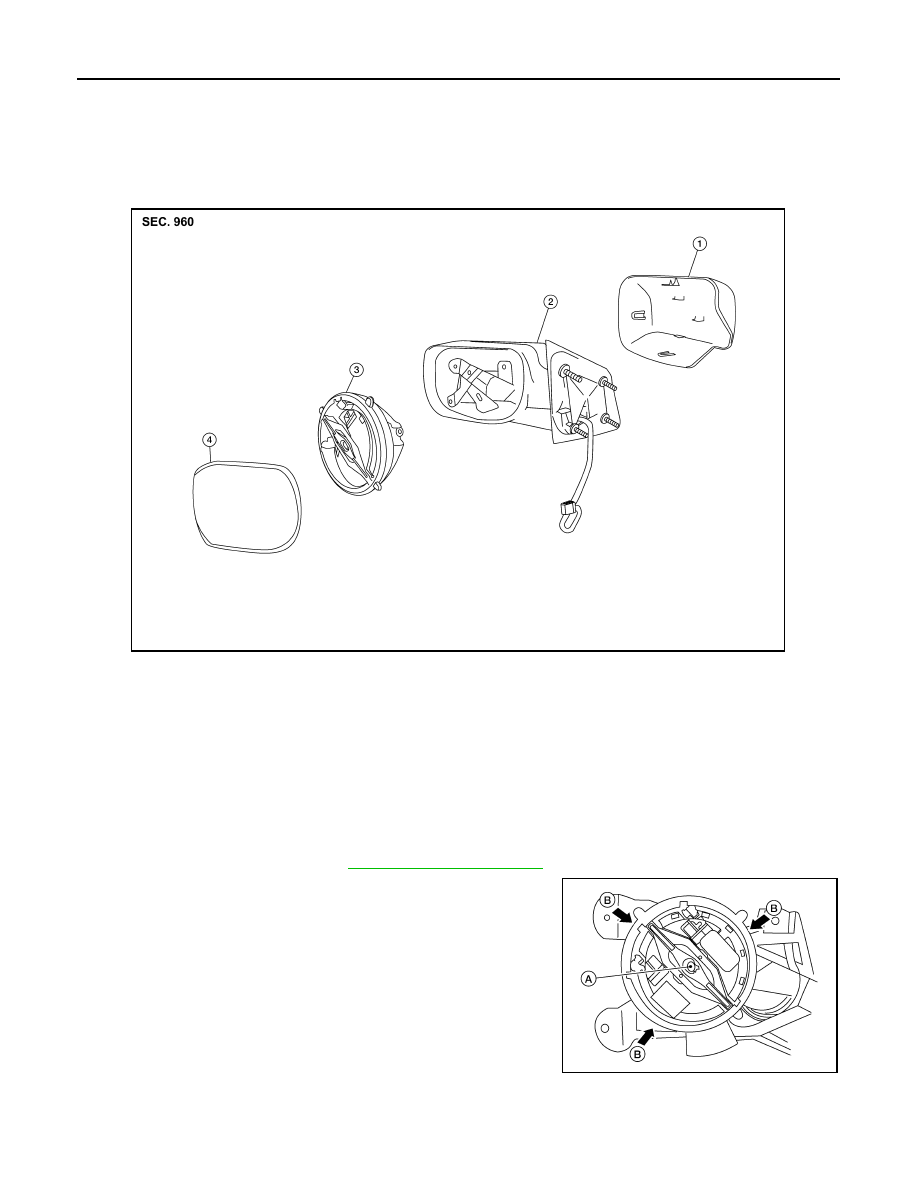

Exploded View

INFOID:0000000006179363

NOTE:

Standard mirror shown, trailer tow mirror similar.

Mirror Actuator

INFOID:0000000006179364

DISASSEMBLY AND ASSEMBLY

Disassembly

1. Remove the mirror glass. Refer to

MIR-16, "Door Mirror Glass"

.

2. Remove the center screw (A) and release the actuator hooks (B)

from housing.

1.

Door mirror cover

2.

Mirror housing assembly

3.

Mirror actuator

4.

Mirror glass

ALIIA0397ZZ

ALIIA0317GB

DOOR MIRROR

MIR-19

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

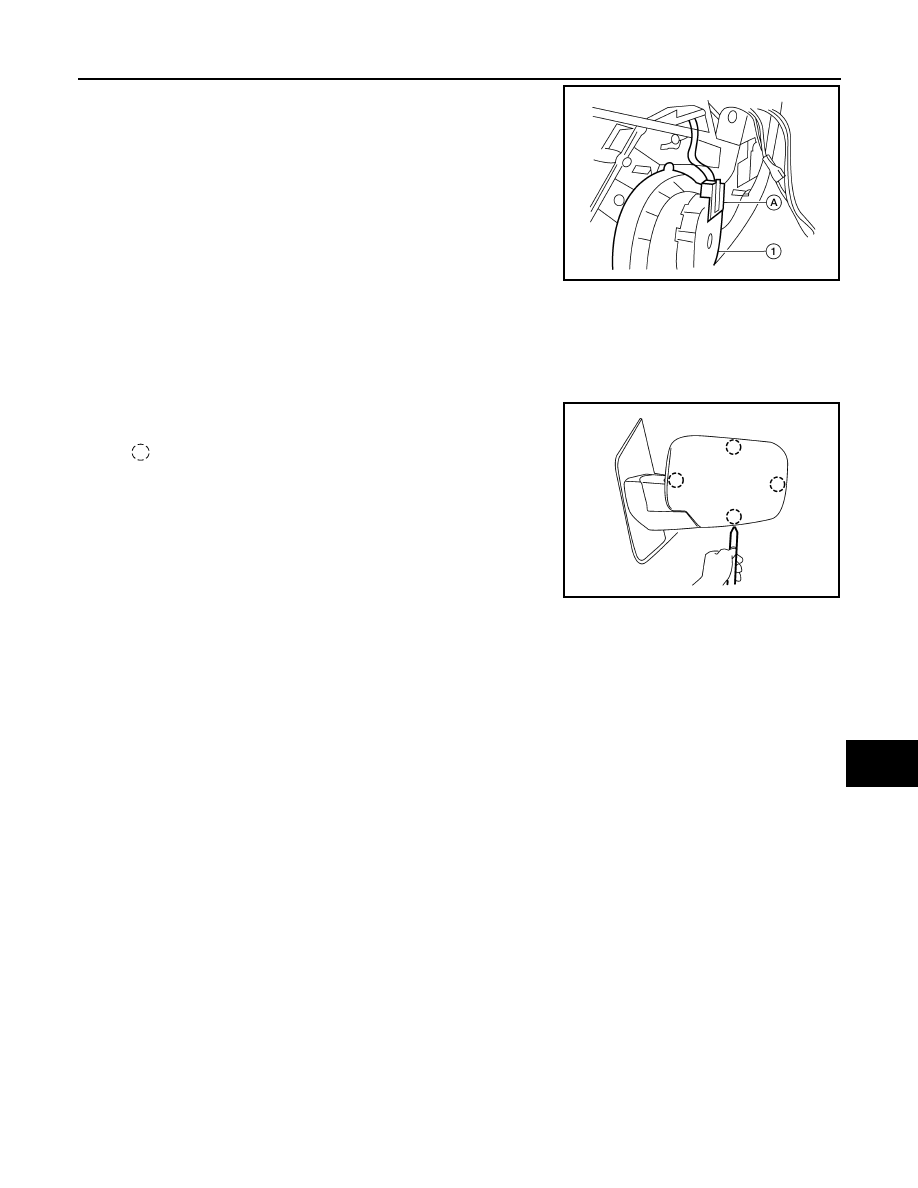

3. Disconnect the connector (A) and remove the actuator (1).

Assembly

Assembly is the reverse order of disassembly.

DOOR MIRROR COVER
DOOR MIRROR COVER : Disassembly

INFOID:0000000006179365

1. Using a suitable tool disengage the mirror cover pawls.

CAUTION:

Be careful not to damage the mirror or mirror cover with tool.

DOOR MIRROR COVER : Assembly

INFOID:0000000006179366

Installation is in the reverse order of removal.

CAUTION:

After installation, check that pawls are securely engaged.

ALIIA0318GB

Pawl

ALIIA0396ZZ

MWI

MWI-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

MWI

A

O

P

CONTENTS

METER, WARNING LAMP & INDICATOR

BASIC INSPECTION  ....................................

4

DIAGNOSIS AND REPAIR WORKFLOW  ..........

4

Work Flow  .................................................................

4

SYSTEM DESCRIPTION  ..............................

5

METER SYSTEM .................................................

5

METER SYSTEM .........................................................

5

METER SYSTEM : System Diagram ........................

5

METER SYSTEM : System Description ....................

5

METER SYSTEM : Arrangement of Combination
Meter .........................................................................

6

METER SYSTEM : Component Parts Location  ........

7

METER SYSTEM : Component Description  .............

7

SPEEDOMETER ..........................................................

8

SPEEDOMETER : System Diagram  .........................

8

SPEEDOMETER : System Description .....................

8

SPEEDOMETER : Component Parts Location  .........

9

SPEEDOMETER : Component Description  ..............

9

TACHOMETER ............................................................

9

TACHOMETER : System Diagram .........................

10

TACHOMETER : System Description .....................

10

TACHOMETER : Component Parts Location  .........

10

TACHOMETER : Component Description  ..............

11

ENGINE COOLANT TEMPERATURE GAUGE  ........

11

ENGINE COOLANT TEMPERATURE GAUGE :
System Diagram ......................................................

11

ENGINE COOLANT TEMPERATURE GAUGE :
System Description  .................................................

11

ENGINE COOLANT TEMPERATURE GAUGE :
Component Parts Location ......................................

11

ENGINE COOLANT TEMPERATURE GAUGE :
Component Description ...........................................

12

FUEL GAUGE ............................................................

12

FUEL GAUGE : System Diagram  ...........................

12

FUEL GAUGE : System Description  .......................

12

FUEL GAUGE : Component Parts Location  ...........

13

FUEL GAUGE : Component Description .................

13

ENGINE OIL PRESSURE GAUGE ............................

13

ENGINE OIL PRESSURE GAUGE : System Dia-
gram ........................................................................

14

ENGINE OIL PRESSURE GAUGE : System De-
scription ...................................................................

14

ENGINE OIL PRESSURE GAUGE : Component
Parts Location ..........................................................

14

ENGINE OIL PRESSURE GAUGE : Component
Description ...............................................................

15

A/T OIL TEMPERATURE GAUGE  ............................

15

A/T OIL TEMPERATURE GAUGE : System Dia-
gram ........................................................................

15

A/T OIL TEMPERATURE GAUGE : System De-
scription ...................................................................

15

A/T OIL TEMPERATURE GAUGE : Component
Parts Location ..........................................................

16

A/T OIL TEMPERATURE GAUGE : Component
Description ...............................................................

16

VOLTAGE GAUGE  ....................................................

16

VOLTAGE GAUGE : System Diagram  ....................

17

VOLTAGE GAUGE : System Description ................

17

VOLTAGE GAUGE : Component Parts Location ....

17

VOLTAGE GAUGE : Component Description  .........

18

ODO/TRIP METER .....................................................

18

ODO/TRIP METER : System Diagram  ....................

18

ODO/TRIP METER : System Description ................

18

ODO/TRIP METER : Component Parts Location ....

18

ODO/TRIP METER : Component Description  .........

19

SHIFT POSITION INDICATOR  ..................................

19

SHIFT POSITION INDICATOR : System Diagram ....

19

SHIFT POSITION INDICATOR : System Descrip-
tion ...........................................................................

19

SHIFT POSITION INDICATOR : Component
Parts Location ..........................................................

20

SHIFT POSITION INDICATOR : Component De-
scription ...................................................................

20
