PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000006179358

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

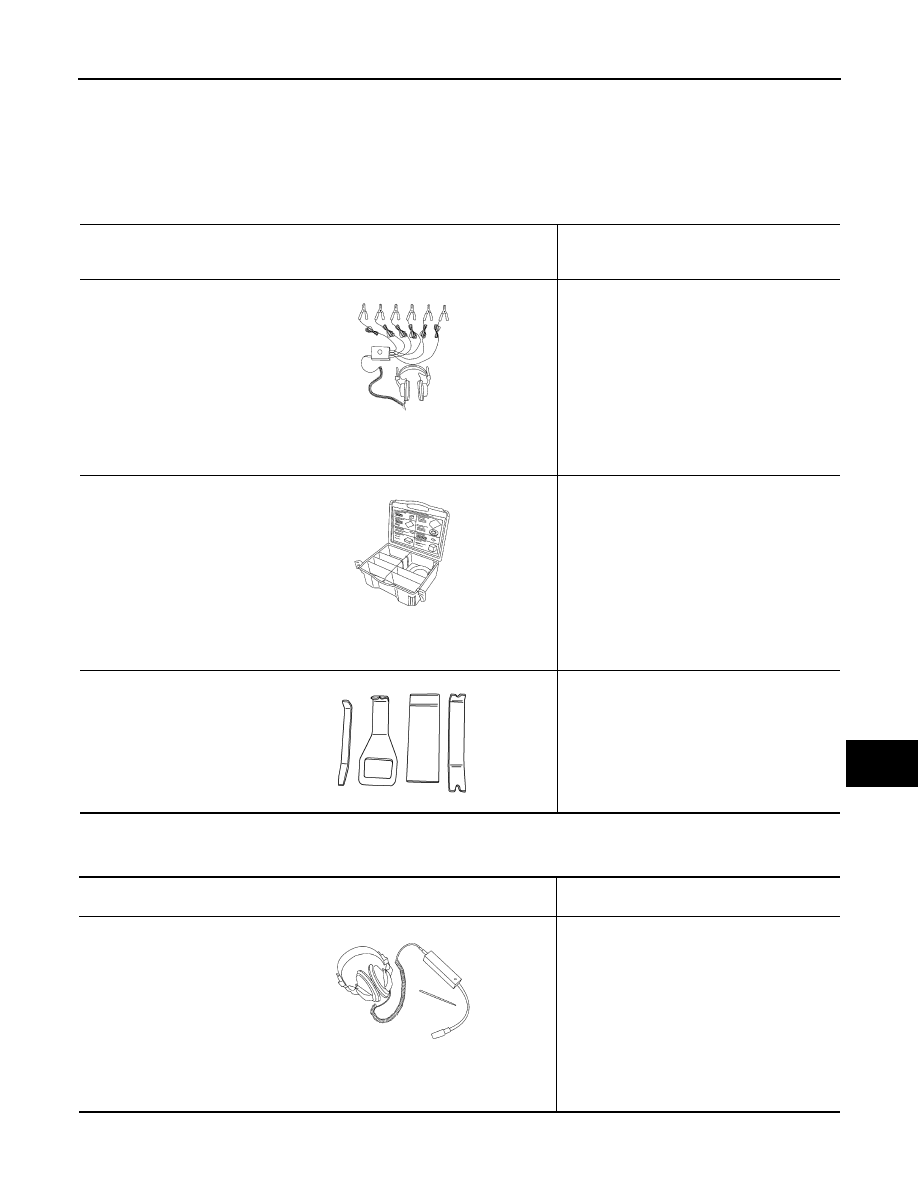

Commercial Service Tool

INFOID:0000000006179359

Tool number
(Kent-Moore No.)
Tool name

Description

—

( J-46534 )
Trim tool set

Locating the noise

—

(J-43980)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

—

(J-43980)
NISSAN Squeak and Rattle
Kit

For removing trim

SIIA0993E

SIIA0994E

AWJIA0483ZZ

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

SIIA0995E

MIR-14

< UNIT REMOVAL AND INSTALLATION >

INSIDE MIRROR

UNIT REMOVAL AND INSTALLATION

INSIDE MIRROR

Removal and Installation

INFOID:0000000006179360

1. Remove inside mirror screw and finisher.
2. Slide the mirror upward to remove.
3. Disconnect the connector.

Installation is in the reverse order of removal.

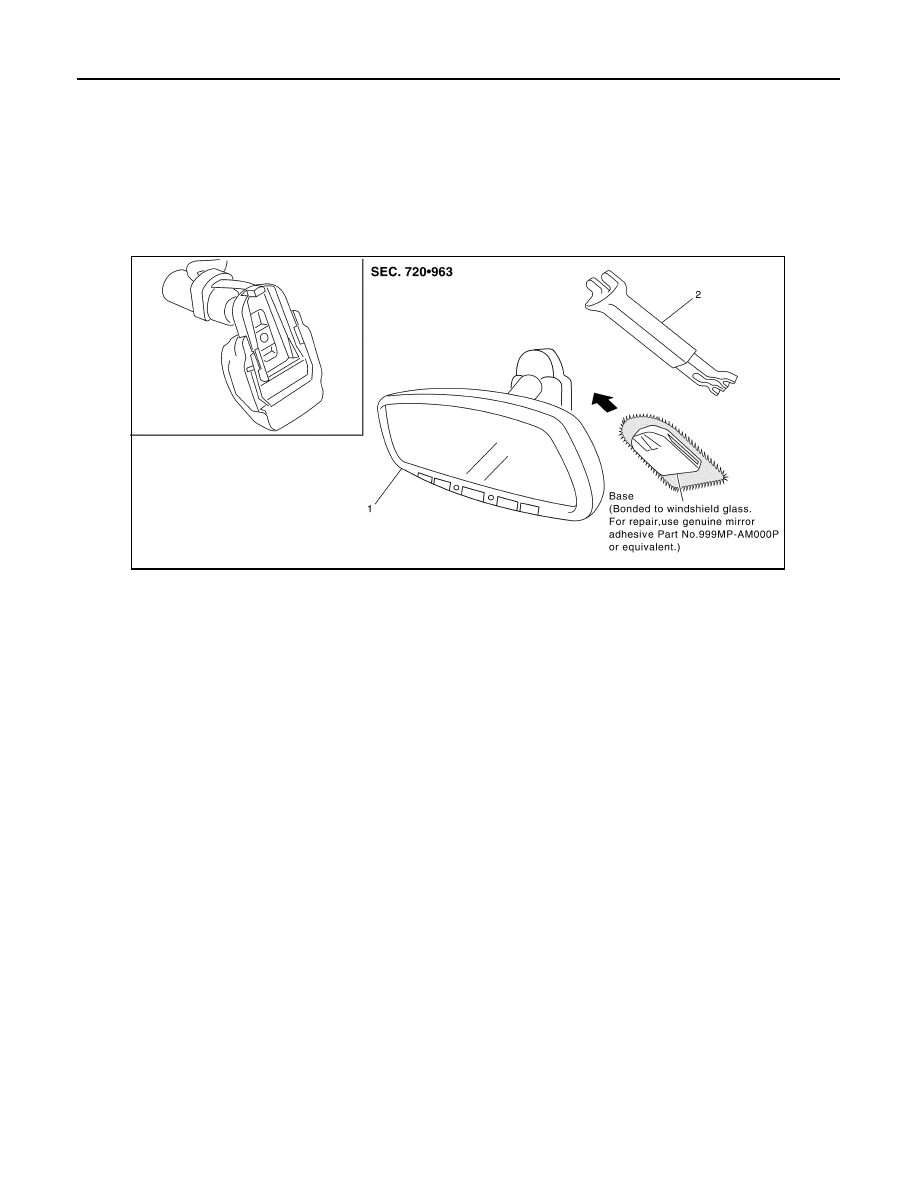

1.

Inside mirror

2.

Inside mirror finisher

LIIA0277E

DOOR MIRROR

MIR-15

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR

Door Mirror Assembly

INFOID:0000000006751651

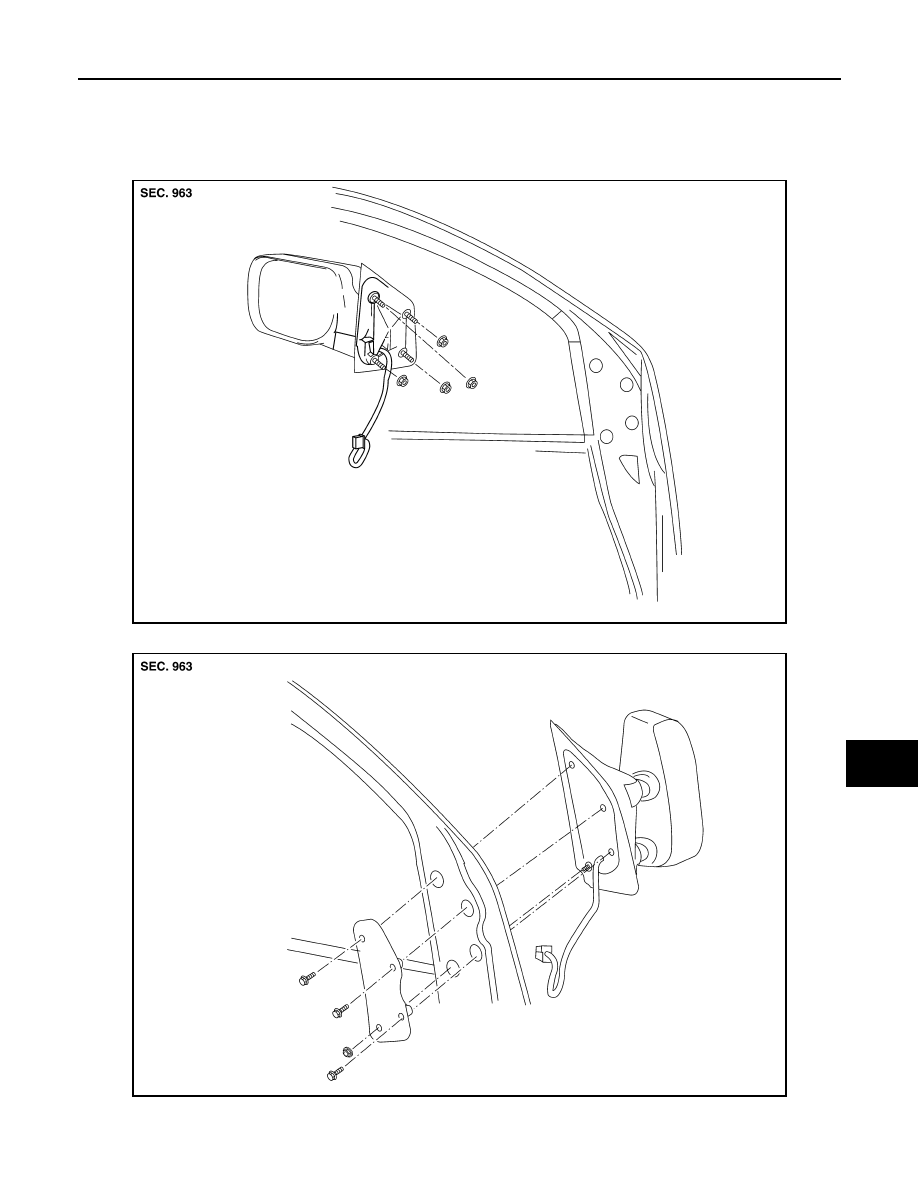

STANDARD MIRROR

TRAILER TOW MIRROR

Removal

WIIA0944E

WIIA0945E

MIR-16

< UNIT REMOVAL AND INSTALLATION >

DOOR MIRROR

CAUTION:

The spotter mirror is permanently mounted and non-serviceable. Any attempt at removal will cause

damage to the assembly.

Removal

1. Remove the front door sash cover. Refer to

INT-10, "Removal and Installation"

 .

2. Remove the door mirror connector.
3. Remove the door mirror bolts and nut, and remove the door mirror assembly.

Installation

Installation is in the reverse order of removal.

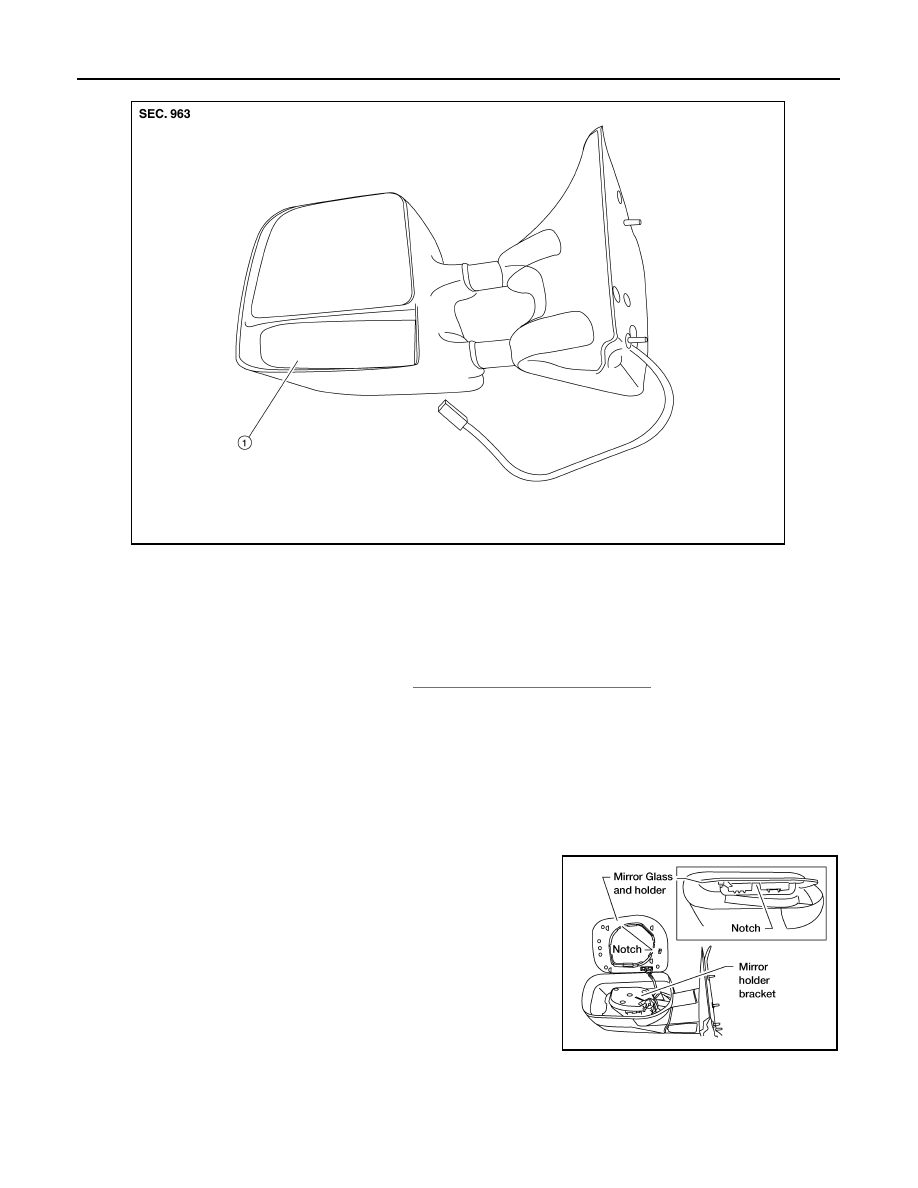

Door Mirror Glass

INFOID:0000000006751652

REMOVAL

1. Set mirror assembly mirror glass upward.
2. Apply protective tape to mirror housing.
3. Insert a suitable tool at notch and gently pry mirror glass and

holder from mirror holder bracket.

4. Disconnect two electrical connectors from mirror glass and

holder. If equipped.

INSTALLATION

1.

Spotter mirror (permanently mounted)

ALKIA1439GB

LIIA1591E
