CENTER CONSOLE

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

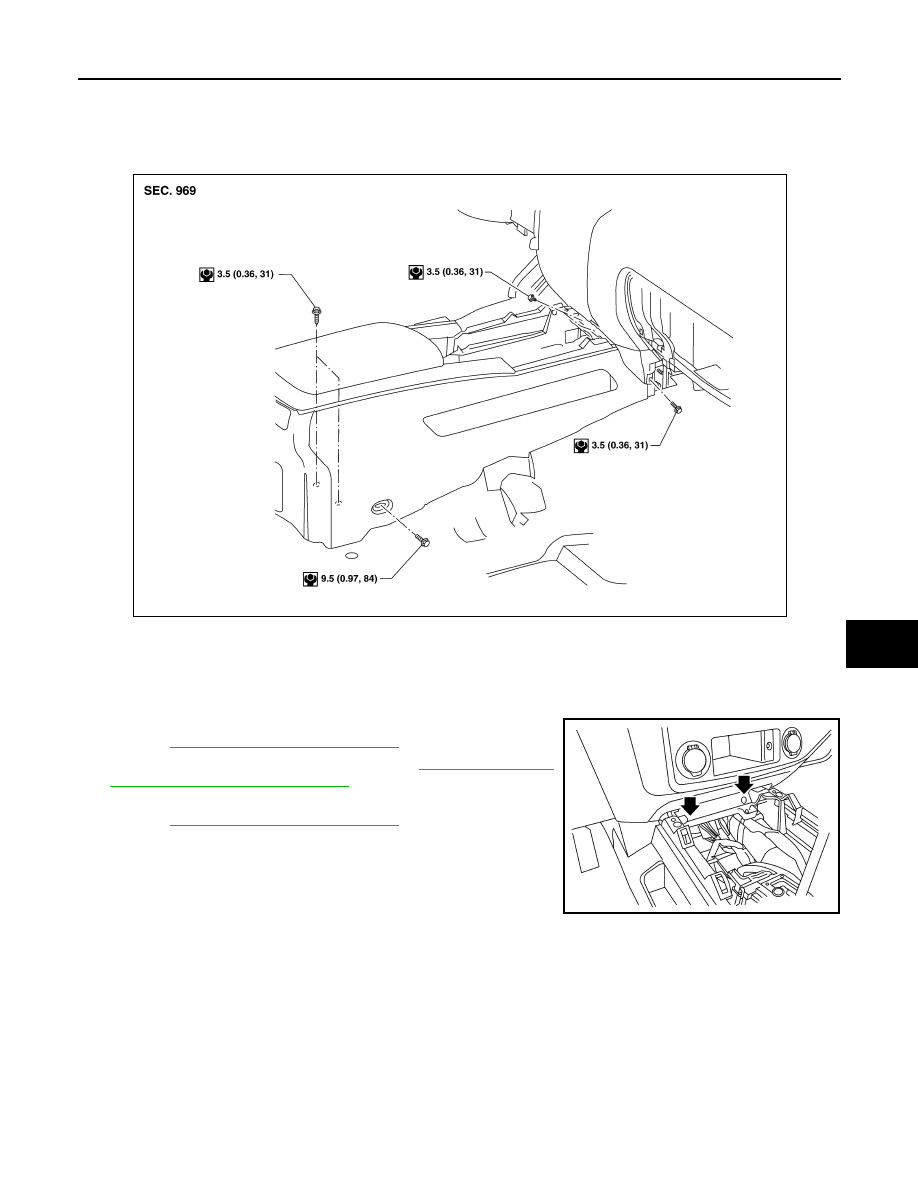

CENTER CONSOLE

Exploded View

INFOID:0000000006734955

Removal and Installation

INFOID:0000000006734958

REMOVAL

1. Move front seats forward.
2. Remove A/T finisher and front center console upper screws.

Refer to

IP-18, "Removal and Installation"

.

3. Remove shift selector assembly. Refer to

TM-185, "A/T Shift

Selector Removal and Installation"

.

4. Remove instrument lower panel RH and glove box assembly.

Refer to

IP-16, "Removal and Installation"

.

5. Remove center console lower cover RH/LH, then remove front

center console lower screws.

6. Open the console lid assembly and remove console bin mat,

then remove the rear inside screws.

7. Remove lower front center console screws at the rear.
8. Release front center console from floor and tilt to disconnect electrical connectors.
9. Carefully remove front center console assembly through rear door opening.

CAUTION:

Always use an assistant to steady the front center console assembly during removal from vehicle

interior.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA0081GB

ALJIA0084ZZ

IP-20

< UNIT DISASSEMBLY AND ASSEMBLY >

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

UNIT DISASSEMBLY AND ASSEMBLY

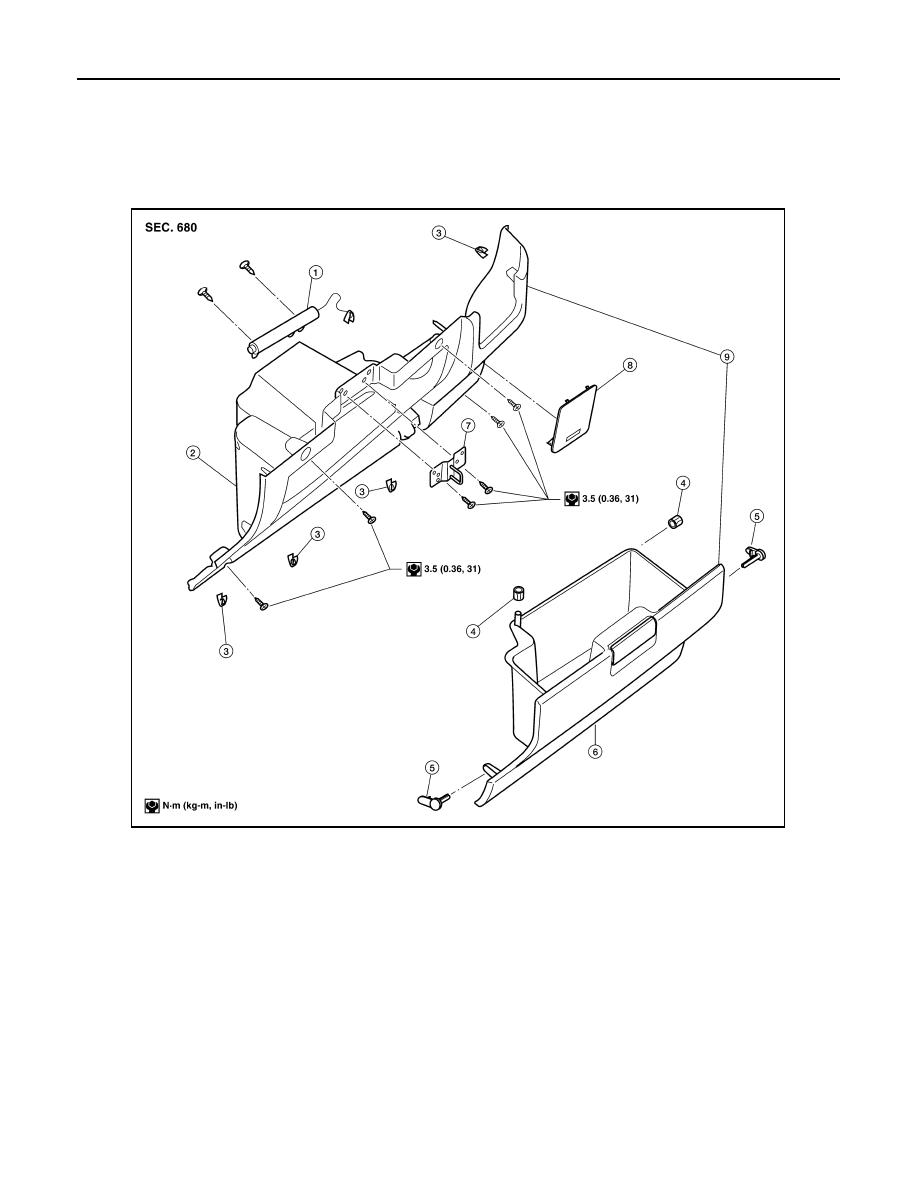

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

Exploded View

INFOID:0000000006161545

Disassembly and Assembly

INFOID:0000000006161546

DISASSEMBLY

1. Remove damper clip (if equipped) from glove box.
2. Remove glove box pins and glove box.
3. Remove glove box striker screws, using power tool and remove glove box striker.
4. Remove fuse block cover.
5. Remove glove box damper screws and remove glove box damper (if equipped).

ASSEMBLY

1.

Glove box damper (if equipped)

2.

Glove box housing

3.

Clips

4.

Rubber stoppers

5.

Glove box pins

6.

Glove box

7.

Glove box striker

8.

Fuse block cover

9.

Instrument lower panel RH and glove
box assembly

WIIA0301E

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

IP-21

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Assembly is in the reverse order of disassembly.

IP-22

< UNIT DISASSEMBLY AND ASSEMBLY >

CENTER CONSOLE ASSEMBLY

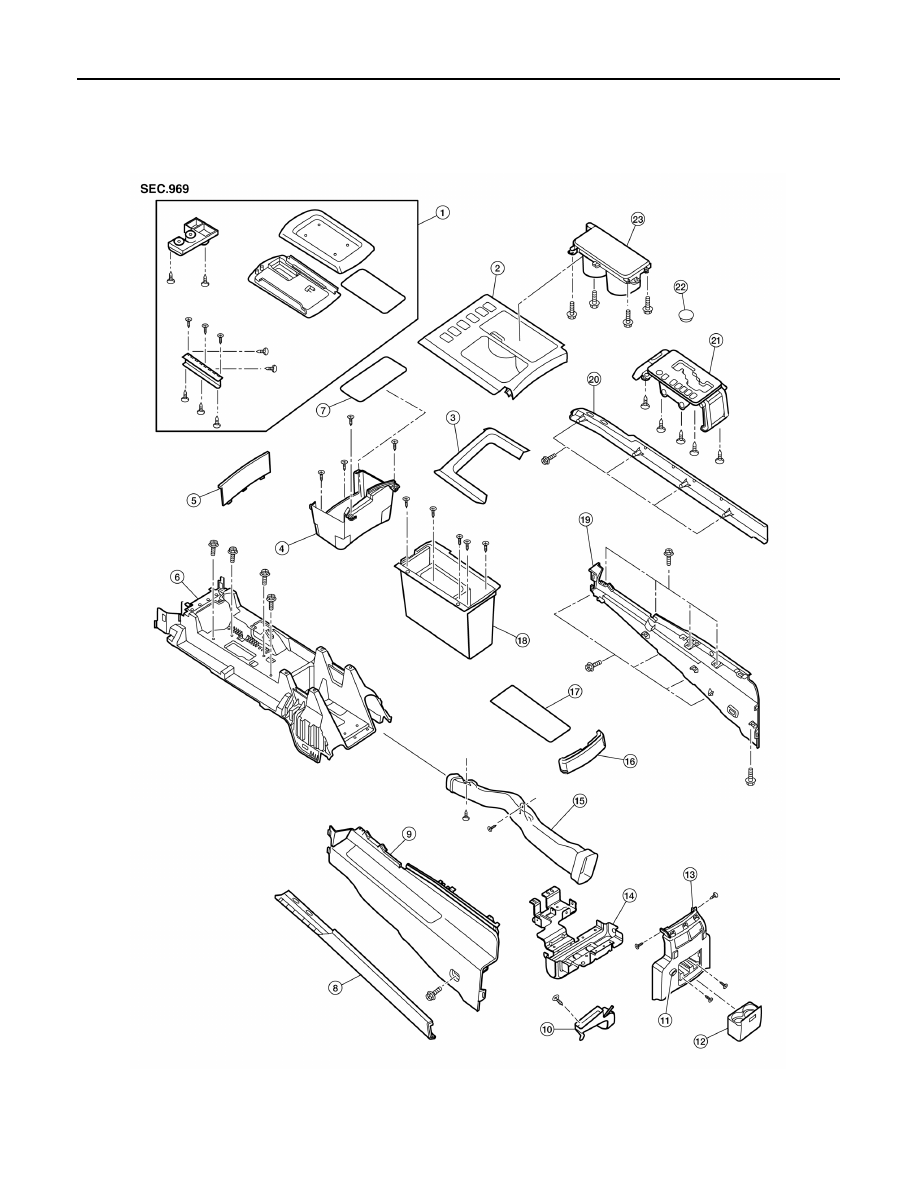

CENTER CONSOLE ASSEMBLY

Exploded View

INFOID:0000000006161547

1.

Console lid assembly

2.

A/T finisher

3.

Console upper finisher

4.

Storage compartment

5.

Storage compartment mask

6.

Console reinforcement assembly

7.

Storage compartment bin mat

8.

Lower side finisher LH

9.

Console cover LH

AWJIA0543ZZ
