Nissan Titan A60. Manual - part 676





CENTER CONSOLE ASSEMBLY

IP-23

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Disassembly and Assembly

INFOID:0000000006161548

DISASSEMBLY

1. Remove latch from console lid.
2. Remove console lid and lid hinge.
3. Remove console bin.
4. Disconnect electrical harness from DVD player (if equipped).
5. Remove rear upper finisher.
6. Remove rear cup holder insert.
7. Remove rear finisher assembly, tilt aside and disconnect electrical connectors.
8. Remove console power socket, then disconnect electrical connector.
9. Remove upper side finishers LH/RH.
10. Remove screws on each side, release clips and remove console covers LH/RH.
11. Remove mask and storage compartment.
12. Remove console front bracket.
13. Remove heat duct and console rear duct.
14. Remove console rear bracket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

10. Rear console duct

11. Console power socket

12. Rear cup holder assembly

13. Rear finisher assembly

14. Console rear bracket

15. Heat duct

16. Rear upper finisher

17. Console bin mat

18. Console bin

19. Console cover RH

20. Lower side finisher RH

21. Shift indicator

22. Mask

23. Cup holder insert

LAN

LAN-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

LAN

A

O

P

N

CONTENTS

LAN SYSTEM

CAN FUNDAMENTAL

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Trouble Diagnosis ..............................

3

Precaution for Harness Repair ..................................

3

SYSTEM DESCRIPTION  ..............................

4

CAN COMMUNICATION SYSTEM  .....................

4

System Description  ...................................................

4

System Diagram ........................................................

4

CAN Communication Control Circuit .........................

5

DIAG ON CAN .....................................................

6

Description ................................................................

6

System Diagram ........................................................

6

TROUBLE DIAGNOSIS  ......................................

7

Condition of Error Detection ......................................

7

Symptom When Error Occurs in CAN Communi-
cation System ..........................................................
..

7

Self-Diagnosis .........................................................

10

CAN Diagnostic Support Monitor  ............................

10

BASIC INSPECTION  ...................................

13

DIAGNOSIS AND REPAIR WORKFLOW  .........

13

Information Needed for Trouble Diagnosis  .............

13

How to Use CAN Communication Signal Chart  ......

13

Trouble Diagnosis Flow Chart .................................

14

Trouble Diagnosis Procedure ..................................

14

CAN

HOW TO USE THIS MANUAL .....................

36

HOW TO USE THIS SECTION ...........................

36

Caution ....................................................................

36

Abbreviation List ......................................................

36

PRECAUTION ..............................................

37

PRECAUTIONS .................................................

37

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

37

Precautions for Trouble Diagnosis  ..........................

37

Precautions for Harness Repair  ..............................

37

BASIC INSPECTION  ...................................

39

DIAGNOSIS AND REPAIR WORKFLOW  ........

39

Interview Sheet ........................................................

39

Data Sheet ...............................................................

39

Diagnosis Sheet (CAN Type 1)  ...............................

41

Diagnosis Sheet (CAN Type 2)  ...............................

42

Diagnosis Sheet (CAN Type 3)  ...............................

43

Diagnosis Sheet (CAN Type 4)  ...............................

44

Diagnosis Sheet (CAN Type 5)  ...............................

45

Diagnosis Sheet (CAN Type 6)  ...............................

46

Diagnosis Sheet (CAN Type 7)  ...............................

47

Diagnosis Sheet (CAN Type 8)  ...............................

48

Diagnosis Sheet (CAN Type 9)  ...............................

49

SYSTEM DESCRIPTION  .............................

50

CAN COMMUNICATION SYSTEM ...................

50

CAN System Specification Chart .............................

50

CAN Communication Signal Chart  ..........................

51

TROUBLE DIAGNOSIS  ....................................

54

CAN Diagnostic Support Monitor .............................

54

DTC Index  ...............................................................

59

WIRING DIAGRAM ......................................

60

CAN SYSTEM  ...................................................

60

Wiring Diagram ........................................................

60

DTC/CIRCUIT DIAGNOSIS  .........................

67

CAN COMMUNICATION SYSTEM ...................

67

Component Parts Location  ......................................

67

LAN-2

MALFUNCTION AREA CHART  ........................

68

Main Line  ................................................................

68

Branch Line  ............................................................

68

Short Circuit ............................................................

68

MAIN LINE BETWEEN TCM AND DLC CIR-
CUIT ...................................................................

69

Diagnosis Procedure  ..............................................

69

MAIN LINE BETWEEN TCM AND DIFF CIR-
CUIT ...................................................................

71

Diagnosis Procedure  ..............................................

71

MAIN LINE BETWEEN TCM AND ADP CIR-
CUIT ...................................................................

73

Diagnosis Procedure  ..............................................

73

MAIN LINE BETWEEN DIFF AND DLC CIR-
CUIT ...................................................................

75

Diagnosis Procedure  ..............................................

75

MAIN LINE BETWEEN DIFF AND ADP CIR-
CUIT ...................................................................

76

Diagnosis Procedure  ..............................................

76

MAIN LINE BETWEEN ADP AND DLC CIR-
CUIT ...................................................................

77

Diagnosis Procedure  ..............................................

77

MAIN LINE BETWEEN ADP AND DISP CIR-
CUIT ...................................................................

78

Diagnosis Procedure  ..............................................

78

MAIN LINE BETWEEN DISP AND DLC CIR-
CUIT ...................................................................

79

Diagnosis Procedure  ..............................................

79

MAIN LINE BETWEEN DLC AND M&A CIR-
CUIT ...................................................................

80

Diagnosis Procedure  ..............................................

80

MAIN LINE BETWEEN M&A AND ABS CIR-
CUIT ...................................................................

81

Diagnosis Procedure  ..............................................

81

MAIN LINE BETWEEN M&A AND 4WD CIR-
CUIT ...................................................................

82

Diagnosis Procedure ...............................................

82

MAIN LINE BETWEEN 4WD AND ABS CIR-
CUIT ...................................................................

83

Diagnosis Procedure ...............................................

83

ECM BRANCH LINE CIRCUIT ..........................

84

Diagnosis Procedure ...............................................

84

TCM BRANCH LINE CIRCUIT  ..........................

85

Diagnosis Procedure ...............................................

85

DIFF BRANCH LINE CIRCUIT ..........................

86

Diagnosis Procedure ...............................................

86

ADP BRANCH LINE CIRCUIT  ..........................

87

Diagnosis Procedure ...............................................

87

DISP BRANCH LINE CIRCUIT  .........................

88

Diagnosis Procedure ...............................................

88

BCM BRANCH LINE CIRCUIT ..........................

89

Diagnosis Procedure ...............................................

89

DLC BRANCH LINE CIRCUIT  ..........................

90

Diagnosis Procedure ...............................................

90

HVAC BRANCH LINE CIRCUIT ........................

91

Diagnosis Procedure ...............................................

91

M&A BRANCH LINE CIRCUIT ..........................

92

Diagnosis Procedure ...............................................

92

STRG BRANCH LINE CIRCUIT ........................

93

Diagnosis Procedure ...............................................

93

4WD BRANCH LINE CIRCUIT ..........................

94

Diagnosis Procedure ...............................................

94

ABS BRANCH LINE CIRCUIT  ..........................

95

Diagnosis Procedure ...............................................

95

IPDM-E BRANCH LINE CIRCUIT  .....................

96

Diagnosis Procedure ...............................................

96

CAN COMMUNICATION CIRCUIT  ...................

97

Diagnosis Procedure ...............................................

97

LAN

PRECAUTIONS

LAN-3

< PRECAUTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Trouble Diagnosis

INFOID:0000000006179094

CAUTION:

• Never apply 7.0 V or more to the measurement terminal.

• Use a tester with open terminal voltage of 7.0 V or less.

• Turn the ignition switch OFF and disconnect the battery cable from the negative terminal when

checking the harness.

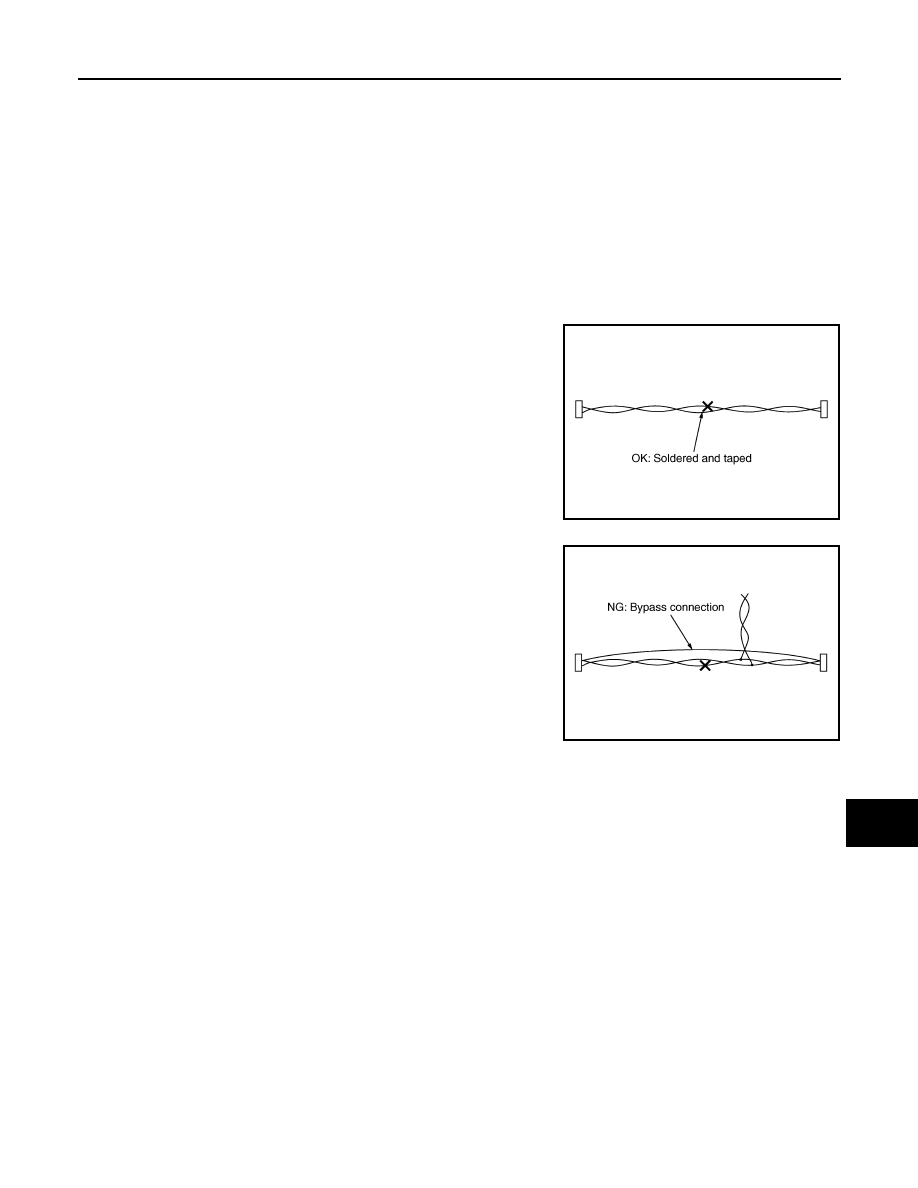

Precaution for Harness Repair

INFOID:0000000006179095

• Solder the repaired area and wrap tape around the soldered area.

NOTE:

A fray of twisted lines must be within 110 mm (4.33 in).

• Bypass connection is never allowed at the repaired area.

NOTE:

Bypass connection may cause CAN communication error. The

spliced wire becomes separated and the characteristics of twisted

line are lost.

• Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communica-

tion line.

SKIB8766E

SKIB8767E
