INSTRUMENT PANEL ASSEMBLY

IP-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

REMOVAL AND INSTALLATION

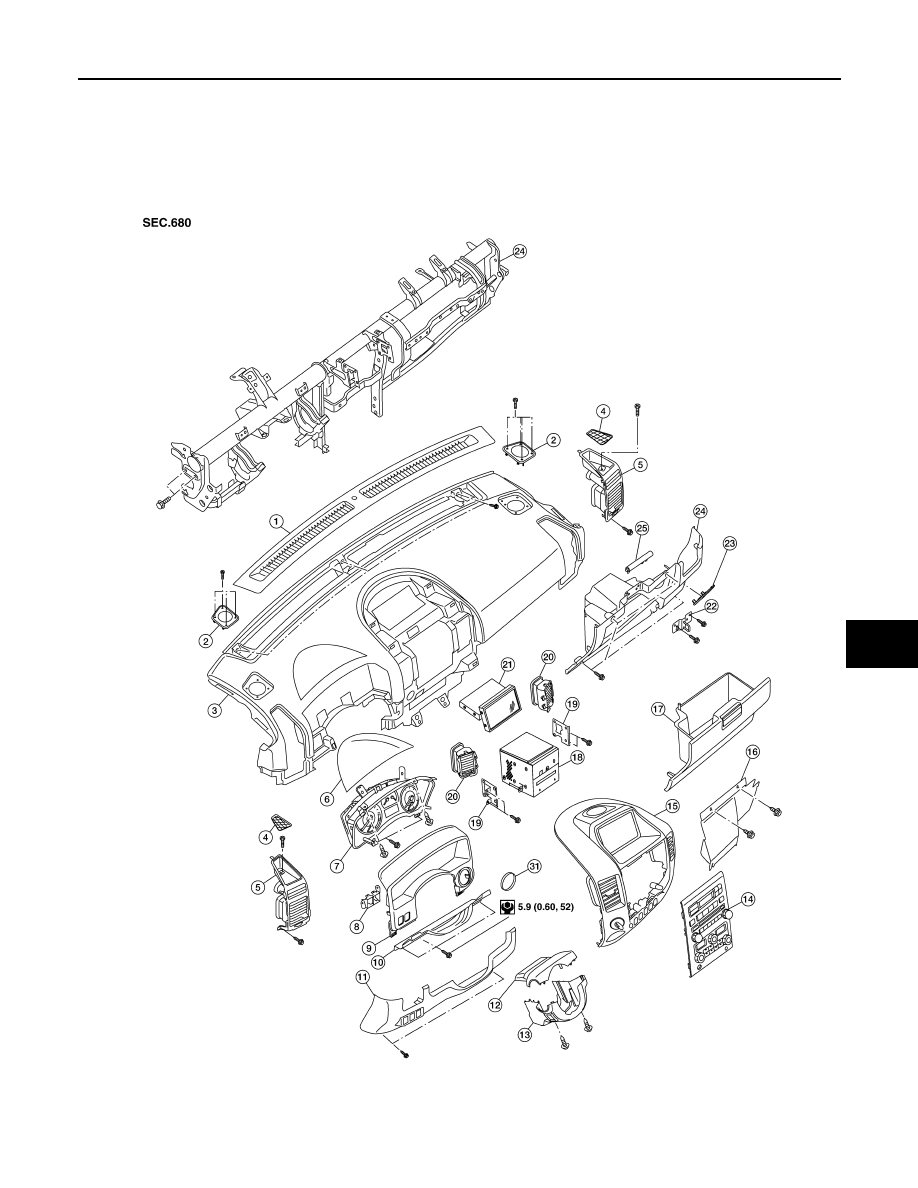

INSTRUMENT PANEL ASSEMBLY

Exploded View

INFOID:0000000006161533

AWJIA0474GB

IP-12

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

Removal and Installation

INFOID:0000000006161534

REMOVAL

CAUTION:

Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals and wait at

least three minutes.
1. Disconnect both the negative and positive battery terminals, then wait at least three minutes.
2. Remove the center console. Refer to

IP-19, "Removal and Installation"

.

3. Remove instrument lower cover LH. Refer to

IP-17, "Removal and Installation"

.

4. Remove the steering column. Refer to

ST-12, "Removal and Installation"

.

5. Remove the combination meter. Refer to

MWI-93, "Removal and Installation"

.

6. Remove audio unit. Refer to

AV-34, "Removal and Installation"

.

7. Remove display unit (if equipped). Refer to

AV-327, "Removal and Installation"

.

8. Remove lower knee protector.
9. Remove defroster grille and disconnect the optical sensor harness.
10. Remove side ventilator assembly LH.
11. Remove the LH assist grip and windshield garnish.
12. Remove side ventilator assembly RH.
13. Remove the RH assist grip and windshield garnish.
14. Remove the passenger air bag module. Refer to

SR-8, "Removal and Installation"

.

15. Remove instrument panel and pad assembly.
16. Disconnect remaining instrument panel assembly electrical connectors.

INSTALLATION

Installation is in the reverse order of removal.

1.

Defroster grille

2.

Speaker grille RH/LH

3.

Instrument panel and pad assembly

4.

Deck pocket mat RH/LH

5.

Side ventilator assembly RH/LH

6.

Combination meter cover

7.

Combination meter

8.

Switch assembly

9.

Cluster lid A

10. Lower knee protector

11.

Lower instrument panel LH

12. Steering column cover upper

13. Steering column cover lower

14.

Clluster lid D

15. Cluster lid C

16. Instrument lower cover RH

17.

Glove box

18. Audio unit

19. Audio bracket RH/LH

20.

Center ventilator assembly RH/LH

21. Display assembly (if equipped)

22. Glove box lid striker

23.

Fuse block cover

24. Lower instrument panel RH

25. Glove box damper (if equipped)

26.

Steering member

CLUSTER LID A

IP-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

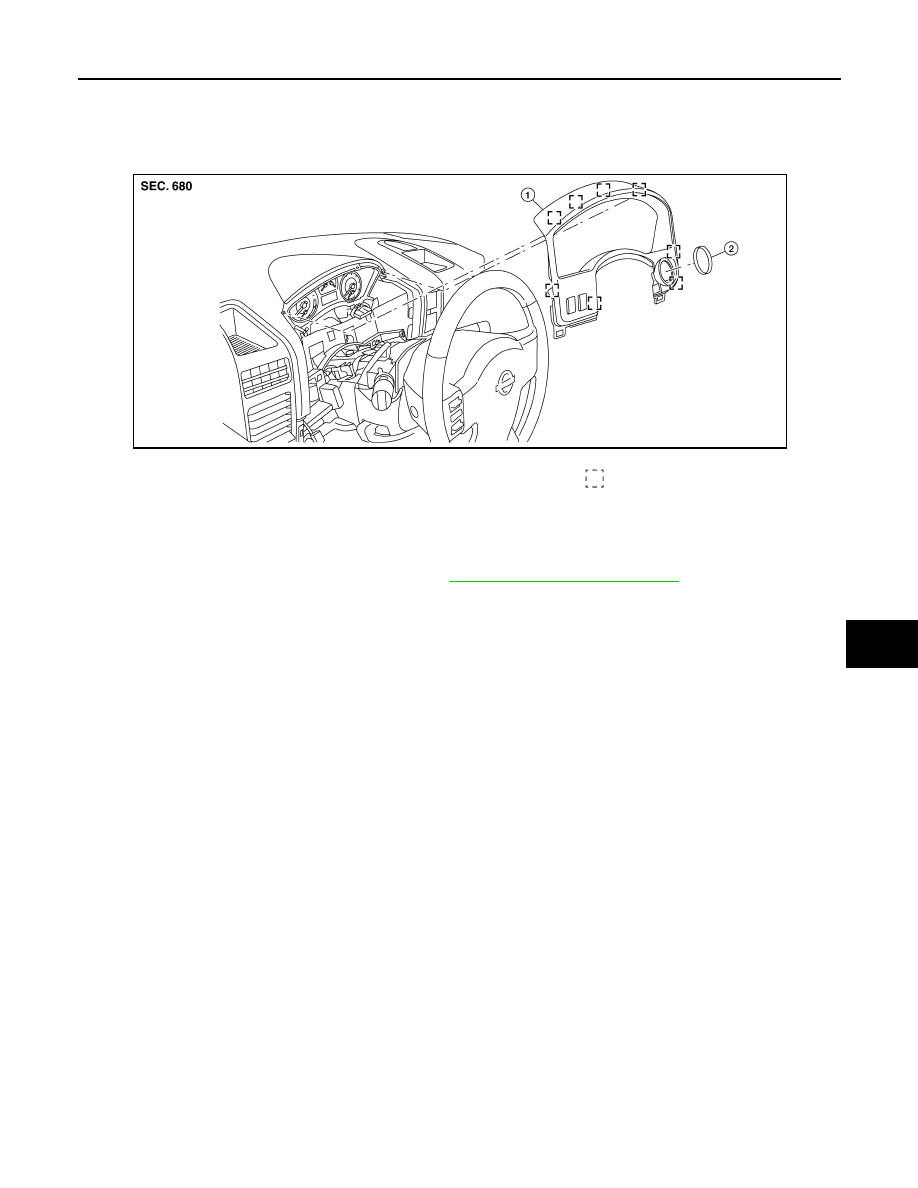

CLUSTER LID A

Exploded View

INFOID:0000000006161535

Removal and Installation

INFOID:0000000006161536

REMOVAL

1. Remove the lower instrument panel LH. Refer to

IP-17, "Removal and Installation"

.

2. Tilt the steering wheel to the lowest position, then remove steering column cover upper.
3. Remove ignition switch escutcheon.
4. Pull cluster lid A rearward in vehicle to release the clips.
5. Disconnect the electrical connector(s), then remove cluster lid A.

INSTALLATION

Installation is in the reverse order of removal.

1.

Cluster lid A

2.

Ignition switch escutcheon

Metal Clip

AWJIA0374ZZ

IP-14

< REMOVAL AND INSTALLATION >

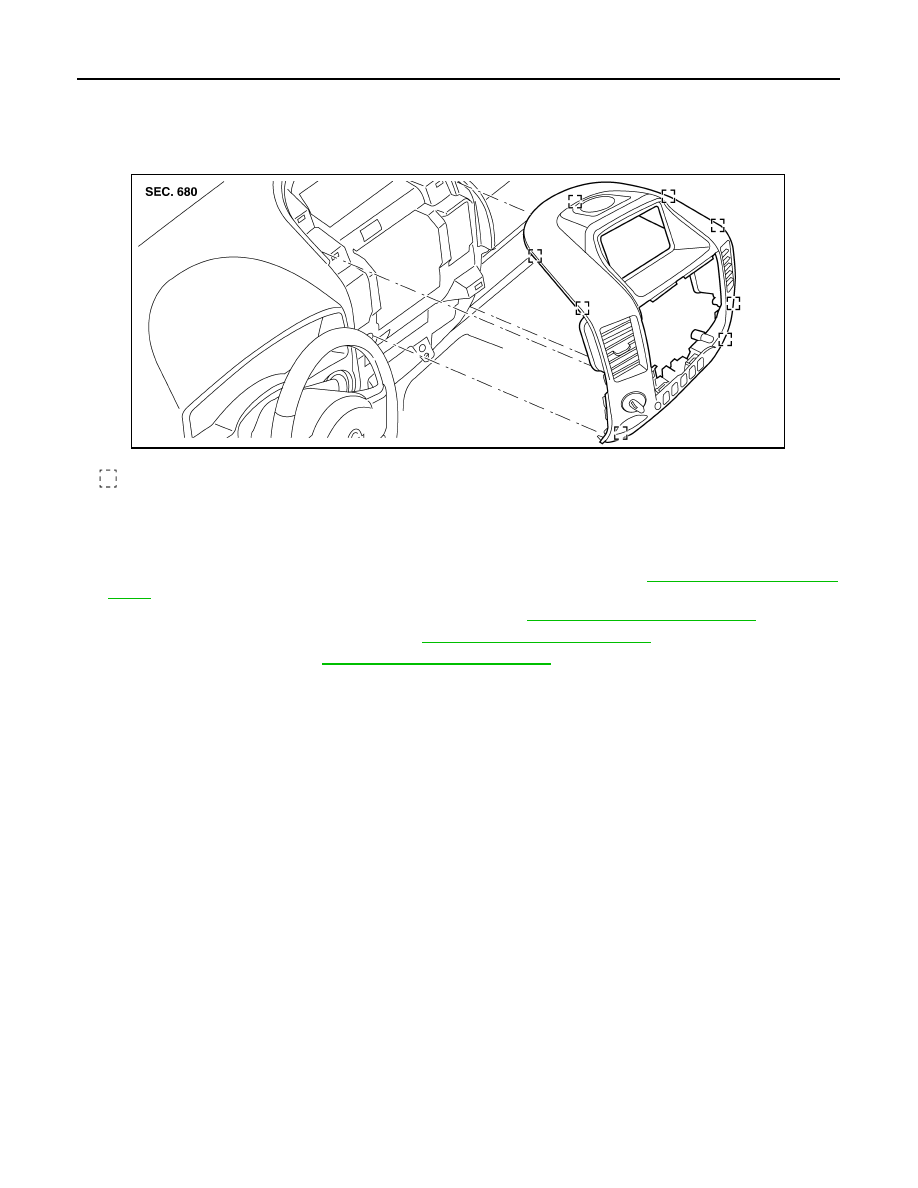

CLUSTER LID C

CLUSTER LID C

Exploded View

INFOID:0000000006161537

Removal and Installation

INFOID:0000000006161538

REMOVAL

1. Remove center console upper finisher and A/T finisher (if equipped). Refer to

IP-18, "Removal and Instal-

lation"

.

2. Remove instrument lower panel RH and glove box. Refer to

IP-16, "Removal and Installation"

.

3. Remove lower instrument panel LH. Refer to

IP-17, "Removal and Installation"

.

4. Remove cluster lid D. Refer to

IP-15, "Removal and Installation"

.

5. Disconnect the electrical connector(s), then remove cluster lid C.
6. Pull cluster lid C rearward in vehicle to release the clips.

INSTALLATION

Installation is in the reverse order of removal.

Metal clip

ALJIA0102ZZ
